APEX Family Software Update - 5.630

CURRENT VERSION - 5.630

RELEASED DATE - December 02, 2025

IMPORTANT INSTALLATION NOTICE

Before installing software version 5.630, please ensure that your unit is already running version 5.060 or higher.

• If your current software version is 5.060 or greater, you may proceed directly with the 5.630 update.
• If your current version is below 5.060, you must install version 5.060 first before updating to 5.630.

A link to download version 5.060 is provided below.

Affected Models:

(411470-1) APEX 13 MSI+ CHARTPLOTTER
(411470-1CHO) - APEX 13 MSI+ CHARTPLOTTER CHO

(411500-1) APEX 16 MSI+ CHARTPLOTTER
(411500-1CHO) - APEX 16 MSI+ CHARTPLOTTER CHO

(411240-1) APEX 19 MSI+ CHARTPLOTTER
(411240-1CHO) - APEX 19 MSI+ CHARTPLOTTER CHO

JUMP TO: 5.630 General Update Notes | New and Updated Features Introduced with Version 5.340 | Important Notes and Prerequisites | Software Update

5.630 General Update Notes

The overall performance and functionality of APEX units has been improved.

CHART/NAVIGATION

• Resolved an issue with chart card type selection after a reboot.
• Improved the display of the Current Track line on the chart view.
• Resolved an issue with the Current Track causing the Chart View to display a blank screen.
• Enhanced the functionality of clearing the Current Track line.
• Refined Follow the Contour/Shoreline behavior while using SpotLock.

WAYPOINT, ROUTES, and TRACK MANAGEMENT

• Improved the accessibility of the SpotLock and iTrack Nav Tool lists.
• Addressed issues and introduced functional enhancements for transferring waypoints and groups between the fishfinder and the One Boat Network phone app.

MEGA Live

• Optimized the Maximize and Normalize functions for MEGA Live 2 split screen view.
• Enhanced performance of MEGA Live 2 recording playback.

SONAR 2D | DI | SI

• Resolved screen clearing issues in SI view.
• Enhanced auto detection of digital depth sources.
• Fixed touch screen panning in 2D Sonar for smoother interaction.
• Improved detection and compatibility with Airmar xID transducers.
• Adjusted sensitivity settings for the XI 14 HW transducer for better performance.
• Enhanced the playback functionality of the sonar recording tool.

SYSTEM

• Corrected standby mode behavior when double-pressing the power button.
• Improved functionality of the “Power Off All Units” feature.
• Enhanced notifications when networking units with different software versions.
• Resolved Bluetooth connectivity issues when renaming your fishfinder.
• Improved loading and stability of the DOMETIC tool.
• Enhanced compatibility with the SeaKeeper Ride tool.
• Improved functionality of the ShadowCaster lighting tool.
• Refined Ice Mode menu options for better usability.

New and Updated Features Introduced with Version 5.340

The following is included with the 5.630 update

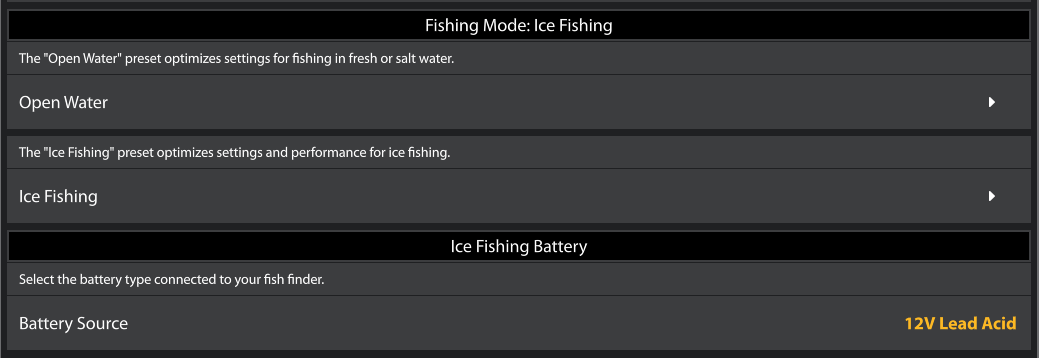

New Ice Features

Ice and Open Water Modes have been added to the APEX series. These modes quickly set unit defaults for ice fishing or fishing from a boat. In Ice Mode, the default icons and colors, GPS location indicator (boat icon), battery/voltage, and several other items have been updated to optimize the unit for ice fishing.

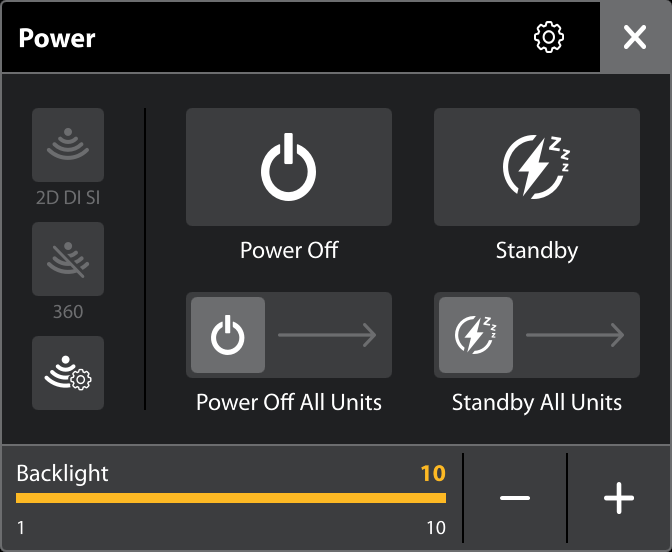

New Power Menu

The Power Menu has been redesigned for improved usability and functionality. This new design provides quick access to several controls, including, backlight adjustment, sonar pinging on/off, and shortcut to sonar configuration settings.

New features have also been added:

• Power off all connected units
• Put all units into standby mode
• Temporarily disable the touchscreen (in the power menu settings)
• New automatic option for Night Mode (in the power menu options). This adjust backgrounds of the chart and sonar in addition to adjusting the backlight to a preset value.

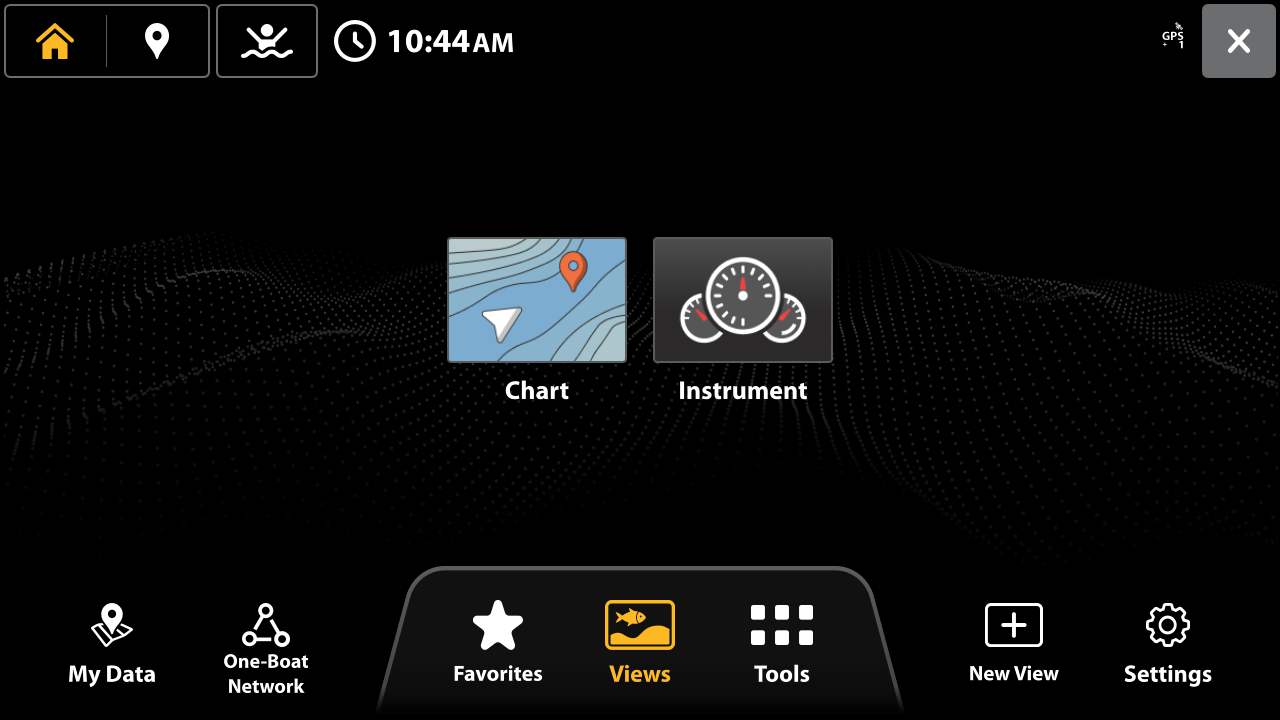

Home Screen

The Home Screen has been improved to only show views that are functional by default until relevant accessories are connected. For example, sonar views will not appear until sonar is detected as connected locally or an option remotely over the network.

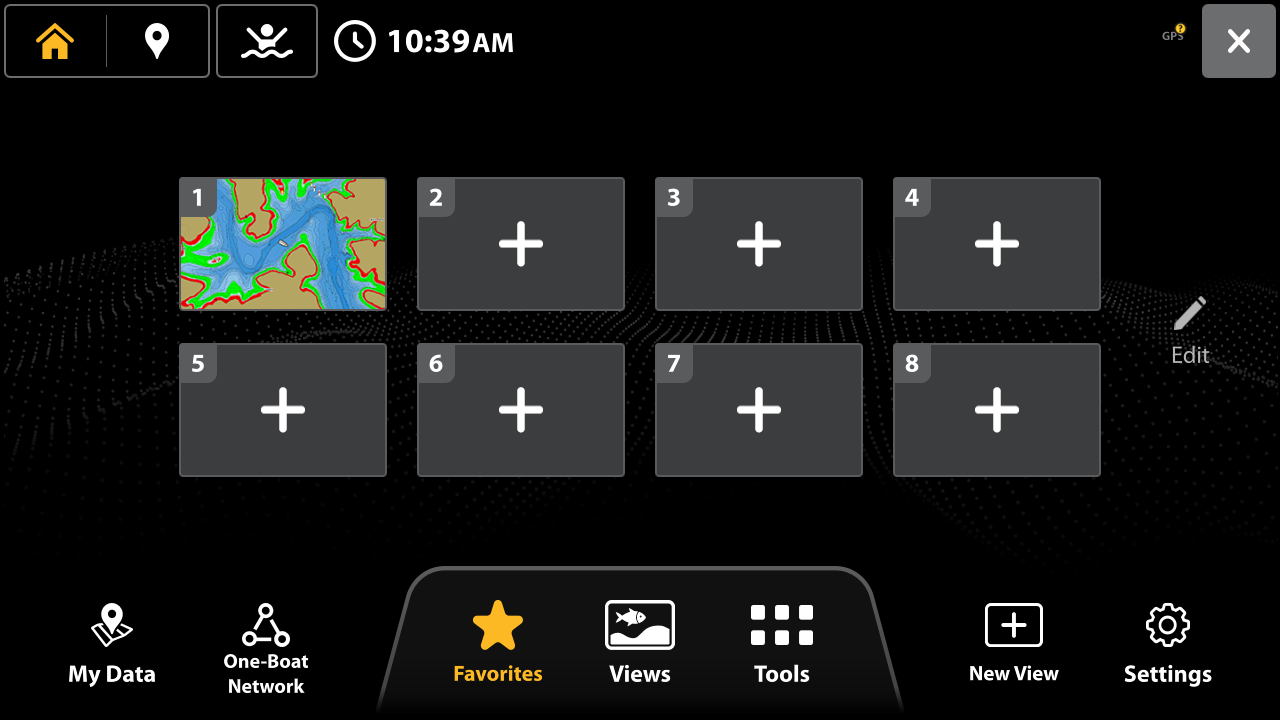

Favorites Setup

A short cut for setup and editing of Mark Waypoints Favorites options has been added to the My Data tool on the Home Screen.

Improved MEGA Live 2 Zoom

The touch and cursor zoom feature on MEGA Live 2 views have been improved.

See a demonstration of the MEGA Live 2 Zoom feature in the video linked here

Fusion/Audio Tool Improvements

• Both the Fusion and Audio Tools and Sidebars have been refreshed with update UI.

My Data Tool Scroll Bar “Jump List”

• This new feature allows for quicker navigation of Waypoint, Route, and Track lists inside the My Data tool.

Proximity Search (“Find Nearest”) from the Chart Info Menu

• Added for easy access when needed.

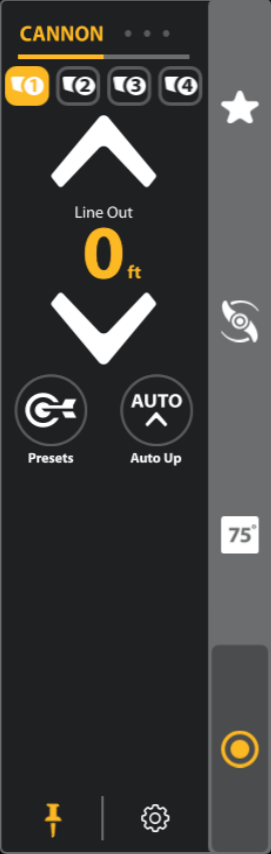

Cannon Optimum Connectivity and Sidebar Support

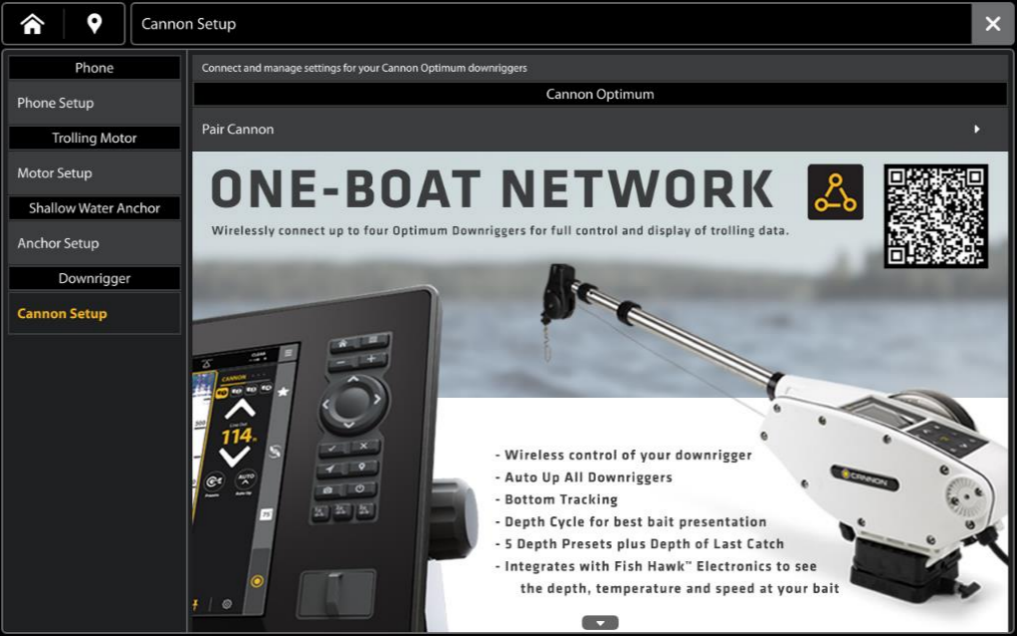

• New Feature Update: Enhanced Cannon Optimum Downrigger Integration
  • Users can now seamlessly pair, connect, and control Cannon Optimum downriggers directly from the One Boat Network tool. This integration allows full access to all Optimum settings, streamlining the setup and control process.

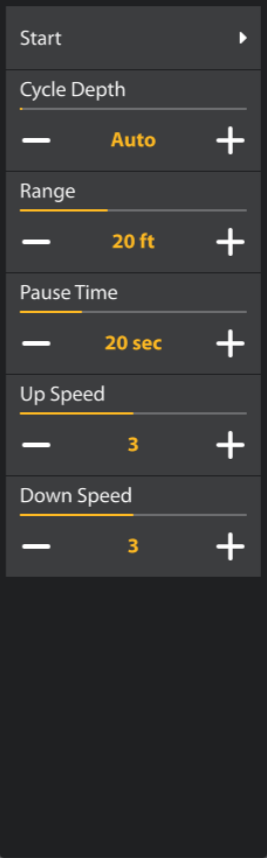

• Modernized Controls
  • The control interface has been redesigned for improved accessibility and responsiveness. Controls are now easier to reach via the Side Bar, and they dynamically scale based on the Humminbird control head screen size, ensuring a consistent and intuitive user experience across devices.
• Expanded Compatibility
  • The Cannon Optimum Sidebar is now fully compatible with the latest version of the FishHawk remote depth probe, offering enhanced functionality for anglers seeking precision and performance.

Important Notes and Prerequisites

Before you proceed! Software version 5.060 MUST be installed prior to 5.630. Please check your unit's current software. A link to version 5.060 will be provided below.

Important 5.060 Update Information

NOTICE! Keep the unit powered on until the update is complete to avoid instability or data loss.

• After version 5.060 and later software, SOLIX G3 and APEX cannot be used with SOLIX G1, G2, HELIX, or Legacy models on the same One Boat Network.
• Support for AS 360 SSI, TM, and TM UL is removed; MEGA 360 products are unaffected.
• Ensure the following accessory software versions (or newer) are installed for compatibility with version 5.630. These accessory updates are also included in the 5.630 file.
  • MEGA Live: V1.320
  • MEGA Live 2: V2.190
  • MEGA Live TargetLock: V1.210
  • i-Pilot Link (Bluetooth): V1.440
  • Advanced GPS Navigation:
    • Package: V2.280
    • Controller: V2.240
  • RAPTOR: V2.040
  • TALON: V2.020
• SOLIX G3 and APEX must have software version 3.900 or higher before updating to 5.060; otherwise, the update will fail without damage.
• DO NOT turn off the unit during the update!
• Use a Class 10 SD or Micro SD card (max 32GB) with 2 GB of free space.
• Remove any other cards (e.g., LakeMaster, Navionics) before updating.
• After installing the update, the factory recovery will be updated to the current version, and you cannot revert to previous versions.
• Defaults will be restored upon completion of the update.
• Settings from older versions cannot be imported into 5.060 or newer.

Software Update
