Overview

This guide summarizes the accessory lineup for Humminbird units, including transducers, mounting hardware, cables, and other system accessories. You can select from the category links below to jump straight to the options or scroll through the full list.


JUMP TO:

Jump To: Accessory Type

Jump To: Specific Categories
360 and Forward Facing Sonar: MEGA 360 | MEGA LIVE 2 | TargetLock | AS 360 | MEGA Live 1
Transom Mount Transducers: 2D Transom Mount | Down Imaging (DI) Transom Mount | Side Imaging (SI / MSI) Transom Mount
Trolling Motor Transducers: 2D Trolling Motor Transducers | Down Imaging (DI / MDI) Trolling Motor Transducers | Side Imaging (SI / MSI) Trolling Motor Transducers
In-Hull, Thru-Hull, and Portable Transducers In‑Hull Transducers | Bronze Thru-Hull – 2D Sonar | Stainless Thru-Hull – Side Imaging | Plastic – 2D Thru-Hull | Plastic Side Imaging Thru-Hull | Portable 2D Transducers
Mounts, Hardware, & Sensors: Mounting Hardware | Transom-Mount Hardware and Adapters |  Portable Mounting | In-dash Mounting | Mounting Brackets
Cables (Extension, Power, Adapter) Extension Cables | Power Cables | Transducer Adapter Cables |  Ethernet Cables and Switches
Advanced Fishing Systems NMEA Systems | Airmar Accessories
Unit Covers and Cases Unit Covers & Cases
ICE Accessories ICE Accessories | Portable Configurations



Transducers

Below are descriptions of how the tools above function.

Our Compatible Transducer Listing will allow you to select a Humminbird unit and see a list of all transducers that are compatible with that Humminbird model.

This tool supports Humminbird units in the following series: APEX, HELIX, ONIX, SOLIX , XPLORE, Piranha, PiranhaMAX, 300, 500, 600, 700, 800, 900, 1100 and ICE Flashers.

The transducers listed will begin with a "Recommended" section. These are the suggested transducers to use with the Humminbird selected and in almost all cases provide the maximum performance of the Humminbird.

The other transducers listed will be compatible with the selected Humminbird, but may not provide the full capabilities of the selected Humminbird. Transducer performance will be limited to what the transducer is capable of providing.

Our Transducer Compatibility Tool will allow you to select a Humminbird unit and a Humminbird transducer (including Minn Kota built-in transducers) to discover their degree of compatibility.

If you have a transducer part number and want to know what sonar frequencies your unit can use from this transducer, it will be helpful.

This tool supports Humminbird units in the following series: APEX, HELIX, ONIX, SOLIX , XPLORE, Piranha, PiranhaMAX, 300, 500, 600, 700, 800, 900, 1100 and ICE Flashers alongs with our current line transducers including MEGA Live and MEGA 360.

Note:  You can also check out our Sonar Compatibility chart for current and legacy models by clicking on the PDF below.  This chart will show you the sonar types the model utilizes out of the box.  If a sonar type is listed as optional it requires an additional purchase.

Click here for Details on Transducer Exchange Program

MEGA 360

Mounting and accessory kits for MEGA 360 systems across XPLORE, SOLIX, and APEX platforms.

Click the drop down arrow next to the MEGA 360 accessory you are looking for compatibility.

MEGA 360 Imaging-Ultrex

MEGA 360 Accessory

Compatible Units



MEGA 360 Imaging-Ultrex

  • Item Number: 411830-1
  • Description: The MEGA 360 Imaging - Ultrex transducer provides a 360-degree, detail-rich view around your boat. Designed to mount to the Minn Kota® Ultrex™, this transducer provides uninterrupted use of your Ultrex and Ultrex QUEST motor while using MEGA 360 Imaging, even while in Spot-Lock™. So keep fishing in wind, waves and nasty weather, and we'll still deliver the MEGA Imaging all around you for versatility in your fishing. Transducer Shaft Length 39 inches, Weight 12 lbs, Mounting Bracket Material Anodized Aluminum



MEGA 360 Imaging-Ultrex Compatible with:

Fish Finders:

  • All XPLORE models
  • All APEX models
  • All SOLIX G2
  • All SOLIX G3

Trolling Motors:

  • Minn Kota Ultrex and Ultrex QUEST 45" - 52" trolling motor models

MEGA 360 Imaging-Ultrex ( No longer manufactured)

MEGA 360 Model Name

Compatible Units


MEGA 360 Imaging-Ultrex ( No longer manufactured)

  • Item Number: 411250-1 (No longer manufactured)
  • Description:MEGA 360 Imaging
    transducer, compatible
    with ULTREX trolling
    motors, provides 125’ of
    MEGA Imaging detail
    all around your boat. Mounting Bracket Material
    Anodized Aluminum
    • RECOMMENDED
      ACCESSORIES:
      HELIX: • AS GPS HS
      (Part# 408400-1)
      SOLIX: • AS GPS HS
      (Part#408400-1)
      • AS GPS NMEA
      (Part# 720080-1)
      Transducer Y Cable:
      • 14 M360 2DDI Y
      (Part# 720108-1)
      OR
      • 9 M360 2DDI Y
      (Part# 720107-



MEGA 360 Imaging-Ultrex Compatible with:

  • All  HELIX G3Ns with MEGA Imaging+
  • All HELIX G4Ns with MEGA Imaging+
  • All XPLORE models
  • All APEX models
  • All SOLIX G2
  • All SOLIX G3
  • Designed for use with MINN KOT Ultrex trolling motors 45" and 52".

MEGA 360 Imaging – Fortrex

MEGA 360 Accessory

Compatible Units

MEGA 360 Imaging – Fortrex

  • Item Number: 411260-1
  • Description: The MEGA 360 Imaging - Fortrex transducer shows you a 360 degree, detail-rich view around your boat. Designed to mount to Minn Kota® Fortrex or Maxxum motors, this transducer provides uninterrupted use of your Fortrex motor while using MEGA 360 Imaging MEGA 360 Imaging - Fortrex is compatible with both Minn Kota Fortrex and Maxxum® trolling motors. Transducer Shaft Length
    27 inches, Weight 10 lbs, Mounting Bracket Material
    Anodized Aluminum
    • RECOMMENDED
      ACCESSORIES:
      HELIX: AS GPS HS
      (Part# 408400-1)
      SOLIX: AS GPS HS
      (Part#408400-1)
      AS GPS NMEA
      (Part# 720080-1)
      Transducer Y Cable:
      14 M360 2DDI Y
      (Part# 720108-1)
      OR
      9 M360 2DDI Y
      (Part# 720107-1



MEGA 360 Imaging – Fortrex Compatible with:

  • All  HELIX G3Ns with MEGA Imaging+
  • All HELIX G4Ns with MEGA Imaging+
  • All XPLORE models
  • All APEX models
  • All SOLIX G2 models
  • All SOLIX G3 models
  • Designed for use with MINN KOTA®
    Fortrex and Maxxum Trolling Motors

MEGA 360 Imaging - Universal

MEGA 360 Accessory

Compatible Units

MEGA 360 Imaging - Universal

  • Item Number: 411390-1
  • Description: MEGA 360 Imaging - Universal transducer shows you a 360-degree, detail rich view around your boat. Now bring this technology to virtually any boat, thanks to an adjustable GeigerTec mount, made from billet aluminum. And since MEGA 360 is mounted independent of your trolling motor's steering, you'll have an uninterrupted picture of what's below, even while fishing in wind, waves or using Spot-Lock™.  10' SOLIX transducer extension cable, 10' HELIX transducer adapter cable, 10' MEGA 360 power cable and adjustable, aluminum MEGA 360 Imaging mounting bracket with depth retaining ring for shaft. Transducer Shaft Length 50 inches Weight 16 lbs, Mounting Bracket Material CNC-machined billet aluminum
    • RECOMMENDED
      ACCESSORIES:
      HELIX: • AS GPS HS
      (Part# 408400-1)
      SOLIX: • AS GPS HS
      (Part#408400-1)
      • AS GPS NMEA
      (Part# 720080-1)
      Transducer Y Cable:
      • 14 M360 2DDI Y
      (Part# 720108-1)
      OR
      • 9 M360 2DDI Y (Part#
      720107-1

MEGA 360 Imaging -
Universal Compatible with:

  • All  HELIX G3Ns with MEGA Imaging+
  • All HELIX G4Ns with MEGA Imaging+
  • XPLORE Models
  • APEX Models
  • SOLIX G2 models
  • SOLIX G3 models
  • Universal mount is configurable to
    almost any boat with adjustable
    GiegerTec Marine mount.

MEGA 360 Imaging – No Mount

MEGA 360 Accessory

Compatible Units

XM 14 HW MSI T - XPLORE/APEX/SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 411580-1
  • Description: MEGA 360 Imaging - No Mount is a MEGA 360 Imaging transducer with a 50" shaft that provides a 360 degree, detail-rich view all around you, for a better understanding of where to find fish and structure. This model allows you to choose your own mounting solution, providing endless opportunities for how and where you can use the fish-catching power of MEGA 360 Imaging. 50" MEGA 360 Imaging pod and shaft assembly with power and transducer cables, 10' MEGA 360 power cable, 10' HELIX transducer extension cable, and 10' SOLIX transducer extension cable.
    • RECOMMENDED
      ACCESSORIES:
      HELIX: • AS GPS HS
      (Part# 408400-1)
      SOLIX: • AS GPS HS
      (Part#408400-1)
      • AS GPS NMEA
      (Part# 720080-1)
      Transducer Y Cable:
      • 14 M360 2DDI Y
      (Part# 720108-1)
      OR
      • 9 M360 2DDI Y (Part#
      720107-1

MEGA 360 Imaging – No
Mount Compatible with:

  • All  HELIX G3Ns with MEGA Imaging+
  • All HELIX G4Ns with MEGA Imaging+
  • XPLORE models
  • APEX models
  • SOLIX G2 models
  • SOLIX G3 models

AD Ultrex MEGA 360 Hardware Kit

MEGA 360 Accessory

Compatible Units

AD Ultrex MEGA 360 Hardware Kit

  • Item Number: 740212-1
  • Description:  The Ultrex MEGA 360 Hardware Kit provides the components needed to mount a MEGA 360 Imaging accessory transducer on a Minn Kota Ultrex™ bow-mount trolling motor. This kit also includes the required components to adapt MEGA 360 with Minn Kota Ultrex QUEST models.


AD Ultrex MEGA 360
Hardware Kit Compatible with:

  • MEGA 360 Imaging – Ultrex
  • MEGA 360 Imaging – Universal
  • MEGA 360 Imaging – No Mount

ICE Adapter Kit -MEGA 360

MEGA 360 Accessory

Compatible Units

XM 14 20 MSI T - SOLIX MEGA SI, MEGA DI, 2D w/ Temp Transom Transducer

  • Item Number: 740204-1
  • Description:  The MEGA 360 Ice Adapter includes all the components needed to convert an existing MEGA 360 Imaging transducer for use, 10" Base, Handle, Adjustable depth collar, Heading sensor GPS puck, Custom power and Y cables

ICE Adapter Kit -
MEGA 360 Compatible with:

  • MEGA 360 Imaging – Ultrex
  • MEGA 360 Imaging – Fortrex
  • MEGA 360 Imaging – Universal
  • MEGA 360 Imaging – No Mount

HELIX ICE Conversion Kit -MEGA 360

MEGA 360 Accessory

Compatible Units

HELIX ICE Conversion Kit - MEGA 360

Item Number: 700066-1



Description: MEGA 360 ICE Adapter Kit includes everything you need to convert your HELIX 8, 9, or 10 G3N/G4N with MEGA Imaging for ICE fishing. See structure, the bottom and fish up to 125’ in every direction around your hole, powered by the unmatched detail of MEGA Imaging®. And take advantage of crystal-clear Dual Spectrum CHIRP Sonar with 3/4" target separation and CHIRP Interference Rejection. MEGA 360 transducer, MEGA 360 ICE Adapter Kit, Heading Sensor GPS Puck, Dual Spectrum CHIRP ICE transducer, 20Ah lithium battery with 2 USB ports and battery life indicator, charger, ICE shuttle, hardware, and quick-connect SAE power cables

HELIX ICE Conversion Kit -
MEGA 360 Compatible with:

  • HELIX 8 CHIRP MEGA SI+ GPS G3N
  • HELIX 8 CHIRP MEGA SI+ GPS G4N
  • HELIX 9/10 CHIRP MEGA DI+ GPS G3N/G4N
  • HELIX 9 CHIRP MEGA DI+ GPS G3N
  • HELIX 9 CHIRP MEGA DI+ GPS G4N
  • HELIX 10 CHIRP MEGA DI+ GPS G3N
  • HELIX 10 CHIRP MEGA DI+ GPS G4N
  • HELIX 9 CHIRP MEGA SI+ GPS G3N
  • HELIX 9 CHIRP MEGA SI+ GPS G4N
  • HELIX 10 CHIRP MEGA SI+ GPS G3N
  • HELIX 10 CHIRP MEGA SI+ GPS G4N



MEGA LIVE 2

Click the drop down arrow next to the MEGA Live 2 Transducer you are looking for compatibility.

MEGA LIVE 2 Forward Facing Sonar

MEGA Live 2 Accessory

Compatible Units



MEGA LIVE 2 Forward Facing Sonar

  • Item Number: 710310-1
  • Description: MEGA Live 2 provides the most
    impressive live sonar on the water, allowing
    you to watch fish and structure in real-time,
    powered by the unmatched detail of MEGA Live 2



MEGA LIVE 2 Forward Facing Sonar Compatible with:

  • All XPLORE models
  • All APEX models
  • All SOLIX G3 models
  • Note: MEGA Live 2 is not compatible with HELIX or SOLIX G1 or SOLIX G2.

MEGA Live 2 Transom-Mount

MEGA Live 2 Accessory

Compatible Units


MEGA Live 2 Transom-Mount

  • Item Number: 740252-1
  • Description: MEGA Live 2 Transom-Mount includes everything needed to attach your MEGA Live 2 transducer to the transom of your boat. Stainless steel for increased durability.



MEGA Live 2 Transom-Mount Compatible with:

  • MEGA LIVE 2 Forward Facing Sonar

MEGA Live 2 Shaft Mount

MEGA Live 2 Accessory

Compatible Units

MEGA 360 Imaging – Fortrex

  • Item Number: 740250-1
  • Description: MEGA Live 2 Shaft Mount includes Shaft mount, Rubber pads and Mounting hardware



MEGA Live 2 Shaft Mount Compatible with:

  • Ultrex models
  • Fortrex models

Ice Adapter Kit - MEGA Live

MEGA Live 2 Accessory

Compatible Units

MEGA LIVE TargetLock Control Module

  • Item Number: 740215-1
  • Description: Ice Adapter Kit - MEGA Live includes multi-piece pole breaks down into three sections for varying ice depths and a more compact footprint for storage.

MEGA 360 Imaging -
Universal Compatible with:

  • Ice Adapter Kit - MEGA Live Compatible with:
    • MEGA Live 2 (Required Accessory 740251-1)

ICE MEGA Live 2 Compact Pole Mount

MEGA Live 2 Accessory

Compatible Units

XM 14 HW MSI T - XPLORE/APEX/SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 740255-1
  • Description: MEGA Live 2 Compact Shaft Mount; Mounting Hardware

ICE MEGA Live 2 Compact Pole Mount Compatible with:

  • MEGA Live 2

MEGA Live TargetLock Adapter

MEGA Live 2 Accessory

Compatible Units

Adapter for MEGA Live 2 mounting bracket to allow it to work with previously purchased TargetLocks equipped with MEGA Live 1. Adapter comes with Adapter, washer and bolt.

  • Item Number: 740251-1
  • Description: Adapter for MEGA Live 2 mounting bracket to allow it to work with previously purchased TargetLocks equipped with MEGA Live 1. Adapter comes with Adapter, washer and bolt.


AD Ultrex MEGA 360
Hardware Kit Compatible with:

  • MEGA 360 Imaging – Ultrex
  • MEGA 360 Imaging – Universal
  • MEGA 360 Imaging – No Mount



Targetlock

Click the drop down arrow next to the TargetLock Transducer you are looking for compatibility.

MEGA Live TargetLock Adapter Kit Ultrex 45" / 52"

TargetLock Accessory

Compatible Units



MEGA Live TargetLock Adapter Kit Ultrex 45" / 52"

  • Item Number: 740210-1
  • Description: Adapter kit includes MEGA Live Steering Assembly, Wireless Foot Pedal, Ultrex Mounting Kit and Hardware, 20' Ethernet Cable, and 10' Power Cable



MEGA Live TargetLock Adapter Kit Ultrex 45" / 52" Compatible with:

Fish Finders:

  • All XPLORE models
  • All APEX models
  • All SOLIX models
  • MEGA Side or MEGA Down Imaging equipped:
    • HELIX 7 G3N
    • HELIX 8 G3N
    • HELIX 9 G3N
    • HELIX 10 G3N
    • HELIX 12 G3N
    • HELIX 7 G4N models
    • HELIX 8 G4N models
    • HELIX 9 G4N models
    • HELIX 10 G4N models
    • HELIX 12 G4N models
    • HELIX 15 G4N models

Trolling Motors:

  • Ultrex and Ultrex QUEST 45" and 52" Shaft Lengths

MEGA Live TargetLock Adapter Kit Ultrex 60"

TargetLock Accessory

Compatible Units


MEGA Live TargetLock Adapter Kit Ultrex 60"

  • Item Number: 740222-1
  • Description: Adapter kit includes MEGA Live Steering Assembly, Wireless Foot Pedal, Ultrex Mounting Kit and Hardware, 20' Ethernet Cable, and 10' Power Cable



MEGA Live TargetLock Adapter Kit Ultrex 60" Compatible with:

Fish Finders:

  • XPLORE models
  • APEX models
  • SOLIX models

Trolling Motors:

  • Ultrex and Ultrex QUEST 60" Shaft Length

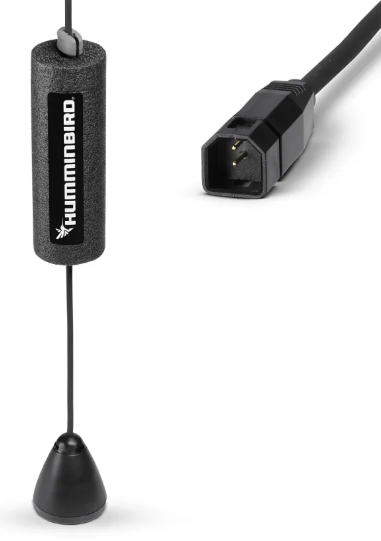

MEGA Live TargetLock Heading Sensor

TargetLock Accessory

Compatible Units

MEGA Live TargetLock Heading Sensor

  • Item Number: 730028-1
  • Description: Replacement heading sensor for the MEGA Live TargetLock.



MEGA Live TargetLock Heading Sensor Compatible with:

  • MEGA Live TargetLock

MEGA Live TargetLock and MEGA 360 DUAL Mount - Ultrex and Ultrex QUEST

TargetLock Accessory

Compatible Units

MEGA Live TargetLock and MEGA 360 DUAL Mount - Ultrex and Ultrex QUEST

  • Item Number: 740211-1
  • Description: MEGA Live TargetLock and MEGA 360 DUAL Mount - Ultrex and Ultrex QUEST includes multi-piece pole breaks down into three sections for varying ice depths and a more compact footprint for storage.

  • For use with MEGA Live 1 and MEGA Live 2

MEGA Live TargetLock and MEGA 360 DUAL Mount - Ultrex and Ultrex QUEST Compatible with:

  • MEGA Live TargetLock – Ultrex 45 and 52”,
  • MEGA Live TargetLock Adapter Kit for Ultrex 45” and 52”
  • MEGA 360 Imaging for Ultrex

MEGA Live TargetLock Adapter

TargetLock Accessory

Compatible Units

MEGA Live TargetLock Adapter

  • Item Number: 740251-1
  • Description: Adapter for MEGA Live 2 mounting bracket to allow it to work with previously purchased TargetLocks equipped with MEGA Live 1. Adapter comes with Adapter, washer and bolt.

MEGA Live TargetLock Adapter Compatible with:

  • MEGA Live 2 Forward-Facing Sonar and ICE Adapter Kit - MEGA Live (740215-1)

TargetLock Replacement Accessories

TargetLock Accessories

Compatible Units

MEGA LIVE TargetLock Control Module

  • Item Number: 740225-1
  • Description: Includes MEGA Live TargetLock Control Module Replacement.

MEGA LIVE TargetLock Control Module Compatible with:

  • MEGA Live TargetLock

MEGA Live TargetLock Steering Module

  • Item Number: 740226-1
  • Description: Includes MEGA LIVE TargetLock Steering Module

MEGA Live TargetLock Steering Module Compatible with:

  • MEGA Live TargetLock

MEGA Live TargetLock Shaft-Ultrex 45" / 52" Shaft

  • Item Number: 740227-1
  • Description: This is a replacement shaft for the MEGA Live TargetLock - Ultrex 45"/52"

MEGA Live TargetLock Shaft-Ultrex 45" / 52" Shaft Compatible with:

  • MEGA Live TargetLock

MEGA Live TargetLock Foot Pedal

TargetLock Accessories

Compatible Units

MEGA Live TargetLock and MEGA 360 DUAL Mount - Ultrex and Ultrex QUEST

  • Item Number: 740211-1
  • Description: MEGA Live TargetLock and MEGA 360 DUAL Mount - Ultrex and Ultrex QUEST includes multi-piece pole breaks down into three sections for varying ice depths and a more compact footprint for storage.

  • For use with MEGA Live 1 and MEGA Live 2

MEGA Live TargetLock and MEGA 360 DUAL Mount - Ultrex and Ultrex QUEST Compatible with:

  • MEGA Live TargetLock – Ultrex 45 and 52”,
  • MEGA Live TargetLock Adapter Kit for Ultrex 45” and 52”
  • MEGA 360 Imaging for Ultrex

MEGA Live TargetLock Remote

TargetLock Accessories

Compatible Units

MEGA Live TargetLock Remote

Item Number: 411840-1



Description: MEGA Live TargetLock Remote includes Remote, Mounting Clip, and Lanyard

MEGA Live TargetLock Remote Compatible with:

  • MEGA Live TargetLock





AS 360



Click the drop-down arrow next to the AS 360 accessory you want to verify for compatibility with:

AS 360 SSI (No longer being manufactured)

AS 360 Model

Compatible Units

AS 360 SSI First Generation (No longer being manufactured)

Item Number: 408310-1 (No longer being manufactured)

Description: First Generation 360 Imaging
transducer

Compatible with:

  • HELIX G2N
  • HELIX G3N
  • HELIX G4N
  • SOLIX G1 and G2 Models with Software Versions 4.190 or earlier

AS 360 SSI Portable Mounting Bracket (No longer being manufactured)

AS 360 Accessory Model

Compatible Units

AS 360 SSI Portable Mounting Bracket (No longer being manufactured)

Item Number: 740140-1 (No longer being manufactured)

Description: 360 Imaging
transducer Bracket

Compatible with:

  • AS 360 SSI

AS 360 TM Trolling Motor Mount (No longer being manufactured)

AS 360 Accessory Model

Compatible Units

AS 360 First Generation TM Trolling Motor Mount (No longer being manufactured)

Item Number: 409250-1 (No longer being manufactured)

Description: First Generation  Trolling Motor Mounted 360 Imaging transducer

AS 360 TM Compatible with:

  • HELIX G2N
  • HELIX G3N
  • HELIX G4N
  • SOLIX G1 and G2 models with Software Versions 4.190 or earlier

Trolling Motors

  • Fortrex
  • Maxxum

AS 360 SSI Transom Mount (No longer being manufactured)

AS 360 Accessory Model

Compatible Units

AS 360 SSI First Generation Transom Mount (No longer being manufactured)

Item Number: 408310-1 (No longer being manufactured)

Description: Transom Mounted First Generation 360 Imaging transducer

AS 360 SSI Compatible with:

  • HELIX G2N
  • HELIX G3N
  • HELIX G4N
  • SOLIX G1 and G2 models with Software Versions 4.190 or earlier



AS 360 SSI Portable Mounting Bracket (No longer being manufactured)

AS 360 Accessory Model

Compatible Units

AS 360 SSI Portable Mounting Bracket (No longer being manufactured)

Item Number: 408310-1 (No longer being manufactured)

Description: First Generation 360 Imaging transducer Bracket

Compatible with:

  • AS 360 SSI





MEGA Live 1

Click the drop-down arrow next to the Portable Transducer you want to verify for compatibility with:

MEGA Live 1  (no longer manufactured

MEGA Live 1 Model

Compatible Units

MEGA Live 1  (no longer manufactured)

Item Number: 710304-1 (no longer manufactured)

Description: MEGA Live 1 provides the mostimpressive live sonar on the water, allowing
you to watch fish and structure in real-time,
powered by the unmatched detail of MEGA Live 1

MEGA Live 1 (no longer manufactured) Compatible with:

  • All XPLORE models
  • All APEX models
  • All SOLIX models
  • MEGA Side or MEGA Down Imaging equipped:
    • HELIX 7 G3N
    • HELIX 8 G3N
    • HELIX 9 G3N
    • HELIX 10 G3N
    • HELIX 12 G3N
    • HELIX 7 G4N Models
    • HELIX 8 G4N Models
    • HELIX 9 G4N Models
    • HELIX 10 G4N Models
    • HELIX 12 G4N Models
    • HELIX 15 G4N Models

MEGA Live 1 Hand Control - Universal (no longer manufactured)

MEGA Live 1 Accessory

Compatible Units

MEGA Live 1 Hand Control -
Universal (no longer manufactured)

Item Number: 710309-1 (no longer manufactured)

Description: The Universal Hand Control for MEGA Live provides hand control steering of the MEGA Live transducer. Which brings this technology to virtually any boat, thanks to an adjustable GeigerTec mount, made from billet aluminum.

MEGA Live 1 Hand Control -
Universal (no longer manufactured) Compatible with:

  • All XPLORE models
  • All APEX models
  • All SOLIX models
  • MEGA Side or MEGA Down Imaging equipped:
    • HELIX 7 G3N
    • HELIX 8 G3N
    • HELIX 9 G3N
    • HELIX 10 G3N
    • HELIX 12 G3N
    • HELIX 7 G4N Models
    • HELIX 8 G4N Models
    • HELIX 9 G4N Models
    • HELIX 10 G4N Models
    • HELIX 12 G4N Models
    • HELIX 15 G4N Models

MEGA Live Shaft Mount

MEGA Live 1 Accessory

Compatible Units

MEGA Live Shaft Mount

Item Number: 740223-1

Description: Connects MEGA Live Imaging transducers to Minn Kota Ultrex and Fortrex trolling motors with shafts up to 1.5" Mount includes Shaft mount, Rubber pads and Mounting hardware

MEGA Live Shaft Mount Compatible with:

  • Ultrex models
  • Fortrex models

ICE Adapter Kit -MEGA Live 1

MEGA Live 1 Accessory

Compatible Units

ICE Adapter Kit - MEGA Live 1

Item Number: 740215-1

Description: The MEGA Live Ice Adapter includes all the components needed to convert a MEGA Live 1 transducer for use while ice fishing

ICE Adapter Kit -MEGA Live 1 Compatible MEGA Live 1 Transducers:

  • MEGA Live 2 (Required Accessory - 740251-1)



MHX MLC - MEGA ICE Multi-Piece Pole Double Collars

MEGA Live 1 Accessory

Compatible Units

MHX MLC - MEGA ICE Multi-Piece Pole Double Collars

Item Number: 740218-1

Description: Replacement double collars for the multi-piece ice pole for MEGA Live products.  Includes 4 knobs and washer.

MHX MLC - MEGA ICE Multi-Piece Pole Double Collars Compatible with:

  • ICE HELIX 9 MSI+ GPS G4N MEGA Live Bundle
  • ICE Adapter Kit - MEGA Live
  • HELIX ICE Conversion Kit - MEGA Live

HELIX ICE Conversion Kit - MEGA Live 1 (No longer manufactured)

MEGA Live 1 Accessory

Compatible Units

HELIX ICE Conversion Kit -
MEGA Live 1 (No longer manufactured)

Item Number: 700069-1 (No longer manufactured)

Description: The ICE HELIX MEGA Live Conversion Kit includes all the components needed to ice fish with MEGA Live 1 , just add
your compatible HELIX 7/8/9/10.

HELIX ICE Conversion Kit -
MEGA Live 1 Compatible with:

  • MEGA Side or MEGA Down Imaging equipped:
    • HELIX 7 G3N
    • HELIX 8 G3N
    • HELIX 9 G3N
    • HELIX 10 G3N
    • HELIX 12 G3N
    • HELIX 7 G4N Models
    • HELIX 8 G4N Models
    • HELIX 9 G4N Models
    • HELIX 10 G4N Models
    • HELIX 12 G4N Models
    • HELIX 15 G4N Models





Transom Mount

2D Transom Mount

These transducers are all 2D Sonar

Click the drop down arrow next to the Transom Transducer you are looking for compatibility.

XNT 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom 2D Sonar Model

Compatible Units

XNT 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 710274-1
  • Description: Transom mount Dual Spectrum CHIRP (DSC) Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
    Transducer with
    temperature sensor, 20’ cable, Max Depth
    1200ft (365m)

XNT 9 HW T Compatible with:

  • HELIX 5 CHIRP G2 GPS equipped Series only
  • HELIX 7 CHIRP G2 GPS equipped
  • HELIX 7 CHIRP G2 CHIRP DI models
  • HELIX 7 CHIRP G3 GPS equipped models
  • HELIX 7 CHIRP G3 CHIRP DI models
  • HELIX 7 CHIRP G4 GPS equipped models
  • HELIX 7 CHIRP G4 CHIRP DI models
  • HELIX 7 CHIRP G2N All models
  • HELIX 7 CHIRP G3N All models
  • HELIX 7 CHIRP G4N All models
  • HELIX 8 CHIRP G3N All models
  • HELIX 8 CHIRP G4N All models
  • HELIX 9 CHIRP G2N All models
  • HELIX 9 CHIRP G3N All models
  • HELIX 9 CHIRP G4N All models
  • HELIX 10 CHIRP G2NAll models
  • HELIX 10 CHIRP G3N All models
  • HELIX 10 CHIRP G4N All models
  • HELIX 12 CHIRP G2N All models
  • HELIX 12 CHIRP G3N All models
  • HELIX 12 CHIRP G4N All models
  • ICE HELIX CHIRP G2/G3 and newer All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.
  • APEX, XPLORE, SOLIX All models.  Requires AD 1429

XNT 14 HW T - SOLIX Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom 2D Sonar Model

Compatible Units

XNT 14 HW T - SOLIX Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 710285-1
  • Description: Dual Spectrum CHIRP (DSC) Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz transducer with temp, 20’ cable, Max Depth
    1200ft (365m)

XNT 14 HW T Compatible with:

  • XPLORE 9
  • XPLORE 10
  • XPLORE 12
  • APEX 13
  • APEX 16
  • APEX 19
  • SOLIX 10 MEGA SI+ G2
  • SOLIX 10 MEGA SI+ G3
  • SOLIX 12 MEGA SI+ G2
  • SOLIX 12 MEGA SI+ G3
  • SOLIX 15 MEGA SI+ G2
  • SOLIX 15 MEGA SI+ G3

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XNT 9 20 T - Transom Single/DualBeam Transducer

Transom 2D Sonar Model

Compatible Units

XNT 9 20 T - Transom Single/DualBeam Transducer



XNT 9 20 T Compatible with:

  • All 100, 300, 500,  600, 700, 800, 900, 1100 (XNT 9 20 T not compatible with DI models)
  • All non-CHIRP HELIX Series except DI models. Not recommended for HELIX G2/G2N and newer models with CHIRP
  • Matrix 10, 12, 15, 17, 20, 27, 67, 77, 87, 97

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XNT 9 28 T - 200/455 Transom Single/DualBeam Transducer

Transom 2D Sonar Model

Compatible Units

XNT 9 28 T - 200/455 Transom Single/DualBeam Transducer

  • Item Number: 710236-1
  • Description: Transom mount Dual Beam, 28/16 Degree, 200/455kHz, Temp, 20’ cable

XNT 9 28 T Compatible with:

  • PiranhaMAX 4
  • PiranhaMAX 4 PT

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XNT 9 DB 74 T - 200/50 Transom DualBeam Transducer

Transom 2D Sonar Model

Compatible Units

XNT 9 DB 74 T - 200/50 Transom DualBeam Transducer

  • Item Number: 710237-1
  • Description: Transom mount Dual Beam, 20/74 Degrees, 200/50 kHz with built in temp for use with
    extended depth models, 20’ cable



XNT 14 74 T Compatible with:

  • ONIX10ci COMBO
  • ONIX 10ci COMBO NT
  • ONIX8ci COMBO
  • ONIX 8ci COMBO NT
  • APEX 13 / 16 / 19 Series
  • SOLIX 10 / 12 / 15 Series
    • All G2 and newer models

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XNT 14 20 T - Transom SOLIX/ONIX DualBeam Transducer

Transom 2D Sonar Model

Compatible Units

XNT 14 20 T - Transom SOLIX/ONIX DualBeam Transducer

  • Item Number 710247-1 No Longer manufactured, however you may be able to locate this product through other sources.
  • Description: Transom mount Dual Beam transducer 20/60 degree, 200/83 kHz, temp included, 20’ cable


XNT 14 20 T Compatible with:

  • ION* Series Must also have the Sonar Module
  • ONIX10ci COMBO
  • ONIX 10ci COMBO NT
  • ONIX8ci COMBO
  • ONIX 8ci COMBO NT
  • SOLIX 10 CHIRP GPS
  • SOLIX 12 CHIRP GPS
  • SOLIX 15 CHIRP GPS

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XNT 14 74 T - 200/50 Transom SOLIX/ONIX DualBeam Transducer

Transom 2D Sonar Model

Compatible Units

XNT 14 74 T - 200/50 Transom SOLIX/ONIX DualBeam Transducer

  • Item Number: 710253-1
  • Description: Transom mount Dual Beam transducer 20/74 degree, 200/50 kHz, temp included, 20’ cable

XNT 14 74 T Compatible with:

  • ONIX10ci COMBO
  • ONIX 10ci COMBO NT
  • ONIX8ci COMBO
  • ONIX 8ci COMBO NT
  • APEX 13 / 16 / 19 Series
  • SOLIX 10 / 12 / 15 Series
    • All G2 and newer models

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

Dual HELIX Starter Kit HWAL - Transom

Transom 2D Sonar Model

Compatible Units

Dual HELIX Starter Kit HWAL - Transom

  • Item Number: 700062-1
  • Description: This kit provides brings it all together- quick and easy. Everything you need to network two Ethernet-equipped HELIX models on an aluminum boat is included. Additionally, this kit connects the included transom mount Dual Spectrum CHIRP transducer with an existing Side/Down Imaging® transducer via the enclosed splitter cable, and includes an adapter cable to connect compatible HELIX 8, 9, 10, 12, 15 MEGA Imaging® units to select Minn Kota® motors with Built-In MEGA Imaging®. What's Included
    XNT 9 HW T transom mount Dual Spectrum CHIRP Transducer and epoxy, AS EC 20E 20' Ethernet Cable, 2 AS EC QDE Ethernet Adapters, MKR-MI-1 Built-In MEGA Imaging HELIX Adapter, 9 M SIDB Y Transducer Splitter Cable
    Warranty

Dual HELIX Starter Kit HWAL - Transom Compatible with:

  • HELIX 8 G3N models
  • HELIX 8 G4N models
  • HELIX 9 G2N models
  • HELIX 9 G3N models
  • HELIX 9 G4N models
  • HELIX 10 G2N models
  • HELIX 10 G3N models
  • HELIX 10 G4N models
  • HELIX 12 G2N models
  • HELIX 12 G3N models
  • HELIX 12 G4N models
  • HELIX 15 G4N models

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature



Down Imaging (DI) Transom Mount

These transducers are all 2D Sonar

Click the drop down arrow next to the Down Imaging Transducer you are looking for compatibility.

XNT 9 HW MDI 75 T - HELIX 7/8 MEGA DI, Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom Down Imaging (DI) Model

Compatible Units

XNT 9 HW MDI 75 T - HELIX 7/8 MEGA DI, Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 710295-1
  • Description: Transom Mount transducer with MEGA Down Imaging (MDI) Frequencies - Max Depth
    455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m), Dual Spectrum CHIRP (DSC) 1200ft (365m), temperature sensor and 20’ cable

XNT 9 HW MDI 75 T Compatible with:

  • HELIX 7 CHIRP MDI G3
  • HELIX 7 CHIRP MDI G3N
  • HELIX 7 CHIRP MDI G4N
  • HELIX 7 CHIRP MDI G4N
  • HELIX 8 CHIRP MDI G3
  • HELIX 8 CHIRP MDI G3N
  • HELIX 8 CHIRP MDI G4N
  • HELIX 8 CHIRP MDI G4N

XNT 14 HW T - SOLIX Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom Down Imaging (DI) Model

Compatible Units

XNT 9 HW DI T - Down Imaging, Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 710305-1
  • Description: Transom Mount transducer with Down Imaging, Dual Spectrum CHIRP 200/455 kHz with built-in temperature, temperature sensor and 20’ cable

XNT 9 HW DI T Compatible with:

  • HELIX 5 CHIRP DI GPS G3

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XM 9 HW MDI T - HELIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom Down Imaging (DI) Model

Compatible Units

XM 9 HW MDI T - HELIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 710280-1
  • Description: Transom Mount transducer with MEGA Down Imaging+ (MDI +), Dual Spectrum CHIRP (DSC), temperature sensor and 20’ cable



XM 9 HW MDI T Compatible with:

  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G3
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G3
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G3
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G3N
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G3N
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G3N
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G4
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G4
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G4
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G4N
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G4N
  • HELIX 9 / 10 / 12 CHIRP MEGA DI+ G4N

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XM 14 HW MDI T - SOLIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom Down Imaging (DI) Model

Compatible Units

XM 14 HW MDI T - SOLIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 710290-1
  • Description: Transom Mount transducer with MEGA Down Imaging+ MDI+) MEGA Down Imaging Frequencies - Max Depth
    455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m), Dual Spectrum CHIRP Frequencies
    Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
    Dual Spectrum CHIRP Max Depth
    1200ft (365m), temperature sensor and 20’ cable

XM 14 HW MDI T Compatible with:

  • All models listed below provides 2D & MDI+ only
    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 MEGA SI+ G2
    • SOLIX 10 MEGA SI+ G3
    • SOLIX 12 MEGA SI+ G2
    • SOLIX 12 MEGA SI+ G3
    • SOLIX 15 MEGA SI+ G2
    • SOLIX 15 MEGA SI+ G3

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XM 9 MDI T - Transom HELIX MEGA DI Transducer

Transom Down Imaging (DI) Model

Compatible Units

XM 9 MDI T - Transom HELIX MEGA DI Transducer

  • Item Number: 710269-1
  • Description: Transom mount MEGA DI (MDI), Dual Beam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, temperature built-in, and  20’ cable



XM 9 MDI T Compatible with:

  • HELIX 9 CHIRP MEGA DI GPS G2N
  • HELIX 10 CHIRP MEGA DI GPS G2N
  • HELIX 12 CHIRP MEGA DI GPS G2N

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature

XNT 9 DI T - 200/455 Transom DualBeam Down Imaging Transducer

Transom Down Imaging (DI) Modell

Compatible Units




XNT 9 DI T - 200/455 Transom DualBeam Down Imaging Transducer

  • Item Number: 710226-1
  • Description: Down Imaging/Dual Beam Plus, 75°/45°, 455/800 kHz (DI) and 25°/16°, 200/455 kHz, with built-in temperature, and  20’ cable

XNT 9 DI T Compatible with:

  • 1159ci HD DI
  • 959ci HD DI
  • 859ci HD DI
  • 571 HD DI
  • 561 DI
  • 386ci DI
  • 346c DI
  • 688ci DI
  • 678 DI
  • 1158c DI
  • 958c HD DI
  • 958c DI
  • 858c HD DI
  • 858c DI
  • 798ci SI
  • 798ci HD SI
  • 899ci HD SI
  • PiranhaMAX 4 DI
  • All HELIX non-CHIRP DI models

Transom Mount Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Type Connection
  • 14 - 14 Type Connection
  • HW - High Wide
  • T - Temperature





Side Imaging (SI / MSI) Transom Mount

These transducers are all Side Imaging/Down Imaging/2D Sonar

Click the drop down arrow next to the Side Imaging Transducer you are looking for compatibility.

XNT 9 HW MSI 150 T - HELIX 7 MEGA SI, DI, Dual Spectrum CHIRP w/Temp Transom Transducer

Transom Side Imaging (SI) Sonar Model Name

Compatible Units

XNT 9 HW MSI 150 T - HELIX 7 MEGA SI, DI, Dual Spectrum CHIRP w/Temp Transom Transducer

  • Item Number: 710297-1
  • Description: Transom Mount Dual Spectrum CHIRP Frequencies
    Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
    Dual Spectrum CHIRP Max Depth
    1200ft (365m),
    Side Imaging Frequencies - Max Range (side-to-side)
    455kHz: 440-500 kHz - 800ft (146m), MEGA SI: 1075-1150 kHz - 250ft (76m),
    Down Imaging Frequencies - Max Depth
    455kHz: 440-500 kHz - 125ft (38m), MEGA DI: 1075-1150 kHz - 75ft (23m),
    transducer with
    temperature sensor and
    20’ cable



XNT 9 HW MSI 150 T Compatible with:

  • HELIX 7 CHIRP MSI G3/G3N
  • HELIX 7 CHIRP MSI G4/G4N

Transom Mount Side Imaging Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Pin Connection
  • 14 - 14 Pin Connection
  • HW - High Wide
  • T - Temperature
  • SI - Side Imaging
  • MSI - MEGA Side Imaging

XNT 9 HW SI T - Side Imaging, Down Imaging, Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom Side Imaging (SI) Sonar Model Name

Compatible Units

XNT 9 HW SI T - Side Imaging, Down Imaging, Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 710306-1
  • Description: Transom Mount Dual Spectrum CHIRP 2D Sonar
    CHIRP range of 150-220kHz
    Side Imaging Frequencies
    455 kHz with built-in temperature
    transducer with
    temperature sensor and
    20’ cable



XNT 9 HW SI T Compatible with

  • HELIX 7 CHIRP SI GPS G4/G4N (Not for use with MEGA Side Imaging models)

Transom Mount Side Imaging Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Pin Connection
  • 14 - 14 Pin Connection
  • HW - High Wide
  • T - Temperature
  • SI - Side Imaging
  • MSI - MEGA Side Imaging

XM 9 HW MSI T

Transom Side Imaging (SI) Sonar Model Name

Compatible Units



XM 9 HW MSI T

  • Item Number: 710282-1
  • Description: Transom Mount Dual Spectrum CHIRP Frequencies
    Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
    Dual Spectrum CHIRP Max Depth
    1200ft (365m)
    MEGA Side Imaging+ Frequencies - Max Range (side-to-side)
    455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
    MEGA Down Imaging+ Frequencies - Max Depth
    455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) transducer with temperature sensor and 20’ cable

XM 9 HW MSI Compatible With:

  • HELIX 8 CHIRP MSI+ G3N
  • HELIX 8 CHIRP MSI+ G4N
  • HELIX 9 CHIRP MSI+ G3N
  • HELIX 9 CHIRP MSI+ G4N
  • HELIX 10 CHIRP MSI+ G3N
  • HELIX 10 CHIRP MSI+ G4N
  • HELIX 12 CHIRP MSI+ G3N
  • HELIX 12 CHIRP MSI+G4N
  • HELIX 15 CHIRP MSI+ G3N
  • HELIX 15 CHIRP MSI+ G4N

Transom Mount Side Imaging Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Pin Connection
  • 14 - 14 Pin Connection
  • HW - High Wide
  • T - Temperature
  • SI - Side Imaging
  • MSI - MEGA Side Imaging

XM 14 HW CMSI T - Compact MEGA Side Imaging+ Transducer

Transom Side Imaging (SI) Sonar Model Name

Compatible Units

XM 14 HW CMSI T - Compact MEGA Side Imaging+ Transducer

  • Item Number: 710311-1
  • Description: Compact MEGA Side Imaging Frequencies - Max Range (side-to-side)
    455kHz: 405-505 kHz - 800ft (244m), MEGA: 1.100-1.200 MHz - 400ft (122m)
    Compact MEGA Down Imaging Frequencies - Max Depth
    455kHz: 420-520 kHz - 400ft (122m) MEGA: 1.125-1.225 MHz - 400ft (122m)
    Dual Spectrum CHIRP Frequencies - Full
    150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz, A screw-on connector, built-in temperature sensor, and 20’ cable

XM 14 HW CMSI T Compatible with:

  • XPLORE 9
  • XPLORE 10
  • XPLORE 12
  • APEX 13
  • APEX 16
  • APEX 19
  • SOLIX 10 MEGA SI+ G2
  • SOLIX 10 MEGA SI+ G3
  • SOLIX 12 MEGA SI+ G2
  • SOLIX 12 MEGA SI+ G3
  • SOLIX 15 MEGA SI+ G2
  • SOLIX 15 MEGA SI+ G3

Transom Mount Side Imaging Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Pin Connection
  • 14 - 14 Pin Connection
  • HW - High Wide
  • T - Temperature
  • SI - Side Imaging
  • MSI - MEGA Side Imaging

XM 14 HW MSI T - XPLORE/APEX/SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom Side Imaging (SI) Sonar Model Name

Compatible Units

XM 14 HW MSI T - XPLORE/APEX/SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

  • Item Number: 710292-1
  • Description: Transom Mount MEGA Side Imaging+ (MSI+), MEGA Down Imaging+ (MDI+), Dual Spectrum CHIRP (DSC) transducer with temperature sensor and 20’ cable

XM 14 HW MSI T Compatible with:

  • XPLORE 9
  • XPLORE 10
  • XPLORE 12
  • APEX 13
  • APEX 16
  • APEX 19
  • SOLIX 10 MEGA SI+ G2
  • SOLIX 10 MEGA SI+ G3
  • SOLIX 12 MEGA SI+ G2
  • SOLIX 12 MEGA SI+ G3
  • SOLIX 15 MEGA SI+ G2
  • SOLIX 15 MEGA SI+ G3

Transom Mount Side Imaging Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Pin Connection
  • 14 - 14 Pin Connection
  • HW - High Wide
  • T - Temperature
  • SI - Side Imaging
  • MSI - MEGA Side Imaging

XM 9 20 MSI T - Transom HELIX MEGA SI MEGA DI Transducer

Transom Side Imaging (SI) Sonar Model Name

Compatible Units

XM 9 20 MSI T - Transom HELIX MEGA SI MEGA DI Transducer

  • Item Number: 710262-1
  • Description:  Transom Mount MEGA SI, MEGA DI, Dual Beam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, Includes built-in temperature, and 20’ cable


XM 9 20 MSI T Compatible with:

  • HELIX 9 CHIRP MEGA SI GPS G2N
  • HELIX 9 CHIRP MEGA SI GPS G3N
  • HELIX 9 CHIRP MEGA SI GPS G4N
  • HELIX 10 CHIRP MEGA SI GPS G2N
  • HELIX 10 CHIRP MEGA SI GPS G3N
  • HELIX 10 CHIRP MEGA SI GPS G4N
  • HELIX 12 CHIRP MEGA SI GPS G2N
  • HELIX 12 CHIRP MEGA SI GPS G#N
  • HELIX 12 CHIRP MEGA SI GPS G4N

Transom Mount Side Imaging Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Pin Connection
  • 14 - 14 Pin Connection
  • HW - High Wide
  • T - Temperature
  • SI - Side Imaging
  • MSI - MEGA Side Imaging

XM 14 20 MSI T - SOLIX MEGA SI, MEGA DI, 2D w/ Temp Transom Transducer

Transom Side Imaging (SI) Sonar Model Name

Compatible Units

XM 14 20 MSI T - SOLIX MEGA SI, MEGA DI, 2D w/ Temp Transom Transducer

  • Item Number: 710265-1
  • Description:  Transom Mount MEGA SI, MEGA DI, Dual Beam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, Includes built-in temperature

XM 14 20 MSI T Compatible with:

  • SOLIX 10 MEGA SI GPS
  • SOLIX 12 MEGA SI GPS
  • SOLIX 15 MEGA SI GPS

Transom Mount Side Imaging Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Pin Connection
  • 14 - 14 Pin Connection
  • HW - High Wide
  • T - Temperature
  • SI - Side Imaging
  • MSI - MEGA Side Imaging

XHS 9 HDSI 180 T - Transom Transducer

Transom Side Imaging (SI) Sonar Model Name

Compatible Units

XHS 9 HDSI 180 T - Transom Transducer

  • Item Number: 710201-1
  • Description: Transom Mount
    Dual/High Definition Side Imaging 20/60/180 Degree, 200/83/455/800 kHz with built-in temperature. 20’ cable

XHS 9 HDSI 180 T Compatible with:

  • All HELIX Side Imaging units except: HELIX 7 CHIRP MSI GPS G3
  •  HELIX 7 CHIRP MSI GPS G3N
  •  HELIX 7 CHIRP MSI GPS G4
  •  HELIX 7 CHIRP MSI GPS G4N
  • HELIX 7 SI GPS G4
  • 1199ci HD SI
  • 999ci HD SI
  • 899ci HD SI
  • 1198c HD SI
  • 998c HD SI
  • 998c SI
  • 898c HD SI
  • 898c SI

Transom Mount Side Imaging Transducer Abbreviations

  • XNT, XM, XHS- Transom Mounted Transducer
  • 9 - 9 Pin Connection
  • 14 - 14 Pin Connection
  • HW - High Wide
  • T - Temperature
  • SI - Side Imaging
  • MSI - MEGA Side Imaging

XNT 9 SI 180 T - Transom Mount Side Imaging Down Imaging Transducer

Transom Side Imaging (SI) Sonar Model Name

Compatible Units

XNT 9 SI 180 T - Transom Mount Side Imaging Down Imaging Transducer

Item Number:  710200-1

Description: Compact Dual/Side Imaging. 20/60/180 degree, 200/83/455 kHz with built-in temperature. 20’ cable

XNT 9 SI 180 T Compatible with:

  • 398C SI
  • 698ci HD SI
  • 798ci SI
  • 899CI HD S
  • HELIX 5 SI GPS
  • HELIX 5 CHIRP SI GPS G2
  • HELIX 7 SI GPS
  • HELIX 7 CHIRP SI GPS G2
  • HELIX 7 CHIRP SI GPS G2N
  • HELIX 9 SI GPS
    		•







    Trolling Motor Transducers

    2D Trolling Motor Transducers

    (2D Sonar, Down Imaging, Side Imaging subsets) Note: When mounting external transducer to Minn Kota Trolling motor we recommend referring to Lower Unit Dimensions and Installing and External Transducer on Minn Kota Motors.

    Click the drop-down arrow next to the Trolling Motor Transducer model you want to verify for compatibility

    XTM 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    Trolling Model 2D Sonar Model Name

    Compatible Units

    XTM 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    • Item Number: 710277-1
    • Description: Trolling Motor Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with
      Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz. Dual Spectrum CHIRP Max Depth
      1200ft Includes built-in temperature, 15’ cable

    XTM 9 HW T Compatible with:

    • HELIX 5 CHIRP G3 GPS-equipped models only
    • HELIX 7 CHIRP G2 GPS-equipped
    • HELIX 7 CHIRP G3 GPS-equipped
    • HELIX 7 CHIRP G4 GPS-equipped
    • HELIX 7 CHIRP DI G2 models
    • HELIX 7 CHIRP G2N
    • HELIX 7 CHIRP G3N
    • HELIX 7 CHIRP G4N
    • HELIX 8 CHIRP G3N/
    • HELIX 8 CHIRP G4N
    • HELIX 9 CHIRP G2N
    • HELIX 9 CHIRP G3N
    • HELIX 9 CHIRP G4N
    • HELIX 10 CHIRP G2N
    • HELIX 10 CHIRP G3N
    • HELIX 10 CHIRP G4N
    • HELIX 12 CHIRP G2N
    • HELIX 12 CHIRP G3N
    • HELIX 12 CHIRP G4N
    • ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.

    Trolling Motor 2D Transducer Abbreviations

    • XTM- Trolling Motor Mounted Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XTM 14 HW T - Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    Trolling Model 2D Sonar Model Name

    Compatible Units

    XTM 14 HW T - Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    • Item Number: 710288-1
    • Description:  Trolling Motor Mount, Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz and max depth of 1200ft. Includes built-in temperature sensor. 15’ cable

    XTM 14 HW T Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 G2
    • SOLIX 10 G3
    • SOLIX 12 G2
    • SOLIX 12 G3
    • SOLIX 15 G2
    • SOLIX 12 G3

    Trolling Motor 2D Transducer Abbreviations

    • XTM- Trolling Motor Mounted Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XTM 9 20 T - Trolling Motor DualBeam Transducer

    Trolling Model 2D Sonar Model Name

    Compatible Units

    XTM 9 20 T - Trolling Motor DualBeam Transducer

    • Item Number: 710160-1
    • Description: Trolling Motor Mount, Single/DualBeam, 20/60 degree, 200/83 kHz. with built-in temperature, 20’ cable

    XTM 9 20 T Compatible with:

    • HELIX Series except non-CHIRP DI models
    • Matrix 10, 12, 15, 17, 20, 27, 67, 77, 87, 97
    • 100 and 300 Series except DI
    • 500 Series except DI
    • 600 Series except DI
    • 700 Series except DI
    • 800 Series except DI
    • 900 Series except DI
    • 3D models
    • 1100 Series except DI
    • HDR650 to the maximum capability of the transducer.

    Trolling Motor 2D Transducer Abbreviations

    • XTM- Trolling Motor Mounted Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XTM 14 20 T

    Trolling Model 2D Sonar Model Name

    Compatible Units

    XTM 14 20 T

    • Item Number: 710250-1 (no longer manufactured)
    • Description: Trolling Motor Mount Dual Beam, 20/60 degrees, 200/83 kHz, 20’ cable and temperature sensor

    XTM 14 20 T Compatible with:

    • SOLIX 10 Series G1 Models
    • SOLIX 12 Series G1 Models
    • SOLIX 15 Series G1 Models
    • ION Series Must also have the Sonar Module
    • ONIX Series

    Trolling Motor 2D Transducer Abbreviations

    • XTM- Trolling Motor Mounted Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature



    XTM 9 28 T (no longer manufactured)

    Trolling Model 2D Sonar Model Name

    Compatible Units

    XTM 9 28 T (no longer manufactured)

    • Item Number: 710246-1 (no longer manufactured)

    XTM 9 28 T (no longer manufactured) Compatible with:

    • PiranhaMAX 4
    • PiranhaMAX 4 PT

    Trolling Motor 2D Transducer Abbreviations

    • XTM- Trolling Motor Mounted Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature









    Down Imaging (DI / MDI) Trolling Motor Transducers

    Click the drop-down arrow next to the Trolling Motor Down Imaging transducer you want to verify for compatibility with:

    XTM 9 HW MDI 75 T - HELIX 7/8 MEGA DI, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    Trolling Motor Down Imaging DI Model Name

    Compatible Units

    XTM 9 HW MDI 75 T - HELIX 7/8 MEGA DI, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    • Item Number: 710296-1
    • Description: MEGA Down Imaging Trolling Motor Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.

    XTM 9 HW MDI 75 T Compatible with:

    • HELIX 7 CHIRP MEGA DI GPS G3
    • HELIX 7 CHIRP MEGA DI GPS G3N
    • HELIX 7 MDI GPS G4N
    • HELIX 8 CHIRP MEGA DI GPS G3N
    • HELIX 8 CHIRP MEGA DI GPS G4N

    Trolling Motor Down Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • DI - Down Imaging
    • MDI - MEGA Down Imaging

    XTM 9 HW MDI T - HELIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    Trolling Motor Down Imaging DI Model Name

    Compatible Units

    XTM 9 HW MDI T - HELIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    • Item Number: 710281-1
    • Description: Trolling Motor Mount, MEGA Down Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor,  15’ cable, Dimensions: 2.299” W x 7.149” L

    XTM 9 HW MDI T Compatible to the maximum capabilities of the unit:

    • HELIX 9 CHIRP MEGA DI+ G3N
    • HELIX 10 CHIRP MEGA DI+ G3N
    • HELIX 12 CHIRP MEGA DI+ G3N
    • HELIX 9 CHIRP MEGA DI+ G4N
    • HELIX 10 CHIRP MEGA DI+ G4N
    • HELIX 12 CHIRP MEGA DI+ G4N
    • HELIX 15 CHIRP MEGA DI+ G4N
    • HELIX 8 CHIRP MEGA SI+ G3N
    • HELIX 9 CHIRP MEGA SI+ G3N
    • HELIX 10 CHIRP MEGA SI+ G3N
    • HELIX 12 CHIRP MEGA SI+ G3N
    • HELIX 8 CHIRP MEGA SI+ G4N
    • HELIX 9 CHIRP MEGA SI+ G4N
    • HELIX 10 CHIRP MEGA SI+ G4N
    • HELIX 12 CHIRP MEGA SI+ G4N
    • HELIX 15 CHIRP MEGA SI+ G4N

    Trolling Motor Down Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • DI - Down Imaging
    • MDI - MEGA Down Imaging

    XTM 14 HW MDI T - SOLIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    Trolling Motor Down Imaging DI Model Name

    Compatible Units

    XTM 14 HW MDI T - SOLIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    • Item Number: 710291-1
    • Description: Trolling Motor Mount, MEGA Down Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor.  15’ cable, Dimensions: 2.299” W x 7.149” L

    XTM 14 HW MDI T Compatible with:

    • All models listed below provides 2D & MDI+ only
      • XPLORE 9
      • XPLORE 10
      • XPLORE 12
      • APEX 13
      • APEX 16
      • APEX 19
      • SOLIX 10 MEGA SI+ G2
      • SOLIX 10 MEGA SI+ G3
      • SOLIX 12 MEGA SI+ G2
      • SOLIX 12 MEGA SI+ G3
      • SOLIX 15 MEGA SI+ G2
      • SOLIX 15 MEGA SI+ G3

    Trolling Motor Down Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • DI - Down Imaging
    • MDI - MEGA Down Imaging



    XTM 14 HW MSI T - SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    Trolling Motor Down Imaging DI Model Name Compatible Units

    XTM 14 HW MSI T - SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

    • Item Number: 710293-1
    • Description: Trolling Motor Mount, MEGA Side Imaging Trolling Motor Transducer supports 455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature 15’ cable, Dimensions: 2.229” W x 8.399” L

    XTM 14 HW MSI T Compatible with:

    • All models listed below provides 2D & MDI+ only
      • XPLORE 9
      • XPLORE 10
      • XPLORE 12
      • APEX 13
      • APEX 16
      • APEX 19
      • SOLIX 10 MEGA SI+ G2
      • SOLIX 10 MEGA SI+ G3
      • SOLIX 12 MEGA SI+ G2
      • SOLIX 12 MEGA SI+ G3
      • SOLIX 15 MEGA SI+ G2
      • SOLIX 15 MEGA SI+ G3

    Trolling Motor Down Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • DI - Down Imaging
    • MDI - MEGA Down Imaging

    XTM 9 MDI T - Trolling Motor HELIX MEGA DI Transducer

    Trolling Motor Down Imaging DI Model Name Compatible Units

    XTM 9 MDI T - Trolling Motor HELIX MEGA DI Transducer

    • Item Number: 710270-1
    • Description: Trolling Motor Mount, MEGA Down Imaging and Digital CHIRP Dual Spectrum with 25/42 Degree and 45/75 Degree, 455kHz/800 kHz and 1.2 MHz. Includes built-in temperature. 15’ cable
    • XTM 9 MDI T Compatible to the maximum capabilities of the unit.
    • HELIX 12/10/9 CHIRP MEGA DI GPS G2N
    • XTM 9 MDI T Compatible to the maximum capabilities of the Transducer:
    • HELIX 9 CHIRP MEGA DI+ GPS G3N
    • HELIX 10 CHIRP MEGA DI+ GPS G3N
    • HELIX 12 CHIRP MEGA DI+ GPS G3N
    • HELIX 19 CHIRP MEGA DI+ GPS G4N
    • HELIX 10 CHIRP MEGA DI+ GPS G4N
    • HELIX 12 CHIRP MEGA DI+ GPS G4N
    • HELIX 15 CHIRP MEGA DI+ GPS G4N
    • HELIX 9 CHIRP MEGA SI GPS G2N
    • HELIX 10 CHIRP MEGA SI GPS G2N
    • HELIX 12 CHIRP MEGA SI GPS G2N
    • HELIX 8 CHIRP MEGA SI+ GPS G3N
    • HELIX 9 CHIRP MEGA SI+ GPS G3N
    • HELIX 10 CHIRP MEGA SI+ GPS G3N
    • HELIX 12 CHIRP MEGA SI+ GPS G3N
    • HELIX 8 CHIRP MEGA SI+ GPS G4N
    • HELIX 9 CHIRP MEGA SI+ GPS G4N
    • HELIX 10 CHIRP MEGA SI+ GPS G4N
    • HELIX 12 CHIRP MEGA SI+ GPS G4N
    • HELIX 15 CHIRP MEGA SI+ GPS G4N


    Trolling Motor Down Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • DI - Down Imaging
    • MDI - MEGA Down Imaging

    XTM 9 WIDE DI 20 T - Trolling Motor Wide Dual Beam Down Imaging Transducery

    Trolling Motor Down Imaging DI Model Name Compatible Units

    XTM 9 WIDE DI 20 T - Trolling Motor Wide Dual Beam Down Imaging Transducer

    • Item Number: 710235-1
    • Description: Trolling Motor Mount Down Imaging/ Dual Beam 75/45/ 25/16 Degree 200/455 kHz 455/800 kHz (DI), 20’ cable with temperature sensor 15’ cable

    XTM 9 WIDE DI 20 T Compatible With

    • Maximum Capability of the Unit:
      • HELIX 7 CHIRP DI GPS G2N
      • HELIX 9 CHIRP DI GPS G2N
      • HELIX 10 CHIRP DI GPS G2N
      • HELIX 12 CHIRP DI GPS G2N
      • HELIX 5 CHIRP DI GPS G2
      • HELIX 7 CHIRP DI GPS G2
      • HELIX 5 CHIRP DI G2
      • HELIX 7 CHIRP DI G2
      • HELIX 12 CHIRP DI GPS
      • HELIX 10/9 DI GPS
      • 1159ci HD DI
      • 1158c DI
      • 959ci HD DI
      • 958c HD DI
      • 958c DI
      • 859ci HD DI
      • 858c HD DI
      • 858c DI
      • 688ci HD DI
      • 678c HD DI
      • 597ci HD DI
      • 581i HD DI
      • 571 HD DI
      • 561 DI
    • Compatible With - Maximum Capabilities of the Transducer
      • HELIX 8 CHIRP MEGA SI+ GPS G4N
      • HELIX 9 CHIRP MEGA SI+ GPS G4N
      • HELIX 10 CHIRP MEGA SI+ GPS G4N
      • HELIX 12 CHIRP MEGA SI+ GPS G4N
      • HELIX 15 CHIRP MEGA SI+ GPS G4N
      • HELIX 19 CHIRP MEGA DI+ GPS G4N
      • HELIX 10 CHIRP MEGA DI+ GPS G4N
      • HELIX 12 CHIRP MEGA DI+ GPS G4N
      • HELIX 15 CHIRP MEGA DI+ GPS G4N
      • HELIX 8 CHIRP MEGA SI+ GPS G3N
      • HELIX 9 CHIRP MEGA SI+ GPS G3N
      • HELIX 10 CHIRP MEGA SI+ GPS G3N
      • HELIX 12 CHIRP MEGA SI+ GPS G3N
      • HELIX 9 CHIRP MEGA DI+ GPS G3N
      • HELIX 10 CHIRP MEGA DI+ GPS G3N
      • HELIX 12 CHIRP MEGA DI+ GPS G3N
      • HELIX 9 CHIRP MEGA SI GPS G2N
      • HELIX 10 CHIRP MEGA SI GPS G2N
      • HELIX 12 CHIRP MEGA SI GPS G2N
      • HELIX 9 CHIRP MDI GPS G2N
      • HELIX 10 CHIRP MDI GPS G2N
      • HELIX 12 CHIRP MDI GPS G2N
      • HELIX 7 CHIRP MEGA DI GPS G3N
      • HELIX 8 CHIRP MEGA DI GPS G3N
      • HELIX 7 CHIRP MEGA DI GPS G4N
      • HELIX 8 CHIRP MEGA DI GPS G4N
      • HELIX 7 CHIRP MEGA DI GPS G3
      • HELIX 7 CHIRP MEGA DI GPS G4

    Trolling Motor Down Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • DI - Down Imaging
    • MDI - MEGA Down Imaging

    XTM 9 DI 25 T (no longer manufactured)

    Trolling Motor Down Imaging DI Model Name Compatible Units

    XTM 9 DI 25 T (no longer manufactured)

    • Item Number: 710234-1 (no longer manufactured)
    • Description: Trolling Motor Mount Down Imaging/ Dual Beam Plus 75/45/ 25/16 Degree 200/455 kHz 455/800 kHz (DI) 20’ cable, with temp sensor

    XTM 9 DI 25 T (no longer manufactured) Compatible with:

    • HELIX 7 DI GPS
    • HELIX 7 DI GPS G2
    • HELIX 9 DI GPS
    • HELIX 10 DI GPS
    • HELIX 12 CHIRP DI GPS
    • 1159ci HD DI
    • 959ci HD DI
    • 859ci HD DI
    • 688ci DI, 678 DI
    • 386ci DI,
    • 346c DI
    • PMAX 4 DI

    Trolling Motor Down Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • DI - Down Imaging
    • MDI - MEGA Down Imaging





    Side Imaging (SI / MSI) Trolling Motor Transducers

    Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility

    XTM 9 HW MSI T - HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp, Trolling Motor Transducer

    Trolling Motor SI Model Name

    Compatible Units

    XTM 9 HW MSI T - HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp, Trolling Motor Transducer

    • Item Number: 710283-1
    • Description: Trolling Motor Mount MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP with 20’ cable length, and temperature sensor Dimensions: 2.229” W x 8.399” L

    XTM 9 HW MSI T Compatible with:

    • HELIX 8 MEGA SI+ GPS G3N
    • HELIX 8 MEGA SI+ GPS G4N
    • HELIX 9 MEGA SI+ GPS G3N
    • HELIX 9 MEGA SI+ GPS G4N
    • HELIX 10 MEGA SI+ GPS G3N
    • HELIX 10 MEGA SI+ GPS G4N
    • HELIX 12 MEGA SI+ GPS G3N
    • HELIX 12 MEGA SI+ GPS G3N
    • HELIX 15 MEGA SI+ GPS G4N

    Trolling Motor Side Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • SI - Side Imaging
    • MSI - MEGA Side Imaging

    XTM 9 20 MSI T - Trolling Motor Dual Beam MEGA SI MEGA DI Transducer

    Trolling Motor SI Model Name

    Compatible Units

    XTM 9 20 MSI T - Trolling Motor Dual Beam MEGA SI MEGA DI Transducer

    • Item Number: 710263-1
    • Description: Trolling Motor Mount, MEGA SI, MEGA DI, Dual Beam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, Includes built-in temperature, 20' cable length, Dimensions: 3.000“ W x 7.350“ L

    XTM 9 20 MSI T Compatible with to the maximum capability of the unit:

    • HELIX 9 CHIRP SI GPS G2N
    • HELIX 10 CHIRP SI GPS G2N
    • HELIX 12 CHIRP SI GPS G2N

    XTM 9 20 MSI T Compatible with to the maximum capability of the transducer:

    • HELIX 8 CHIRP MEGA SI+ GPS G3N
    • HELIX 9 CHIRP MEGA SI+ GPS G3N
    • HELIX 10 CHIRP MEGA SI+ GPS G3N
    • HELIX 12 CHIRP MEGA SI+ GPS G3N
    • HELIX 8 CHIRP MEGA SI+ GPS G4N
    • HELIX 9 CHIRP MEGA SI+ GPS G4N
    • HELIX 10 CHIRP MEGA SI+ GPS G4N
    • HELIX 12 CHIRP MEGA SI+ GPS G4N
    • HELIX 15 CHIRP MEGA SI+ GPS G4N

    Trolling Motor Side Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • SI - Side Imaging
    • MSI - MEGA Side Imaging

    XTM 9 HDSI 180 T - Trolling Motor Dual Beam HD Side Imaging Transducer

    Trolling Motor SI Model Name

    Compatible Units

    XTM 9 HDSI 180 T - Trolling Motor Dual Beam HD Side Imaging Transducer

    • Item Number: 710205-1
    • Description: Trolling Motor Mount, Dual/High Definition Side Imaging 20/60/180 Degree, 200/83/455/800 kHz with built-in temperature, 20' cable length.

    XTM 9 HDSI 180 T Compatible with to the maximum capability of the transducer:

    • All HELIX Side Imaging units except HELIX 7 CHIRP MSI GPS G3/G3N/G4/G4N and HELIX 7 SI GPS G4
    • 1199ci HD SI
    • 999ci HD SI
    • 899ci HD SI
    • 1198c HD SI
    • 998c HD SI
    • 998c SI
    • 898c HD SI
    • 898c SI

    Trolling Motor Side Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • SI - Side Imaging
    • MSI - MEGA Side Imaging

    XTM 9 SI 180 T - Trolling Motor Dual Beam Compact Side Imaging Down Imaging Transducer

    Trolling Motor SI Model Name

    Compatible Units

    XTM 9 SI 180 T - Trolling Motor Dual Beam Compact Side Imaging Down Imaging Transducer

    Item Number: 710204-1

    Description: Trolling Motor Mount, Compact Dual/Side Imaging. 20/60/180 degree, 200/83/455 kHz with built-in temperature, 20' cable length, Dimensions: 3.181“ W x 3.933“ L
    • XTM 9 SI 180 T Compatible with
    • Maximum Capabilities of the Unit:
      • HELIX 5 SI GPS
      • HELIX 5 CHIRP SI GPS G2
      • HELIX 7 SI GPS
      • HELIX 7 CHIRP SI GPS G2
      • HELIX 7 CHIRP SI GPS G2N
      • HELIX 9 SI GPS
      • 798ci HD SI
      • 798ci SI
      • 698ci HD SI
      • 598ci HD SI
      • 398C SI

    • XTM 9 SI 180 T Compatible with Maximum Capabilities of the Transducer:
    • HELIX 9 CHIRP MEGA SI+ GPS G4N
    • HELIX 10 CHIRP MEGA SI+ GPS G4N
    • HELIX 12 CHIRP MEGA SI+ GPS G4N
    • HELIX 15 CHIRP MEGA SI+ GPS G4N
    • HELIX 9 CHIRP MEGA SI+ G3N
    • HELIX 10 CHIRP MEGA SI+ G3N
    • HELIX 12 CHIRP MEGA SI+ G3N
    • HELIX 9 CHIRP MEGA SI GPS G2N
    • HELIX 10 CHIRP MEGA SI GPS G2N
    • HELIX 12 CHIRP MEGA SI GPS G2N
    • HELIX 12 CHIRP SI GPS
    • HELIX 9 SI GPS
    • HELIX 10 SI GPS
    • HELIX 7 CHIRP MEGA SI GPS G3
    • HELIX 7 CHIRP MEGA SI GPS G4
    • 1199ci HD SI
    • 1198c SI
    • 1197c SI
    • 999ci HD SI
    • 998c SI
    • 998c HD SI)

    Trolling Motor Side Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • SI - Side Imaging
    • MSI - MEGA Side Imaging

    XTM 9 HW MSI 150 T (no longer manufactured)

    Trolling Motor SI Model Name

    Compatible Units

    XTM 9 HW MSI 150 T (no longer manufactured)

    • Item Number: 710298-1 (no longer manufactured)
    • Description: Trolling Motor Mount MEGA Side Imaging MEGA Down Imaging, Dual Spectrum CHIRP with temperature Sensor. Dimensions: 3” W x 5.292” L

    XTM 9 HW MSI 150 T (no longer manufactured) Compatible with:

    • HELIX 7 CHIRP MSI G3 models
    • HELIX 7 CHIRP MSI G3N models
    • HELIX 7 CHIRP MSI G4 models
    • HELIX 7 CHIRP MSI G4N models

    Trolling Motor Side Imaging Transducer Abbreviations

    • XMT- Trolling Motor Mounted Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature
    • SI - Side Imaging
    • MSI - MEGA Side Imaging





    In-Hull, Thru-Hull, and Portable Transducers



    In‑Hull Transducers

    These transducers are all 2D Sonar. Note: When installing In-Hull transducers on fiberglass boats fiberglass needs to be single layer less than 1 inch thick.

    Click the drop down arrow next to the In Hull Transducer you are looking for compatibility.

    XP 9 HW - HELIX Dual Spectrum CHIRP In-Hull Transducer

    In‑Hull Transducer Model Name

    Compatible Units

    XP 9 HW - HELIX Dual Spectrum CHIRP In-Hull Transducer

    Item Number: 710275-1

    Description: In Hull Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. For use in single layer fiberglass hull. No temperature. 15’ cable

    XP 9 HW Compatible with:

    • HELIX 5 CHIRP G2 GPS equipped models only
    • HELIX 7 CHIRP G2 GPS equipped
    • HELIX 7 CHIRP G3 GPS equipped
    • HELIX 7 CHIRP G4 GPS equipped
    • HELIX 7 CHIRP DI G2 models
    • HELIX 7 CHIRP G2N
    • HELIX 7 CHIRP G3N
    • HELIX 7 CHIRP G4N
    • HELIX 8 CHIRP G3N
    • HELIX 8 CHIRP G4N
    • HELIX 9 CHIRP G2N
    • HELIX 9 CHIRP G3N
    • HELIX 9 CHIRP G4N
    • HELIX 10 CHIRP G2N
    • HELIX 10 CHIRP G3N
    • HELIX 10 CHIRP G4N
    • HELIX 12 CHIRP G2N
    • HELIX 12 CHIRP G3N
    • HELIX 12 CHIRP G4N
    • ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.
    • APEX, XPLORE, SOLIX All models.  Requires AD 1429

    In-Hull Transducer Abbreviations

    • XP- In Hull or Shoot Thru the Hull Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature


    XP 9 HW T - HELIX Dual Spectrum CHIRP w/temp In-Hull Transducer

    In‑Hull Transducer Model Name

    Compatible Units


    XP 9 HW T - HELIX Dual Spectrum CHIRP w/temp In-Hull Transducer

    Item Number: 710276-1

    Description: In Hull Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. For use in single layer fiberglass hull. Includes built-in temperature. 15’ cable




    XP 9 HW T Compatible with:

    • HELIX 5 CHIRP G2 GPS equipped models only
    • HELIX 7 CHIRP G2 GPS equipped
    • HELIX 7 CHIRP G3 GPS equipped
    • HELIX 7 CHIRP G4 GPS equipped
    • HELIX 7 CHIRP DI G2 models
    • HELIX 7 CHIRP G2N
    • HELIX 7 CHIRP G3N
    • HELIX 7 CHIRP G4N
    • HELIX 8 CHIRP G3N
    • HELIX 8 CHIRP G4N
    • HELIX 9 CHIRP G2N
    • HELIX 9 CHIRP G3N
    • HELIX 9 CHIRP G4N
    • HELIX 10 CHIRP G2N
    • HELIX 10 CHIRP G3N
    • HELIX 10 CHIRP G4N
    • HELIX 12 CHIRP G2N
    • HELIX 12 CHIRP G3N
    • HELIX 12 CHIRP G4N
    • ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.
    • APEX, XPLORE, SOLIX All models.  Requires AD 1429

    In-Hull Transducer Abbreviations

    • XP- In Hull or Shoot Thru the Hull Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

     XP 9 20 T - In-Hull Single/DualBeam Transducer

    In‑Hull Transducer Model Name

    Compatible Units

    XP 9 20 T - In-Hull Single/DualBeam Transducer

    Item Number: 710147-1

    Description: In Hull, Single/Dual Beam, 20/60 degree, 200/83 kHz, with built-in temperature. For use in single layer fiberglass hull. 15’ cable



    XP 9 20 T Compatible with:

    • HELIX Series except non-CHIRP DI models
    • Matrix 10, 12, 15, 17, 20, 27, 67, 77, 87, 97
    • All 100 and 300 Series except DI
    • 500 Series except DI
    • 600 Series except DI
    • 700 Series except DI
    • 800 Series except DI
    • 900 Series except DI
    • 3D models
    • 1100 Series except DI, and HDR650 to the maximum capability of the transducer.

    In-Hull Transducer Abbreviations

    • XP- In Hull or Shoot Thru the Hull Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XP 14 HW - SOLIX Dual Spectrum CHIRP In-Hull Transducer

    In‑Hull Transducer Model Name

    Compatible Units

    XP 14 HW - SOLIX Dual Spectrum CHIRP In-Hull Transducer

    Item Number: 710286-1

    Description: In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. No temperature. For use in single layer fiberglass hull. 15’ cable

    XP 14 HW Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 G2
    • SOLIX 10 G3
    • SOLIX 12 G2
    • SOLIX 12 G3
    • SOLIX 15 G2
    • SOLIX 12 G3

    In-Hull Transducer Abbreviations

    • XP- In Hull or Shoot Thru the Hull Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XP 14 HW T - SOLIX Dual Spectrum CHIRP w/temp In-Hull Transducer

    In‑Hull Transducer Model Name

    Compatible Units

    XP 14 HW T - SOLIX Dual Spectrum CHIRP w/temp In-Hull Transducer:

    • Item Number: 710287-1
    • Description: In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature. For use in single layer fiberglass hull.

    XP 14 HW T Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 G2
    • SOLIX 10 G3
    • SOLIX 12 G2
    • SOLIX 12 G3
    • SOLIX 15 G2
    • SOLIX 12 G3

    In-Hull Transducer Abbreviations

    • XP- In Hull or Shoot Thru the Hull Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XP 9 20  (no longer manufactured)

    In‑Hull Transducer Model Name

    Compatible Units

    XP 9 20  (no longer manufactured)

    Item Number: 710164-1 (no longer manufactured)

    Description: In-Hull Mount Single or Dual Beam 20°/60° 200/83 kHz

    XP 9 20  (no longer manufactured) Compatible with:

    • 100 and 300 Series except DI
    • 500 Series except DI
    • 600 Series except DI
    • 700 Series except DI
    • 800 Series except DI
    • 900 Series except DI, models
    • 1100 Series except DI models
    • HELIX Series except DI models
    • HDR650

    In-Hull Transducer Abbreviations

    • XP- In Hull or Shoot Thru the Hull Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XAP 9 20  (no longer manufactured)

    In‑Hull Transducer Model Name

    Compatible Units

    XAP 9 20  (no longer manufactured)

    • Item Number: 710165-1  (no longer manufactured)
    • Description: In-Hull Mount Single or Dual Beam 20°/60° 200/83 kHz

    XAP 9 20  (no longer manufactured) Compatible with:

    • 100 Series except DI
    • 300 Series except DI
    • 500 Series except DI
    • 600 Series except DI
    • 700 Series except DI
    • 800 Series except DI
    • 900 Series except DI, models
    • 1100 Series except DI models
    • HELIX Series except DI models
    • HDR650

    In-Hull Transducer Abbreviations

    • XP- In Hull or Shoot Thru the Hull Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XP 14 20 T (no longer manufactured)

    In‑Hull Transducer Model Name

    Compatible Units

    XP 14 20 T (no longer manufactured)

    • Item Number: 710248-1 (no longer manufactured)
    • Description: In-Hull transducer Dual Beam, 20/60 degrees, 200/83 kHz, temp pigtail. For use in single layer fiberglass hull boats

    XP 14 20 T (no longer manufactured) Compatible with:

    • All ONIX Series
    • SOLIX 10 CHIRP GPS
    • SOLIX 12 CHIRP GPS
    • SOLIX 15 CHIRP GPS
    • ION* Series Must also have the Sonar Module

    In-Hull Transducer Abbreviations

    • XP- In Hull or Shoot Thru the Hull Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature





    Thru‑Hull (Stainless, Bronze, Plastic)

    Bronze Thru-Hull – 2D Sonar

    Click the drop-down arrow next to the Thru Hull accessory you want to verify for compatibility with:

    XTH 9 20 - Bronze Thru Hull Dual Beam Transducer

    Thru-Hull Bronze Model

    Compatible Units

    XTH 9 20 - Bronze Thru Hull Dual Beam Transducer

    Item Number: 710166-1

    Description: Bronze Thru Hull, Single/Dual Beam, 20/60 degree, 200/83 kHz. No temperature. 20' cable length

    XTH 9 20 Compatible with:

    • 100 Series except  DI models
    •  300 Series except  DI models
    • 500 Series except DI models
    • 600 Series except DI models
    • 800 Series except DI models
    • 900 Series except DI models
    • 1100 Series except  DI models
    • HELIX non-CHIRP models not including HELIX DI models
    • HELIX 5 Sonar G2

    In-Hull Transducer Abbreviations

    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature



    Stainless Thru-Hull – Side Imaging

    • These transducers are all Side Imaging/Down Imaging, and 2D Sonar.

    Click the drop-down arrow next to the Thru-Hull Stainless accessory you want to verify for compatibility with:

    SSTH 14 HW MSI+ T - SOLIX MEGA SI+, DI+, DS CHIRP w/ Temp Thru-Hull Transducer

    Thru-Hull Stainless Model

    Compatible Units

    SSTH 14 HW MSI+ T - SOLIX MEGA SI+, DI+, DS CHIRP w/ Temp Thru-Hull Transducer

    Item Number: 710302-1

    Description: Side, Down and 2D Sonar This transducer provides Side Imaging (800kHz/455kHz), Down Imaging (MEGA DI+/800kHz/455kHz) and Dual Spectrum CHIRP 2D sonar with a CHIRP range of 150-220kH MEGA Side Imaging Frequencies - Max Range (side-to-side) 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging Frequencies - Max Depth 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m) Dual Spectrum CHIRP Frequencies Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
    Dual Spectrum CHIRP Max Depth 1200ft (365m)
    Transducer dimensions: 8.4L x 2.3"W x 1.65"D (below hull); Shaft diameter: 1.5", Shaft length: 5" fairing block included

    SSTH 14 HW MSI+ T Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 MEGA SI+ G2
    • SOLIX 10 MEGA SI+ G3
    • SOLIX 12 MEGA SI+ G2
    • SOLIX 12 MEGA SI+ G3
    • SOLIX 15 MEGA SI+ G2
    • SOLIX 15 MEGA SI+ G3

    Stainless Transducer Abbreviations

    • SSTH- Stainless Steel Thru Hull Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • MSI- MEGA Side Imaging
    • T - Temperature



    Plastic – 2D Thru-Hull

    • These transducers are all 2D Sonar.

    Click the drop-down arrow next to the Portable Transducer you want to verify for compatibility with:

    XPTH 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

    Plastic 2D Transducer Model

    Compatible Units

    XPTH 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

    Item Number: 710279-1

    Description: Plastic Thru-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering Dual Spectrum CHIRP Frequencies
    Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHRIP Max Depth
    1200ft . Includes built-in temperature sensor, 30' cable length. Dimensions L 4.0" x W 2.5" x D 1.2" - Stem Length 4", Stem Diameter 1"

    XPTH 9 HW T Compatible with:

    • HELIX 5 CHIRP G3 GPS equipped models only
    • HELIX 7 CHIRP G2 GPS equipped models
    • HELIX 7 CHIRP G3 GPS equipped models
    • HELIX 7 CHIRP G4 GPS equipped models
    • HELIX 7 CHIRP DI G2 models
    • HELIX 7 CHIRP G2N
    • HELIX 7 CHIRP G3N
    • HELIX 7 CHIRP G4N
    • HELIX 8 CHIRP G3N
    • HELIX 8 CHIRP G4N
    • HELIX 9 CHIRP G2N
    • HELIX 9 CHIRP G3N
    • HELIX 9 CHIRP G4N
    • HELIX 10 CHIRP G2N
    • HELIX 10 CHIRP G3N
    • HELIX 10 CHIRP G4N
    • HELIX 12 CHIRP G2N
    • HELIX 12 CHIRP G3N
    • HELIX 12 CHIRP G4N
    • ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.

    Plastic 2D Transducer Abbreviations

    • XPTH- Plastic Thru Hull Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XPTH 14 HW T - SOLIX Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

    Plastic 2D Transducer Model

    Compatible Units

    XPTH 14 HW T - SOLIX Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

    Item Number: 710289-1

    Description: Dual Spectrum CHIRP Frequencies
    Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz DUAL Spectrum CHIRP Max Depth
    1200ft, 30' cable length Dimensions L 4.0" x W 2.5" x D 1.2" - Stem Length 4", Stem Diameter 1"

    XPTH 14 HW T Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 MEGA SI+ G2
    • SOLIX 10 MEGA SI+ G3
    • SOLIX 12 MEGA SI+ G2
    • SOLIX 12 MEGA SI+ G3
    • SOLIX 15 MEGA SI+ G2
    • SOLIX 15 MEGA SI+ G3

    Plastic 2D Transducer Abbreviations

    • XPTH- Plastic Thru Hull Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XTH 9 DB 74 P - 200/50 Plastic Thru Hull Dual Beam Transducer

    Plastic 2D Transducer Model

    Compatible Units

    XTH 9 DB 74 P - 200/50 Plastic Thru Hull Dual Beam Transducer

    Item Number: 710185-1

    Description: Plastic Thru Hull, Single/Dual Beam, 20/74 degree, 200/50 kHz, with built-in temperature, 30' cable length, Transducer Dimensions 6.7"L x 3"W x 1.4"D (below boat hull). Shaft: 1" diameter. Fairing block included

    XTH 9 DB 74 P Compatible with:

    • HELIX Series except non-CHIRP DI models
    • 100 Series except DI
    • 300 Series except DI
    • 500 Series except DI
    • 600 Series except DI
    • 700 Series except DI
    • 800 Series except DI
    • 900 Series except DI
    • 3D models
    • 1100 Series except DI
    • HDR650 to the maximum capability of the transducer.

    Plastic 2D Transducer Abbreviations

    • XPTH- Plastic Thru Hull Transducer
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XTH 9 20 P (no longer manufactured)

    Plastic 2D Transducer Model

    Compatible Units

    XTH 9 20 P (no longer manufactured)

    Item Number: 710167-1 (no longer manufactured)

    Description: Plastic thru-hull Single/Dual Beam transducer with 20’ cable. 20/60 Degree, 200/83kHz Transducer: 3.9”L x 2.5”W x 1.16”D Shaft: 1.0” diameter

    XTH 9 20 P (no longer manufactured) Compatible with:

    • All HELIX non-CHIRP models, except DI models
    • All 300 Series except DI models
    • All 500 Series except DI models
    • All 600 Series except DI models
    • All 800 Series except DI models
    • All 900 Series except DI,
    • 3D models
    • All 1100 Series except  DI models

    Portable Transducer Abbreviations

    • XP/XNPT- Portable Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature







    Plastic Side Imaging Thru-Hull

    • Click the drop-down arrow next to the Side Imaging Transducer you want to verify for compatibility with:

    XPTH 9 HW MSI T - HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

    PLASTIC THRU- HULL TRANSDUCERS – Side Imaging Model

    Compatible Units

    XPTH 9 HW MSI T - HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

    Item Number: 710284-1

    Description: Dual Spectrum CHIRP Frequencies
    Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHRIP Max Depth
    1200ft (365m) MEGA Side Imaging+ Frequencies - Max Range (side-to-side) 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (m)
    MEGA Down Imaging+ Frequencies - Max Depth
    455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) Dimensions L 8.4" x W 2.3" x D 1.0"; Stem Length: 5"; Stem Diameter: 1"

    XPTH 9 HW MSI T Compatible with:

    • HELIX 8 MEGA SI+ GPS G3N
    • HELIX 8 MEGA SI+ GPS G4N
    • HELIX 9 MEGA SI+ GPS G3N
    • HELIX 9 MEGA SI+ GPS G4N
    • HELIX 10 MEGA SI+ GPS G3N
    • HELIX 10 MEGA SI+ GPS G4N
    • HELIX 12 MEGA SI+ GPS G3N
    • HELIX 12 MEGA SI+ GPS G4N
    • HELIX 15 MEGA SI+ GPS G4N models

    Plastic Side Imaging Transducer Abbreviations

    • XPTH-Plastic Thru Hull Transducer
    • 9- 9 Type Connection
    • 14- 14  Type Connection
    • MSI-MEGA Down Imaging
    • HW - High Wide
    • T - Temperature

    XPTH 14 HW MSI T - SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

    PLASTIC THRU- HULL TRANSDUCERS – Side Imaging Model

    Compatible Units

    XPTH 14 HW MSI T - SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer

    Item Number: 710294-1

    Description: Thru-hull Mount, MEGA Side Imaging supports 455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature, 30' cable length, Dimensions
    L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"

    XPTH 14 HW MSI T Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 MEGA SI+ G2
    • SOLIX 10 MEGA SI+ G3
    • SOLIX 12 MEGA SI+ G2
    • SOLIX 12 MEGA SI+ G3
    • SOLIX 15 MEGA SI+ G2
    • SOLIX 15 MEGA SI+ G3

    Plastic Side Imaging Transducer Abbreviations

    • XPTH-Plastic Thru Hull Transducer
    • 9- 9 Type Connection
    • 14- 14  Type Connection
    • MSI-MEGA Down Imaging
    • HW - High Wide
    • T - Temperature

    XPTH 9 20 MSI T - Plastic Thru Hull Dual Beam MEGA SI MEGA DI Transducer

    PLASTIC THRU- HULL TRANSDUCERS – Side Imaging Model

    Compatible Units

    XTH 9 DB 74 P - 200/50 Plastic Thru Hull Dual Beam Transducer

    Item Number: 710185-1

    Description: Plastic Thru Hull, Single/Dual Beam, 20/74 degree, 200/50 kHz, with built-in temperature, 30' cable length, Transducer Dimensions 6.7"L x 3"W x 1.4"D (below boat hull). Shaft: 1" diameter. Fairing block included

    XTH 9 DB 74 P Compatible with:

    • HELIX Series except non-CHIRP DI models
    • 100 Series except DI
    • 300 Series except DI
    • 500 Series except DI
    • 600 Series except DI
    • 700 Series except DI
    • 800 Series except DI
    • 900 Series except DI
    • 3D models
    • 1100 Series except DI
    • HDR650 to the maximum capability of the transducer.

    Plastic Side Imaging Transducer Abbreviations

    • XPTH-Plastic Thru Hull Transducer
    • 9- 9 Type Connection
    • 14- 14  Type Connection
    • MSI-MEGA Down Imaging
    • HW - High Wide
    • T - Temperature

    XPTH 14 20 MSI T - Plastic Thru Hull SOLIX/ONIX Dual Beam MEGA SI MEGA DI Transducer

    PLASTIC THRU- HULL TRANSDUCERS – Side Imaging Model

    Compatible Units

    XPTH 14 20 MSI T - Plastic Thru Hull SOLIX/ONIX Dual Beam MEGA SI MEGA DI Transducer

    Item Number: 710267-1

    Description: Plastic Thru Hull, MEGA SI, MEGA DI, Dual Beam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, Includes built-in temperature, 30' cable length, Dimensions L 7.35" x W 3.0" x D 1.4" - Stem Length 4", Stem Diameter 1"

    XPTH 14 20 MSI T Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 MEGA SI+ G2
    • SOLIX 10 MEGA SI+ G3
    • SOLIX 12 MEGA SI+ G2
    • SOLIX 12 MEGA SI+ G3
    • SOLIX 15 MEGA SI+ G2
    • SOLIX 15 MEGA SI+ G3
    • SOLIX 15/12/10 CHIRP MEGA SI GPS G1: (first generation) to the maximum capability of the transducer.
    • ONIX SI Series only supports 455/800 kHz frequencies available for SI and DI.

    Plastic Side Imaging Transducer Abbreviations

    • XPTH-Plastic Thru Hull Transducer
    • 9- 9 Type Connection
    • 14- 14  Type Connection
    • MSI-MEGA Down Imaging
    • HW - High Wide
    • T - Temperature



    XPTH 14 74 MSI T - 200/50 Plastic Thru Hull SOLIX Dual Beam MEGA SI+ DI+ Transducer

    PLASTIC THRU- HULL TRANSDUCERS – Side Imaging Model

    Compatible Units

    XPTH 14 74 MSI T - 200/50 Plastic Thru Hull SOLIX Dual Beam MEGA SI+ DI+ Transducer

    Item Number: 710299-1

    Description: Plastic Thru Hull, MEGA SI+, MEGA DI+, 50/200 Dual Beam PLUS, 20/55/45/86 degrees, 200/83/455/800 kHz and 1.2 MHz, built-in temperature, 30' cable length, Dimensions  L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"

    XPTH 14 74 MSI T Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 MEGA SI+ G2
    • SOLIX 10 MEGA SI+ G3
    • SOLIX 12 MEGA SI+ G2
    • SOLIX 12 MEGA SI+ G3
    • SOLIX 15 MEGA SI+ G2
    • SOLIX 15 MEGA SI+ G3
    • SOLIX 15/12/10 CHIRP MEGA SI GPS G1 (first generation) to the maximum capability of the transducer.
    • ONIX SI Series only supports 455/800 kHz frequencies available for SI and DI.

    Plastic Side Imaging Transducer Abbreviations

    • XPTH-Plastic Thru Hull Transducer
    • 9- 9 Type Connection
    • 14- 14  Type Connection
    • MSI-MEGA Down Imaging
    • HW - High Wide
    • T - Temperature



    Portable 2D Transducers

    • These transducers are all 2D Sonar.

    Click the drop-down arrow next to the Portable Transducer you want to verify for compatibility with:

    XPT 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Portable Transducer

    Portable Transducer Model

    Compatible Units

    XPT 9 HW T - HELIX Dual Spectrum CHIRP w/ Temp Portable Transducer

    Item Number: 710278-1

    Description: Portable Suction Cup Mount, Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft, Includes built-in temperature, 15' cable length, Not recommended for high speeds.

    XPT 9 HW T Compatible with:

    • HELIX 5 CHIRP G3 GPS equipped models only
    • HELIX 7 CHIRP G2 GPS equipped and CHIRP DI G2 models
    • HELIX 7 CHIRP G3 GPS-equipped and CHIRP DI G2 models
    • HELIX 7 CHIRP G4 – GPS-equipped and CHIRP DI G2 models
    • HELIX 7 CHIRP DI G2 models
    • HELIX 7 CHIRP G2N
    • HELIX 7 CHIRP G3N
    • HELIX 7 CHIRP G4N
    • HELIX 8 CHIRP G3N
    • HELIX 8 CHIRP G4N
    • HELIX 9 CHIRP G2N
    • HELIX 9 CHIRP G3N
    • HELIX 9 CHIRP G4N
    • HELIX 10 CHIRP G2N
    • HELIX 10 CHIRP G3N
    • HELIX 10 CHIRP G4N
    • HELIX 12 CHIRP G2N
    • HELIX 12 CHIRP G3N
    • HELIX 12 CHIRP G4N
    • ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.

     Portable Transducer Abbreviations

    • XP/XNPT- Portable Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature

    XPT 9 20 T - Portable Single/Dual Beam Transducer

    Portable Transducer Model

    Compatible Units

    XPT 9 20 T - Portable Single/Dual Beam Transducer

    Item Number: 710161-1

    Description: Portable Suction Cup Mount , Single/Dual Beam, 20/60 degree, 200/83 kHz with built-in temperature. Not recommended for high speeds, 20' cable length

    XPT 9 20 T Compatible with:

    HELIX Series except non-CHIRP DI models
    Matrix 10, 12, 15, 17, 20, 27, 67, 77, 87, 97
    100 Series except DI
    300 Series except DI
    500 Series except DI
    600 Series except DI
    700 Series except DI
    800 Series except DI
    900 Series except DI
    3D models,
    1100 Series except DI
    HDR650 to the maximum capability of the transducer.

    Portable Transducer Abbreviations

    • XP/XNPT- Portable Transducers
    • 9 - 9 Type Connection
    • 14 - 14 Type Connection
    • HW - High Wide
    • T - Temperature







    ICE Transducer - 2D

    • These transducers are all 2D Sonar.

    Click the drop-down arrow next to the ICE accessory you want to verify for compatibility with:

    XI 9 1521 - Dual Spectrum CHIRP ICE Transducer

    Ice Model

    Compatible Units

    XI 9 1521 - Dual Spectrum CHIRP ICE Transducer

    Item Number: 710273-1

    Description: Ice Transducer, Dual Spectrum CHIRP, 15/21 Degree, 130-250 kHz. No temperature, with 8’ cable length.

    XI 9 1521  Compatible with:

    • All HELIX CHIRP units utilizing Ice Fishing mode, except HELIX 12 CHIRP SI GPS, HELIX 12 CHIRP DI GPS, HELIX 12 CHIRP GPS

    ICE 2D Transducer Abbreviations

    • XI-Ice Transducer
    • 9- 9 Type Connection

    XI 9 20 - ICE Transducer (Dual Beam)

    Ice Model

    Compatible Units

    XI 9 20 - ICE Transducer (Dual Beam)

    Item Number: 710309-1 (no longer manufactured)

    Description: Ice Transducer, Single/200/83 kHz. No tempeDual Beam, 20/60 Degree, rature, with 8' cable

    XI 9 20 Compatible with:

    • HELIX Series except non-CHIRP DI models
    • Gen-1 ICE HELIX Models (Non-CHIRP); All non-CHIRP HELIX units, except DI models (must be in Ice Fishing mode); All 100 Series  except DI
    • All 300 Series except DI
    • All 500  Series  except DI and 3D models
    • 600  Series except DI and 3D models
    • 700 Series except DI and 3D models
    • 800  Series except DI and 3D models
    • 900  Series except DI and 3D models
    • 1100 Series except DI and 3D models

    ICE 2D Transducer Abbreviations

    • XI-Ice Transducer
    • 9- 9 Type Connection

    XI 9 19 - ICE Transducer (ICE 35, 45, 55)

    Ice Model

    Compatible Units

    MEGA Live Shaft Mount

    Item Number: 710215-1

    Description: Ice Transducer, Single/Dual Beam, 9/19 Degree, 455/240kHz. No temperature, 8' length

    XI 9 19 Compatible with:

    • ICE 35 Flasher
    • ICE 45 Flasher
    • ICE 55 Flasher

    ICE 2D Transducer Abbreviations

    • XI-Ice Transducer
    • 9- 9 Type Connection



    Mounts, Hardware & Sensors

    Mounting Hardware

    Includes transom mounting kits, in‑dash mounts, adapters, and portable hardware as outlined in the guide. Note: When mounting external transducer to Minn Kota Trolling motor we recommend referring to Lower Unit Dimensions and Installing and External Transducer on Minn Kota Motors.

    Trolling Motor Transducer Kit Model Name

    Item Number

    Description

    Compatible Units

    AD MTM HW MDI

    740181-1

    MEGA DI+ Trolling Motor Transducer Adapter Bracket Rugged composite design conforms to the trolling motor for low profile fit. Adapts transom mount transducer for trolling motor use

    AD MTM HW MDI Compatible with:

    Transducers:

    • XM 9 HW MDI T
    • XTM 9 HW MDI T
    • XM 14 HW MDI T
    • XTM 14 HW MDI T
    • XM 14 HW CMSI T

    Fish Finders:

    • HELIX 8 MEGA DI+ GPS G3N
    • HELIX 9 MEGA DI+ GPS G3N
    • HELIX 10 MEGA DI+ GPS G3N
    • HELIX 12 MEGA DI+ GPS G3N
    • HELIX 15 MEGA DI+ GPS G3N
    • HELIX 8 MEGA DI+ GPS G4N
    • HELIX 9 MEGA DI+ GPS G4N
    • HELIX 10 MEGA DI+ GPS G4N
    • HELIX 12 MEGA DI+ GPS G4N
    • HELIX 15 MEGA DI+ GPS G4N
    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 MEGA SI+ G2
    • SOLIX 10 MEGA SI+ G3
    • SOLIX 12 MEGA SI+ G2
    • SOLIX 12 MEGA SI+ G3
    • SOLIX 15 MEGA SI+ G2
    • SOLIX 15 MEGA SI+ G3

    AD MTM HW MSI

    740182-1

    MEGA SI+ Trolling Motor Transducer Adapter Bracket Rugged composite design conforms to the trolling motor for low profile fit. Adapts transom mount transducer for trolling motor use

    AD MTM HW MSI Compatible with:

    Transducers:

    • XM 9 HW MSI T
    • XTM 9 HW MSI T
    • XM 14 HW MSI T
    • XTM 14 HW MSI T

    Fish Finders:

    • HELIX 8 MEGA DI+ GPS G3N
    • HELIX 9 MEGA DI+ GPS G3N
    • HELIX 10 MEGA DI+ GPS G3N
    • HELIX 12 MEGA DI+ GPS G3N
    • HELIX 15 MEGA DI+ GPS G3N
    • HELIX 8 MEGA DI+ GPS G4N
    • HELIX 9 MEGA DI+ GPS G4N
    • HELIX 10 MEGA DI+ GPS G4N
    • HELIX 12 MEGA DI+ GPS G4N
    • HELIX 15 MEGA DI+ GPS G4N
    • XPLORE 9
    • XPLORE 10
    • XPLORE 12
    • APEX 13
    • APEX 16
    • APEX 19
    • SOLIX 10 MEGA SI+ G2
    • SOLIX 10 MEGA SI+ G3
    • SOLIX 12 MEGA SI+ G2
    • SOLIX 12 MEGA SI+ G3
    • SOLIX 15 MEGA SI+ G2
    • SOLIX 15 MEGA SI+ G3

    AD MTM

    740159-1

    Rugged Trolling Motor Transducer Adapter Bracket

    AD MTM Compatible with:

    Transducers:

    • XM 9 20 MSI T
    • XM 14 20 MSI T
    • XM 14 74 MSI T
    • XTM 9 20 MSI T
    • XTM 14 20 MSI T

    Fish Finders:

    • SOLIX 10 SI
    • SOLIX 12 SI
    • SOLIX 15 SI
    • HELIX 12 CHIRP MSI GPS G2N
    • HELIX 10 CHIRP MSI GPS G2N
    • HELIX 9 CHIRP MSI GPS G2N

    AD XTM 9

    740087-1

    Trolling Motor Adapter for New XNT Transducer

    AD XTM 9 Compatible with:

    Transducers:

    • XM 9 MDI T
    • XNT 9 20
    • XNT 9 20 T
    • XNT 9 DB 74 T
    • XNT 9 DI T
    • XNT 9 HW DI T
    • XNT 9 HW MDI 75 T
    • XNT 9 HW MSI 150 T
    • XNT 9 HW SI T
    • XNT 14 20 T
    • XNT 14 74 T
    • XNT 14 DI T
    • XM 14 20 MDI T
    • XNT 14 HW T



    Transom-Mount Hardware and Adapters

    Transom Mounting Hardware & Adapters Model Name

    Item Number

    Description

    Compatible Units

    MHX XM HW - MEGA / MEGA Imaging+ Metal Transom Mounting Bracket

    740183-1

    MEGA Imaging+ Metal Mounting Bracket Durable and rugged metal construction Allows adjustment of transducer angle Ideal for transom-mount installations

    MHX XM HW  Compatible with:

    • Transducers:
      • XM 9 HW MSI T
      • XM 9 HW MDI T
      • XM 9 20 MSI T
      • XM 14 HW MDI T
      • XM 14 HW MSI T
      • XM 14 20 MSI T
      • XM 14 74 MSI T
      • XM 14 HW CMSI T

    MHX MXNT - Metal Transom Mounting Bracket

    740162-1

    Durable and rugged metal construction Impact-Release Mounting Bracket

    MHX MXNT Compatible with:

    • Transducers:
      • XM 9 MDI T
      • XNT 9 20
      • XNT 9 20 T
      • XNT 9 DB 74 T
      • XNT 9 DI T
      • XNT 9 HW DI T
      • XNT 9 HW MDI 75 T
      • XNT 9 HW MSI 150 T
      • XNT 9 HW SI T
      • XNT 14 20 T
      • XNT 14 74 T
      • XNT 14 DI T
      • XM 14 20 MDI T
      • XNT 14 HW T

    MHX HS - Transom Mounting Bracket

    740011-1

    HDWE - High Speed 200 KHZ Metal & Plastic

    MHX HS Compatible with:

    Transducers:

    • XHS 9 DB 74 T
    • XHS 9 SI 160 T
    • XHS 9 HDSI 180 T
    • XT 1420 HDSI T
    • XT 1474 HDSI T

    Fish Finders:

    • HELIX 12 CHIRP SI GPS
    • HELIX 10 SI GPS
    • HELIX 9 SI GPS
    • 1199ci SI GPS
    • 999ci SI GPS
    • 1198c SI GPS
    • 998c SI GPS



    MHX XNT - Transom Mount Hardware

    740093-1

    The MHX XNT is a plastic mounting bracket and hardware kit for XNT transom-mount transducers. HDWE - XNT with kick-up

    MHX XNT Compatible with:

    Transducers:

    • XNT 9 20
    • XNT 9 20 T
    • XNT 9 DB 74 T
    • XNT 9 DI T
    • XNT 9 HW DI T
    • XNT 9 HW MDI 75 T
    • XNT 9 HW MSI 150 T
    • XNT 9 HW SI T
    • XNT 14 20 T
    • XNT 14 74 T
    • XNT 14 DI T



    Portable Mounting

    Portable Mounting Hardware Model Name

     Item Number

    Description

    Compatible Units

    MHX XNPT - Portable Transducer Mounting Kit

    740090-1

    The MHX XNPT is a portable, suction cup transducer mount for XNT transom-mount transducers.

    MHX XNPT Compatible with:

    Transducers:

    • XM 9 MDI T
    • XNT 9 20
    • XNT 9 20 T
    • XNT 9 DB 74 T
    • XNT 9 DI T
    • XNT 9 HW DI T
    • XNT 9 HW MDI 75 T
    • XNT 9 HW MSI 150 T
    • XNT 9 HW SI T
    • XNT 14 20 T
    • XNT 14 74 T
    • XNT 14 DI T
    • XM 14 20 MDI T
    • XNT 14 HW T

    MHX ICE - ICE Mounting Hardware & Transducer Float

    740105-1

    The MHX ICE is a kit that provides the float and stopper for XI 9 19 and XI 9 20 ICE transducers. In addition, this kit also includes the hardware for ICE HELIX 5 and 7 shuttle base (cable management knobs and hardware, battery straps, dual power prongs for 12v battery).

    MHX ICE Compatible with:

    • XI 9 19
    • XI 9 20
    • XI 9 1521
    • ICE HELIX - All Models

    ICE HELIX Shuttle

    780046-1

    This shuttle base, handle and transducer cup are replacement parts for ICE HELIX 7 G4 and ICE HELIX 9 G4N MEGA Live and ICE HELIX 9 G4N MEGA 360 bundles. This shuttle assemble is intended to replace lost or damaged shuttle components on an existing ICE HELIX shuttle. Includes: Shuttle base, handle, transducer cup, and stainless steel hardware

    ICE HELIX Shuttle Compatible with:

    • Humminbird ICE Shuttles, found on:
      • ICE HELIX 7 G4
      • ICE HELIX 9 G4
      • MEGA Live
      • ICE HELIX 9 G4
      • MEGA 360 bundles



    In-dash Mounting

    In-Dash Mount Model Name

    Item Number

    Description

    Compatible Units

    In-Dash Mounting Kit - HELIX 5 (IDMK H5)

    740142-1

    In-dash mounting kit for quick and easy in-dash installation. Includes gasket, made of durable, adhesive backing

    In-Dash Mounting Kit - HELIX 5 (IDMK H5)

    • HELIX 5 Series

    In-Dash Mounting Kit - HELIX 7 (IDMK H7)

    740174-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket and hardware. Note: For HELIX 7 GPS models, this optional in-dash mounting kit is not optimized for metal in-dash scenarios

    In-Dash Mounting Kit - HELIX 7 (IDMK H7)

    • HELIX 7 Series, except HELIX 7 G4N

    In-Dash Mounting Kit - HELIX 7 G4N (IDMK H7R2)

    740200-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket and hardware

    In-Dash Mounting Kit - HELIX 7 G4N (IDMK H7R2)

    • All HELIX 7 G4N models

    In-Dash Mounting Kit - HELIX 8/9 (IDMK H89R)

    740179-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket, clamp and hardware

    In-Dash Mounting Kit - HELIX 8/9 (IDMK H89R)

    • HELIX 8 Series G3N and newer models
    • HELIX 8 Series G4N and newer models
    • HELIX 9 Series  G3N and newer models
    • HELIX 9 Series  G4N and newer models

    In-Dash Mounting Kit - HELIX 9/10 (IDMK H910R)

    740155-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket, clamp and hardware

    In-Dash Mounting Kit for HELIX 9/10 (IDMK H910R) Compatible with:

    • HELIX 9 Series G1 models
    • HELIX 9 Series G2N models

    In-Dash Mounting Kit - HELIX 12(IDMK H12R)

    740175-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket, clamp and hardware

     In-Dash Mounting Kit for HELIX 12(IDMK H12R) Compatible with:

    • HELIX 12 Series

    In-Dash Mounting Kit - HELIX 15 (IDMK H15R)

    740194-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket, clamp and hardware

    In-Dash Mounting Kit - HELIX 15 (IDMK H15R) Compatible with:

    • HELIX 15 Series

     In-Dash Mounting Kit - SOLIX 10 (IDMK S10)

    740173-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket and hardware

     In-Dash Mounting Kit - SOLIX 10 (IDMK S10)  Compatible with:

    • SOLIX 10 Series

    In-Dash Mounting Kit - SOLIX 12 ( IDMK S12)

    740176-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket and hardware

    In-Dash Mounting Kit - SOLIX 12 ( IDMK S12) Compatible with:

    • SOLIX 12 Series

    In-Dash Mounting Kit - SOLIX 15 (IDMK S15)

    740177-1

    In-dash mounting kit for quick and easy in-dash installation. Includes bracket and hardware

    In-Dash Mounting Kit - SOLIX 15 (IDMK S15) Compatible with:

    • SOLIX 15 Series

    In-Dash Mounting Kit - APEX 13 (IDMK RM A13)

    740191-1

    The IDMK RM A13 is an in-dash mounting solution for APEX 13 models where a rear-mounted bracket solution is desired for installation.  Note: Mounting In-Dash an external GPS/Heading Sensor may be needed.

    In-Dash Mounting Kit - APEX 13 (IDMK RM A13) Compatible with:

    • APEX 13 Series

     In-Dash Mounting Kit - APEX 16 (IDMK RM A16)

    740192-1

    The IDMK RM A16 is an in-dash mounting solution for APEX 16 models where a rear-mounted bracket solution is desired for installation.  Note: Mounting In-Dash an external GPS/Heading Sensor may be needed.

    In-Dash Mounting Kit - APEX 16 (IDMK RM A16) Compatible with:

    • APEX 16 Series

    In-Dash Mounting Kit - APEX 19 (IDMK RM A19)

    740193-1

    The IDMK RM A19 is an in-dash mounting solution for APEX 19 models where a rear-mounted bracket solution is desired for installation. Note: Mounting In-Dash an external GPS/Heading Sensor may be needed.

    In-Dash Mounting Kit - APEX 19 (IDMK RM A19) Compatible with:

    • APEX 19 Series

    In-Dash Mounting Kit - APEX (Front) (IDMK FM APX)

    740190-1

    The IDMK FM APX is a front in-dash mounting solution for APEX. This product provides a secure fit of the APEX control head to the mounting surface and is a replacement for the front in-dash mounting options that comes standard with APEX. Note: Mounting In-Dash an external GPS/Heading Sensor may be needed.

    In-Dash Mounting Kit - APEX (Front) (IDMK FM APX) Compatible with:

    • APEX 13
    • APEX 16
    • APEX 19

    In-Dash Mounting Kit - XPLORE 9

    740236-1

    In-dash mounting kit for the Humminbird XPLORE Series fish finder is made with rugged, high-strength aluminum for a quick and easy install. This kit includes mounting hardware. Note: Mounting In-Dash an external GPS/Heading Sensor may be needed.

    In-Dash Mounting Kit - XPLORE 9 Compatible with:

    • XPLORE 9

    In-Dash Mounting Kit - XPLORE 10

    740237-1

    In-dash mounting kit for the Humminbird XPLORE Series fish finder is made with rugged, high-strength aluminum for a quick and easy install. This kit includes mounting hardware. Note: Mounting In-Dash an external GPS/Heading Sensor may be needed.

    In-Dash Mounting Kit - XPLORE 10 Compatible with:

    • XPLORE 10

    In-Dash Mounting Kit - XPLORE 12

    740238-1

    In-dash mounting kit for the Humminbird XPLORE Series fish finder is made with rugged, high-strength aluminum for a quick and easy install. This kit includes mounting hardware. Note: Mounting In-Dash an external GPS/Heading Sensor may be needed.

    In-Dash Mounting Kit - XPLORE 12 Compatible with:

    • XPLORE 12



    Mounting Brackets

    Mounting Hardware Model Name

    Item Number

    Description

    Compatible Units

    Gimbal Mount SOLIX 10 GM S10

    740172-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount for SOLIX 10 GM S10 Compatible with:

    • SOLIX 10 Series

    Gimbal Mount SOLIX 12 GM S12

    740164-1

    Replacement Mounting Bracket Kit

    • Includes Attachment Screws and Knobs

    Gimbal Mount for SOLIX 12 GM S12 Compatible with:

    • SOLIX 12 Series

    Gimbal Mount - SOLIX 15 (GM S15)

    740165-1

    Replacement Mounting Bracket Kit All

    • Includes Attachment Screws and Knobs

    Gimbal Mount for SOLIX 15 GM S15  Compatible with:

    • SOLIX 15 Series

    Gimbal Mount - HELIX 5 (GM H5)

    740143-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount for HELIX 5 GM H5 Compatible with:

    • HELIX 5 Series

    Gimbal Mount - HELIX 7 (GM H7)

    740146-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount for HELIX 7 (GM H7) Compatible with:

    • All HELIX 7 Series, except HELIX 7 G4N models

    Gimbal Mount - HELIX 7 G4N (GM H7R2)

    740199-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount - HELIX 7 G4N (GM H7R2) Compatible with:

    • HELIX 7 G4N models

    Gimbal Mount - HELIX 8/9/10 (GM H910)

    740149-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount for HELIX 8/9/10 GM H910 Compatible with:

    • HELIX 8 Series
    • HELIX 9 Series
    • HELIX 10 Series

    Gimbal Mount - HELIX 12 (GM H12)

    740151-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount for HELIX 12 GM H12 Compatible with:

    • HELIX 12 Series

    In-Dash Mounting Kit - HELIX 15 (GM H15)

    740194-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    In-Dash Mounting Kit for HELIX 15 GM H15 Compatible with:

    • HELIX 15 Series

    Gimbal Mount - APEX 13 (GM A13)

    740186-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount - APEX 13 GM A13 Compatible with:

    • APEX 13 Series

    Gimbal Mount - APEX 16 (GM A16)

    740187-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount - APEX 16 GM A16 Compatible with:

    • APEX 16 Series

    Gimbal Mount - APEX 19  (GM A19)

    740188-1

    Replacement Mounting Bracket Kit

    • Includes attachment screws and knobs

    Gimbal Mount for APEX 19  GM A19 Compatible with:

    • APEX 19 Series



    Temperature and Speed Sensors

    Temperature and Speed Sensor Model Name

    Item Number

    Description

    Compatible Units

    TS W - Transom Mount Temp/Speed Sensor

    730000-1

    Transom Mount Speed/ Temp sensor

    TS W Compatible with:

    • ONIX 10 - TS W+ PC 12 ST
    • ONIX 8 -TS W+ PC 12 ST
    • SOLIX 12 TS W+ PC 12ST
    • SOLIX 15 TS W + PC 12 ST
    • 700 HD - TS W + AS TY
    • 600 Series TS W + AS TY
    • 500 Series, 800 Series, 900 Series, 1100 Series,
    • HELIX G1
    • HELIX G2
    • HELIX G2N HELIX G3/G3N
    • HELIX G3
    • HELIX G3N
    • (not HELIX G4/G4N)



    Cables Extension, Power, and Adapter

    Extension Cables

    Transducer Extension Cables Model Name

    Item Number

    Description

    Compatible Units

    EC M10 - 10' Extension Cable

    720096-1

    10' extension cable for models of the HELIX family and other Humminbird legacy models. Transducer extension
    cable
    10 Feet, 7 Pin style

    EC M10 - 10' Extension Cable Compatible Fish Finders:

    • HELIX Series products and any unit manufactured after 2001, except XPLORE, APEX, SOLIX, ION, ONIX and Fishin’ Buddy

     EC M10 Compatible Transducers:

    • XNT 9 HW T
    • XNT 9 HW MDI 75 T
    • XM 9 HW MDI T
    • XNT 9 HW MSI
      150 T
    • XM 9 HW MSI T
    • XP 9 H
    • XP 9 HW T
    • XTM 9 HW T
    • XTM 9 HW
      MDI 75 T
    • XTM 9 HW MDI T
    • XTM 9 HW MSI 150T
    • XTM 9 HW MSI T
    • XPT 9 HW T
    • XPTH 9 HW T
    • XPTH 9 HW MSI T
    • XNT 9 20 T
    • XNT 9 20

    EC M30 - 30' Extension Cable

    720096-2

    Transducer extension
    cable
    30 Feet, 7 Pin

    EC M30 Compatible with:

    • All HELIX Series products and any unit manufactured after 2001, except XPLORE, APEX, SOLIX, ION, ONIX and Fishin’ Buddy

    EC M30 Compatible Transducers:

    • XNT 9 HW T
    • XNT 9 HW MDI 75 T
    • XM 9 HW MDI T
    • XNT 9 HW MSI 150 T
    • XM 9 HW MSI T
    • XP 9 H
    • XP 9 HW T
    • XTM 9 HW T
    • XTM 9 HW MDI 75 T
    • XTM 9 HW MDI T
    • XTM 9 HW MSI 150T
    • XTM 9 HW MSI T
    • XPT 9 HW T
    • XPTH 9 HW T
    • XPTH 9 HW MSI T
    • XNT 9 20 T
    • XNT 9 20
    • XNT 9 28 T
    • XNT 9 28
    • XP 9 20 T
    • XP 9 20
    • XAP 9 20
    • XTM 9 20 T
    • XTM 9 20
    • XHS 9 HDSI 180 T
    • XNT 9 180 T
    • XNT 9 QB 90 T
    • XNT 9 DB 74 T
    • XTM 9 QB 90 T
    • XM 9 20 MSI T
    • XTM 9 20 MSI T
    • XPTH 9 20 MSI T

    EC M3 14W10 - 10' Transducer Extension Cable

    720106-1

    10’ Extension Cable for
    14-pin transducers

    EC M3 14W10 Compatible with Fish Finder Transducers:

    • XPLORE, APEX and SOLIX transducers

    EC M3 14W10 Compatible with Minn Kota Trolling Motors:

    • Minn Kota trolling motors equipped with Built-In MEGA Down (MDI) or MEGA Side Imaging (MSI).

    External 14-pin transducers; including:

    • XNT 14 HW T
    • XM 14 HW MDI T
    • XM 14 HW MSI T
    • XP 14 HW
    • XP 14 HW T
    • XTM 14 HW T
    • XTM 14 HW MDI T
    • SSTH 14 HW MSI+ T
    • XPTH 14 HW T
    • XPTH 14 HW MSI T
    • XNT 14 20 T
    • XM 14 20 MSI T
    • XP 14 20

    EC M3 14W30 - 30' Transducer Extension Cable

    720106-2

    30’ Extension Cable
    for 14-pin transducers

    EC M3 14W10 Compatible with Fish Finder Transducers:

    • XPLORE, APEX and SOLIX transducers

    EC M3 14W10 Compatible with Minn Kota Trolling Motors:

    • Minn Kota trolling motors equipped with Built-In MEGA Down (MDI) or MEGA Side Imaging (MSI).

    External 14-pin transducers; including:

    • XNT 14 HW T
    • XM 14 HW MDI T
    • XM 14 HW MSI T
    • XP 14 HW
    • XP 14 HW T
    • XTM 14 HW T
    • XTM 14 HW MDI T
    • SSTH 14 HW MSI+ T
    • XPTH 14 HW T
    • XPTH 14 HW MSI T
    • XNT 14 20 T
    • XM 14 20 MSI T
    • XP 14 20



    Power Cables

    Power Cables Model Name

    Item Number

    Description

    Compatible Units

    HCCT - HELIX Cable Connector Tray

    740184-1

    HELIX Cable
    Connector Tray
    Connect multiple cable
    inputs with a single
    tray Simple installation
    for quick removal,
    storage and security

    HCCT Compatible with:

    • HELIX 8
    • HELIX 9
    • HELIX 10
    • HELIX 12
    • HELIX 15

    PC 2 - Power Cable (ION, SM1000, SM2000, SM3000 & AS 360 SSI)

    720065-1

    6 foot power cable for ION Series products, sonar modules SM1000, SM2000, SM3000​ and AS 360 SSI

    PC 2 - Power Cable (ION, SM1000, SM2000, SM3000 & AS 360 SSI) with:

    • ION Series
    • SM1000
    • SM2000
    • SM3000
    • AS 360 SSI

    PC 10 720002-1 (no longer manufactured)

    720002-1 (no longer manufactured)

    Power cable - 6 feet
    long

    PC 10 720002-1 (no longer manufactured) Compatible with:

    • Many Humminbird models
      produced after 1988; including
    • 300, 500, 700 Series (non-Side or
      Down Imaging models)
    • HELIX 5 & 7 Series (non-Side or
      Down Imaging models)
    • PMAX Series

    PC 11 Filtered Power Cable

    720057-1

    Power cable w/choke- 6
    feet long

    PC 11 Compatible with:

    • HELIX 8 Series
    • HELIX 9 Series
    • HELIX 10 Series
    • HELIX 12 Series
    • HELIX 15 Series
    • All HELIX 5 Side Imaging or Down Imaging models
    • All HELIX 7 Side Imaging or Down Imaging models
    • 300 Series models
    • 500 Series models
    • 600 Series models
    • 700 Series models
    • 800, Series models
    • 900 Series models
    • 1100 Series models

    PC HELIX 12V DC - HELIX 12v Port Power Cord


    720105-1

    12V Cigarette Lighter
    power cord, 8 ft long Use  12 volt power port on a boat, car, truck, ATV, or snowmobile for portable or seasonal applications. (Not recommended for permanent installations)


    PC HELIX 12V DC Compatible with:

    • HELIX models
    • ICE HELIX models
    • ICE Flashers models
    • 300 Series models
    • 500 Series models
    • 700 Series models
    • 800 Series models
    • 900 Series models
    • 1100 Series models

    PC 12 - SOLIX / ONIX Power Cable

    720085-1

    SOLIX or ONIX Power cable- 6 feet in length

    PC 12 Compatible with:

    • All SOLIX Series
    • All ONIX Series

    PC 13 - Power Cable

    720110-1

    APEX or XPLORE Power cable- 10 feet in length

    PC 13 Compatible with:

    • APEX Series
    • XPLORE Series
    • MEGA Live
    • MEGA Live Imaging TargetLock

    MEGA 360 PC - MEGA 360 Power Cable

    720118-1

    MEGA 360 Imaging
    power cable (boat side).
    Must be used in
    connection with MEGA
    360 Imaging transducer
    and built-in power
    connector. 10 feet long

    PC MEGA 360 Compatible with:

    • All MEGA 360 Imaging models

    ICE MEGA Live 2 Power Cable

    720124-1

    ICE MEGA Live 2 Power Cable includes Power Cable with inline fuse and spade connectors 4' cable. This cable will be needed

    ICE MEGA Live 2 Power Cable Compatible with:

    • MEGA Live 1
    • MEGA Live 2

    ICE XPLORE Power Cable

    720125-1

    18” Power cable with spade connectors and inline fuse Includes
    In-line fuse and spade connectors

    ICE XPLORE Power Cable Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12

    PC GPS SAE

    720123-1

    Replacement power cable for the AS GPS HS N2K - NMEA 2000 Heading Sensor Length 5.5 Feet

    PC GPS SAE

    •  AS GPS HS N2K NMEA - 2000 Heading Sensor

    PC GPS N2K Y

    720122-1

    Replacement Y cable for the AS GPS HS N2K - NMEA2000 Heading Sensor

    PC GPS N2K Y Compatible with:

    • Y cable for the AS GPS HS N2K - NMEA2000 Heading Sensor

    PC ES - Ethernet Switch Power Cable

    720121-1

    The PC ES is a replacement power cable for the AS ETH 5PXG and AS ETH 5PGL Ethernet Switches. Cable Length 6 Feet

    PC ES - Ethernet Switch Power Cable Compatible with:

    • AS ETH 5PXG
    • AS ETH 5PGL

    PC HB2124 - Power Cable Humminbird CHIRP Radar

    720098-1

    Power cable compatible with Humminbird CHIRP Radar (HB 2124)

    PC HB2124 - Power Cable Humminbird CHIRP Radar Compatible with:

    • HB2124 Radar

    Charger Choke for Interference

    760034-1

    Choke to help reduce noise coming from onboard chargers. Installs on the onboard charger connected to the cranking battery.

    Charger Choke for Interference Compatible with:

    • All Humminbird Products

    Ferrite Steward

    790097-1

    Ferrite Steward for use when trying to eliminate electrical noise coming from the trolling motor. Can be use on power cables or ethernet cables

    Ferrite Steward Compatible with:

    • All HELIX
    • All PiranhaMAX



    Transducer Adapter Cables

    • Transducer adapter cables that allow different configurations or transducers setups.
    • Note: Y‑cables do not allow incompatible products to be connected; for that type of connection, please refer to the appropriate adapter cables.

    Transducer Adapter Cables Model Name

    Item Number

    Description

    Compatible Units

    9 M SIDB Y - HELIX Side Imaging & 2D Sonar Splitter Cable

    720101-1

    Transducer Y-cable
    allows both a Side
    Imaging or Down imaging and a 2D
    transducer to be
    connected to one
    Humminbird unit for
    high speed depth and
    sonar performance. 30" cable length.

    9 M SIDB Y Compatible with:

    • HELIX Side Imaging Products
    • No Longer being manufactured Imaging units in the following series:
      • 300 Series Models
      • 500 Series Models
      • 700 Series Models
      • 800 Series Models
      • 900 Series Models
      • 1100 Series Models
    • Note: 9 M SIDB Y is not compatible with APEX, SOLIX, XPLORE or ONIX


    9 M SILR Y - HELIX Side Imaging Left / Right Splitter Cable

    720102-1

    Y-cable allows for
    installation of separate
    left and right Side
    Imaging or Down imaging transducers to
    be connected to one
    Humminbird unit for a
    combined Side Imaging
    picture. 30" cable length.

    9 M SILR Y Compatible with:

    • HELIX Side Imaging Products
    • Not longer being manufactured Side Imaging units in the following:
      series:
      • 300 Series Models
      • 500 Series Models
      • 700 Series Models
      • 800 Series Models
      • 900 Series Models
      • 1100 Series Models
    • Note: 9 M SIDB Y is not compatible with SOLIX or ONIX

    14 M ID SIDB Y - SOLIX / APEX Side Imaging & 2D Splitter Cable

    720111-1

    Transducer Y-cable
    allows both a Side
    Imaging and a 2D
    transducer to be
    connected to one
    Humminbird unit
    for high speed depth
    and sonar
    performance.
    Supports Airmar
    Transducer ID (xID). 30 " cable lenght.

    14 M ID SIDB Y Compatible with:

    • XPLORE Series
    • APEX Series
    • SOLIX Series

    14 M ID SILR Y - SOLIX / APEX Side Imaging Left-Right Splitter Cable

    720112-1

    Y-cable allows for
    installation of separate
    left and right Side
    Imaging transducers
    to be connected to one
    Humminbird unit for
    a combined Side
    Imaging picture.
    Supports Airmar
    Transducer ID (xID). 30" cable length.

    14 M ID SILR Y Compatible with:

    • XPLORE Series
    • APEX Series
    • SOLIX Series

    9 M360 2DDI Y - MEGA 360 & 2D/MDI Y Cable

    720107-1

    Combines MEGA 360
    Imaging transducer
    and Humminbird 7-pin Dual
    Spectrum/MEGA
    Imaging+ transducers
    into one 7-pin
    transducer plug for
    connection to the
    same, compatible
    HELIX fish finder. 30" cable length.

    9 M360 2DDI Y Compatible with:

    • MEGA 360
    • HELIX 15 MSI G4N
    • HELIX 15 MDI G4N
    • HELIX 12 MSI GPS G4N
    • HELIX 12 MDI GPS G4N
    • HELIX 12 MSI GPS G3N
    • HELIX 12 MDI GPS G3N
    • HELIX 10 MSI GPS G4N
    • HELIX 10 MDI GPS G4N
    • HELIX 10 MSI GPS G3N
    • HELIX 10 MDI GPS G3N
    • HELIX 9 MSI GPS G4N
    • HELIX 9 MDI GPS G4N
    • HELIX 9 MSI GPS G3N
    • HELIX 9 MDI GPS G3N
    • HELIX 8 MSI GPS G4N
    • HELIX 8 MSI GPS G3N
    • Note: 9 M360 2DDI Y is not compatible with Trolling Motor Built-In Mega Imaging Transducers

    14 M360 2DDI Y - MEGA 360 & 2D/MDI Y cable

    720108-1

    Combines MEGA 360
    Imaging transducer and
    14-pin Dual Spectrum /
    MEGA Imaging+
    transducers this includes
    Built-in MEGA Imaging
    into one 14-pin plug for
    connection to the same,
    compatible control head.
    30" on Dual Spectrum
    CHIRP side of cable and
    10' cable on the MEGA
    360 side. 10' cable length. This will be needed go connect to MEGA 360 to Built-In MEGA Down Imaging, MEGA Side Imaging, or Dual Spectrum CHIRP equipped trolling motors.

    14 M360 2DDI Y Compatible with:

    • MEGA 360
    • XPLORE Series
    • APEX Series
    • SOLIX G2 and G3 Series
    • HELIX G3N and G4N when used with 720109-1 AD HELIX M360:
      • HELIX 15 MSI+ GPS G4N
      • HELIX 15 MDI+ GPS G4N
      • HELIX 12 MSI+ GPS G4N
      • HELIX 12 MSI+ GPS G3N
      • HELIX 12 MDI+ GPS G4N
      • HELIX 12 MDI+ GPS G3N
      • HELIX 10 MSI+ GPS G4N
      • HELIX 10 MSI+ GPS G3N
      • HELIX 10 MDI+ GPS G4N
      • HELIX 10 MDI+ GPS G3N
      • HELIX 9 MSI+ GPS G4N
      • HELIX 9 MSI+ GPS G3N
      • HELIX 9 MDI+ GPS G4N
      • HELIX 9 MDI+ GPS G3N
      • HELIX 8 CHIRP MSI+ GPS G4N
      • HELIX 8 MSI+ GPS G3N
    • Built-in MEGA Imaging transducers available on Minn Kota trolling motors.

    AD HELIX M360

    720109-1

    Replacement adapter cable for connecting a MEGA 360 to a compatible HELIX G3N or G4N series fish finder. 10'cable length.


    AD HELIX M360 Compatible with:

    • HELIX 15 MSI+ GPS G4N
    • HELIX 15 MDI+ GPS G4N
    • HELIX 12 MSI+ GPS G4N
    • HELIX 12 MSI+ GPS G3N
    • HELIX 12 MDI+ GPS G4N
    • HELIX 12 MDI+ GPS G3N
    • HELIX 10 MSI+ GPS G4N
    • HELIX 10 MSI+ GPS G3N
    • HELIX 10 MDI+ GPS G4N
    • HELIX 10 MDI+ GPS G3N
    • HELIX 9 MSI+ GPS G4N
    • HELIX 9 MSI+ GPS G3N
    • HELIX 9 MDI+ GPS G4N
    • HELIX 9 MDI+ GPS G3N
    • HELIX 8 CHIRP MSI+ GPS G4N
    • HELIX 8 MSI+ GPS G3N

    AD 1429 - Transducer Adapter Cable

    760030-1

    This adapter converts a Humminbird #9 connector transducer to a #14 sonar connector on your XPLORE, APEX, SOLIX or ONIX unit. This adapter is necessary to connect the following transducers with a Type 9 connector to an ONIX, XPLORE, SOLIX, or APEX May be used in conjunction with a splitter cable, such as the 14 M ID SIDB Y, for high speed depth readings. Note: This adapter does not support any Down Imaging or Side Imaging functions.

    AD 1429 Transducer Adapter Cable Compatible with:

    Transducers:

    • XNT 9 20
    • XNT 9 20 T
    • XNT 9 HW T
    • XP 9 20
    • XP 9 20 T
    • XP 9 HW
    • XP 9 HW T
    • XPTH 9 HW T
    • XTM 9 20
    • XTM 9 HW T
    • XTH 9 20

    Fish Finders:

    • ONIX
    • XPLORE
    • APEX
    • SOLIX

    PC 12 ST - SOLIX/ONIX Power Cable w/Speed & Temp Adapter Cable

    720086-1

    6 foot power cable with speed and temp adapter cable for support of optional temp and speed gauge for SOLIX / ONIX products​

    PC 12 ST - SOLIX/ONIX Power Cable w/Speed & Temp Adapter Cable Compatible with:

    • SOLIX
    • ONIX



    Ethernet Cables and Switches

    Used for networking HELIX, SOLIX, APEX units and accessories. Cable lengths 10–30 ft noted in the guide.

    Ethernet Cables Model Name

    Item Number

    Description

    Compatible Units

    AC EC 5E

    720073-6

    Ethernet Cable – 5ft
    Female-Female:
    *May require use of
    AS EC QDE
    depending on
    Compatible unit.
    See AS EC QDE
    for details, cable length 5'

    AC EC 5E Compatible with:

    • All XPLORE
    • All APEX
    • All SOLIX
    • All ION
    • ONIX
    • The below models require one
      AS EC QDE to use this product:
      • 1199ci HD SI
      • 1159ci HD DI
      • 1159ci HD
      • 999ci HD
      • 959ci HD DI
      • 959ci HD
      • 899ci HD
      • 859ci HD DI
      • 859ci HD
      • 798ci HD
      • HELIX 7 G2N models
      • HELIX 9 G2N models
      • HELIX 10 G2N models
      • HELIX 12 G2N  models
      • HELIX 8 G3N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 8 G4N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 15 G4N models

    AS EC 10E

    720073-2

    Ethernet Cable – 10
    ft Female-Female:
    *May require use of
    AS EC QDE
    depending on
    Compatible unit.
    See AS EC QDE
    for details, cable length 10'

    AS EC 10E Compatible with:

    • All XPLORE
    • All APEX
    • All SOLIX
    • All ION
    • All ONIX
    • The below models also require (1) AS EC QDE to use this product:
      • 1199ci HD SI
      • 1159ci HD DI
      • 1159ci HD
      • 999ci HD
      • 959ci HD DI
      • 959ci HD
      • 899ci HD
      • 859ci HD DI
      • 859ci HD
      • 798ci HD
      • HELIX 7 G2N models
      • HELIX 9 G2N models
      • HELIX 10 G2N models
      • HELIX 12 G2N  models
      • HELIX 8 G3N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 8 G4N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 15 G4N models

    AS EC 15E

    720073-5

    Ethernet Cable - 15 ft
    Female-Female:
    *May require use of AS
    EC QDE depending on
    Compatible unit.
    See AS EC QDE for
    details, cable length 15'

    AS EC 15E Compatible with:

    • All XPLORE
    • All APEX
    • All SOLIX
    • All ION
    • All ONIX
    • The below models also require (1) AS EC QDE to use this product:
      • 1199ci HD SI
      • 1159ci HD DI
      • 1159ci HD
      • 999ci HD
      • 959ci HD DI
      • 959ci HD
      • 899ci HD
      • 859ci HD DI
      • 859ci HD
      • 798ci HD
      • HELIX 7 G2N models
      • HELIX 9 G2N models
      • HELIX 10 G2N models
      • HELIX 12 G2N  models
      • HELIX 8 G3N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 8 G4N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 15 G4N models

    AS EC 20E

    720073-3

    Ethernet Cable – 20
    ft Female-Female:
    *May require use of
    AS EC QDE depending
    on Compatible unit.
    See AS EC QDE
    for details, cable length 20'

    AS EC 20E Compatible with:

    • All XPLORE
    • All APEX
    • All SOLIX
    • All ION
    • All ONIX
    • The below models also require (1) AS EC QDE to use this product:
      • 1199ci HD SI
      • 1159ci HD DI
      • 1159ci HD
      • 999ci HD
      • 959ci HD DI
      • 959ci HD
      • 899ci HD
      • 859ci HD DI
      • 859ci HD
      • 798ci HD
      • HELIX 7 G2N models
      • HELIX 9 G2N models
      • HELIX 10 G2N models
      • HELIX 12 G2N  models
      • HELIX 8 G3N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 8 G4N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 15 G4N models

    AS EC 30E

    720073-4

    Ethernet Cable - 30
    ft Female-Female:
    *May require use of AS
    EC QDE depending on
    Compatible unit.
    See AS EC, cable length 30'.

    AS EC 30E Compatible with:

    • All XPLORE
    • All APEX
    • All SOLIX
    • All ION
    • All ONIX
    • The below models also require (1) AS EC QDE to use this product:
      • 1199ci HD SI
      • 1159ci HD DI
      • 1159ci HD
      • 999ci HD
      • 959ci HD DI
      • 959ci HD
      • 899ci HD
      • 859ci HD DI
      • 859ci HD
      • 798ci HD
      • HELIX 7 G2N models
      • HELIX 9 G2N models
      • HELIX 10 G2N models
      • HELIX 12 G2N  models
      • HELIX 8 G3N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 8 G4N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 15 G4N models

    AS ECX 30E

    760025-1

    Ethernet Extension
    Cable Female-Male:
    The Ethernet Extension
    Cable is a 30’ cable that
    allows you to extend
    the length of your
    ethernet cables. cable length 30'

    AS ECX 30E Compatible with:

    Requires at least one Ethernet cable:
    AS EC5E AS EC10E, AS EC15E, AS
    EC20E, AS EC30E

    • All XPLORE
    • All APEX
    • All SOLIX
    • All ION
    • All ONIX
    • The below models also require (1) AS EC QDE to use this product:
      • 1199ci HD SI
      • 1159ci HD DI
      • 1159ci HD
      • 999ci HD
      • 959ci HD DI
      • 959ci HD
      • 899ci HD
      • 859ci HD DI
      • 859ci HD
      • 798ci HD
      • HELIX 7 G2N models
      • HELIX 9 G2N models
      • HELIX 10 G2N models
      • HELIX 12 G2N  models
      • HELIX 8 G3N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 8 G4N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 15 G4N models

    AS EC QDE - Ethernet Adapter Cable

    720074-1

    Ethernet Adapter
    Cable converts from
    metal screw-on
    connector quick disconnect,
    press-fit
    connector, cable length 1'. Note: This cable is needed for ethernet connection between all HELIX networking capable models and i-Pilot Link equipped motors.

    AS EC QDE Compatible with:

    • The below models also require
      (1) AS EC QDE to connect to
      complete an Ethernet connection:
      • 1199ci HD SI
      • 1159ci HD DI
      • 1159ci HD
      • 999ci HD
      • 959ci HD DI
      • 959ci H
      • 899ci HD
      • 859ci HD DI
      • 859ci HD
      • 798ci HD
      • HELIX 7 G2N models
      • HELIX 9 G2N models
      • HELIX 10 G2N models
      • HELIX 12 G2N  models
      • HELIX 8 G3N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 8 G4N models
      • HELIX 9 G3N models
      • HELIX 10 G3N models
      • HELIX 12 G3N  models
      • HELIX 15 G4N models

    DUAL HELIX STARTER KIT
    HWAL Transom

    700062-1

    Everything you need to network two Ethernet-equipped HELIX models on an aluminum boat is included. Additionally, this kit connects the included transom mount Dual Spectrum CHIRP transducer with an existing Side/Down Imaging® transducer via the enclosed splitter cable, and includes an adapter cable to connect compatible HELIX 8, 9, 10, 12, 15 MEGA Imaging® units to select Minn Kota® motors with Built-In MEGA Imaging®. Includes: XNT 9 HW T transom mount Dual Spectrum CHIRP Transducer and epoxy, AS EC 20E 20' Ethernet Cable, 2 AS EC QDE Ethernet Adapters, MKR-MI-1 Built-In MEGA Imaging HELIX Adapter, 9 M SIDB Y Transducer Splitter Cable

    DUAL HELIX STARTER KIT
    HWAL Transom Compatible with:

    • HELIX 8 G3N Series
    • HELIX 8 G4N Series
    • HELIX 9 G2N Series
    • HELIX 9 G3N Series
    • HELIX 9 G4N Series
    • HELIX 10 G2N Series
    • HELIX 10 G3N Series
    • HELIX 10 G4N Series
    • HELIX 12 G2N
    • HELIX 12 G3N
    • HELIX 12 G4N
    • HELIX 15 G4N Series

    Dual HELIX Starter Kit HWFG - In Hull

    700063-1

    Everything you need to network two Ethernet-equipped HELIX models on a fiberglass boat is included. Additionally, this kit connects the included in hull Dual Spectrum CHIRP transducer with an existing Side/Down Imaging® transducer via the enclosed splitter cable, and includes an adapter cable to connect compatible HELIX 8, 9, 10, 12, 15 MEGA Imaging® units to select Minn Kota® motors with Built-In MEGA Imaging®. Kit Includes: (1) XP 9 HW T in-hull mount Dual Spectrum CHIRP Transducer and epoxy, (1) AS EC 20E 20' Ethernet Cable, (2) AS EC QDE Ethernet Adapters, (1) MKR-MI-1 Built-In MEGA Imaging HELIX Adapter, (1) 9 M SIDB Y Transducer Splitter Cable

    DUAL HELIX STARTER KIT
    HWFG MI Compatible with:

    • HELIX 8 G3N Series
    • HELIX 8 G4N Series
    • HELIX 9 G2N Series
    • HELIX 9 G3N Series
    • HELIX 9 G4N Series
    • HELIX 10 G2N Series
    • HELIX 10 G3N Series
    • HELIX 10 G4N Series
    • HELIX 12 G2N
    • HELIX 12 G3N
    • HELIX 12 G4N
    • HELIX 15 G4N Series

    AS EC CHART - PC Networking Cable


    760032-1

    Cable used with the AutoChart product to allow select Humminbird units to connect to a PC or Laptop for mobile map creation (Autochart PC live draw). Cable Length 10 feet.

    AS EC CHART - PC Networking Cable Compatible with:

    • AutoChart PC
    • AutoChart Pro PC

    Series supported:

    • HELIX 7, 8, 9, 10, 12, and 15 Ethernet capable models
    • 1100, 900, 800, and 700 Ethernet capable models.

    AS ETH 5PGL - 5 Port Ethernet Switch

    411850-1

    Ethernet switch allows you to connect to up to five compatible Humminbird fish finders and Ethernet-compatible devices to create an integrated network capable of sharing information across all connected devices. The amber power light lets you know you are connected to power, while the amber and green connection lights give you a quick status of what’s connected. Amber Connection Light: HELIX G4N and G3N Fish Finder, AS ETH NMEA2K, Minn Kota Trolling Motor, and Humminbird CHIRP Radar. Green Connection Light: APEX or SOLIX Fish Finder, MEGA Live Imaging, MEGA Live Imaging TargetLock, AS ETH 5PXG, and AS ETH 5PGL. Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection. Compatible with all XPLORE, all APEX, all SOLIX, HELIX G4N and HELIX G3N fish finder models. Note: AS ETH 5PGL Ethernet Switch does not enable sharing between model families.

    AS ETH PGL Compatible with:

    • All XPLORE models
    • All APEX models
    • All SOLIX models
    • All HELIX G3N models
    • All HELIX G4N models
    • Note: Not compatible with HELIX G2N or G1N units

    AS ETH 5PXG - 5-Port Ethernet Switch

    408450-1 (no longer manufactured)

    This waterproof switch allows you to quickly and easily connect up to five Ethernet items. Use it to link multiple Humminbird head units, share transducers, add an NMEA 2000 network or step up to the Humminbird Radar. With so many options, the possibilities are endless.  Note: AS ETH 5PXG Ethernet Switch does not enable sharing between model families.

    AS ETH 5PXG Compatible with:

    • All XPLORE models
    • All APEX models
    • All SOLIX models
    • All ION models
    • All ONIX models
    • The below models also require (1) AS EC QDE to use this item:
      • 1199ci HD SI
      • 1159ci HD DI
      • 1159ci HD
      • 999ci HD
      • 959ci HD DI
      • 959ci HD
      • 899ci HD
      • 859ci HD DI
      • 859ci HD
      • 798ci HD
      • 788ci HD DI
      • 788ci HD
      • All HELIX G3N
      • All HELIX G4N
    Note: Cables and switches enable connections between units that are compatible to share select information. Please refer to Building a One-Boat Network and Network Sharing: Sonar to compare your product and their compatibility with sharing information






    MEGA 360, MEGA Live 2, MEGA Live 1, and TargetLock

    MEGA 360 Imaging

    Mounting and accessory kits for MEGA 360 systems across XPLORE, SOLIX, and APEX platforms.



    MEGA LIVE 2 and TargetLock

    MEGA Live 2 systems compatible with XPLORE, SOLIX, and APEX (depending on model).

    MHX ML LT - MEGA Live ICE Multi-Piece Pole Replacement

    740221-1

    Includes Replacement multi-piece pole for the MEGA Live ICE products 1.3" diameter


    MHX ML LT - MEGA Live ICE Multi-Piece Pole Replacement Compatible with:

    • MEGA LIVE 1 ICE Products



    MEGA Live 1

    MEGA Live 1 Model Name

    Item Number

    Description

    		 Compatible Units

    MEGA Live 1  (no longer manufactured)

    710304-1 (no longer manufactured)

    MEGA Live 1
    provides the most
    impressive live sonar
    on the water, allowing
    you to watch fish and
    structure in real-time,
    powered by the
    unmatched detail of
    MEGA Live 1®

    MEGA Live 1 (no longer manufactured) Compatible with:

    • All XPLORE models
    • All APEX models
    • All SOLIX models
    • MEGA Side or MEGA Down Imaging equipped:
      • HELIX 7 G3N
      • HELIX 8 G3N
      • HELIX 9 G3N
      • HELIX 10 G3N
      • HELIX 12 G3N
      • HELIX 7 G4N Models
      • HELIX 8 G4N Models
      • HELIX 9 G4N Models
      • HELIX 10 G4N Models
      • HELIX 12 G4N Models
      • HELIX 15 G4N Models

    MEGA Live 1 Hand Control -
    Universal (no longer manufactured)

    710309-1 (no longer manufactured)

    The Universal Hand
    Control for MEGA Live
    provides hand control
    steering of the MEGA
    Live transducer. Which
    brings this technology to
    virtually any boat,
    thanks to an adjustable
    GeigerTec mount, made
    from billet aluminum.

    MEGA Live 1 Hand Control -
    Universal (no longer manufactured) Compatible with:

    • All XPLORE models
    • All APEX models
    • All SOLIX models
    • MEGA Side or MEGA Down Imaging equipped:
      • HELIX 7 G3N
      • HELIX 8 G3N
      • HELIX 9 G3N
      • HELIX 10 G3N
      • HELIX 12 G3N
      • HELIX 7 G4N Models
      • HELIX 8 G4N Models
      • HELIX 9 G4N Models
      • HELIX 10 G4N Models
      • HELIX 12 G4N Models
      • HELIX 15 G4N Models

    Open Water Adapter Kit -
    MEGA Live 1

    700068-1

    Adapter kit includes all
    accessories needed to
    convert the MEGA Live1
    ™ transducer
    for use on a boat.

    Open Water Adapter Kit -
    MEGA Live 1 Compatible with:

    • MEGA Live 1 Transducer
    • Minn Kota Ultrex
    • Minn Kota Fortrex

    ICE Adapter Kit -
    MEGA Live 1

    740215-1

    The MEGA Live Ice
    Adapter includes all
    the components
    needed to convert a
    MEGA Live 1
    transducer for use
    while ice fishing

    ICE Adapter Kit -MEGA Live 1 Compatible MEGA Live 1 Transducers:

    • MEGA Live 2 (Required Accessory - 740251-1)

    HELIX ICE Conversion Kit -
    MEGA Live 1 (No longer manufactured)

    700069-1 (No longer manufactured)

    The ICE HELIX MEGA
    Live Conversion Kit
    includes all the
    components needed to
    ice fish with MEGA
    Live 1 , just add
    your compatible
    HELIX 7/8/9/10.

    HELIX ICE Conversion Kit -
    MEGA Live 1 Compatible with:

    • MEGA Side or MEGA Down Imaging equipped:
      • HELIX 7 G3N
      • HELIX 8 G3N
      • HELIX 9 G3N
      • HELIX 10 G3N
      • HELIX 12 G3N
      • HELIX 7 G4N Models
      • HELIX 8 G4N Models
      • HELIX 9 G4N Models
      • HELIX 10 G4N Models
      • HELIX 12 G4N Models
      • HELIX 15 G4N Models

    MEGA Live Shaft Mount

    740223-1

    Connects MEGA Live Imaging transducers to Minn Kota Ultrex and Fortrex trolling motors with shafts up to 1.5" Mount includes Shaft mount, Rubber pads and Mounting hardware

    MEGA Live Shaft Mount Compatible with:

    • Ultrex models
    • Fortrex models

    MHX MLC - MEGA ICE Multi-Piece Pole Double Collars

    740218-1

    Replacement double collars for the multi-piece ice pole for MEGA Live products.  Includes 4 knobs and washer.

    MHX MLC - MEGA ICE Multi-Piece Pole Double Collars Compatible with:

    • ICE HELIX 9 MSI+ GPS G4N MEGA Live Bundle
    • ICE Adapter Kit - MEGA Live
    • HELIX ICE Conversion Kit - MEGA Live



    Advanced Fishing Systems

    Networked boat‑wide systems including Ethernet accessories and NMEA interface hardware. Click here for full details

    NMEA Systems

    Advanced Fishing System Model Name

    Item Number

    Description

    Compatible Units

    AS QD NMEA 2000

    720114-1

    Quick-disconnect cable to convert NMEA 2000® drop cable for connection with HELIX models.

    AS QD NMEA 2000  Compatible with:

    • MEGA Side or MEGA Down Imaging equipped:
      • HELIX 7 G4N Models
      • HELIX 8 G4N Models
      • HELIX 9 G4N Models
      • HELIX 10 G4N Models
      • HELIX 12 G4N Models
      • HELIX 15 G4N Models

    AS NMEA

    720116-1

    The AS NMEA is an adapter cable that allows APEX chartplotters to connect directly with a NMEA 0183 accessory (sold separately).  The AS NMEA measures 40" in length and connects to the MFD via a waterproof connector.

    AS NMEA Compatible with:

    • APEX 13 models
    • APEX 16 models
    • APEX 19 models

    NMEA 2000 Starter Kit- Single

    700064-1

    The NMEA 2000 Starter Kit - Single provides the essential components to build a single device NMEA 2000 network.  Not needed for directly connecting AS GPS HS N2K to a fish finder.

    NMEA 2000 Starter Kit- Single Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 Starter Kit- Dual

    700065-1

    The NMEA 2000 Starter Kit - Dual provides the essential components to build a dual device NMEA 2000 network.  Not needed for directly connecting AS GPS HS N2K to a fish finder.

    NMEA 2000 Starter Kit- Dual Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 Terminator - Female

    760035-1

    This NMEA 2000 terminator (FEMALE) allows for proper termination of an NMEA 2000 network. The couplers connect to the corresponding T-connectors for a simple installation.

    NMEA 2000 Terminator - Female  Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 Terminator - Male

    760036-1

    This NMEA 2000 terminator (MALE) allows for proper termination of an NMEA 2000 network. The couplers connect to the corresponding T-connectors for a simple installation.

    NMEA 2000 Terminator - Male Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 POWER T

    760037-1

    This NMEA 2000 power cable with T-connector allows for power connection to an NMEA 2000 network quickly and easily.

    NMEA 2000 POWER T Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 T-CONNECTOR

    760038-1

    This NMEA 2000 T-connector offers connection between a NMEA 2000 drop cable and backbone connections.

    NMEA 2000 T-CONNECTOR Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 DROP CABLE 0.5M

    720117-1

    This 0.5 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.

    NMEA 2000 DROP CABLE 0.5M Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 DROP CABLE 2M

    720117-2

    This 2 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.

    NMEA 2000 DROP CABLE 2M Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 DROP CABLE 5M

    720117-3

    This 5 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.

    NMEA 2000 DROP CABLE 5M Compatible with:

    • Compatible with all NMEA 2000 accessories

    NMEA 2000 DROP CABLE 10M

    720117-4

    This 10 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.

    NMEA 2000 DROP CABLE 10M Compatible with:

    • Compatible with all NMEA 2000 accessories

    AS HHGPS

    700030-1

    Handheld GPS Connection Kit includes: NMEA connection cable, Y cable and detailed instructions. This kit requires the handheld GPS manufacturers NMEA data cable to complete the connection to your handheld GPS.

    AS HHGPS Compatible with:

    • All 700 models
    • All 800 models
    • All 900 models
    • All 1100 models

    AS T Y

    720075-1

    This Y cable is required for optional temp sensor to connect to Select Humminbird Series product.

    AS T Y Compatible with:

    • 600 models
    • 700 models
    • 800 models
    • 900 models
    • 1100 models
    • HELIX 5 G1
    • HELIX 5 G2
    • HELIX 5 G3
    • HELIX 7 G1
    • HELIX 7 G2 and G2N
    • HELIX 7 G3 and G3N

    AS GPS NMEA

    720080-1

    Adapter Cable to connect with optional external GPS receiver AS GRP or AS GPS HS and 1 additional NMEA 0183 communication

    AS GPS NMEA Compatible with:

    • All SOLIX models
    • All ONIX models

    AS GPS

    720113-1

    The AS GPS is an adapter cable that allows APEX chartplotters to connect with a Humminbird external GPS receiver (AS GRP or AS GPS HS) [sold separately]. Cable measures 30" in length.

    AS GPS Compatible with:

    • APEX 13 models
    • APEX 16 models
    • APEX 19 models

    AS GRP

    408920-1

    Precision GPS/WAAS receiver provides fast position fixes accurate within 2.5 meters.

    AS GRP Compatible with:

    • All HELIX 7 G2N models
    • All HELIX 7 G3N models
    • All HELIX 7 G4N models
    • All HELIX 8 G3N models
    • All HELIX 9 G3N models
    • All HELIX 10 G3N models
    • All HELIX 12 G3N models
    • All HELIX 15 G4N models
    • Series models Models require (1) AS GPS NMEA
      • All ONIX models
      • All SOLIX models
      • XPLORE models
    • Models require (1) AS GPS
      • All APEX Models

    AS GPS HS - External GPS Receiver with Heading Sensor

    408400-1

    AS GPS HS - External GPS Receiver with Heading Sensor. Precision GPS/WAAS receiver provides fast position fixes accurate GPS receiver will read a location within +/– 2.5 to 10 meters of your actual position and provides constant vessel heading with internal heading sensor compass

    AS GPS HS is Compatible with:

    • All HELIX 7 G2N
    • All HELIX 7 G3N
    • All HELIX 7 G4N
    • All HELIX 8 G3N
    • All HELIX 9 G3N
    • All HELIX 10 G3N
    • All HELIX 12 G3N
    • All HELIX 15 G3N
    • All HELIX 8 G4N
    • All HELIX 9 G4N
    • All HELIX 10 G4N
    • All HELIX 12 G4N
    • All HELIX 15 G4N
    • 859ci HD Combo, 859ci HD DI Combo, 859ci HD XD Combo, 899ci HD SI Combo
    • 959ci HD Combo, 959ci HD DI Combo, 959ci HD XD Combo, 999ci HD SI Combo
    • 1159ci HD Combo, 1159ci HD DI Combo, 1159ci HD XD Combo, 1199ci HD SI Combo
    • Models require (1) AS GPS NMEA
      • All ONIX Models
      • All XPLORE
      • All SOLIX Models
    • Models require (1) AS GPS
      • All APEX Models

    AS GPS HS N2K Heading Sensor

    730029-1

    Humminbird NMEA 2000 GPS Heading Sensor delivers accurate positioning, will read a location within +/– 2.5 to 10 meters of your actual position and provides true heading, even when the boat is stationary or drifting

    AS GPS HS N2K Heading Sensor is Compatible with:

    AD HDMI IN 10

    720119-1

    The AD HDMI IN 10 is a marine-rated HDMI cable for connecting APEX chartplotters to video and camera inputs to an APEX display. 10 feet in length.

    AD HDMI IN 10  Compatible with:

    • APEX 13 models
    • APEX 16 models
    • APEX 19 models

    AD HDMI OUT 10

    720115-1

    The AD HDMI OUT 10 is a marine-rated HDMI cable for connecting APEX chartplotters to external video displays or other APEX control heads. 10 feet in length.

    AD HDMI OUT 10  Compatible with:

    • APEX 13 models
    • APEX 16 models
    • APEX 19 models



    NMEA 2000 Boat Engine Compatibility

    This depends on whether your engine outputs NMEA2000 (also known as NMEA2K or N2K) sentences that the Humminbird unit can read, the type of engine you own (Yamaha, Honda, Mercury, Evinrude, or Suzuki) and also the Humminbird model that you own.

    Below is a compatibility chart that also shows required cables from Humminbird, the engine manufacturer and other third-party sources.


    Hardware Requirements

    APEX, XPLORE and SOLIX Required Hardware

    ENGINE PRODUCTS

    NMEA2000 STARTER KIT

    NMEA 2K GATEWAY

    ETHERNET ADAPTER

    ENGINE ADAPTERS
    Yamaha Command Link 700064-1 or 700065-1 No No 6YG-8A2D0-12-00
    Yamaha Command Link Plus 700064-1 or 700065-1 No No 6YG-8A2D0-12-00KIT
    Yamaha NMEA2000 700064-1 or 700065-1 No No No
    Mercury SmartCraft 700064-1 or 700065-1 No No 8M0165589
    Honda NMEA2000 700064-1 or 700065-1 No No 06653-ZZ3-730HE 9.8 Feet Long or 06653-ZZ3-760HE 19.5 Feet Long
    Evinrude NMEA2000 700064-1 or 700065-1 No No No
    Suzuki NMEA2000 700064-1 or 700065-1 No No No



    HELIX G4N models including 7, 8, 9, 10, 12 and 15 G4N Required Hardware

    ENGINE PRODUCTS NMEA2000 STARTER KIT NMEA 2K GATEWAY ETHERNET ADAPTER ENGINE ADAPTERS
    Yamaha Command Link 700064-1 or 700065-1 No 720114-1 6YG-8A2D0-12-00
    Yamaha Command Link Plus 700064-1 or 700065-1 No 720114-1 6YG-8A2D0-12-00KIT
    Yamaha NMEA2000 700064-1 or 700065-1 No 720114-1 No
    Mercury SmartCraft 700064-1 or 700065-1 No 720114-1 8M0165589
    Honda NMEA2000 700064-1 or 700065-1 No 720114-1 06653-ZZ3-730HE 9.8 Feet Long or 06653-ZZ3-760HE 19.5 Feet Long
     Evinrude NMEA2000 700064-1 or 700065-1 No 720114-1 No
    Suzuki NMEA2000 700064-1 or 700065-1 No 720114-1 No



    HELIX G3N models including HELIX 7, 8, 9, 10, 12 G3N Required Hardware

    ENGINE PRODUCTS NMEA2000 STARTER KIT NMEA 2K GATEWAY ETHERNET ADAPTER ENGINE ADAPTERS
    Yamaha Command Link 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 6YG-8A2D0-12-00
    Yamaha Command Link Plus 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 6YG-8A2D0-12-00KIT
    Yamaha NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No
    Mercury SmartCraft 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 8M0165589
    Honda NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 06653-ZZ3-730HE 9.8 Feet Long or 06653-ZZ3-760HE 19.5 Feet long
    Evinrude NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No
    Suzuki NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No

    *9.8 ft long
    **19.5 ft long



    HELIX G2N models including HELIX 7, 9, 10, 12, G2N Required Hardware

    ENGINE PRODUCTS NMEA2000 STARTER KIT NMEA 2K GATEWAY ETHERNET ADAPTER ENGINE ADAPTERS
    Yamaha Command Link 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 6YG-8A2D0-12-00
    Yamaha Command Link Plus 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 6YG-8A2D0-12-00KIT
    Yamaha NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No
    Mercury SmartCraft 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 8M0165589
    Honda NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 06653-ZZ3-730HE 9.8 Feet Long or 06653-ZZ3-760HE 19.5 Feet Long
    Evinrude NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No
    Suzuki NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No



    8X9/ 9X9/ 11X9 Required Hardware

    ENGINE PRODUCTS NMEA2000 STARTER KIT NMEA 2K GATEWAY ETHERNET ADAPTER ENGINE ADAPTERS
    Yamaha Command Link 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 6YG-8A2D0-12-00
    Yamaha Command Link Plus 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 6YG-8A2D0-12-00KIT
    Yamaha NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No
    Mercury SmartCraft 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 8M0165589
    Honda NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 06653-ZZ3-730HE 9.8 Feet Long or 06653-ZZ3-760HE 19.5 Feet Long
    Evinrude NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No
    Suzuki NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K 720074-1 No



    8X8/ 9X8/ 11X8 Required Hardware

    ENGINE PRODUCTS NMEA2000 STARTER KIT NMEA 2K GATEWAY ETHERNET ADAPTER ENGINE ADAPTERS
    Yamaha Command Link 700064-1 or 700065-1 AS ETH NMEA2K No 6YG-8A2D0-12-00
    Yamaha Command Link Plus 700064-1 or 700065-1 AS ETH NMEA2K No 6YG-8A2D0-12-00KIT
    Yamaha NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K No No
    Mercury SmartCraft 700064-1 or 700065-1 AS ETH NMEA2K No 8M0165589
    Honda NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K No 06653-ZZ3-730HE 9.8 Feet Long or 06653-ZZ3-760HE 19.5 Feet Long
    Evinrude NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K No No
    Suzuki NMEA2000 700064-1 or 700065-1 AS ETH NMEA2K No No



    Radar Accessories

    Radar Model

    Item Number

    Description

    Compatible Units

    HB 2124

    750013-1

    Radar Dome, Data Cable, Mounting Hardware Data Cable Length
    32.8 feet

    HB 2124 Compatible with:

    • All XPLORE models
    • All APEX models
    • All SOLIX models
    • All HELIX 7 G2Nmodels
    • All HELIX 7 G3N models
    • All HELIX 7 G4N models
    • All HELIX 8 models
    • All HELIX 9 models
    • All HELIX 10 models
    • All HELIX 12 models
    • All HELIX 15 models
    • All ION models
    • All ONIX models

    AS EC HB2124 - Replacement Ethernet Cable for Humminbird CHIRP Radar

    720097-1

    Replacement Ethernet cable compatible with Humminbird CHIRP Radar (HB 2124). Cable Length 30 Feet.

    AS EC HB2124 - Replacement Ethernet Cable for Humminbird CHIRP Radar Compatible with:

    • HB2124 Radar



    Unit Covers & Cases

    Protective covers for XPLORE, HELIX, SOLIX, APEX models. Sizes defined per unit.

    Unit Covers Model Name

    Item Number

    Description

    Compatible Units

    UCPM 4

    780033-1

    Protective Cover protects lens during storage

    UCPM 4 Compatible with:

    • PiranhaMAX 4
    • PiranhaMAX 4 DI Fishin
    • Buddy MAX
    • Fishin Buddy MAX DI

    UC H5

    780028-1

    Protective cover protects lens during storage. Durable, easy-on neoprene design

    UC H5 Compatible with:

    • All HELIX 5 models

    UC H7

    780029-1

    Neoprene protective cover protects screen during storage. Durable, easy-on design

    UC H7 Compatible with:

    • All HELIX 7 models

    UC H7R2

    780044-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC H7R2 Compatible with:

    • HELIX 7 models

    UC H89

    780038-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC H89

    • HELIX 9 MSI GPS G4N
    • HELIX 9 MDI GPS G4N
    • HELIX 9 CHIRP GPS G4N
    • HELIX 8 MSI GPS G4N
    • HELIX 8 MDI GPS G4N
    • HELIX 8 CHIRP GPS G4N
    • HELIX 9 MSI GPS G3N
    • HELIX 9 MDI GPS G3N
    • HELIX 9 CHIRP GPS G3N
    • HELIX 8 MSI GPS G3N
    • HELIX 8 MDI GPS G3N
    • HELIX 8 CHIRP GPS G3N
    • Note: Will not fit first-generation HELIX 9 or HELIX 9 G2N Models

    UC H910

    780030-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC H910 Compatible with:

    • HELIX 9 G1 models
    • HELIX 9 G2/G2N
    • All Helix 10 models

    UC H12

    780031-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC H12 Compatible with:

    • All HELIX 12 models

    UC H15

    780042-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC H15 Compatible with:

    • All HELIX 15 models

    UC S10

    780037-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC S10 Compatible with:

    • All SOLIX 10 models

    UC S12

    780034-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC S12 Compatible with:

    • All SOLIX 12 models

    UC S15

    780035-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC S15 Compatible with:

    • All SOLIX 15 models

    UC A13

    780039-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC A13 Compatible with:

    • All APEX 13 models

    UC A16

    780040-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC A16 Compatible with:

    • All APEX 16 models

    UC A19

    780041-1

    Protective cover protects screen during storage. Durable, easy-on rubberized design

    UC A19 Compatible with:

    • All APEX 19 models

    ICE HELIX Battery Cover

    780045-1

    Replacement Battery Cover for the HELIX ICE SHUTTLE (780046-1)


    ICE HELIX Battery Cover Compatible with:

    • ICE HELIX 7 CHIRP GPS G4
    • ICE HELIX 7 CHIRP GPS G4
    • AS ICE HELIX 9 MSI+ GPS G4N Bundles
    • ICE HELIX Conversion kits



    Portable Configurations

    Portable Configuration Model Name

    Item Number

    Description

    Compatible Units

    9AH BK

    770030-1

    Portable 9 Ah Battery
    and Charger

    9AH BK Compatible with:

    • All ICE HELIX 5models:
      • ICE HELIX 5 CHIRP GPS G3 FB
      • ICE HELIX 5 CHIRP GPS G3 AS
      • ICE HELIX 5 CHIRP G3 FB
    • All HELIX 5 Models
    • All HELIX 7 ICE and portable products
    • PiranhaMAX models
    • 300 models
    • 500 models
    • 600 models
    • 700 models
    • ICE 55

    PTC U2

    740157-1

    Description should it say  includes Premium Soft Sided Carrying Case,   9 Amp Hour gel-cell battery & charger, gimbal mount and hardware for HELIX 5 and 7 models

    PTC U2 Compatible with:

    • HELIX 5 models:
      • HELIX 5 DI G2
      • HELIX 5 SONAR G2
      • HELIX 5 SI GPS
      • HELIX 5 DI GPS
      • HELIX 5 SONAR GPS
      • HELIX 5 DI
      • HELIX 5 SONAR
    • HELIX 7 models:
      • HELIX 7 SONAR G2
      • HELIX 7 SI GPS
      • HELIX 7 DI GPS
      • HELIX 7 SONAR GPS
      • HELIX 7 DI
      • HELIX 7 SONAR
    • All 100 Models
    • All 300 Models
    • All 500 Models
    • All 600 Models
    • All 700 Models

    PTC UNB2

    740157-1NB

    Soft Portable Case
    without battery (unit
    not included)

    PTC UNB2 Compatible with:

    • HELIX 7 models:
      • HELIX 7 SONAR G2
      • HELIX 7 SI GPS
      • HELIX 7 DI GPS
      • HELIX 7 SONAR GPS
      • HELIX 7 DI
      • HELIX 7 SONAR
    • HELIX 5 models:
      • HELIX 5 DI G2
      • HELIX 5 SONAR G2
      • HELIX 5 SI GPS
      • HELIX 5 DI GPS
      • HELIX 5 SONAR GPS
      • HELIX 5 DI
      • HELIX 5 SONAR
    • All 100 models
    • All 300 models
    • All 500 models
    • All 600 models
    • All 700 models



    ICE Accessories

    ICE Accessories

    Item Number

    Description

    Compatible Units

    ICE PTC CHIRP H5 FB

    740206-1

    ICE conversion kit for
    HELIX 5 CHIRP models.
    Includes Dual Spectrum
    CHIRP Ice transducer /
    float, mounting
    hardware, soft side bag
    and power cable. Battery
    and charger NOT
    included

    ICE PTC CHIRP H5 FB Compatible with:

    • All HELIX 5 G2 and newer
      models with CHIRP
    • Replacement for all ICE HELIX 5 G2
      models (with CHIRP)

    HELIX ICE Conversion Kit Shuttle

    740202-1

    ICE conversion kit shuttle for
    HELIX 7/8/9/10 CHIRP
    models. Includes Dual
    Spectrum CHIRP Ice
    transducer / float,
    mounting hardware, and
    power cable. Battery and
    charger NOT included

    HELIX ICE Conversion Kit Compatible with:

    • All HELIX 7/ 8 / 9 / 10 models with
      CHIRP
      • G2N/G3N and newer models
    • Replacement for all ICE HELIX 7 G4
      and ICE HELIX 9 G4N and newer models

    ICE XPLORE Shuttle Conversion Kit

    700071-1

    Convert your ICE HELIX shuttle for use with ICE XPLORE. Includes ICE XPLORE Gimbal Bracket; Mounting Hardware; 18” Power cable with spade connectors and inline fuse. Includes: Unit mounting bracket and power cable with in-line fuse and space connectors



    ICE XPLORE Shuttle Conversion Kit Compatible with:

    • XPLORE 9
    • XPLORE 10
    • XPLORE 12


    ICE PTC UNB2

    740158-1NB

    ICE conversion kit
    for HELIX models
    without CHIRP
    sonar. Includes Dual
    Beam ice transducer /
    float, mounting
    hardware, soft side
    bag and power cable.
    Battery and charger
    NOT included.

    ICE PTC UNB2 Compatible with:

    • HELIX 5 SONAR
    • HELIX 5 SONAR GPS
    • HELIX 5 SONAR G2
    • HELIX 7 SONAR
    • HELIX 7 SONAR GPS
    • HELIX 7 SONAR

    MHX ICE

    740105-1

    Mounting Hardware –
    Ice transducer and cable
    wrap

    MHX ICE Compatible with:

    • ICE HELIX – All models
    • XI 9 19
    • XI 9 20
    • XI 9 1521
    • ICE 35
    • ICE 45
    • ICE 55

    CC ICE

    780015-1

    Soft Sided Bag for ICE
    Flashers

    CC ICE Compatible with:

    • ICE 35
    • ICE 45
    • ICE 55

    ICE AS GPS HS - ICE GPS Receiver with Heading Sensor

    408400-2

    The ICE AS GPS HS is a precision GPS receiver with heading sensor designed specifically for ICE fishing. An internal compass also provides constant heading displayed on your Humminbird chart screen, even while sitting still, making it easy to understand exactly where you are in correlation to the GPS chart. Receiver dimensions: 3.25" diameter, 1.5" high and comes with 6' cable and has a 1"-14 thread count stem mountable with an optional antenna stem (antenna stem not included).

    ICE AS GPS HS - ICE GPS Receiver with Heading Sensor Compatible with:

    • All APEX (requires the AS GPS adapter)
    • All SOLIX (requires AS GPS NMEA adapter)
    • All HELIX 15/12/ 10/ 9/8
    • All HELIX 7 G2N, G3N and G4N
    • All MEGA 360 Imaging models
    • All AS 360 Imaging models
    • All ONIX Series*
    • 859ci HD Combo
    • 859ci HD DI Combo
    • 859ci HD XD Combo
    • 899ci HD SI Combo,
    • 959ci HD Combo
    • 959ci HD DI Combo
    • 959ci HD XD Combo
    • 999ci HD SI Combo
    • 1159ci HD Combo
    • 1159ci HD DI Combo
    • 1159ci HD XD Combo
    • 1199ci HD SI Combo





    Airmar Adapter Cables (Airmar / Gemeco Products)

    Airmar Adapter Cables Model Name

    Item Number

    Description

    Compatible Units

    Airmar SOLIX/APEX
    MMC M/HF xID

    ACC-CBL-HB0241-1

    Humminbird
    adapter cable for
    AIRMAR CHIRP
    transducers, using
    medium and high
    frequencies. Built in
    transducer ID (xID).
    May be used in
    combination with
    Mix and Match Y cable.
    1 meter

    Airmar SOLIX/APEX
    MMC M/HF xID Compatible with:

    • All XPLORE models
    • All APEX models
    • All SOLIX models

    Airmar SOLIX/APEX
    MMC LF xID

    ACC-CBL-HB0241-2

    Humminbird adapter
    cable for AIRMAR
    CHIRP transducers,
    using frequencies. Built
    in transducer ID (xID). 1
    meter in length.

    Airmar SOLIX/APEX
    MMC LF xID Compatible with:

    • All XPLORE models
    • All APEX models
    • All SOLIX models

    Airmar Y-Cable APEX
    MMC xID

    ACC-YCBLHB024141-1

    Humminbird y-cable for
    APEX models allows
    duplexing of
    Humminbird Dual
    Spectrum CHIRP
    transducers and
    AIRMAR CHIRP
    transducers. 1 meter in
    length.

    Airmar Y-Cable APEX
    MMC xID Compatible with

    • All APEX models

    Airmar Humminbird
    CHIRP Transducer
    Adapter Box

    ACC-JB-HB-1

    Use the junction box to
    connect an existing
    transducer without a
    connector to a
    compatible
    Humminbird SOLIX or
    APEX control head,
    using the two 14-pin
    connectors.

    Airmar Humminbird
    CHIRP Transducer
    Adapter Box Compatible with:

    • All XPLORE models
    • All APEX models
    • All SOLIX models



    Other Accessories

    Accessory Name Item Number Description Compatible with:

    Charger Choke for Interference

    760034-1

    Choke to help reduce noise coming from onboard chargers. Installs on the onboard charger connected to the cranking battery.

    Charger Choke for Interference Compatible with:

    • All Humminbird Products

    Ferrite Steward

    790097-1

    Ferrite Steward for use when trying to eliminate electrical noise coming from the trolling motor. Can be use on power cables or ethernet cables

    Ferrite Steward Compatible with:

    • All HELIX
    • All PiranhaMAX



    Was this article helpful?
    1 out of 3 found this helpful

    Articles in this section

    See more
