This guide outlines compatibility between built-in trolling motor transducers, GPS-enabled trolling motors, and supported fish finders. It also identifies the adapter cables required to complete these connections.
Jump To:
- Built-In MEGA Side Imaging (MSI) and Humminbird Compatibility
- Built-In MEGA Down Imaging (MDI) and Humminbird Compatibility
- Built-In Dual Spectrum CHIRP (DSC) and Humminbird Compatibility
- Built-In Advanced GPS Navigation and Humminbird Compatibility
- Built-In Universal Sonar 2 (US2) and Humminbird Compatibility
- Built-In i-Pilot Link Equipped Trolling Motor and Humminbird Compatibility
- Built-In Universal Sonar 2 (US2) and Humminbird Compatibility
Humminbird & Built-In MEGA Side Imaging (MSI) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility..
APEX MEGA Side Imaging (MSI) Compatibility
APEX Series Model |
Compatible MSI Trolling Motors |
APEX 19 MEGA SI+ CHARTPLOTTER |
Compatible Minn Kota Motors equipped with MSI:
|
APEX 19 MEGA SI+ CHARTPLOTTER CHO | |
APEX 16 MEGA SI+ CHARTPLOTTER | |
APEX 16 MEGA SI+ CHARTPLOTTER CHO | |
APEX 13 MEGA SI+ CHARTPLOTTER | |
APEX 13 MEGA SI+ CHARTPLOTTER CHO | |
|

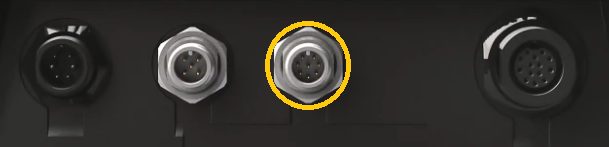

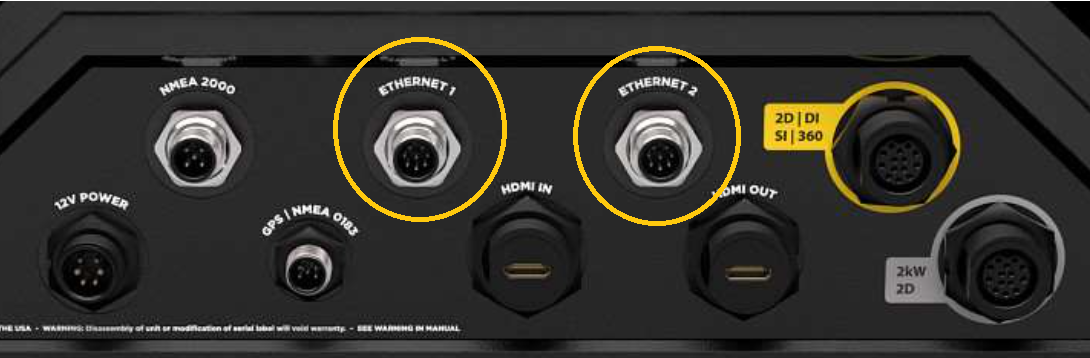

APEX Side Imaging Transducer Port Note: No adapter cable required for APEX to MEGA Side Imaging (MSI) trolling motor connection. | |
SOLIX MEGA Side Imaging (MSI) Compatibility
SOLIX Model |
Compatible MSI Trolling Motors |
SOLIX 15 MEGA SI+ G3 |
Compatible Minn Kota Motors equipped with MSI:
|
SOLIX 15 MEGA SI+ G3 CHO | |
SOLIX 15 MEGA SI+ G2 | |
SOLIX 15 MEGA DI+ G2 CHO | |
SOLIX 15 MEGA SI+ | |
SOLIX 15 | |
SOLIX 12 MEGA SI+ G3 | |
SOLIX 12 MEGA SI+ G3 CHO | |
SOLIX 12 MEGA SI+ G2 | |
SOLIX 12 MEGA DI+ G2 CHO | |
SOLIX 12 MEGA SI+ | |
SOLIX 12 | |
SOLIX 10 MEGA SI+ G3 | |
SOLIX 10 MEGA SI+ G3 CHO | |
SOLIX 10 MEGA SI+ G2 | |
SOLIX 10 MEGA DI+ G2 CHO | |
SOLIX 10 MEGA SI+ | |
SOLIX 10 | |
|

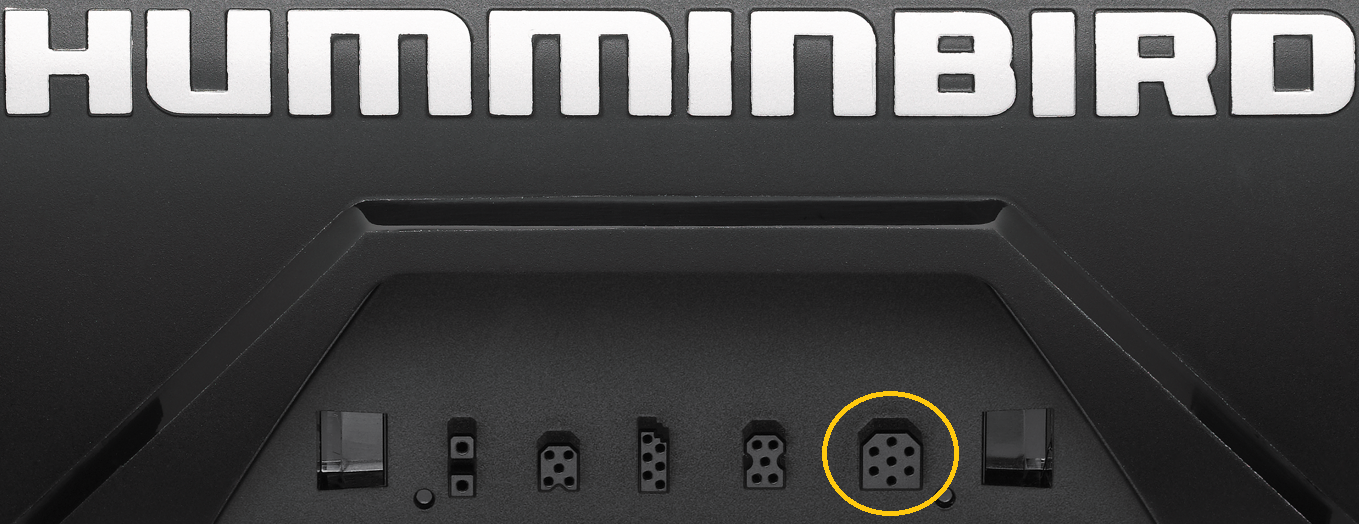

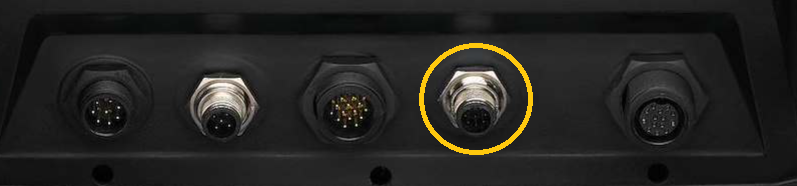

SOLIX Transducer Port Note: No adapter cable required for SOLIX to MEGA Side Imaging (MSI) trolling motor connection. | |
XPLORE MEGA Side Imaging (MSI) Compatibility
XPLORE Model |
Compatible MSI Trolling Motors |
| XPLORE 12 CMSI+ FISH FINDER |
Compatible Minn Kota Motors equipped with MSI:
|
| XPLORE 12 CMSI+ FISH FINDER CHO | |
| XPLORE 10 CMSI+ FISH FINDER | |
| XPLORE 10 CMSI+ FISH FINDER CHO | |
| XPLORE 9 CMSI+ FISH FINDER | |
| XPLORE 9 CMSI+ FISH FINDER CHO | |
|

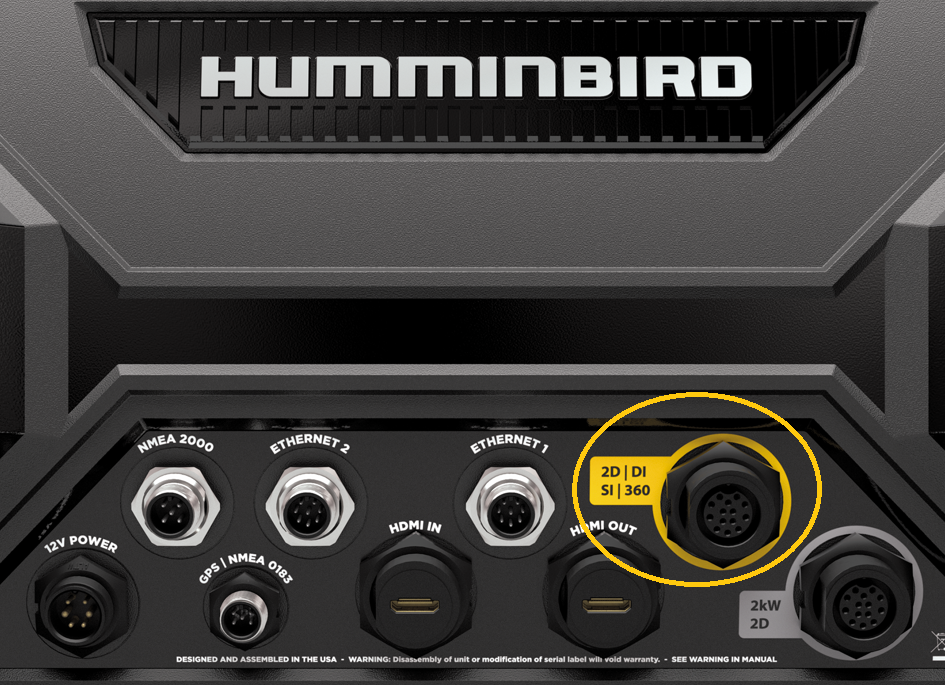

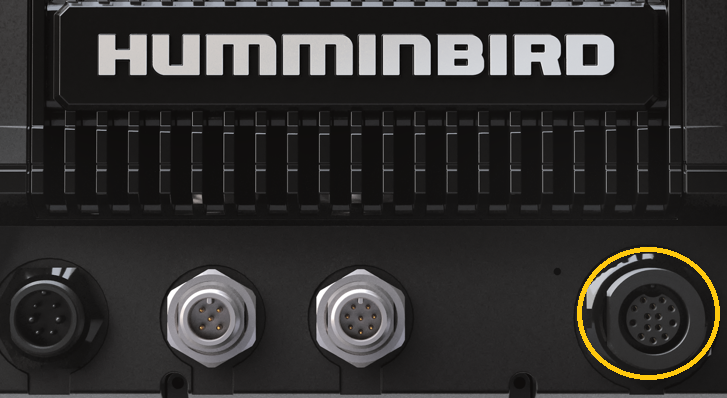

XPLORE Transducer Port Note: No adapter cable required for XPLORE to MEGA Side Imaging (MSI) trolling motor connection. | |
HELIX 15-8 MEGA Side Imaging (MSI) Compatibility
| HELIX 15 and HELIX 12 Models | Compatible MSI Trolling Motors |
| HELIX 15 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with MSI:
|
| HELIX 15 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP GPS G4N | |
| HELIX 12 CHIRP MEGA SI+ GPS G3N | |
| HELIX 12 CHIRP MEGA DI+ GPS G3N | |
| HELIX 12 CHIRP GPS G3N | |
| HELIX 12 CHIRP MEGA SI GPS G2N | |
| HELIX 12 CHIRP MEGA DI GPS G2N | |
| HELIX 10 Models | Compatible MSI Trolling Motors |
| HELIX 10 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with MSI:
|
| HELIX 10 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 10 CHIRP MEGA DI+ GPS G4N | |
| HELIX 10 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 10 CHIRP GPS G4N | |
| HELIX 10 CHIRP MEGA SI+ GPS G3N | |
| HELIX 10 CHIRP MEGA DI+ GPS G3N | |
| HELIX 10 CHIRP GPS G3N | |
| HELIX 10 CHIRP MEGA SI GPS G2N | |
| HELIX 10 CHIRP MEGA DI GPS G2N | |
| HELIX 9 Models | Compatible MSI Trolling Motors |
| HELIX 9 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with MSI:
|
| HELIX 9 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 9 CHIRP MEGA DI+ GPS G4N | |
| HELIX 9 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 9 CHIRP GPS G4N | |
| HELIX 9 CHIRP MEGA SI+ GPS G3N | |
| HELIX 9 CHIRP MEGA DI+ GPS G3N | |
| HELIX 9 CHIRP GPS G3N | |
| HELIX 9 CHIRP MEGA SI GPS G2N | |
| HELIX 9 CHIRP MEGA DI GPS G2N | |
| HELIX 8 Models | Compatible MSI Trolling Motors |
| HELIX 8 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with MSI:
|
| HELIX 8 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 8 CHIRP MEGA DI GPS G4N | |
| HELIX 8 CHIRP MEGA DI GPS G4N (CHO) | |
| HELIX 8 CHIRP MEGA SI+ GPS G3N | |
| HELIX 8 CHIRP MEGA DI GPS G3N | |
|

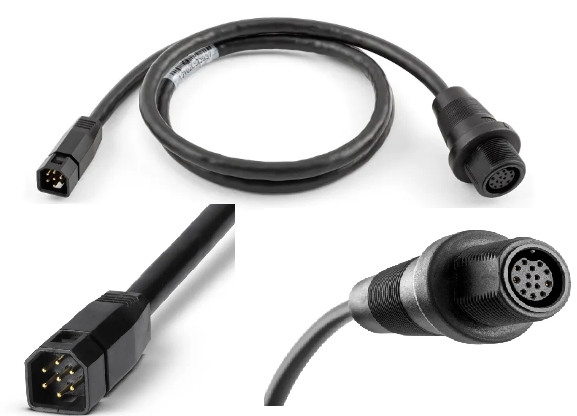

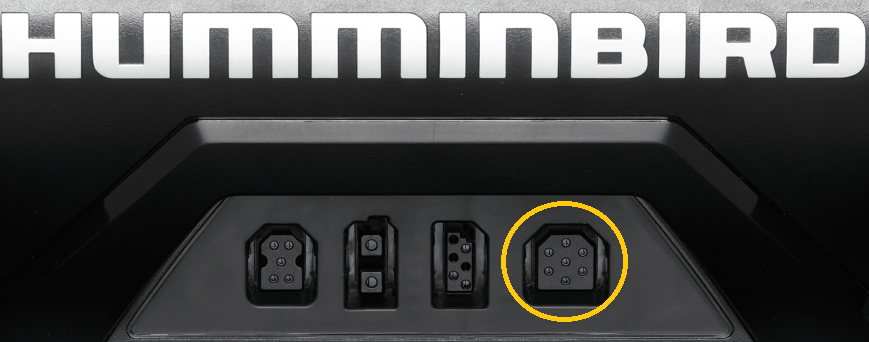

HELIX 8-15 Transducer Port Dual Spectrum CHIRP (DSC) MKR-MI-1 Adapter Cable: Click here for purchase options
| |
Humminbird Built-In MEGA Down Imaging (MDI) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility
APEX MEGA Down Imaging (MDI) Compatibility
| APEX Series Model | Compatible MDI Trolling Motors |
| APEX 19 MEGA SI+ CHARTPLOTTER |
Compatible Minn Kota Motors equipped with MDI:
|
| APEX 19 MEGA SI+ CHARTPLOTTER CHO | |
| APEX 16 MEGA SI+ CHARTPLOTTER | |
| APEX 16 MEGA SI+ CHARTPLOTTER CHO | |
| APEX 13 MEGA SI+ CHARTPLOTTER | |
| APEX 13 MEGA SI+ CHARTPLOTTER CHO | |
|

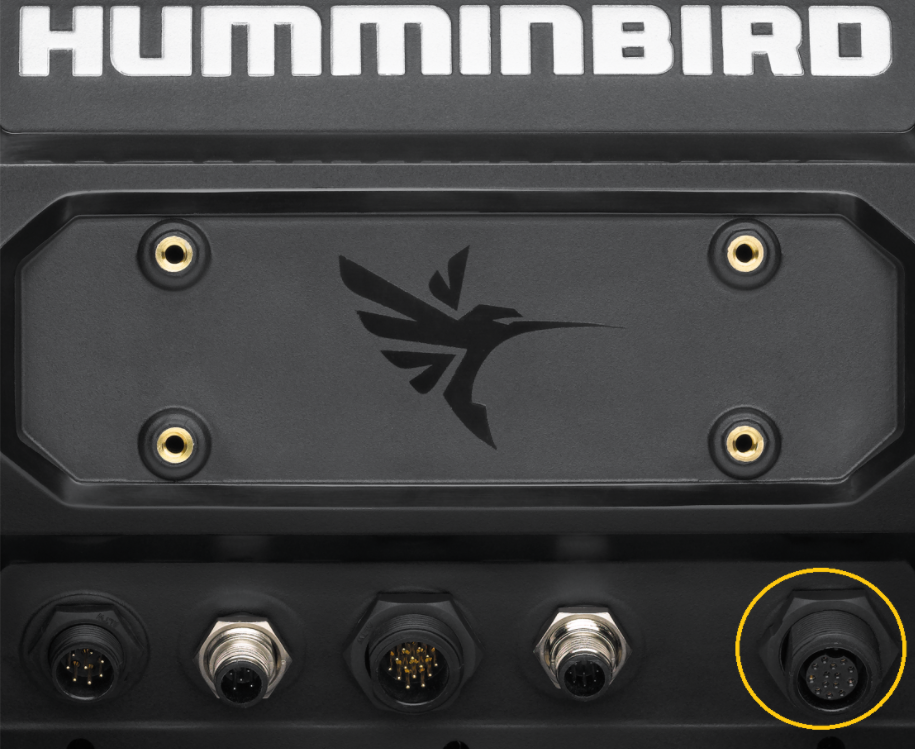

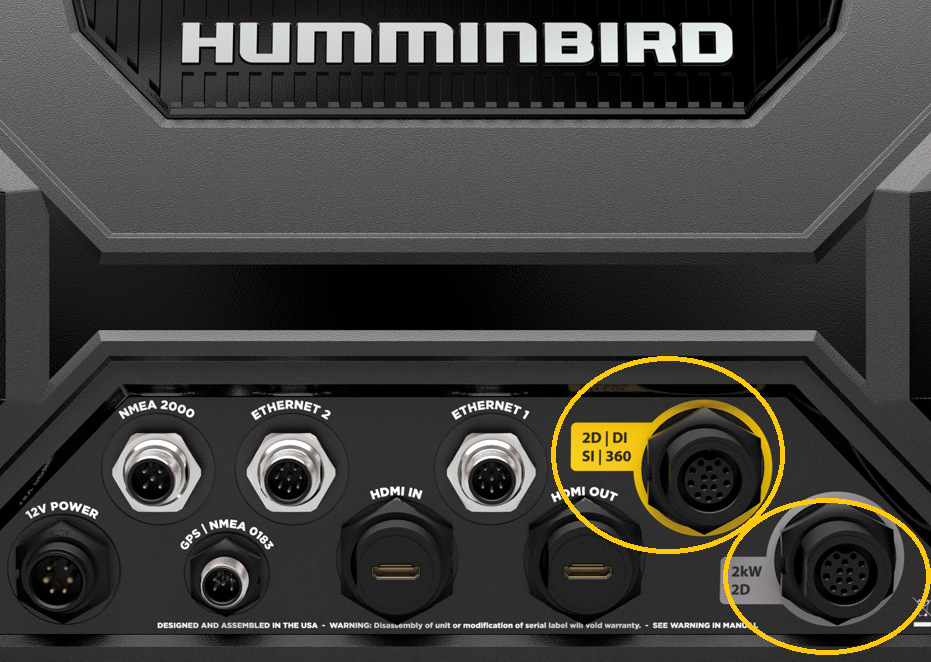

APEX Down Imaging Transducer Port Note: No adapter cable required for APEX to MEGA Down Imaging (MDI) trolling motor connection. | |
SOLIX MEGA Down Imaging (MDI) Compatibility
| APEX Series Model | Compatible MDI Trolling Motors |
| SOLIX 15 MEGA SI+ G3 |
Compatible Minn Kota Motors equipped with MDI:
|
SOLIX 15 MEGA SI+ G3 CHO | |
| SOLIX 15 MEGA SI+ G2 | |
| SOLIX 15 MEGA DI+ G2 CHO | |
| SOLIX 15 MEGA SI+ | |
| SOLIX 15 | |
| SOLIX 12 MEGA SI+ G3 | |
| SOLIX 12 MEGA SI+ G3 CHO | |
| SOLIX 12 MEGA SI+ G2 | |
| SOLIX 12 MEGA DI+ G2 CHO | |
| SOLIX 12 MEGA SI+ | |
| SOLIX 12 | |
| SOLIX 10 MEGA SI+ G3 | |
| SOLIX 10 MEGA SI+ G3 CHO | |
| SOLIX 10 MEGA SI+ G2 | |
| SOLIX 10 MEGA DI+ G2 CHO | |
| SOLIX 10 MEGA SI+ | |
| SOLIX 10 | |
|
SOLIX Transducer Port Note: No adapter cable required for APEX to MEGA Down Imaging (MDI) trolling motor connection. | |
XPLORE MEGA Down Imaging (MDI) Compatibility
| APEX Series Model | Compatible MDI Trolling Motors |
| XPLORE 12 CMSI+ FISH FINDER |
Compatible Minn Kota Motors equipped with MDI:
|
| XPLORE 12 CMSI+ FISH FINDER CHO | |
| XPLORE 10 CMSI+ FISH FINDER | |
| XPLORE 10 CMSI+ FISH FINDER CHO | |
| XPLORE 9 CMSI+ FISH FINDER | |
| XPLORE 9 CMSI+ FISH FINDER CHO | |
|
XPLORE Transducer Port Note: No adapter cable required for XPLORE to MEGA Side Imaging (MSI) trolling motor connection. | |
HELIX 15-8 MEGA Down Imaging (MDI) Compatibility
| HELIX 15 and HELIX 12 Models | Compatible MDI Trolling Motors |
| HELIX 15 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with MDI:
|
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 15 CHIRP MEGA SI+ GPS G4N | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N | |
| HELIX 12 CHIRP GPS G4N | |
| HELIX 12 CHIRP MEGA SI+ GPS G3N | |
| HELIX 12 CHIRP MEGA DI+ GPS G3N | |
| HELIX 12 CHIRP GPS G3N | |
| HELIX 12 CHIRP MEGA SI GPS G2N | |
| HELIX 12 CHIRP MEGA DI GPS G2N | |
| HELIX 10 Models | Compatible MDI Trolling Motors |
| HELIX 10 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with MDI:
|
| HELIX 10 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 10 CHIRP MEGA DI+ GPS G4N | |
| HELIX 10 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 10 CHIRP GPS G4N | |
| HELIX 10 CHIRP MEGA SI+ GPS G3N | |
| HELIX 10 CHIRP MEGA DI+ GPS G3N | |
| HELIX 10 CHIRP GPS G3N | |
| HELIX 10 CHIRP MEGA SI GPS G2N | |
| HELIX 10 CHIRP MEGA DI GPS G2N | |
| HELIX 10 CHIRP DI GPS G2N | |
| HELIX 9 Models | Compatible MDI Trolling Motors |
| HELIX 9 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with MDI:
|
| HELIX 9 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 9 CHIRP MEGA DI+ GPS G4N | |
| HELIX 9 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 9 CHIRP GPS G4N | |
| HELIX 9 CHIRP MEGA SI+ GPS G3N | |
| HELIX 9 CHIRP MEGA DI+ GPS G3N | |
| HELIX 9 CHIRP GPS G3N | |
| HELIX 9 CHIRP MEGA SI GPS G2N | |
| HELIX 9 CHIRP MEGA DI GPS G2N | |
| HELIX 8 Models | Compatible MDI Trolling Motors |
| HELIX 8 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with MDI:
|
| HELIX 8 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 8 CHIRP MEGA DI GPS G4N | |
| HELIX 8 CHIRP MEGA DI GPS G4N (CHO) | |
| HELIX 8 CHIRP MEGA SI+ GPS G3N | |
| HELIX 8 CHIRP MEGA DI GPS G3N | |
|

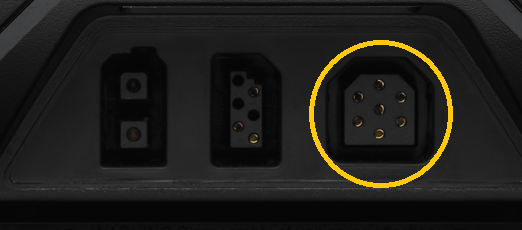

HELIX 8-15 Transducer Port
Dual Spectrum CHIRP (DSC) MKR-MI-1 Adapter Cable: Click here for purchase options | |
HELIX 7 MEGA Down Imaging (MDI) Compatibility
| HELIX 7 Models | Compatible MSI Trolling Motors |
| HELIX 7 CHIRP MEGA SI GPS G4N |
Compatible Minn Kota Motors equipped with MDI:
|
| HELIX 7 CHIRP MEGA DI GPS G4N | |
| HELIX 7 CHIRP MEGA DI GPS G4N (CHO) | |
| HELIX 7 CHIRP MEGA SI GPS G4 | |
| HELIX 7 CHIRP MEGA DI GPS G4 | |
| HELIX 7 CHIRP MEGA SI GPS G3N | |
| HELIX 7 CHIRP MEGA DI GPS G3N | |
| HELIX 7 CHIRP MEGA SI GPS G3 | |
| HELIX 7 CHIRP MEGA DI GPS G3 | |
|

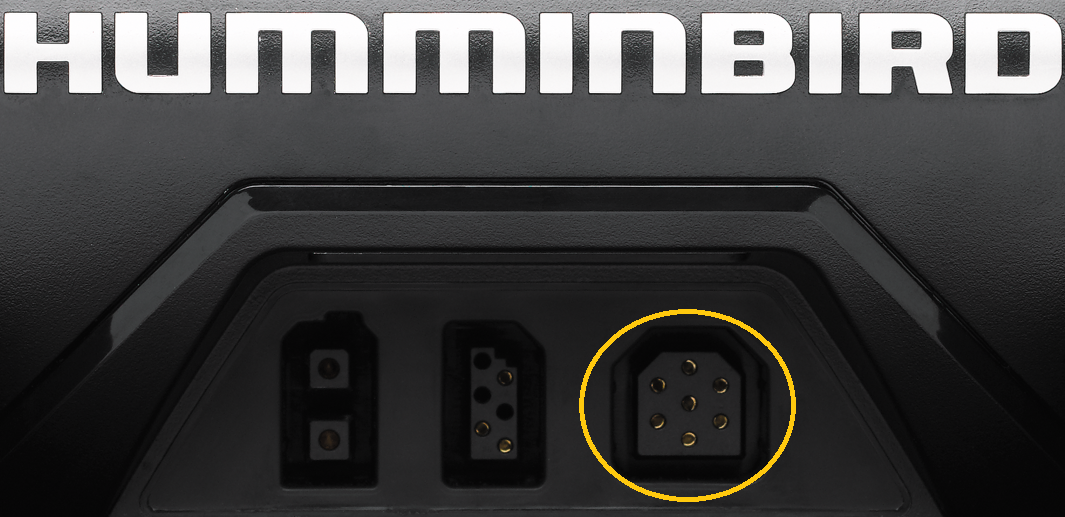

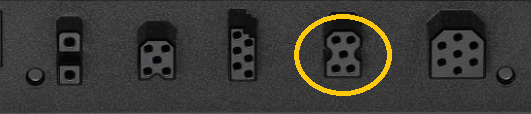

HELIX 7 Transducer Port

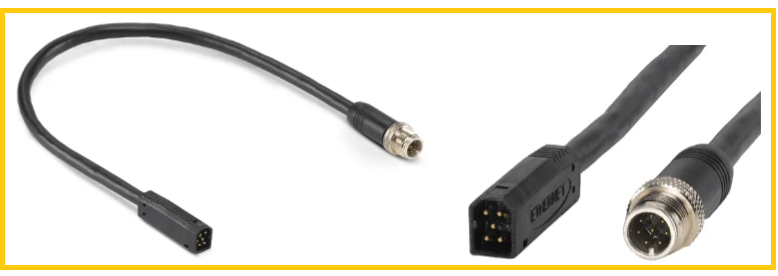

MEGA Down Imaging (MDI) MKR-MDI-2 Adapter Cable: Click here for purchase options | |
Humminbird and Built-In Dual Spectrum CHIRP (DSC) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility
APEX Dual Spectrum CHIRP (DSC) Compatibility
| APEX Series Model | Compatible DSC Trolling Motors |
APEX 19 MEGA SI+ CHARTPLOTTER |
|
APEX 19 MEGA SI+ CHARTPLOTTER CHO | |
APEX 16 MEGA SI+ CHARTPLOTTER | |
APEX 16 MEGA SI+ CHARTPLOTTER CHO | |
APEX 13 MEGA SI+ CHARTPLOTTER | |
APEX 13 MEGA SI+ CHARTPLOTTER CHO | |
|
APEX Transducer Ports Note: No adapter cable required for APEX to MEGA Down Imaging (MDI) trolling motor connection. | |
SOLIX Dual Spectrum CHIRP (DSC) Compatibility
| SOLIX Model | Compatible DSC Trolling Motors |
| SOLIX 15 MEGA SI+ G3 |
|
SOLIX 15 MEGA SI+ G3 CHO | |
| SOLIX 15 MEGA SI+ G2 | |
| SOLIX 15 MEGA DI+ G2 CHO | |
| SOLIX 15 MEGA SI+ | |
| SOLIX 15 | |
| SOLIX 12 MEGA SI+ G3 | |
| SOLIX 12 MEGA SI+ G3 CHO | |
| SOLIX 12 MEGA SI+ G2 | |
| SOLIX 12 MEGA DI+ G2 CHO | |
| SOLIX 12 MEGA SI+ | |
| SOLIX 12 | |
| SOLIX 10 MEGA SI+ G3 | |
| SOLIX 10 MEGA SI+ G3 CHO | |
| SOLIX 10 MEGA SI+ G2 | |
| SOLIX 10 MEGA DI+ G2 CHO | |
| SOLIX 10 MEGA SI+ | |
| SOLIX 10 | |
|
SOLIX Transducer Port Note: No adapter cable required for SOLIX to Dual Spectrum CHIRP (DSC) trolling motor connection. | |
XPLORE Dual Spectrum CHIRP (DSC) Compatibility
| XPLORE Model | Compatible DSC Trolling Motors |
| XPLORE 12 CMSI+ FISH FINDER |
|
| XPLORE 12 CMSI+ FISH FINDER CHO | |
| XPLORE 10 CMSI+ FISH FINDER | |
| XPLORE 10 CMSI+ FISH FINDER CHO | |
| XPLORE 9 CMSI+ FISH FINDER | |
| XPLORE 9 CMSI+ FISH FINDER CHO | |
|
XPLORE Transducer Port Note: No adapter cable required for XPLORE to Dual Spectrum CHIRP (DSC) trolling motor connection. | |
HELIX 15, 12, 10, 9, 8, Ice HELIX 9 Dual Spectrum CHIRP (DSC) Compatibility
| HELIX 15 and HELIX 12 Models | Compatible DSC Trolling Motors |
| HELIX 15 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with DSC:
|
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 15 CHIRP MEGA SI+ GPS G4N | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N | |
| HELIX 12 CHIRP GPS G4N | |
| HELIX 12 CHIRP MEGA SI+ GPS G3N | |
| HELIX 12 CHIRP MEGA DI+ GPS G3N | |
| HELIX 12 CHIRP GPS G3N | |
| HELIX 12 CHIRP MEGA SI GPS G2N | |
| HELIX 12 CHIRP MEGA DI GPS G2N | |
| HELIX 12 CHIRP DI GPS G2N | |
| HELIX 12 CHIRP GPS G2N | |
| HELIX 10 Models | Compatible DSC Trolling Motors |
| HELIX 10 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with DSC:
|
| HELIX 10 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 10 CHIRP MEGA DI+ GPS G4N | |
| HELIX 10 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 10 CHIRP GPS G4N | |
| HELIX 10 CHIRP MEGA SI+ GPS G3N | |
| HELIX 10 CHIRP MEGA DI+ GPS G3N | |
| HELIX 10 CHIRP GPS G3N | |
| HELIX 10 CHIRP MEGA SI GPS G2N | |
| HELIX 10 CHIRP MEGA DI GPS G2N | |
| HELIX 10 CHIRP DI GPS G2N | |
| HELIX 10 CHIRP GPS G2N | |
| HELIX 9 and ICE HELIX 9 Models | Compatible DSC Trolling Motors |
| HELIX 9 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with DSC:
|
| HELIX 9 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 9 CHIRP MEGA DI+ GPS G4N | |
| HELIX 9 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 9 CHIRP GPS G4N | |
| HELIX 9 CHIRP MEGA SI+ GPS G3N | |
| HELIX 9 CHIRP MEGA DI+ GPS G3N | |
| HELIX 9 CHIRP GPS G3N | |
| HELIX 9 CHIRP MEGA SI GPS G2N | |
| HELIX 9 CHIRP MEGA DI GPS G2N | |
| HELIX 9 CHIRP DI GPS G2N | |
| HELIX 9 CHIRP GPS G2N | |
| HELIX 8 Models | Compatible DSC Trolling Motors |
| HELIX 8 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with DSC:
|
| HELIX 8 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 8 CHIRP MEGA DI GPS G4N | |
| HELIX 8 CHIRP MEGA DI GPS G4N (CHO) | |
| HELIX 8 CHIRP GPS G4N | |
| HELIX 8 CHIRP MEGA SI+ GPS G3N | |
| HELIX 8 CHIRP MEGA DI GPS G3N | |
| HELIX 8 CHIRP GPS G3N | |
|
HELIX 8-15 Transducer Port Dual Spectrum CHIRP (DSC) MKR-MI-1 Adapter Cable: Click here for purchase options | |
HELIX 7, 5 and ICE HELIX 7 and 5 Dual Spectrum CHIRP (DSC) Compatibility
| HELIX 7 and ICE HELIX 7 Models | Compatible DSC Trolling Motors |
| HELIX 7 CHIRP MEGA SI GPS G4N |
Compatible Minn Kota Motors equipped with DSC:
|
| HELIX 7 CHIRP MEGA DI GPS G4N | |
| HELIX 7 CHIRP MEGA DI GPS G4N (CHO) | |
| HELIX 7 CHIRP GPS G4N | |
| HELIX 7 CHIRP MEGA SI GPS G4 | |
| HELIX 7 CHIRP SI GPS G4 | |
| HELIX 7 CHIRP MEGA SI GPS G3N | |
| HELIX 7 CHIRP MEGA DI GPS G3N | |
| HELIX 7 CHIRP GPS G3N | |
| HELIX 7 CHIRP MEGA SI GPS G3 | |
| HELIX 7 CHIRP MEGA DI GPS G3 | |
| HELIX 7 CHIRP GPS G3 | |
| HELIX 7 CHIRP DI GPS G2N | |
| HELIX 7 CHIRP GPS G2N | |
| HELIX 7 CHIRP SI GPS G2 | |
| HELIX 7 CHIRP DI GPS G2 | |
| HELIX 7 CHIRP DI G2 | |
| HELIX 7 CHIRP GPS G2 | |
| ICE HELIX 7 CHIRP GPS G4 | |
| ICE HELIX 7 CHIRP GPS G3N | |
| ICE HELIX 7 CHIRP GPS G3 | |
| ICE HELIX 7 CHIRP GPS G2N | |
|
HELIX 7 Transducer Port
Dual Spectrum CHIRP (DSC) MKR-MI-1 Adapter Cable: Click here for purchase options | |
| HELIX 5 and ICE HELIX 5 Models | Compatible DSC Trolling Motors |
| HELIX 5 CHIRP DI GPS G3 |
Compatible Minn Kota Motors equipped with DSC:
|
| HELIX 5 CHIRP GPS G3 | |
| HELIX 5 CHIRP SI GPS G2 | |
| HELIX 5 CHIRP DI GPS G2 | |
| HELIX 5 CHIRP GPS G2 | |
| ICE HELIX 5 CHIRP GPS G3 | |
| ICE HELIX 5 CHIRP G3 | |
| ICE HELIX 5 CHIRP GPS G2 | |
| ICE HELIX 5 CHIRP G2 | |
|
HELIX 5 and ICE HELIX 5 Transducer Port
Dual Spectrum CHIRP (DSC) MKR-MI-1 Adapter Cable: Click here for purchase options | |
Garmin Unit Dual Spectrum CHIRP (DSC) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
| Garmin Fish Finder Model | Required Adapter Cable |
| Select Echo Models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Select EchoMAP Models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Select EchoMAP CHIRP Striker Models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Select Striker Plus Models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Select Striker Vivid models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Connects select Garmin 4-Pin transducer port models | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Garmin Fish Finder Model | Required Adapter Cable |
| Select EchoMAP Models with 8-pin configurations | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Select EchoMAP CHIRP Models with 8-pin configurations | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Select EchoMAP Ultra Models with 8-pin configurations | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Select GPSMAP models with 8-pin configurations | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Connects select Garmin 8-Pin transducer port models | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Note: Select Garmin head units also require Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID - Garmin part number 010-12122-10, sold separately | |
Lowrance Unit Dual Spectrum CHIRP (DSC) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
| Lowrance Fish Finder Model | Required Adapter Cable |
| Select HDS Models with 7-pin Configurations | MKR-DSC-10 – Lowrance 7-Pin Adapter Cable |
| Select Hook models with 7-pin configurations | MKR-DSC-10 – Lowrance 7-Pin Adapter Cable |
| Select Lowrance 7-Pin Transducer Port Model | MKR-DSC-10 – Lowrance 7-Pin Adapter Cable |
| Lowrance Fish Finder Model | Required Adapter Cable |
| Select Hook 2 Models with 8-pin configurations | MKR-DSC-15 – Lowrance 8-Pin Adapter Cable |
| Select Hook Reveal Models with 8-pin configurations | MKR-DSC-15 – Lowrance 8-Pin Adapter Cable |
| Connects select Lowrance 8-Pin Triple Shot transducer port models | MKR-DSC-15 – Lowrance 8-Pin Adapter Cable |
| Lowrance Fish Finder Model | Required Adapter Cable |
| Select HDS Live Models with 9-pin configurations | MKR-DSC-16 – Lowrance 9-Pin Adapter Cable |
| Select Elite FS Models with 9-pin configurations | MKR-DSC-16 – Lowrance 9-Pin Adapter Cable |
| Select Elite Ti models with 9-pin configurations | MKR-DSC-16 – Lowrance 9-Pin Adapter Cable |
| Connects select Lowrance 9-Pin Total Scan transducer port models | MKR-DSC-16 – Lowrance 9-Pin Adapter Cable |
Humminbird & Advanced GPS Navigation Equipped Trolling Motor Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility.
APEX and Advanced GPS Navigation Compatibility
APEX Series Model |
Compatible Equipped with Advanced GPS Navigation |
APEX 19 MEGA SI+ CHARTPLOTTER |
Compatible Minn Kota Motors Equipped with Advanced GPS Navigation:
|
APEX 19 MEGA SI+ CHARTPLOTTER CHO | |
APEX 16 MEGA SI+ CHARTPLOTTER | |
APEX 16 MEGA SI+ CHARTPLOTTER CHO | |
APEX 13 MEGA SI+ CHARTPLOTTER | |
APEX 13 MEGA SI+ CHARTPLOTTER CHO | |
|
APEX Ethernet Port Note: APEX does not require an ethernet adaptor cable to connect to tilling motor ethernet connection. | |
SOLIX and Advanced GPS Navigation Compatibility
SOLIX Model |
Compatible Equipped w/ Advanced GPS Trolling Motors |
| SOLIX 15 CHIRP MEGA SI+ G3 |
Compatible Minn Kota Motors Equipped with Advanced GPS Navigation:
|
SOLIX 15 CHIRP MEGA SI+ G2 | |
| SOLIX 15 CHIRP MEGA DI+ G2 | |
| SOLIX 15 CHIRP MEGA SI GPS | |
| SOLIX 15 CHIRP GPS | |
| SOLIX 12 CHIRP MEGA SI+ GPS G3 | |
| SOLIX 12 CHIRP MEGA SI+ GPS G2 | |
| SOLIX 12 CHIRP MEGA DI+ GPS G2 | |
| SOLIX 12 CHIRP MEGA SI GPS | |
| SOLIX 12 CHIRP GPS | |
| SOLIX 10 CHIRP MEGA SI+ GPS G3 | |
| SOLIX 10 CHIRP MEGA SI+ GPS G2 | |
| SOLIX 10 CHIRP MEGA DI+ GPS G2 | |
| SOLIX 10 CHIRP MEGA SI GPS | |
| SOLIX 10 CHIRP GPS | |
|
SOLIX Ethernet Port Note: SOLIX does not require an ethernet adaptor cable to connect to tilling motor ethernet connection. | |
XPLORE and Advanced GPS Navigation Compatibility
XPLORE Model |
Compatible Equipped w/ Advanced GPS Navigation Trolling Motors |
| XPLORE 12 CMSI+ FISH FINDER |
Compatible Minn Kota Motors Equipped with Advanced GPS Navigation:
|
| XPLORE 12 CMSI+ FISH FINDER CHO | |
| XPLORE 10 CMSI+ FISH FINDER | |
| XPLORE 10 CMSI+ FISH FINDER CHO | |
| XPLORE 9 CMSI+ FISH FINDER | |
| XPLORE 9 CMSI+ FISH FINDER CHO | |
|
XPLORE Ethernet Port Note: XPLORE does not require an ethernet adaptor cable to connect to tilling motor ethernet connection. | |
HELIX 15-8 and Advanced GPS Navigation Compatibility
| HELIX 15 and HELIX 12 Models | Compatible Equipped w/ Advanced GPS Navigation Trolling Motors |
| HELIX 15 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors Equipped with Advanced GPS Navigation:
|
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 15 CHIRP MEGA SI+ GPS G4N | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N | |
| HELIX 12 CHIRP GPS G4N | |
| HELIX 12 CHIRP MEGA SI+ GPS G3N | |
| HELIX 12 CHIRP MEGA DI+ GPS G3N | |
| HELIX 12 CHIRP GPS G3N | |
| HELIX 12 CHIRP MEGA SI GPS G2N | |
| HELIX 12 CHIRP MEGA DI GPS G2N | |
| HELIX 12 CHIRP DI GPS G2N | |
| HELIX 12 CHIRP GPS G2N | |
| HELIX 12 CHIRP SI GPS KVD | |
| HELIX 12 CHIRP SI GPS | |
| HELIX 12 CHIRP DI GPS | |
| HELIX 12 CHIRP GPS | |
| HELIX 10 Models | Compatible Equipped w/ Advanced GPS Navigation Trolling Motors |
| HELIX 10 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors Equipped with Advanced GPS Navigation:
|
| HELIX 10 CHIRP MEGA DI+ GPS G4N | |
| HELIX 10 CHIRP GPS G4N | |
| HELIX 10 CHIRP MEGA SI+ GPS G3N | |
| HELIX 10 CHIRP MEGA DI+ GPS G3N | |
| HELIX 10 CHIRP GPS G3N | |
| HELIX 10 CHIRP MEGA SI GPS G2N | |
| HELIX 10 CHIRP MEGA DI GPS G2N | |
| HELIX 10 CHIRP DI GPS G2N | |
| HELIX 10 CHIRP GPS G2N | |
| HELIX 10 SI GPS KVD | |
| HELIX 10 SI GPS | |
| HELIX 10 DI GPS | |
| HELIX 10 SONAR GPS | |
| HELIX 9 Models | Compatible Equipped w/ Advanced GPS Navigation Trolling Motors |
| HELIX 9 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors Equipped with Advanced GPS Navigation:
|
| HELIX 9 CHIRP MEGA DI+ GPS G4N | |
| HELIX 9 CHIRP GPS G4N | |
| HELIX 9 CHIRP MEGA SI+ GPS G3N | |
| HELIX 9 CHIRP MEGA DI+ GPS G3N | |
| HELIX 9 CHIRP GPS G3N | |
| HELIX 9 CHIRP MEGA SI GPS G2N | |
| HELIX 9 CHIRP MEGA DI GPS G2N | |
| HELIX 9 CHIRP DI GPS G2N | |
| HELIX 9 CHIRP GPS G2N | |
| HELIX 9 SI GPS KVD | |
| HELIX 9 SI GPS | |
| HELIX 9 DI GPS | |
| HELIX 9 SONAR GPS | |
| HELIX 8 Models | Compatible Equipped w/ Advanced GPS Navigation Trolling Motors |
| HELIX 8 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors Equipped with Advanced GPS Navigation:
|
| HELIX 8 CHIRP MEGA DI GPS G4N | |
| HELIX 8 CHIRP GPS G4N | |
| HELIX 8 CHIRP MEGA SI+ GPS G3N | |
| HELIX 8 CHIRP MEGA DI GPS G3N | |
| HELIX 8 CHIRP GPS G3N | |
HELIX 8-15 Ethernet Port | |
|
Ethernet Adapter Cable: AS ES QDE- Ethernet Adapter Cable Click her for purchase options | |
Humminbird & Built-In Universal Sonar 2 (US2) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility
APEX Series Universal Sonar 2 (US2) Compatibility
| APEX Series Model | Compatible US2 Trolling Motors |
| APEX 19 MEGA SI+ CHARTPLOTTER |
Compatible Minn Kota Motors equipped with US2:
|
| APEX 19 MEGA SI+ CHARTPLOTTER CHO | |
| APEX 16 MEGA SI+ CHARTPLOTTER | |
| APEX 16 MEGA SI+ CHARTPLOTTER CHO | |
| APEX 13 MEGA SI+ CHARTPLOTTER | |
| APEX 13 MEGA SI+ CHARTPLOTTER CHO | |
|
APEX Transducer Ports
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
SOLIX Series Universal Sonar 2 (US2) Compatibility
| SOLIX Series Model | Compatible US2 Trolling Motors |
| SOLIX 15 MEGA SI+ G3 |
Compatible Minn Kota Motors equipped with US2:
|
SOLIX 15 MEGA SI+ G3 CHO | |
| SOLIX 15 MEGA SI+ G2 | |
| SOLIX 15 MEGA DI+ G2 CHO | |
| SOLIX 15 MEGA SI+ | |
| SOLIX 15 | |
| SOLIX 12 MEGA SI+ G3 | |
| SOLIX 12 MEGA SI+ G3 CHO | |
| SOLIX 12 MEGA SI+ G2 | |
| SOLIX 12 MEGA DI+ G2 CHO | |
| SOLIX 12 MEGA SI+ | |
| SOLIX 12 | |
| SOLIX 10 MEGA SI+ G3 | |
| SOLIX 10 MEGA SI+ G3 CHO | |
| SOLIX 10 MEGA SI+ G2 | |
| SOLIX 10 MEGA DI+ G2 CHO | |
| SOLIX 10 MEGA SI+ | |
| SOLIX 10 | |
|
SOLIX Transducer Port
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
XPLORE Series Universal Sonar 2 (US2) Compatibility
| XPLORE Series Model | Compatible US2 Trolling Motors |
| XPLORE 12 CMSI+ FISH FINDER |
Compatible Minn Kota Motors equipped with US2:
|
| XPLORE 12 CMSI+ FISH FINDER CHO | |
| XPLORE 10 CMSI+ FISH FINDER | |
| XPLORE 10 CMSI+ FISH FINDER CHO | |
| XPLORE 9 CMSI+ FISH FINDER | |
| XPLORE 9 CMSI+ FISH FINDER CHO | |
|
XPLORE Transducer Port
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
HELIX 15-8 Series Universal Sonar 2 (US2) Compatibility
| HELIX 15 and HELIX 12 Models | Compatible US2 Trolling Motors |
| HELIX 15 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 15 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N | |
| HELIX 12 CHIRP GPS G4N | |
| HELIX 12 CHIRP MEGA SI+ GPS G3N | |
| HELIX 12 CHIRP MEGA DI+ GPS G3N | |
| HELIX 12 CHIRP GPS G3N | |
| HELIX 12 CHIRP MEGA SI GPS G2N | |
| HELIX 12 CHIRP MEGA DI GPS G2N | |
| HELIX 12 CHIRP DI GPS G2N | |
| HELIX 12 CHIRP GPS G2N | |
| HELIX 12 CHIRP SI GPS KVD | |
| HELIX 12 CHIRP SI GPS | |
| HELIX 12 CHIRP DI GPS | |
| HELIX 12 CHIRP GPS | |
| HELIX 10 Models | Compatible US2 Trolling Motors |
| HELIX 10 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 10 CHIRP MEGA DI+ GPS G4N | |
| HELIX 10 CHIRP GPS G4N | |
| HELIX 10 CHIRP MEGA SI+ GPS G3N | |
| HELIX 10 CHIRP MEGA DI+ GPS G3N | |
| HELIX 10 CHIRP GPS G3N | |
| HELIX 10 CHIRP MEGA SI GPS G2N | |
| HELIX 10 CHIRP MEGA DI GPS G2N | |
| HELIX 10 CHIRP DI GPS G2N | |
| HELIX 10 CHIRP GPS G2N | |
| HELIX 10 SI GPS KVD | |
| HELIX 10 SI GPS | |
| HELIX 10 DI GPS | |
| HELIX 10 SONAR GPS | |
| HELIX 9 Models | Compatible US2 Trolling Motors |
| HELIX 9 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 9 CHIRP MEGA DI+ GPS G4N | |
| HELIX 9 CHIRP GPS G4N | |
| HELIX 9 CHIRP MEGA SI+ GPS G3N | |
| HELIX 9 CHIRP MEGA DI+ GPS G3N | |
| HELIX 9 CHIRP GPS G3N | |
| HELIX 9 CHIRP MEGA SI GPS G2N | |
| HELIX 9 CHIRP MEGA DI GPS G2N | |
| HELIX 9 CHIRP DI GPS G2N | |
| HELIX 9 CHIRP GPS G2N | |
| HELIX 9 SI GPS KVD | |
| HELIX 9 SI GPS | |
| HELIX 9 DI GPS | |
| HELIX 9 SONAR GPS | |
| ICE HELIX 9 MSI GPS G4N | |
| HELIX 8 Models | Compatible US2 Trolling Motors |
| HELIX 8 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 8 CHIRP MEGA DI GPS G4N | |
| HELIX 8 CHIRP GPS G4N | |
| HELIX 8 CHIRP MEGA SI+ GPS G3N | |
| HELIX 8 CHIRP MEGA DI GPS G3N | |
| HELIX 8 CHIRP GPS G3N | |
|
HELIX 8-15 Transducer Port Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options | |
HELIX 7 and 5 Series Universal Sonar 2 (US2) Compatibility
HELIX 7 and ICE HELIX 7 Models |
Compatible US2 Trolling Motors |
| HELIX 7 CHIRP MEGA SI GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 7 CHIRP MEGA DI GPS G4N | |
| HELIX 7 CHIRP MEGA DI GPS G4N (CHO) | |
| HELIX 7 CHIRP GPS G4N | |
| HELIX 7 CHIRP MEGA SI GPS G4 | |
| HELIX 7 CHIRP MEGA DI GPS G4 | |
| HELIX 7 CHIRP SI GPS G4 | |
| HELIX 7 CHIRP MEGA SI GPS G3N | |
| HELIX 7 CHIRP MEGA DI GPS G3N | |
| HELIX 7 CHIRP GPS G3N | |
| HELIX 7 CHIRP MEGA SI GPS G3 | |
| HELIX 7 CHIRP MEGA DI GPS G3 | |
| HELIX 7 CHIRP GPS G3 | |
| HELIX 7 CHIRP SI GPS G2N | |
| HELIX 7 CHIRP DI GPS G2N | |
| HELIX 7 CHIRP GPS G2N | |
| HELIX 7 CHIRP SI GPS G2 | |
| HELIX 7 CHIRP DI GPS G2 | |
| HELIX 7 CHIRP DI G2 | |
| HELIX 7 CHIRP GPS G2 | |
| HELIX 7 SONAR G2 | |
| HELIX 7 SI GPS KVD | |
| HELIX 7 SI GPS | |
| HELIX 7 DI GPS | |
| HELIX 7 SONAR GPS | |
| ICE HELIX 7 CHIRP GPS G4 | |
| ICE HELIX 7 CHIRP GPS G3N | |
| ICE HELIX 7 CHIRP GPS G3 | |
| ICE HELIX 7 CHIRP GPS G2N | |
| ICE HELIX 7 CHIRP GPS G2 | |
| ICE HELIX 7 SONAR GPS | |
|
HELIX 7 Transducer Port
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
HELIX 5 and ICE HELIX 5 Models |
Compatible US2 Trolling Motors |
| HELIX 5 CHIRP DI GPS G3 |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 5 CHIRP GPS G3 | |
| HELIX 5 CHIRP SI GPS G2 | |
| HELIX 5 CHIRP DI GPS G2 | |
| HELIX 5 CHIRP GPS G2 | |
| HELIX 5 SONAR G2 | |
| HELIX 5 SI GPS KVD | |
| HELIX 5 SI GPS | |
| HELIX 5 SONAR GPS | |
| HELIX 5 SONAR | |
| ICE HELIX 5 CHIRP GPS G3 | |
| ICE HELIX 5 CHIRP G3 | |
| ICE HELIX 5 CHIRP GPS G2 | |
| ICE HELIX 5 CHIRP G2 | |
| ICE HELIX 5 SONAR GPS | |
|
HELIX 5 and ICE HELIX 5 Transducer Port Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
ONIX Series Universal Sonar 2 (US2) Compatibility
| ONIX 10 and ONIX 8 Models | Compatible US2 Trolling Motors |
| ONIX 10 ci SI NT combo |
Compatible Minn Kota Motors equipped with US2:
|
| ONIX 10 ci NT combo | |
| ONIX 10 ci SI Combo | |
| ONIX 10ci Combo | |
| ONIX 8 ci SI NT combo | |
| ONIX 8 ci NT combo | |
| ONIX 8 ci SI Combo | |
| ONIX 8ci Combo | |
|
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
1100, 900, 800, and 700 Series Universal Sonar 2 (US2) Compatibility
1100, 900, 800, 700 Series Models |
Compatible US2 Trolling Motors |
| 1199ci HD SI Combo |
Compatible Minn Kota Motors equipped with US2:
|
| 1198c SI Combo | |
| 1159ci HD Combo | |
| 1158c Combo | |
| 999ci HD SI Combo KVD | |
| 999ci HD SI Combo | |
| 998c HD SI Combo | |
| 998c SI Combo | |
| 959ci HD Combo | |
| 958c HD Combo | |
| 958c Combo | |
| 899 ci HD SI Combo | |
| 898c HD SI Combo | |
| 898c SI Combo | |
| 859ci HD Combo | |
| 858c HD Combo | |
| 858c Combo | |
| 788ci HD Combo | |
| 778c HD MKR-US2 | |
| 718 | |
|
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
600, 500,300, and PiranhaMAX Series Universal Sonar 2 (US2) Compatibility
| 600,500, 300 and PiranhaMAX Series | Adaptor Cable Needed |
| 688 ci HD Combo |
Compatible Minn Kota Motors equipped with US2:
|
| 678c HD Combo | |
| 678c HD Combo | |
| 597ci HD Combo | |
| 597ci Combo | |
| 596c HD Combo | |
| 587ci HD | |
| 586c HD | |
| 581i Combo | |
| 570 | |
| 561 | |
| 560 | |
| 386ci Combo | |
| 385ci Combo | |
| 365i Combo | |
| 345c | |
| 325 | |
| PiranhaMAX 155 | |
|
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
i-Pilot Link Equipped Trolling Motor Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility
APEX i-Pilot Link Equipped Trolling Motor Compatibility
APEX Series Model |
Compatible Equipped i-Pilot Link Motors |
| APEX 19 MEGA SI+ CHARTPLOTTER |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| APEX 19 MEGA SI+ CHARTPLOTTER CHO | |
| APEX 16 MEGA SI+ CHARTPLOTTER | |
| APEX 16 MEGA SI+ CHARTPLOTTER CHO | |
| APEX 13 MEGA SI+ CHARTPLOTTER | |
| APEX 13 MEGA SI+ CHARTPLOTTER CHO | |
|
APEX Ethernet Port Note: APEX does not require an ethernet adaptor cable to connect to tilling motor ethernet connection. | |
SOLIX i-Pilot Link Equipped Trolling Motor Compatibility
| SOLIX Model | Compatible Equipped i-Pilot Link Motors |
| SOLIX 15 CHIRP MEGA SI+ G3 |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
SOLIX 15 CHIRP MEGA SI+ G2 | |
| SOLIX 15 CHIRP MEGA DI+ G2 | |
| SOLIX 15 CHIRP MEGA SI GPS | |
| SOLIX 15 CHIRP GPS | |
| SOLIX 12 CHIRP MEGA SI+ GPS G3 | |
| SOLIX 12 CHIRP MEGA SI+ GPS G2 | |
| SOLIX 12 CHIRP MEGA DI+ GPS G2 | |
| SOLIX 12 CHIRP MEGA SI GPS | |
| SOLIX 12 CHIRP GPS | |
| SOLIX 10 CHIRP MEGA SI+ GPS G3 | |
| SOLIX 10 CHIRP MEGA SI+ GPS G2 | |
| SOLIX 10 CHIRP MEGA DI+ GPS G2 | |
| SOLIX 10 CHIRP MEGA SI GPS | |
| SOLIX 10 CHIRP GPS | |
|
SOLIX Ethernet Port Note: SOLIX does not require an ethernet adaptor cable to connect to tilling motor ethernet connection. | |
XPLORE i-Pilot Link Equipped Trolling Motor Compatibility
| XPLORE Model | Compatible Equipped i-Pilot Link Motors |
| XPLORE 12 CMSI+ FISH FINDER |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| XPLORE 12 CMSI+ FISH FINDER CHO | |
| XPLORE 10 CMSI+ FISH FINDER | |
| XPLORE 10 CMSI+ FISH FINDER CHO | |
| XPLORE 9 CMSI+ FISH FINDER | |
| XPLORE 9 CMSI+ FISH FINDER CHO | |
|
XPLORE Ethernet Port Note: XPLORE does not require an ethernet adaptor cable to connect to tilling motor ethernet connection. | |
HELIX 15-8 i-Pilot Link Equipped Trolling Motor Compatibility
| HELIX 15 and 12 Models | Compatible Equipped i-Pilot Link Motors |
| HELIX 15 CHIRP MEGA SI+ GPS G4N* |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO)* | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N* | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N* | |
| HELIX 12 CHIRP GPS G4N* | |
| HELIX 12 CHIRP MEGA SI+ GPS G3N* | |
| HELIX 12 CHIRP MEGA DI+ GPS G3N* | |
| HELIX 12 CHIRP GPS G3N* | |
| HELIX 12 CHIRP MEGA SI GPS G2N* | |
| HELIX 12 CHIRP MEGA DI GPS G2N* | |
| HELIX 12 CHIRP DI GPS G2N* | |
| HELIX 12 CHIRP GPS G2N* | |
| HELIX 12 CHIRP SI GPS KVD* | |
| HELIX 12 CHIRP SI GPS* | |
| HELIX 12 CHIRP DI GPS* | |
| HELIX 12 CHIRP GPS* | |
| HELIX 10 Models | Compatible Equipped i-Pilot Link Motors |
| HELIX 10 CHIRP MEGA SI+ GPS G4N* |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| HELIX 10 CHIRP MEGA DI+ GPS G4N* | |
| HELIX 10 CHIRP GPS G4N* | |
| HELIX 10 CHIRP MEGA SI+ GPS G3N* | |
| HELIX 10 CHIRP MEGA DI+ GPS G3N* | |
| HELIX 10 CHIRP GPS G3N* | |
| HELIX 10 CHIRP MEGA SI GPS G2N* | |
| HELIX 10 CHIRP DI GPS G2N* | |
| HELIX 10 CHIRP GPS G2N* | |
| HELIX 10 SI GPS KVD* | |
| HELIX 10 SI GPS* | |
| HELIX 10 DI GPS* | |
| HELIX 10 SONAR GPS* | |
| HELIX 9 Models | Compatible Equipped i-Pilot Link Motors |
| HELIX 9 CHIRP MEGA SI+ GPS G4N* |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| HELIX 9 CHIRP MEGA DI+ GPS G4N* | |
| HELIX 9 CHIRP GPS G4N* | |
| HELIX 9 CHIRP MEGA SI+ GPS G3N* | |
| HELIX 9 CHIRP MEGA DI+ GPS G3N* | |
| HELIX 9 CHIRP GPS G3N* | |
| HELIX 9 CHIRP MEGA SI GPS G2N* | |
| HELIX 9 CHIRP DI GPS G2N* | |
| HELIX 9 CHIRP GPS G2N* | |
| HELIX 9 SI GPS KVD | |
| HELIX 9 SI GPS* | |
| HELIX 9 DI GPS* | |
| HELIX 9 SONAR GPS* | |
| HELIX 8 Models | Compatible Equipped i-Pilot Link Motors |
| HELIX 8 CHIRP MEGA SI+ GPS G4N* |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| HELIX 8 CHIRP MEGA DI+ GPS G4N* | |
| HELIX 8 CHIRP GPS G4N* | |
| HELIX 8 CHIRP MEGA SI+ GPS G3N* | |
| HELIX 8 CHIRP MEGA DI GPS G3N* | |
| HELIX 8 CHIRP GPS G3N* | |
|
HELIX 8-15 Ethernet Port *Ethernet Adapter Cable: AS ES QDE- Ethernet Adapter Cable Click her for purchase options | |
HELIX 7 and 5 i-Pilot Link Equipped Trolling Motor Compatibility
| HELIX 7 Models | Compatible Equipped i-Pilot Link Motors |
| HELIX 7 CHIRP MEGA SI GPS G4N* |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| HELIX 7 CHIRP MEGA DI GPS G4N* | |
| HELIX 7 CHIRP MEGA DI GPS G4N (CHO)* | |
| HELIX 7 CHIRP GPS G4N* | |
| HELIX 7 CHIRP MEGA SI GPS G3N* | |
| HELIX 7 CHIRP MEGA DI GPS G3N* | |
| HELIX 7 CHIRP GPS G3N* | |
| HELIX 7 CHIRP SI GPS G2N* | |
| HELIX 7 CHIRP DI GPS G2N* | |
| HELIX 7 CHIRP GPS G2N* | |
|
HELIX 8-15 Ethernet Port *Ethernet Adapter Cable: AS ES QDE- Ethernet Adapter Cable Click her for purchase options | |
ONIX and ION i-Pilot Link Equipped Trolling Motor Compatibility
| ONIX 10 and ONIX 8 Models | Compatible Equipped i-Pilot Link Motors |
| ONIX 10 ci SI NT combo |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| ONIX 10 ci NT combo | |
| ONIX 10 ci SI Combo | |
| ONIX 10ci Combo | |
| ONIX 8 ci SI NT combo | |
| ONIX 8 ci NT combo | |
| ONIX 8 ci SI Combo | |
| ONIX 8ci Combo | |
| ION Series | Compatible Equipped i-Pilot Link Motors |
| ION 12 |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| ION 10 |
1100, 900, 800, and 700 i-Pilot Link Equipped Trolling Motor Compatibility
| 1100 Series Models | Compatible Equipped i-Pilot Link Motors |
| 1158c Combo |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| 1158c DI Combo | |
| 1158cx XD Combo | |
| 1159ci HD Combo | |
| 1159ci HD DI Combo* | |
| 1159ci HD XD Combo* | |
| 1198c SI Combo | |
| 1158c Combo | |
| 900 Series Models | Compatible Equipped i-Pilot Link Motors |
| 958c Combo |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| 958c HD Combo | |
| 958c DI Combo | |
| 958c HD DI Combo | |
| 958cx HD XD Combo | |
| 959ci HD Combo* | |
| 959ci HD DI Combo* | |
| 959ci HD XD Combo* | |
| 998c HD SI Combo | |
| 998c SI Combo | |
| 999ci HD SI Combo* | |
| 800 and 700 Series Models | Compatible Equipped i-Pilot Link Motors |
| 858c Combo |
Compatible Minn Kota Motors Equipped with i-Pilot Link:
|
| 858c HD Combo | |
| 858c DI Combo | |
| 858c HD DI Combo | |
| 858cx HD XD Combo | |
| 859ci HD Combo* | |
| 859ci HD DI Combo* | |
| 859ci HD XD Combo* | |
| 898c SI Combo | |
| 898c HD SI Combo | |
| 899ci HD SI Combo* | |
| 788ci HD XD Combo* | |
| 788ci HD DI Combo* | |
| 788ci HD Combo* | |
| 798ci HD SI Combo* | |
|
*Ethernet Adapter Cable: AS ES QDE- Ethernet Adapter Cable Click her for purchase options
| |
Humminbird & Built-In Universal Sonar 2 (US2) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility
APEX Series Universal Sonar 2 (US2) Compatibility
| APEX Series Model | Compatible US2 Trolling Motors |
| APEX 19 MEGA SI+ CHARTPLOTTER |
Compatible Minn Kota Motors equipped with US2:
|
| APEX 19 MEGA SI+ CHARTPLOTTER CHO | |
| APEX 16 MEGA SI+ CHARTPLOTTER | |
| APEX 16 MEGA SI+ CHARTPLOTTER CHO | |
| APEX 13 MEGA SI+ CHARTPLOTTER | |
| APEX 13 MEGA SI+ CHARTPLOTTER CHO | |
|
APEX Transducer Ports
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
SOLIX Series Universal Sonar 2 (US2) Compatibility
| SOLIX Series Model | Compatible US2 Trolling Motors |
| SOLIX 15 MEGA SI+ G3 |
Compatible Minn Kota Motors equipped with US2:
|
SOLIX 15 MEGA SI+ G3 CHO | |
| SOLIX 15 MEGA SI+ G2 | |
| SOLIX 15 MEGA DI+ G2 CHO | |
| SOLIX 15 MEGA SI+ | |
| SOLIX 15 | |
| SOLIX 12 MEGA SI+ G3 | |
| SOLIX 12 MEGA SI+ G3 CHO | |
| SOLIX 12 MEGA SI+ G2 | |
| SOLIX 12 MEGA DI+ G2 CHO | |
| SOLIX 12 MEGA SI+ | |
| SOLIX 12 | |
| SOLIX 10 MEGA SI+ G3 | |
| SOLIX 10 MEGA SI+ G3 CHO | |
| SOLIX 10 MEGA SI+ G2 | |
| SOLIX 10 MEGA DI+ G2 CHO | |
| SOLIX 10 MEGA SI+ | |
| SOLIX 10 | |
|
SOLIX Transducer Port
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
XPLORE Series Universal Sonar 2 (US2) Compatibility
| XPLORE Series Model | Compatible US2 Trolling Motors |
| XPLORE 12 CMSI+ FISH FINDER |
Compatible Minn Kota Motors equipped with US2:
|
| XPLORE 12 CMSI+ FISH FINDER CHO | |
| XPLORE 10 CMSI+ FISH FINDER | |
| XPLORE 10 CMSI+ FISH FINDER CHO | |
| XPLORE 9 CMSI+ FISH FINDER | |
| XPLORE 9 CMSI+ FISH FINDER CHO | |
|
XPLORE Transducer Port
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
HELIX 15-8 Series Universal Sonar 2 (US2) Compatibility
| HELIX 15 and HELIX 12 Models | Compatible US2 Trolling Motors |
| HELIX 15 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 15 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N | |
| HELIX 12 CHIRP GPS G4N | |
| HELIX 12 CHIRP MEGA SI+ GPS G3N | |
| HELIX 12 CHIRP MEGA DI+ GPS G3N | |
| HELIX 12 CHIRP GPS G3N | |
| HELIX 12 CHIRP MEGA SI GPS G2N | |
| HELIX 12 CHIRP MEGA DI GPS G2N | |
| HELIX 12 CHIRP DI GPS G2N | |
| HELIX 12 CHIRP GPS G2N | |
| HELIX 12 CHIRP SI GPS KVD | |
| HELIX 12 CHIRP SI GPS | |
| HELIX 12 CHIRP DI GPS | |
| HELIX 12 CHIRP GPS | |
| HELIX 10 Models | Compatible US2 Trolling Motors |
| HELIX 10 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 10 CHIRP MEGA DI+ GPS G4N | |
| HELIX 10 CHIRP GPS G4N | |
| HELIX 10 CHIRP MEGA SI+ GPS G3N | |
| HELIX 10 CHIRP MEGA DI+ GPS G3N | |
| HELIX 10 CHIRP GPS G3N | |
| HELIX 10 CHIRP MEGA SI GPS G2N | |
| HELIX 10 CHIRP MEGA DI GPS G2N | |
| HELIX 10 CHIRP DI GPS G2N | |
| HELIX 10 CHIRP GPS G2N | |
| HELIX 10 SI GPS KVD | |
| HELIX 10 SI GPS | |
| HELIX 10 DI GPS | |
| HELIX 10 SONAR GPS | |
| HELIX 9 Models | Compatible US2 Trolling Motors |
| HELIX 9 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 9 CHIRP MEGA DI+ GPS G4N | |
| HELIX 9 CHIRP GPS G4N | |
| HELIX 9 CHIRP MEGA SI+ GPS G3N | |
| HELIX 9 CHIRP MEGA DI+ GPS G3N | |
| HELIX 9 CHIRP GPS G3N | |
| HELIX 9 CHIRP MEGA SI GPS G2N | |
| HELIX 9 CHIRP MEGA DI GPS G2N | |
| HELIX 9 CHIRP DI GPS G2N | |
| HELIX 9 CHIRP GPS G2N | |
| HELIX 9 SI GPS KVD | |
| HELIX 9 SI GPS | |
| HELIX 9 DI GPS | |
| HELIX 9 SONAR GPS | |
| ICE HELIX 9 MSI GPS G4N | |
| HELIX 8 Models | Compatible US2 Trolling Motors |
| HELIX 8 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 8 CHIRP MEGA DI GPS G4N | |
| HELIX 8 CHIRP GPS G4N | |
| HELIX 8 CHIRP MEGA SI+ GPS G3N | |
| HELIX 8 CHIRP MEGA DI GPS G3N | |
| HELIX 8 CHIRP GPS G3N | |
|
HELIX 8-15 Transducer Port Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options | |
HELIX 7 and 5 Series Universal Sonar 2 (US2) Compatibility
HELIX 7 and ICE HELIX 7 Models |
Compatible US2 Trolling Motors |
| HELIX 7 CHIRP MEGA SI GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 7 CHIRP MEGA DI GPS G4N | |
| HELIX 7 CHIRP MEGA DI GPS G4N (CHO) | |
| HELIX 7 CHIRP GPS G4N | |
| HELIX 7 CHIRP MEGA SI GPS G4 | |
| HELIX 7 CHIRP MEGA DI GPS G4 | |
| HELIX 7 CHIRP SI GPS G4 | |
| HELIX 7 CHIRP MEGA SI GPS G3N | |
| HELIX 7 CHIRP MEGA DI GPS G3N | |
| HELIX 7 CHIRP GPS G3N | |
| HELIX 7 CHIRP MEGA SI GPS G3 | |
| HELIX 7 CHIRP MEGA DI GPS G3 | |
| HELIX 7 CHIRP GPS G3 | |
| HELIX 7 CHIRP SI GPS G2N | |
| HELIX 7 CHIRP DI GPS G2N | |
| HELIX 7 CHIRP GPS G2N | |
| HELIX 7 CHIRP SI GPS G2 | |
| HELIX 7 CHIRP DI GPS G2 | |
| HELIX 7 CHIRP DI G2 | |
| HELIX 7 CHIRP GPS G2 | |
| HELIX 7 SONAR G2 | |
| HELIX 7 SI GPS KVD | |
| HELIX 7 SI GPS | |
| HELIX 7 DI GPS | |
| HELIX 7 SONAR GPS | |
| ICE HELIX 7 CHIRP GPS G4 | |
| ICE HELIX 7 CHIRP GPS G3N | |
| ICE HELIX 7 CHIRP GPS G3 | |
| ICE HELIX 7 CHIRP GPS G2N | |
| ICE HELIX 7 CHIRP GPS G2 | |
| ICE HELIX 7 SONAR GPS | |
|
HELIX 7 Transducer Port
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
HELIX 5 and ICE HELIX 5 Models |
Compatible US2 Trolling Motors |
| HELIX 5 CHIRP DI GPS G3 |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 5 CHIRP GPS G3 | |
| HELIX 5 CHIRP SI GPS G2 | |
| HELIX 5 CHIRP DI GPS G2 | |
| HELIX 5 CHIRP GPS G2 | |
| HELIX 5 SONAR G2 | |
| HELIX 5 SI GPS KVD | |
| HELIX 5 SI GPS | |
| HELIX 5 SONAR GPS | |
| HELIX 5 SONAR | |
| ICE HELIX 5 CHIRP GPS G3 | |
| ICE HELIX 5 CHIRP G3 | |
| ICE HELIX 5 CHIRP GPS G2 | |
| ICE HELIX 5 CHIRP G2 | |
| ICE HELIX 5 SONAR GPS | |
|
HELIX 5 and ICE HELIX 5 Transducer Port Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
ONIX Series Universal Sonar 2 (US2) Compatibility
| ONIX 10 and ONIX 8 Models | Compatible US2 Trolling Motors |
| ONIX 10 ci SI NT combo |
Compatible Minn Kota Motors equipped with US2:
|
| ONIX 10 ci NT combo | |
| ONIX 10 ci SI Combo | |
| ONIX 10ci Combo | |
| ONIX 8 ci SI NT combo | |
| ONIX 8 ci NT combo | |
| ONIX 8 ci SI Combo | |
| ONIX 8ci Combo | |
|
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
1100, 900, 800, and 700 Series Universal Sonar 2 (US2) Compatibility
1100, 900, 800, 700 Series Models |
Compatible US2 Trolling Motors |
| 1199ci HD SI Combo |
Compatible Minn Kota Motors equipped with US2:
|
| 1198c SI Combo | |
| 1159ci HD Combo | |
| 1158c Combo | |
| 999ci HD SI Combo KVD | |
| 999ci HD SI Combo | |
| 998c HD SI Combo | |
| 998c SI Combo | |
| 959ci HD Combo | |
| 958c HD Combo | |
| 958c Combo | |
| 899 ci HD SI Combo | |
| 898c HD SI Combo | |
| 898c SI Combo | |
| 859ci HD Combo | |
| 858c HD Combo | |
| 858c Combo | |
| 788ci HD Combo | |
| 778c HD MKR-US2 | |
| 718 | |
|
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
600, 500,300, and PiranhaMAX Series Universal Sonar 2 (US2) Compatibility
| 600,500, 300 and PiranhaMAX Series | Adaptor Cable Needed |
| 688 ci HD Combo |
Compatible Minn Kota Motors equipped with US2:
|
| 678c HD Combo | |
| 678c HD Combo | |
| 597ci HD Combo | |
| 597ci Combo | |
| 596c HD Combo | |
| 587ci HD | |
| 586c HD | |
| 581i Combo | |
| 570 | |
| 561 | |
| 560 | |
| 386ci Combo | |
| 385ci Combo | |
| 365i Combo | |
| 345c | |
| 325 | |
| PiranhaMAX 155 | |
|
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
XPLORE Series Universal Sonar 2 (US2) Compatibility
| XPLORE Series Model | Compatible US2 Trolling Motors |
| XPLORE 12 CMSI+ FISH FINDER |
Compatible Minn Kota Motors equipped with US2:
|
| XPLORE 12 CMSI+ FISH FINDER CHO | |
| XPLORE 10 CMSI+ FISH FINDER | |
| XPLORE 10 CMSI+ FISH FINDER CHO | |
| XPLORE 9 CMSI+ FISH FINDER | |
| XPLORE 9 CMSI+ FISH FINDER CHO | |
|
XPLORE Transducer Port
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
HELIX 15-8 Series Universal Sonar 2 (US2) Compatibility
| HELIX 15 and HELIX 12 Models | Compatible US2 Trolling Motors |
| HELIX 15 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 15 CHIRP MEGA SI+ GPS G4N (CHO) | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N | |
| HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO) | |
| HELIX 12 CHIRP MEGA SI+ GPS G4N | |
| HELIX 12 CHIRP MEGA DI+ GPS G4N | |
| HELIX 12 CHIRP GPS G4N | |
| HELIX 12 CHIRP MEGA SI+ GPS G3N | |
| HELIX 12 CHIRP MEGA DI+ GPS G3N | |
| HELIX 12 CHIRP GPS G3N | |
| HELIX 12 CHIRP MEGA SI GPS G2N | |
| HELIX 12 CHIRP MEGA DI GPS G2N | |
| HELIX 12 CHIRP DI GPS G2N | |
| HELIX 12 CHIRP GPS G2N | |
| HELIX 12 CHIRP SI GPS KVD | |
| HELIX 12 CHIRP SI GPS | |
| HELIX 12 CHIRP DI GPS | |
| HELIX 12 CHIRP GPS | |
| HELIX 10 Models | Compatible US2 Trolling Motors |
| HELIX 10 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 10 CHIRP MEGA DI+ GPS G4N | |
| HELIX 10 CHIRP GPS G4N | |
| HELIX 10 CHIRP MEGA SI+ GPS G3N | |
| HELIX 10 CHIRP MEGA DI+ GPS G3N | |
| HELIX 10 CHIRP GPS G3N | |
| HELIX 10 CHIRP MEGA SI GPS G2N | |
| HELIX 10 CHIRP MEGA DI GPS G2N | |
| HELIX 10 CHIRP DI GPS G2N | |
| HELIX 10 CHIRP GPS G2N | |
| HELIX 10 SI GPS KVD | |
| HELIX 10 SI GPS | |
| HELIX 10 DI GPS | |
| HELIX 10 SONAR GPS | |
| HELIX 9 Models | Compatible US2 Trolling Motors |
| HELIX 9 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 9 CHIRP MEGA DI+ GPS G4N | |
| HELIX 9 CHIRP GPS G4N | |
| HELIX 9 CHIRP MEGA SI+ GPS G3N | |
| HELIX 9 CHIRP MEGA DI+ GPS G3N | |
| HELIX 9 CHIRP GPS G3N | |
| HELIX 9 CHIRP MEGA SI GPS G2N | |
| HELIX 9 CHIRP MEGA DI GPS G2N | |
| HELIX 9 CHIRP DI GPS G2N | |
| HELIX 9 CHIRP GPS G2N | |
| HELIX 9 SI GPS KVD | |
| HELIX 9 SI GPS | |
| HELIX 9 DI GPS | |
| HELIX 9 SONAR GPS | |
| ICE HELIX 9 MSI GPS G4N | |
| HELIX 8 Models | Compatible US2 Trolling Motors |
| HELIX 8 CHIRP MEGA SI+ GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 8 CHIRP MEGA DI GPS G4N | |
| HELIX 8 CHIRP GPS G4N | |
| HELIX 8 CHIRP MEGA SI+ GPS G3N | |
| HELIX 8 CHIRP MEGA DI GPS G3N | |
| HELIX 8 CHIRP GPS G3N | |
|
HELIX 8-15 Transducer Port Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options | |
HELIX 7 and 5 Series Universal Sonar 2 (US2) Compatibility
HELIX 7 and ICE HELIX 7 Models |
Compatible US2 Trolling Motors |
| HELIX 7 CHIRP MEGA SI GPS G4N |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 7 CHIRP MEGA DI GPS G4N | |
| HELIX 7 CHIRP MEGA DI GPS G4N (CHO) | |
| HELIX 7 CHIRP GPS G4N | |
| HELIX 7 CHIRP MEGA SI GPS G4 | |
| HELIX 7 CHIRP MEGA DI GPS G4 | |
| HELIX 7 CHIRP SI GPS G4 | |
| HELIX 7 CHIRP MEGA SI GPS G3N | |
| HELIX 7 CHIRP MEGA DI GPS G3N | |
| HELIX 7 CHIRP GPS G3N | |
| HELIX 7 CHIRP MEGA SI GPS G3 | |
| HELIX 7 CHIRP MEGA DI GPS G3 | |
| HELIX 7 CHIRP GPS G3 | |
| HELIX 7 CHIRP SI GPS G2N | |
| HELIX 7 CHIRP DI GPS G2N | |
| HELIX 7 CHIRP GPS G2N | |
| HELIX 7 CHIRP SI GPS G2 | |
| HELIX 7 CHIRP DI GPS G2 | |
| HELIX 7 CHIRP DI G2 | |
| HELIX 7 CHIRP GPS G2 | |
| HELIX 7 SONAR G2 | |
| HELIX 7 SI GPS KVD | |
| HELIX 7 SI GPS | |
| HELIX 7 DI GPS | |
| HELIX 7 SONAR GPS | |
| ICE HELIX 7 CHIRP GPS G4 | |
| ICE HELIX 7 CHIRP GPS G3N | |
| ICE HELIX 7 CHIRP GPS G3 | |
| ICE HELIX 7 CHIRP GPS G2N | |
| ICE HELIX 7 CHIRP GPS G2 | |
| ICE HELIX 7 SONAR GPS | |
|
HELIX 7 Transducer Port
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
HELIX 5 and ICE HELIX 5 Models |
Compatible US2 Trolling Motors |
| HELIX 5 CHIRP DI GPS G3 |
Compatible Minn Kota Motors equipped with US2:
|
| HELIX 5 CHIRP GPS G3 | |
| HELIX 5 CHIRP SI GPS G2 | |
| HELIX 5 CHIRP DI GPS G2 | |
| HELIX 5 CHIRP GPS G2 | |
| HELIX 5 SONAR G2 | |
| HELIX 5 SI GPS KVD | |
| HELIX 5 SI GPS | |
| HELIX 5 SONAR GPS | |
| HELIX 5 SONAR | |
| ICE HELIX 5 CHIRP GPS G3 | |
| ICE HELIX 5 CHIRP G3 | |
| ICE HELIX 5 CHIRP GPS G2 | |
| ICE HELIX 5 CHIRP G2 | |
| ICE HELIX 5 SONAR GPS | |
|
HELIX 5 and ICE HELIX 5 Transducer Port Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
ONIX Series Universal Sonar 2 (US2) Compatibility
| ONIX 10 and ONIX 8 Models | Compatible US2 Trolling Motors |
| ONIX 10 ci SI NT combo |
Compatible Minn Kota Motors equipped with US2:
|
| ONIX 10 ci NT combo | |
| ONIX 10 ci SI Combo | |
| ONIX 10ci Combo | |
| ONIX 8 ci SI NT combo | |
| ONIX 8 ci NT combo | |
| ONIX 8 ci SI Combo | |
| ONIX 8ci Combo | |
|
Universal Sonar 2 MKR-US2 13 Adapter Cable: Click here for purchase options
| |
1100, 900, 800, and 700 Series Universal Sonar 2 (US2) Compatibility
1100, 900, 800, 700 Series Models |
Compatible US2 Trolling Motors |
| 1199ci HD SI Combo |
Compatible Minn Kota Motors equipped with US2:
|
| 1198c SI Combo | |
| 1159ci HD Combo | |
| 1158c Combo | |
| 999ci HD SI Combo KVD | |
| 999ci HD SI Combo | |
| 998c HD SI Combo | |
| 998c SI Combo | |
| 959ci HD Combo | |
| 958c HD Combo | |
| 958c Combo | |
| 899 ci HD SI Combo | |
| 898c HD SI Combo | |
| 898c SI Combo | |
| 859ci HD Combo | |
| 858c HD Combo | |
| 858c Combo | |
| 788ci HD Combo | |
| 778c HD MKR-US2 | |
| 718 | |
|
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
600, 500,300, and PiranhaMAX Series Universal Sonar 2 (US2) Compatibility
| 600,500, 300 and PiranhaMAX Series | Adaptor Cable Needed |
| 688 ci HD Combo |
Compatible Minn Kota Motors equipped with US2:
|
| 678c HD Combo | |
| 678c HD Combo | |
| 597ci HD Combo | |
| 597ci Combo | |
| 596c HD Combo | |
| 587ci HD | |
| 586c HD | |
| 581i Combo | |
| 570 | |
| 561 | |
| 560 | |
| 386ci Combo | |
| 385ci Combo | |
| 365i Combo | |
| 345c | |
| 325 | |
| PiranhaMAX 155 | |
|
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options
| |
Garmin Unit Dual Spectrum CHIRP (DSC) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
| Garmin Fish Finder Model | Required Adapter Cable |
| Select Echo Models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Select EchoMAP Models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Select EchoMAP CHIRP Striker Models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Select Striker Plus Models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Select Striker Vivid models with 4-pin configurations | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Connects select Garmin 4-Pin transducer port models | MKR-DSC-12 – Garmin 4-Pin Adapter Cable |
| Garmin Fish Finder Model | Required Adapter Cable |
| Select EchoMAP Models with 8-pin configurations | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Select EchoMAP CHIRP Models with 8-pin configurations | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Select EchoMAP Ultra Models with 8-pin configurations | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Select GPSMAP models with 8-pin configurations | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Connects select Garmin 8-Pin transducer port models | MKR-DSC-14 – Garmin 8-Pin Adapter Cable |
| Note: Select Garmin head units also require Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID - Garmin part number 010-12122-10, sold separately | |
Lowrance Unit Dual Spectrum CHIRP (DSC) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
| Lowrance Fish Finder Model | Required Adapter Cable |
| Select HDS Models with 7-pin Configurations | MKR-DSC-10 – Lowrance 7-Pin Adapter Cable |
| Select Hook models with 7-pin configurations | MKR-DSC-10 – Lowrance 7-Pin Adapter Cable |
| Select Lowrance 7-Pin Transducer Port Model | MKR-DSC-10 – Lowrance 7-Pin Adapter Cable |
| Lowrance Fish Finder Model | Required Adapter Cable |
| Select Hook 2 Models with 8-pin configurations | MKR-DSC-15 – Lowrance 8-Pin Adapter Cable |
| Select Hook Reveal Models with 8-pin configurations | MKR-DSC-15 – Lowrance 8-Pin Adapter Cable |
| Connects select Lowrance 8-Pin Triple Shot transducer port models | MKR-DSC-15 – Lowrance 8-Pin Adapter Cable |
| Lowrance Fish Finder Model | Required Adapter Cable |
| Select HDS Live Models with 9-pin configurations | MKR-DSC-16 – Lowrance 9-Pin Adapter Cable |
| Select Elite FS Models with 9-pin configurations | MKR-DSC-16 – Lowrance 9-Pin Adapter Cable |
| Select Elite Ti models with 9-pin configurations | MKR-DSC-16 – Lowrance 9-Pin Adapter Cable |
| Connects select Lowrance 9-Pin Total Scan transducer port models | MKR-DSC-16 – Lowrance 9-Pin Adapter Cable |
Garmin Universal Sonar 2 (US2) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop down arrow next to the Garmin Series or Unit you are looking for compatibility.
Garmin Striker Series Compatibility with Universal Sonar 2 (US2)
| Garmin Striker Series Model | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
Striker 4 |
Compatible Minn Kota Motors equipped with US2:
|
Striker 4cv | |
| Striker 5cv | |
| Striker 7cv | |
| Striker PLUS 4 | |
Striker PLUS 4cv | |
Striker PLUS 5cv | |
| Striker 7cv | |
Striker PLUS 7sv | |
Striker PLUS 9sv | |
Striker VIVID 4cv | |
Striker VIVID 5cv | |
Striker VIVID 7cv | |
| Striker VIVID 7sv | |
| Striker VIVID 9sv | |
|
Universal Sonar 2 Adapter Cable: MKR-US2-12 Click here for purchase options  | |
Garmin ECHOMAP Series Compatibility with Universal Sonar 2 (US2)
| Garmin echoMap Series Model | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
| ECHOMAP 94sv* |
Compatible Minn Kota Motors equipped with US2:
|
| ECHOMAP 93sv* | |
| ECHOMAP 74sv* | |
| ECHOMAP 73sv* | |
| ECHOMAP 70s | |
| ECHOMAP 70dv | |
| ECHOMAP 50s | |
| ECHOMAP 50dv | |
| ECHOMAP CHIRP 94sv* | |
| ECHOMAP CHIRP 93sv* | |
| ECHOMAP CHIRP 74sv* | |
| ECHOMAP CHIRP 73sv* | |
| ECHOMAP Plus 73cv | |
| ECHOMAP Plus 74cv | |
| ECHOMAP Plus 73sv* | |
| ECHOMAP Plus 74sv* | |
| ECHOMAP Plus 93sv* | |
| ECHOMAP Plus 94sv* | |
| ECHOMAP UHD 73cv | |
| ECHOMAP UHD 74cv | |
| ECHOMAP UHD 73sv* | |
| ECHOMAP UHD 74sv* | |
| ECHOMAP UHD 93sv* | |
| ECHOMAP UHD 94sv* | |
| ECHOMAP Ultra 102/106sv* | |
| ECHOMAP Ultra 122/126sv* | |
|
Universal SONAR 2 MKR-US2-14 Adapter Cable: MKR-US2-14 Click here for purchase options Note:*Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number 010-12122-10, sold separately
| |
| Garmin echoMap Series Model | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
| ECHOMAP 74dv |
Compatible Minn Kota Motors equipped with US2:
|
| ECHOMAP 73dv | |
| ECHOMAP 54dv | |
| ECHOMAP 53dv | |
| ECHOMAP 44dv | |
| ECHOMAP 43dv | |
| ECHOMAP CHIRP 74cv | |
| ECHOMAPP CHIRP 73dv | |
| ECHOMAP CHIRP 54cv | |
| ECHOMAP CHIRP 53cv | |
| ECHOMAP CHIRP 44cv | |
| ECHOMAP CHIRP 43cv | |
| ECHOMAP CHIRP 73cv | |
| ECHOMAP Plus 43cv | |
| ECHOMAP Plus 44cv | |
| ECHOMAP Plus 63cv | |
| ECHOMAP Plus 64cv | |
| ECHOMAP CHIRP 53cv | |
| ECHOMAP CHIRP 44cv | |
| ECHOMAP CHIRP 43cv | |
| ECHOMAP CHIRP 73cv | |
| ECHOMAP Plus 43cv | |
| ECHOMAP Plus 44cv | |
| ECHOMAP Plus 63cv | |
| ECHOMAP Plus 64cv | |
| ECHOMAP UHD 43cv | |
| ECHOMAP UHD 44cv | |
| ECHOMAP UHD 63cv | |
| ECHOMAP UHD 64cv | |
|
Universal SONAR 2 MKR-US2-12 Adapter Cable: MKR-US2-12 Click here for purchase options Note:*Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number 010-12122-10, sold separately | |
Garmin GPSMAP Series
| Garmin GPSMAP Series Model | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
GPSmap 742/722xs Plus |
Compatible Minn Kota Motors equipped with US2:
|
GPSmap 942/922xs Plus | |
GPSmap 1242/1222xsv Plus * | |
GPSmap 743/723xsv * | |
GPSmap 943/923xsv * | |
GPSmap 1243/1223xsv * | |
| GPSmap 8410/8610xsv * | |
GPSmap 8412/8612xsv * | |
GPSmap 8416/8616xsv * | |
GPSmap 1242xsv* | |
GPSmap 1222xsv* | |
GPSmap 1042xsv* | |
GPSmap 1022xsv* | |
| GPSmap 1040xs | |
GPSmap 1020xs | |
GPSmap 942xs | |
GPSmap 922xs | |
GPSmap 840xs | |
GPSmap 820xs | |
GPSmap 7616xsv | |
GPSmap 7612xsv | |
GPSmap 7619xsv | |
GPSmap 7610xsv | |
GPSmap 7608xsv | |
| GPSmap 7607xsv | |
GPSmap 742xs | |
GPSmap 722xs | |
GPSmap 741xs | |
GPSmap 721xs | |
GPSmap 527xs | |
| GPSmap547xs | |
|
Universal SONAR 2 MKR-US2-14 Adapter Cable: MKR-US2-14 Click here for purchase options NOTE: *Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number 010-12122-10, sold separately.
| |
| Garmin GPSMAP Series Model Continued: | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
GPSMAP 536s |
Compatible Minn Kota Motors equipped with US2:
|
GPSMAP 535s | |
GPSMAP 531s | |
GPSMAP 530s | |
GPSMAP 431s | |
GPSMAP 430s | |
GPSMAP 198C | |
GPSMAP 188 | |
GPSMAP 178C | |
GPSMAP 168 | |
|
Universal SONAR 2 MKR-US2-1 Adapter Cable: MKR-US2-1 Click here for purchase options NOTE: *Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number 010-12122-10, sold separately.
| |
Garmin echo Series Universal Sonar 2 (US2) Compatibility
| Garmin echo Series Model | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
| ECHO 551dv |
Compatible Minn Kota Motors equipped with US2:
|
| ECHO 551c | |
| ECHO 550 | |
| ECHO 501c | |
| ECHO 500c | |
| ECHO 301dv | |
| ECHO 300c | |
| ECHO 201dv | |
| ECHO 201 | |
| ECHO 151dv | |
| ECHO 151 | |
| ECHO 101 | |
| ECHO 100 | |
|
Universal SONAR 2 MKR-US2-12 Adapter Cable: MKR-US2-12 Click here for purchase options NOTE: *Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number: 010-12122-10 | |
Garmin Fish Finder Series Universal Sonar 2 (US2) Compatibility
|
Garmin Fish Finder Series Model |
Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
| Fishfinder 80* |
Compatible Minn Kota Motors equipped with US2:
|
| Fishfinder 90* | |
| Fishfinder 100* | |
| Fishfinder 120* | |
| Fishfinder 140* | |
| Fishfinder 160 | |
| Fishfinder 160C | |
| Fishfinder 240 | |
| Fishfinder 250 | |
| Fishfinder 250C | |
| Fishfinder 300C | |
| Fishfinder 320C | |
| Fishfinder 340C | |
| Fishfinder 400C | |
|
Universal SONAR 2 MKR-US2-1 Adapter Cable: MKR-US2-1 Click here for purchase options NOTE: *Also requires Garmin power/data cable, part number 010-10145-00, sold separately
| |
Lowrance Universal Sonar 2 (US2) Compatibility
NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:
Click the drop down arrow next to the Lowrance Series or Unit you are looking for compatibility.
LOWRANCE HOOK SERIES
Hook Series |
Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
Hook 3x (Adapter Cable Obsolete)* |
Compatible Minn Kota Motors equipped with US2:
|
|
Hook 4
| |
|
Hook 5
| |
|
Hook 7
| |
|
Hook 9
| |
|
Note: * MKR-US2-9 (Obsolete) Item #1852069 Unfortunately this cable is obsolete you can use the item number to search through other sources. | |
|
Universal Sonar 2 (US2) Adapter Cable MKR-US-10: MKR-US2-10 Click for purchase options
| |
LOWRANCE HOOK 2 SERIES
| Hook 2 Series | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
Hook 2 4X* |
Compatible Minn Kota Motors equipped with US2:
|
Hook 2 5X*** | |
Hook 2 5*** | |
Hook 2 7X*** | |
Hook 2 7*** | |
Hook 2 9*** | |
Hook 2 12*** | |
|
*Also requires Lowrance adapter cable part number 000-14070-001
***Can also use a MKR-US2-10 along with a Lowrance adapter cable part number 000-14068-001 Needed
| |
|
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options Note: *Also requires Lowrance adapter cable part number 000-14070-001
Universal Sonar 2 (US2) MKR- US2-15: Click here for purchase options Note: ***Can also use a MKR-US2-10 along with a Lowrance adapter cable part number 000-14068-001 Needed
| |
LOWRANCE REVEAL SERIES
| Lowrance Reveal Model | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
| Hook Reveal 5X*** |
Compatible Minn Kota Motors equipped with US2:
|
| Hook Reveal 5*** | |
| Hook Reveal 7X*** | |
| Hook Reveal 7*** | |
| Hook Reveal 9*** | |
|
Universal Sonar 2 (US2) MKR- US2-15: Click here for purchase options Note: ***Can also use a MKR-US2-10 along with a Lowrance adapter cable part number 000-14068-001
| |
LOWRANCE HDS SERIES
Lowrance HDS Model |
Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
HDS Carbon 7 |
Compatible Minn Kota Motors equipped with US2:
|
HDS Carbon 9 | |
HDS Carbon 12 | |
HDS Carbon 16 | |
HDS-12 Gen 3 | |
HDS-12 Gen 2 Touch | |
HDS-12 Gen 2 | |
HDS-12 | |
HDS-10 | |
HDS-9 Gen 3 | |
HDS-9 Gen 2 Touch | |
HDS-9 Gen 2 | |
HDS-9 | |
HDS-8 | |
HDS-7 Gen 3 | |
HDS-7 Gen 2 Touch | |
HDS-7 Gen 2 | |
HDS-5X | |
HDS-5 | |
|
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options Note: *Also requires Lowrance adapter cable part number 000-14070-001
| |
| HDS Live Series Continued | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
| HDS-16 Live* |
Compatible Minn Kota Motors equipped with US2:
|
HDS-12 Live* | |
HDS-9 Live* | |
HDS-7 Live* | |
|
Universal Sonar 2 (US2) MKR- US2-16: Click here for Purchase Options Note: *Can also use an MKR-US2-10 along with a Lowrance adapter cable part number 000-13313-001 | |
LOWRANCE ELITE SERIES
| Lowrance Elite Series | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
Elite FS 7* |
Compatible Minn Kota Motors equipped with US2:
|
Elite FS 9* | |
Elite-7 Ti²* | |
Elite-9 Ti²* | |
Elite-12 Ti²* | |
Elite-5 Ti* | |
Elite-7 Ti* | |
Elite-9 Ti* | |
Elite-12 Ti* | |
|
Universal Sonar 2 (US2) MKR- US2-16: Click here for Purchase Options Note: *Can also use an MKR-US2-10 along with a Lowrance adapter cable part number 000-13313-001
| |
| Elite Series Continued | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
Elite-5X MKR-US2-9 (Obsolete) |
Compatible Minn Kota Motors equipped with US2:
|
Elite-5 MKR-US2-9 (Obsolete) | |
Elite-4X MKR-US2-9 (Obsolete) | |
Elite-4 MKR-US2-9 (Obsolete) | |
| |
LOWRANCE MARK SERIES
|
Model and US2 Cables Needed |
| Mark-5X PRO MKR-US2-9 (Obsolete) |
| Mark-5X MKR-US2-9 (Obsolete) |
| Mark-4 MKR-US2-9 (Obsolete) |
|
MKR-US2-9 (Obsolete) Item #1852069 Unfortunately this cable is obsolete you can use the item number to search through other sources. |
LOWRANCE LCX SERIES
| LCX Model | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
| LCX-113C |
Compatible Minn Kota Motors equipped with US2:
|
| LCX-112C | |
| LCX-111C | |
| LCX-110C | |
| LCX-38C | |
| LCX-37C | |
| LCX-28C | |
| LCX-27C | |
| LCX-26C | |
| LCX-25C | |
| LCX-17M | |
| LCX-20C | |
|
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options
| |
LOWRANCE LMS SERIES
| LMS Model | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
| LMS-527C |
Compatible Minn Kota Motors equipped with US2:
|
| LMS-525C | |
| LMS-522C | |
| LMS-520C | |
| LMS-480 DF | |
| LMS-489 | |
| LMS-339C | |
| LMS-337 | |
| LMS-335C DF | |
| LMS-334C | |
| LMS-332C | |
| LMS-330C | |
|
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options
| |
LOWRANCE M SERIES
M Model |
Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
M-68i MKR-US2-9 (Obsolete) |
Compatible Minn Kota Motors equipped with US2:
|
M-68C MKR-US2-9 (Obsolete) | |
M-56i MKR-US2-9 (Obsolete) | |
M-56 MKR-US2-9 (Obsolete) | |
M-52i MKR-US2-9 (Obsolete) | |
|
MKR-US2-9 (Obsolete) Item #1852069 Unfortunately this cable is obsolete you can use the item number to search through other sources. | |
LOWRANCE X SERIES
X Model |
Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
X-515C |
Compatible Minn Kota Motors equipped with US2:
|
X-510C
| |
X-136 DF | |
X-135
| |
X-126 DF | |
X-125
| |
X-107C DF | |
X-105C DF | |
X-102C | |
X-100C | |
X-59 DF | |
X-52
| |
|
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options
| |
| Lowrance X Series Continued | Compatible Equipped Universal Sonar 2 (US2) Trolling Motors |
X-96 MKR-US2-9 (Obsolete) |
Compatible Minn Kota Motors equipped with US2:
|
X-86DS MKR-US2-9 (Obsolete) | |
X-67C MKR-US2-9 (Obsolete) | |
X-50DS MKR-US2-9 (Obsolete) | |
X-47EX MKR-US2-9 (Obsolete) | |
X-47 MKR-US2-9 (Obsolete) | |
X-4 Pro MKR-US2-9 (Obsolete) | |
X-4 MKR-US2-9 (Obsolete) | |
|
MKR-US2-9 (Obsolete) Item #1852069 Unfortunately this cable is obsolete you can use the item number to search through other sources. | |
