This guide will help you identify the Lower Unit Dimensions for Minn Kota Trolling Motors and install an external transducer to the Lower Unit. Choose from the options below to find the dimensions and installation instructions for specific motors:
Jump To:
- Riptide Saltwater Lower Unit Dimensions
- Freshwater Built-In Transducers Lower Unit Dimensions
- Freshwater Non-Built-In Transducers Lower Unit Dimensions
-
Mounting External Transducer Instructions
- Mounting an External Transducer on an Auto Stow/Deploy Motor
- Mounting an External Transducer on a Non-Auto Stow/Deploy Electric-Steer Motor
- Mounting an External Transducer on an Ultrex
- Mounting an External Transducer on a Cable-Steer or Tiller Handled Bow-Mount Motor
- Mounting and External Transducer to Transom Mount Motor
- Mounting an External Transducer on a Legacy Terrova with Lift Assist
- Resources
Riptide Saltwater Lower Unit Dimensions
- Note: Riptide Saltwater motors do not come equipped with built-in transducers.
- Dimensions for 3.25" (3 1/4), 3.62" (3 5/8), 4", and 4.5" (4 1/2) including QUEST are provided below:
4.5" Diameter Riptide QUEST Lower Unit Dimensions
Models Included:
- Riptide Instinct QUEST
-
Riptide Terrova QUEST

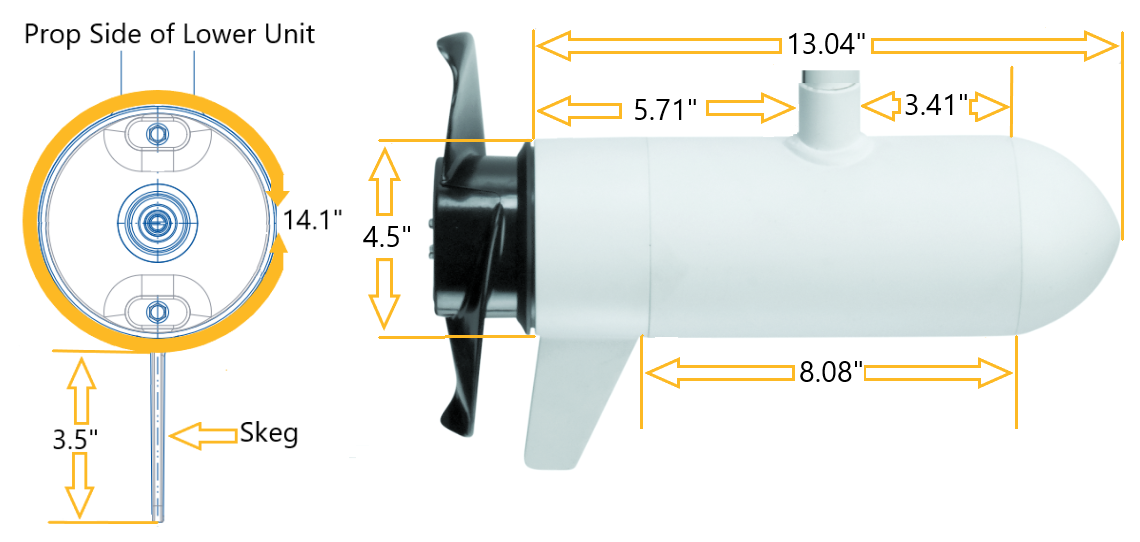

4.5" Diameter Riptide Lower Unit Dimensions
Motor Models Included:
- Riptide Fortrex 112 LB Thrust Motors 2008-Present
- Riptide Terrova 112 LB Thrust 2023-Present Shaft Sizes 87" and 100"
- Riptide Terrova BT 112 LB Thrust 2019-2023 Shaft Sizes 87"
- Riptide SF 112 LB Thrust 2014-Present, All Shaft Lengths
- Riptide ST 2007-2016 112 LB Thrust, All Shaft Lengths
-
Riptide Transom 112 LB Thrust 2007-Present, All Shaft Lengths

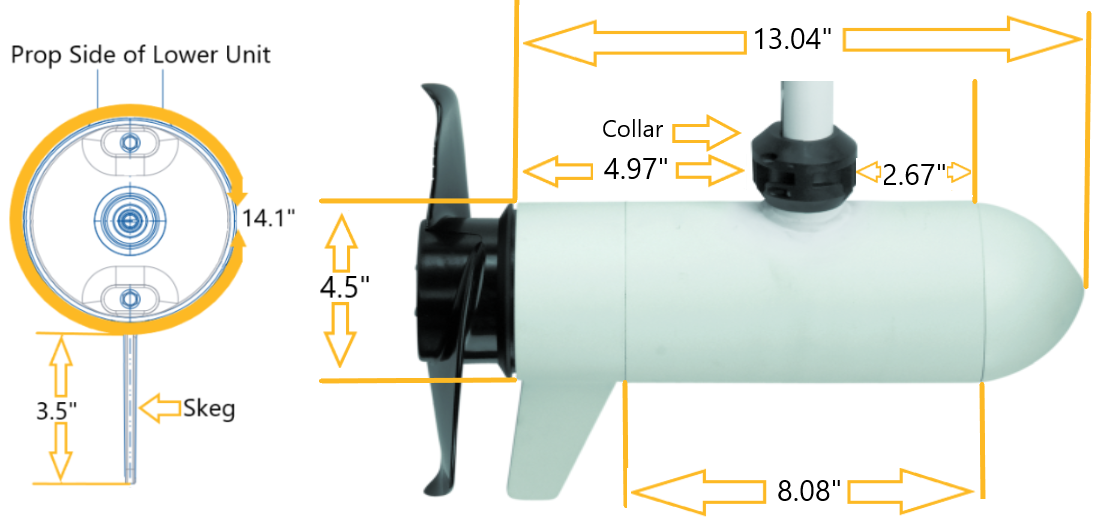

4.5" Diameter Riptide with Lower Collar Dimensions
Motor Model Included:
- Riptide Terrova BT 80 LB Thrust 2017-2023 Shaft Sizes 54",60", and 72"
- Riptide Ulterra BT 80 LB Thrust 2017-2023 Shaft Sizes 45", 54" 60", and 72"
-
Riptide Ulterra Non-BT 80 LB Thrust or 101 LB Thrust 2015-2016 Shaft Sizes 45", 60", and 72"

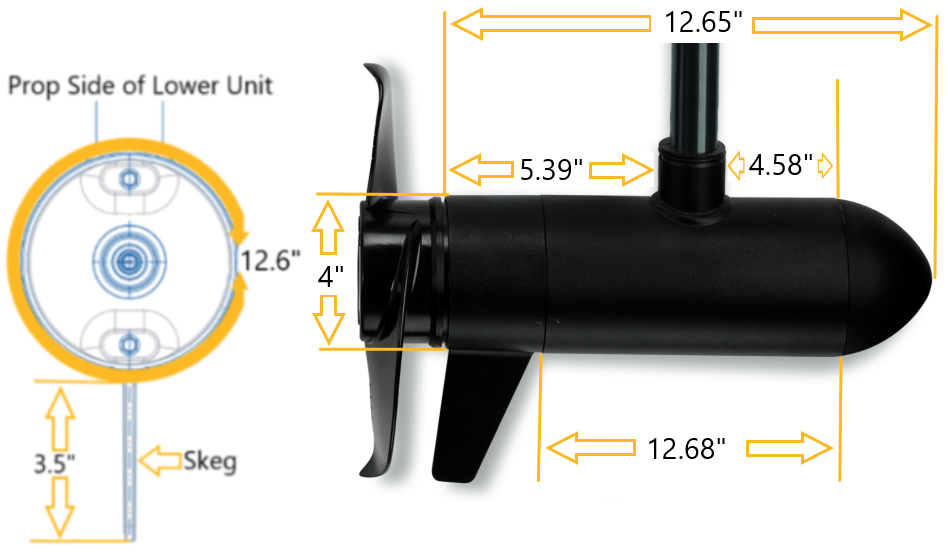

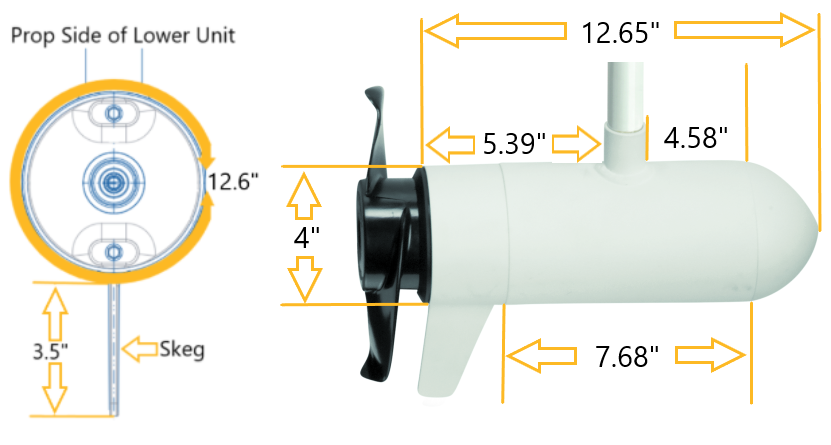

4" Diameter Riptide Without Lower Collar Lower Unit Dimensions
- Riptide Fortrex 80 LB Thrust 2017-Present
- Riptide SF 80 LB Thrust 2008-2016
- Riptide SM 101 LB Thrust 2002-2014
- Riptide ST 80 LB Thrust 2007-2016
- Riptide ST 101 LB Thrust 2007-2014
- Riptide Transom 80 LB Thrust 2002-Present
-
Riptide Transom 101 LB Thrust 2002-2014

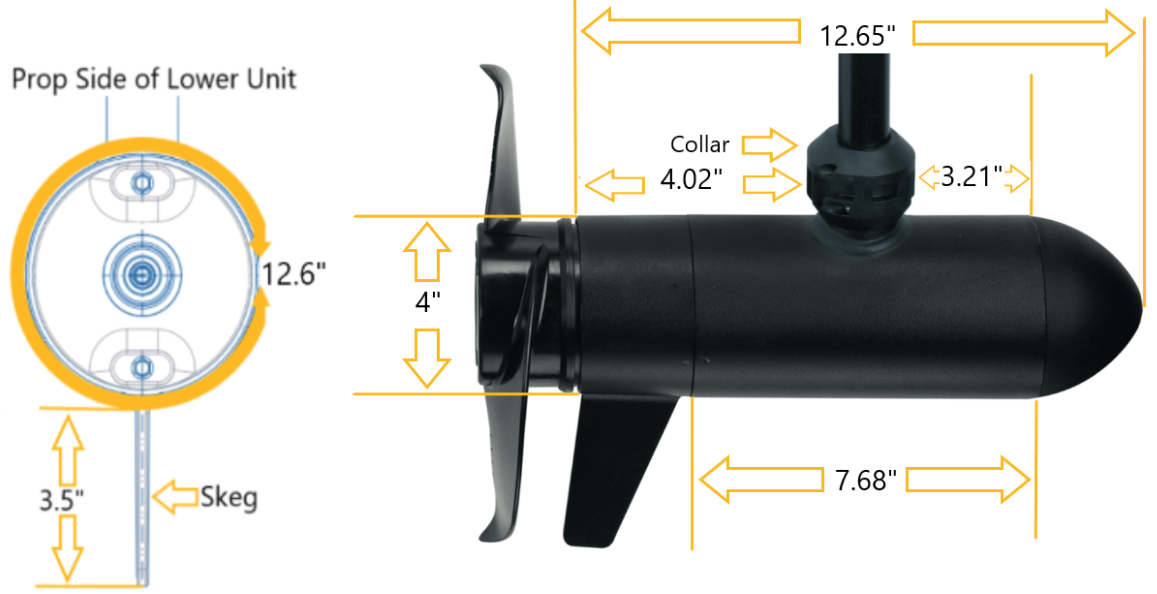

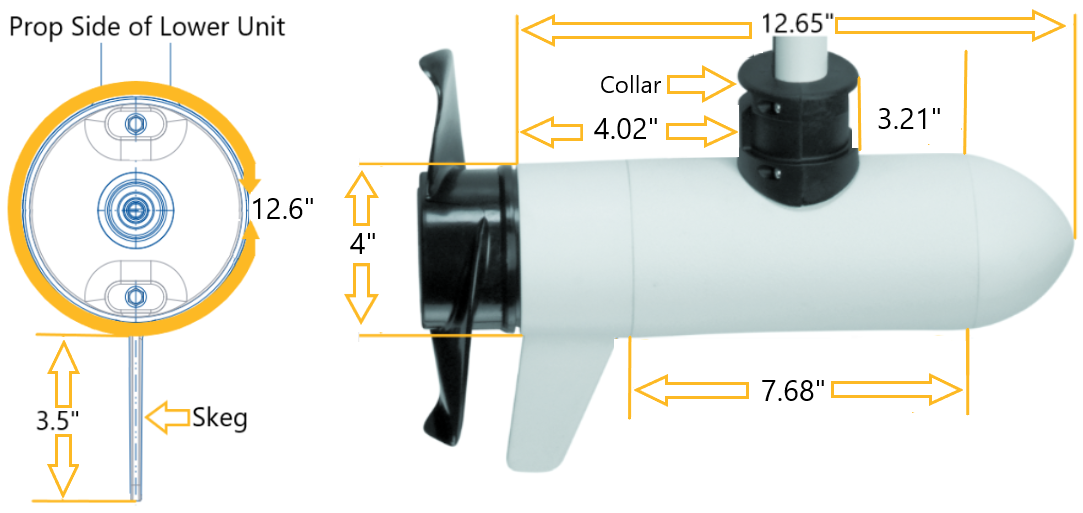

4" Diameter Riptide With Collar Lower Unit Dimensions
- Riptide Terrova BT 80 LB Thrust 2017-2023 All Shaft Lengths
- Riptide Ulterra BT 80 LB Thrust 2017-2023 All Shaft Lengths
- Riptide Ulterra Non Bluetooth 80 LB Thrust 2015-2016

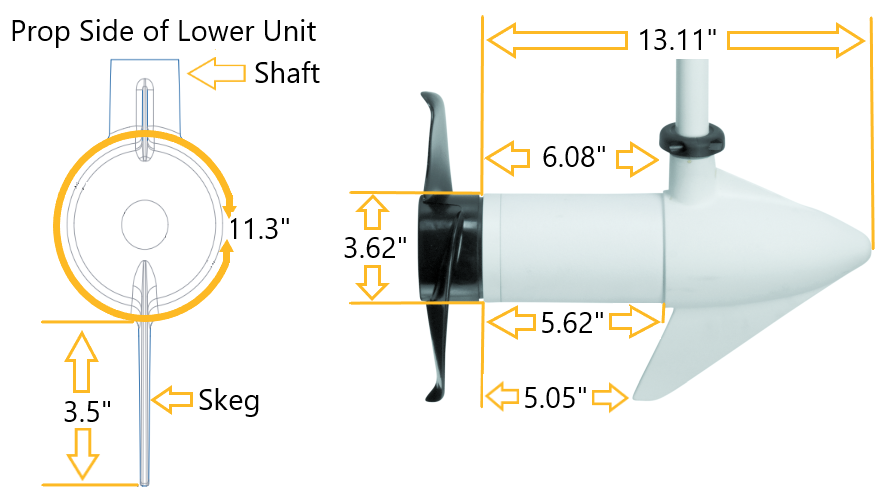

3.62" Diameter Riptide Lower Unit Dimensions
-
Riptide Terrova 55 All Shaft Lengths 2007-Present
3.62" Diameter Riptide Lower Unit Dimensions
- Riptide Edge 70 LB Thrust 2016-2022
- Riptide Edge 55 LB Thrust 2016-2022
- Riptide SE 70 LB Thrust 2006-2015
- Riptide SE 65 LB Thrust 2006-2015
- Riptide SE 55 LB Thrust 2006-2015
- Riptide SE 50 LB Thrust 2006-2015
- Riptide PowerDrive BT 70 LB Thrust 2017-2023
- Riptide PowerDrive BT 55 LB Thrust 2017-2023
- Riptide SP 70 LB Thrust 2007-2016
- Riptide SP 55 LB Thrust 2007-2016
- Riptide Transom 70 LB Thrust 2002-Present
- Riptide Transom 55 LB Thrust 2002-Present
-
Riptide Transom 50 LB Thrust 2002-Present

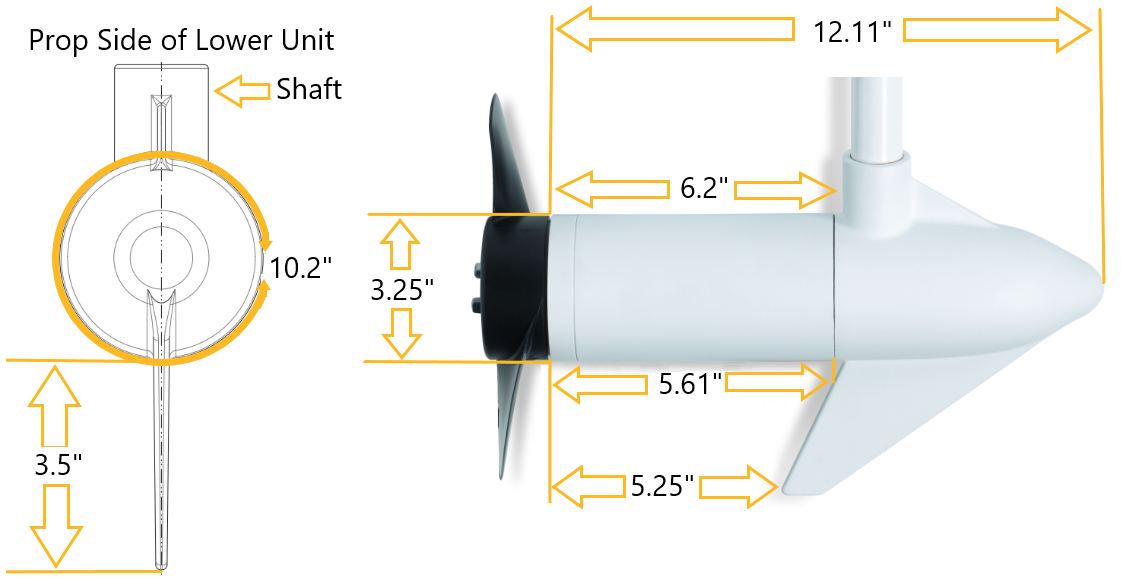

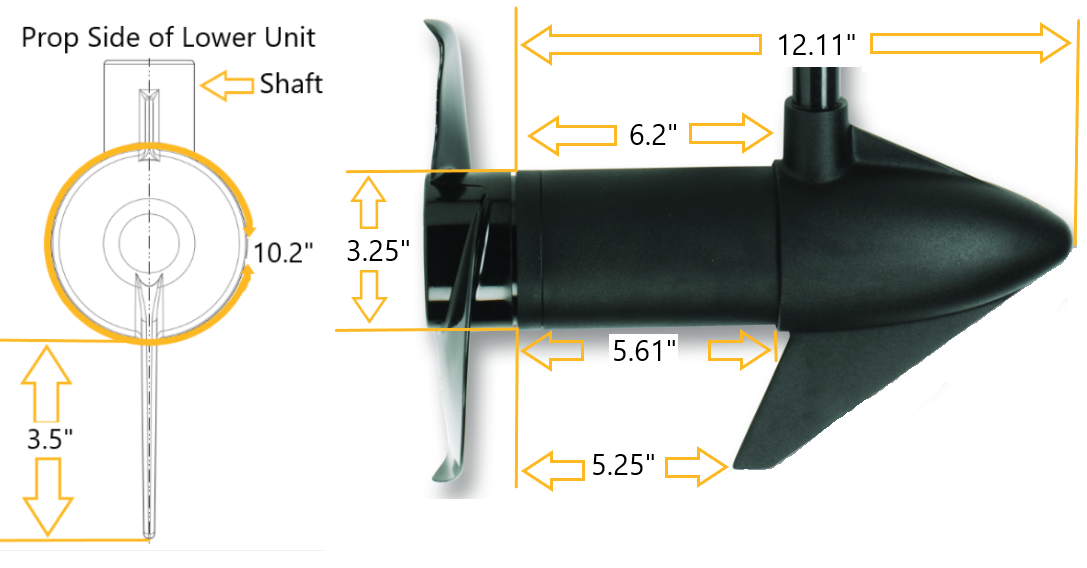

3.25" Diameter Riptide Lower Unit Dimensions
- Riptide Edge 45 LB Thrust 2016-2022
- Riptide SE 45 LB Thrust 2006-2015
- Riptide PowerDrive BT 45 LB Thrust 2017-2023
- Riptide SP 45 LB Thrust 2007-2016
- Riptide Transom 45 LB Thrust 2002-Present
- Riptide Transom 42 LB Thrust 2002-Present
-
Riptide Transom 27 LB Thrust 2002-Present
Freshwater Built-In Transducers Lower Unit Dimensions
-
Your trolling motor may come with a Mega Side and Down Imaging (MSI), Mega Down Imaging (MDI), Dual Spectrum CHIRP (DSC), or a Universal Sonar 2 (US2) transducer built into the lower unit. The built-in transducer may interfere with mounting an external transducer, depending on the size of the external transducer. Also, having 2 transducers that close to each other, may cause interference.
- Dimensions for 3.25" (3 1/4), 3.62" (3 5/8), 4", and 4.5" (4 1/2) including QUEST Freshwater built-in sonar motors are provided below:
QUEST Motors with Built in MEGA Imaging MDI, MSI, or Dual Spectrum CHIRP (DSC)
- Note: Due to the size of QUEST lower units with Built-In transducers it is not recommended to attempt to mount an external transducers to these motors.

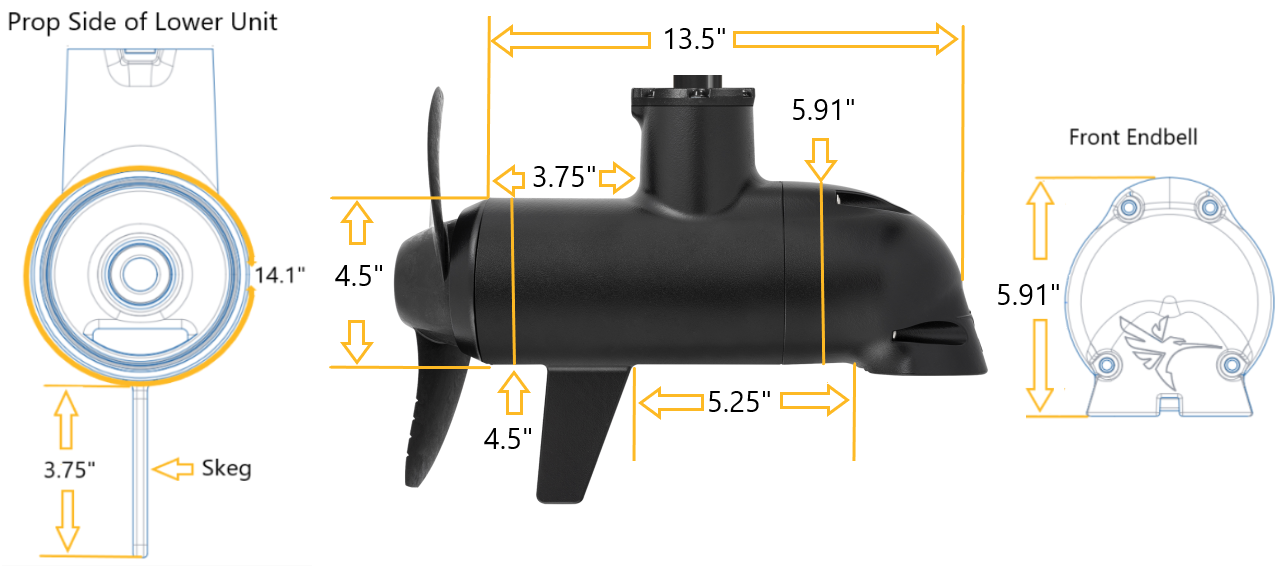

QUEST MEGA Down and MEGA Side Imaging Lower Unit Dimensions
-
Models Included:
- Terrova QUEST 2023-Present
- Ulterra QUEST 2023-Present
-
Ultrex QUEST 2023-Present

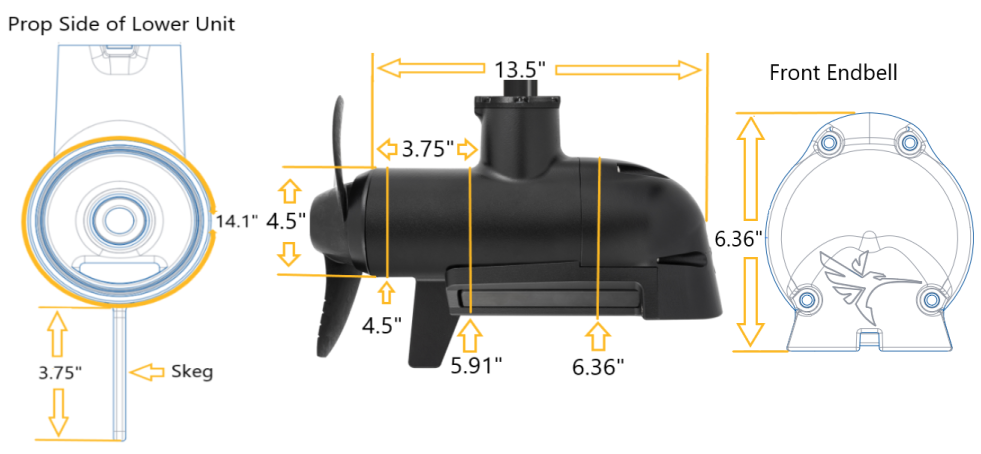

QUEST Dual Spectrum CHIRP (DSC) Lower Unit Dimensions
- Terrova QUEST 2023-Present
- Ulterra QUEST 2023-Present
-
Ultrex QUEST 2023-Present
4.5" Diameter Universal Sonar 2 (US2) Lower Unit Dimensions
-
Models Included:
- Terrova BT 2017-2023 80 LB Thrust Shaft Sizes 45", 54", 60", 72"
- Ulterra BT 112 LB Thrust 2017-2023 All Shaft Lengths
-
Ulterra Non-Bluetooth 112 LB Thrust 2015-2016 All Shaft Lengths

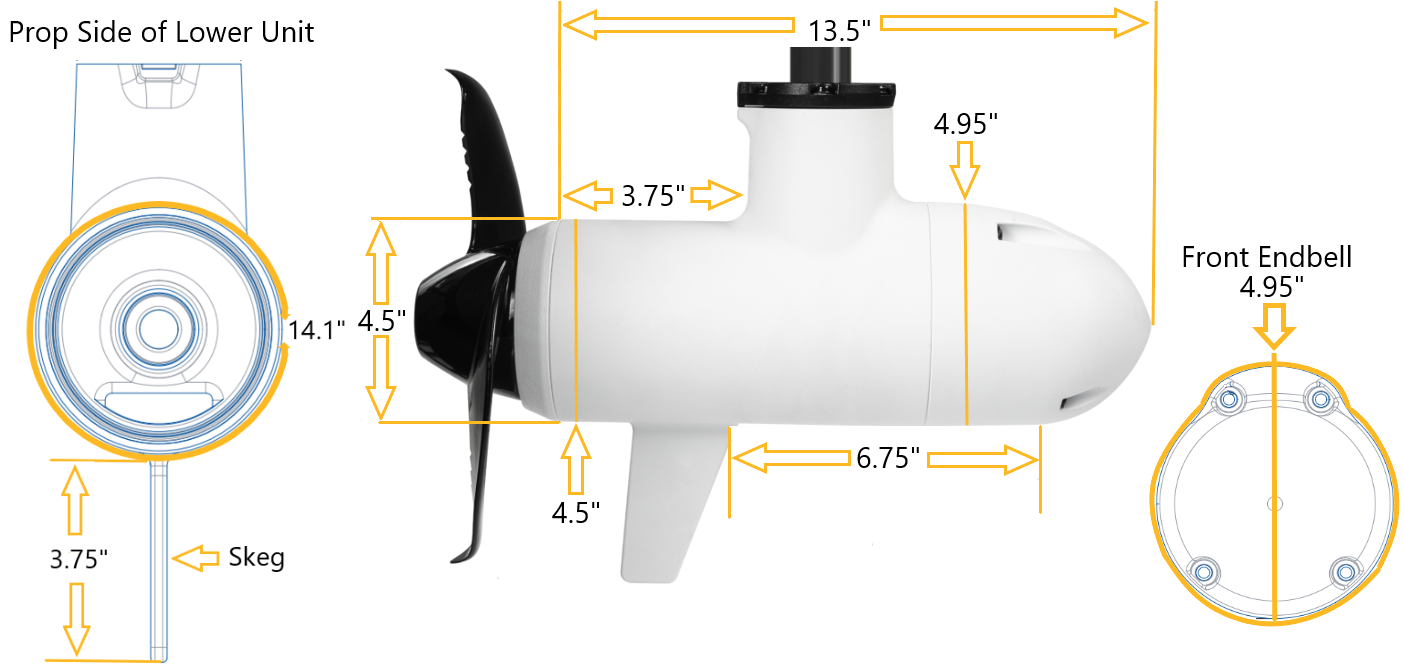

4" Diameter Dual Spectrum CHIRP (DSC) Dimensions
-
Models Included:
- Ulterra Brushed 80 LB Thrust all Shaft Lengths 2023-Present
-
Terrova Brushed 80 LB Thrust all Shaft Lengths 2023-Present
4" Diameter Universal Sonar 2 (US2) Lower Unit Dimensions
-
Models Included:
- Terrova BT 80 LB Thrust, Shaft Lengths 45", 54", 60", 72" 2017-2023
- Terrova Non-Bluetooth 80 LB Thrust All Shaft Lengths 2015-2016
- Ulterra BT 80 LB Thrust All Shaft Lengths 2017-2023
- Ulterra Non-Bluetooth 80 LB Thrust All Shaft Lengths 2015-2016
3.62" Diameter Dual Spectrum CHIRP (DSC) Lower Unit Dimensions
-
Terrova 55 LB Thrust Not Built-In Sonar 2007-Present
3.62" Diameter Dual Spectrum CHIRP (DSC) Lower Unit Dimensions
- PowerDrive 70 LB Thrust Dual Spectrum CHIRP (DSC) 2023-Present
-
PowerDrive 55 LB Thrust Dual Spectrum CHIRP (DSC) 2023-Present
3.62" Diameter Universal Sonar 2 (US2) Lower Unit Dimensions
-
Models Included:
- PowerDrive BT 70 LB Thrust Universal Sonar 2 (US2) 2017-2023
- PowerDrive BT 55 LB Thrust Universal Sonar 2 (US2) 2017-2023
- PowerDrive 70 LB Thrust Non-Bluetooth Universal Sonar 2 (US2) 2007-2016
- PowerDrive 70 LB Thrust Non- Bluetooth Universal Sonar 2 (US2) 2007-2016
-
Terrrova BT 55 LB Thrust Universal Sonar 2 (US2) 2017-2023
Freshwater Non-Built-In Sonar/Transducer Lower Unit Dimensions
- Note: If you want to look into cost of adding an Built-In transducer to your lower unit if it recommended to contact a locate Authorized Minn Kota Service Provider.
- Dimensions for 3.25" (3 1/4), 3.62" (3 5/8), 4", and 4.5" (4 1/2) including QUEST are provided below:

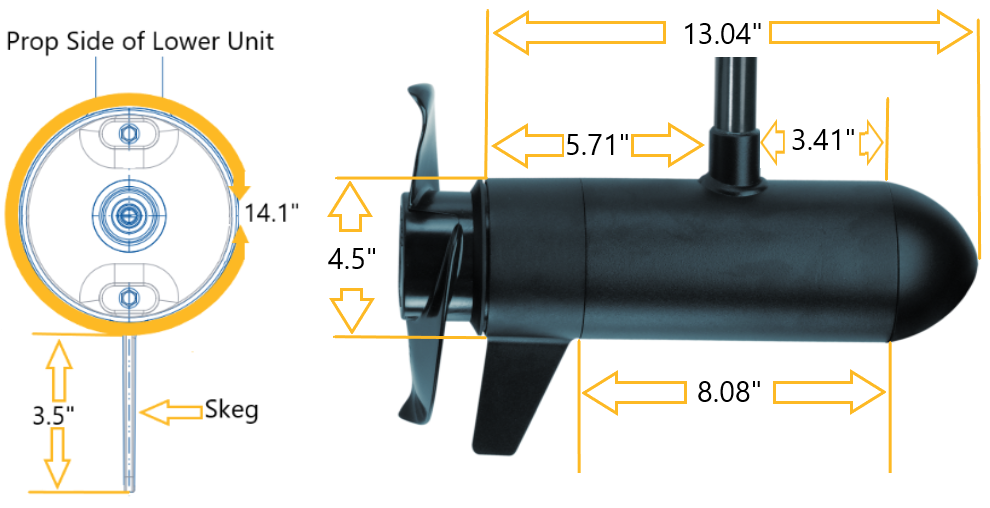

4.5" Lower No Lower Collar Lower Unit Dimensions
-
Models Include:
- Fortrex Non-Built-In Transducer 112 LB Thrust 2008-Present All Shaft Lengths
- Terrova Non-Bluetooth, Non-Built-In transducer 112 LB Thrust 2007-2016 All Shaft Lengths
-
Traxxis 112 LB Thrust 2009-Present All Shaft Lengths

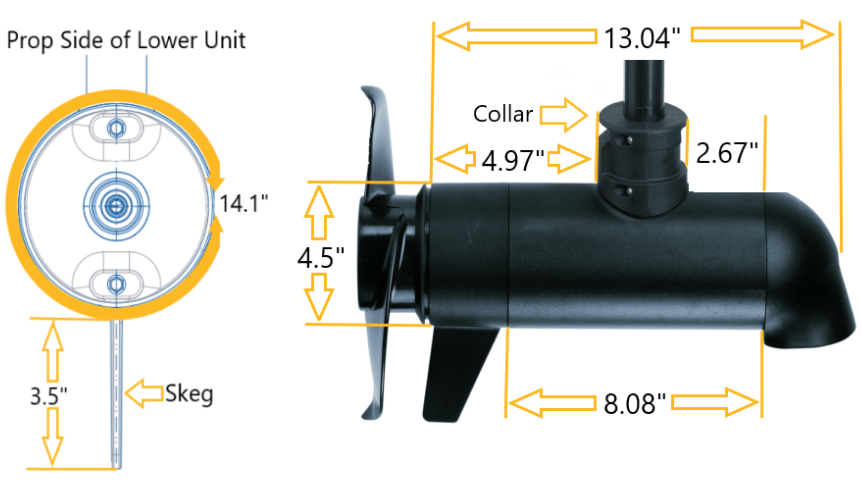

4.5" Diameter With Lower Collar Lower Unit Dimensions
-
Models Include:
- Terrova BT Non-Built-in Transducer 112 LB Thrust 2017-2023 All Shaft Lengths
- Ulterra BT Non Built-in Transducer 112 LB Thrust 2017-2023 All Shaft Lengths
-
Ulterra Non BT, None-Built-in Transducer 112 LB Thrust 2017-2023 All Shaft Lengths

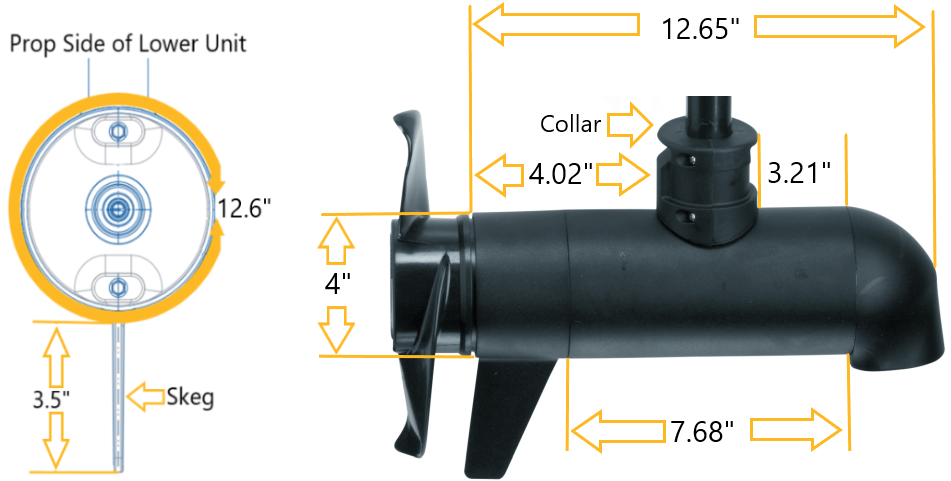

4" Diameter With Lower Collar Lower Unit Dimensions
- Terrova BT Non-Built-In Transducer 80 LB Thrust 2017-2023 All Shaft Lengths
- Ulterra BT Non-Built in Transducer 80 LB Thrust 2017-2023 All Shaft Lengths
4" Lower Unit Without Lower Collar Lower Unit Dimensions
-
Models Included:
- Fortrex 101 LB Thrust 2008-2014
- Fortrex 80 LB Thrust 2008-Present
- Maxxum 80 LB Thrust 1998-Present
- Terrova Non Bluetooth, Non-Built-In Transducer 80 LB Thrust 2007-2016
- Terrova Non-Bluetooth Non-Built-in Transducer 2007-2016
-
Traxxis 80 LB Thrust 2009-Present

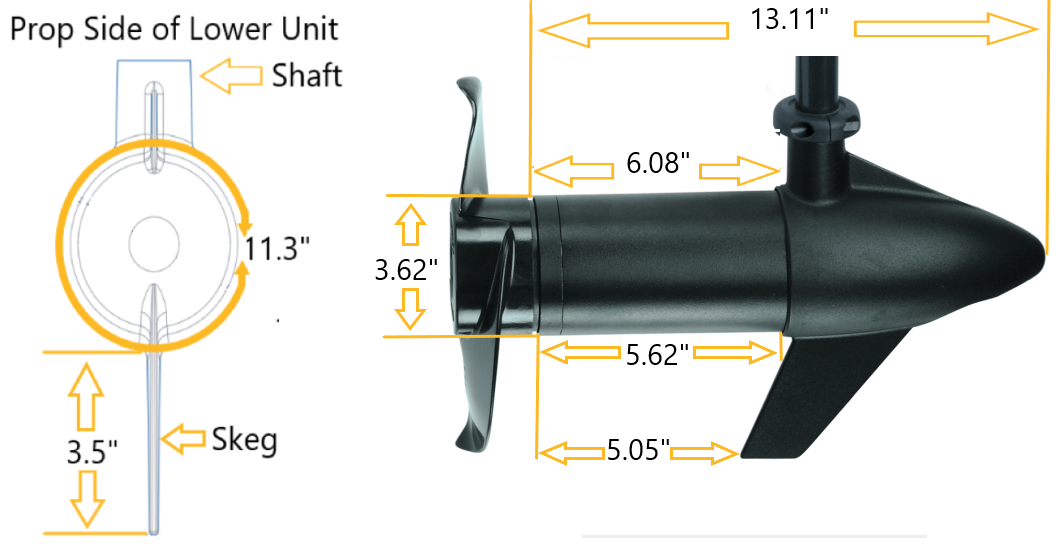

3.62" Diameter Lower Unit Dimensions
-
Models Included:
- Endura Max 55 LB Thrust All Shaft Lengths 2013-Present
- Endura Max 50 LB Thrust All Shaft Lengths 2013-Present
- Edge 70 LB Thrust All Shaft Lengths 2006-Present
- Edge 55 LB Thrust All Shaft Lengths 2006-Present
- Maxxum 70 LB Thrust All Shaft Lengths 1998-Present
- Maxxum 55 LB Thrust All Shaft Lengths 1998-Present
- Pontoon PowerDrive 70 LB Thrust All Shaft Lengths 2001-Present
- Pontoon PowerDrive 55 LB Thrust All Shaft Lengths 2001 Present
- PowerDrive Brushed 70 LB Thrust All Shaft Lengths 2023-Present
- PowerDrive Brushed 55 LB Thrust All Shaft Lengths 2023-Present
- PowerDrive BT 70 LB Thrust All Shaft Lengths 2017-2023
- PowerDrive BT 55 LB Thrust All Shaft Lengths 2017-2023
- PowerDrive V2 70 LB Thrust All Shaft Lengths 2007-2023
- PowerDrive V2 70 LB Thrust All Shaft Lengths 2007-2023
- Traxxis 70 LB Thrust All Shaft Lengths 2009-Present
-
Traxxis 55 LB Thrust All Shaft Lengths 2009-Present
3.25" Diameter Lower Unit Dimensions
-
Models Include:
- Edge 45 LB Thrust All Shaft Lengths 2006-Present
- Edge 40 LB Thrus All Shaft Lengthst 2006-Present
- Endura and Endura C2 40 LB Thrust All Shaft Lengths 1998-Present
- Endura and Endura C2 30 LB Thrust All Shaft Lengths 1998-Present
- Endura Max 45 LB Thrust All Shaft Lengths 2013-Present
- Endura Max 40 LB Thrust All Shaft Lengths 2013-Present
- PowerDrive BT 45 LB Thrust All Shaft Lengths 2017-2023
- PowerDrive V2 45 LB Thrust All Shaft Lengths 2007-2016
- PowerDrive V2 42 LB Thrust All Shaft Lengths 2007-2016
- Traxxis 45 LB Thrust All Shaft Lengths 2009-Present
- Traxxis 40 LB Thrust All Shaft Lengths 2009-2010
-
Traxxis 33 LB Thrust All Shaft Lengths 2009-2012
Mounting an External Transducer Instructions
- The instructions include steps for installation on motor equipped with Auto Deploy/Stow/Trim, Lift Assist, Bow-Mount, and Transom-Mount motors.

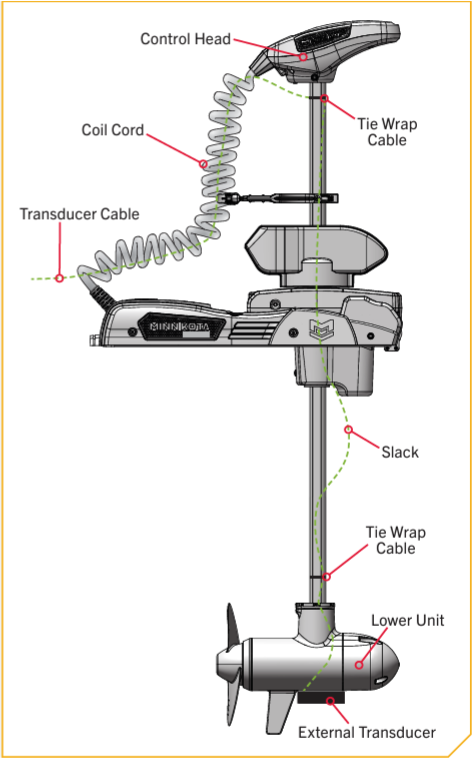

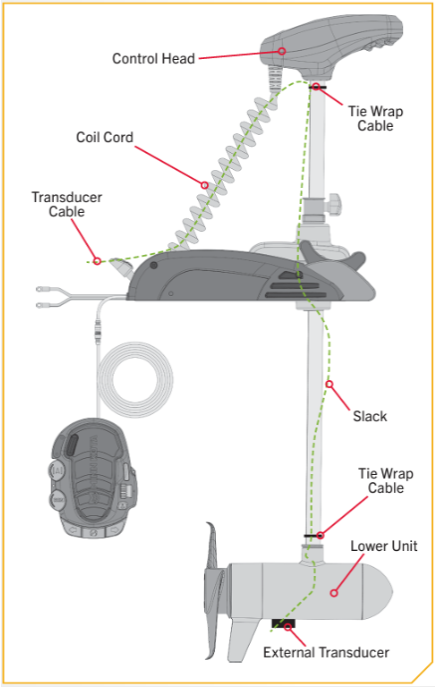

Mounting an External Transducer on an Auto Stow/Deploy
-
*Note: When installing an external transducer on an Ulterra, Riptide Ulterra or Riptide Instinct QUEST, you need to be careful that the transducer cable does not get pinched when the motor is stowed and deployed.
- Mount the External Transducer according to directions provided with the transducer.
- Leave enough slack in the Transducer Cable between the Lower Unit and Control Head to allow the motor to properly stow and deploy.
- Use two tie wrap cables to secure the Transducer Cable to the Shaft just above the Lower Unit and just below the Control Head.
- Run the Transducer Cable through the Coil Cord to the power supply.
Mounting an External Transducer on a Non-Auto Stow/Deploy
- Mount the External Transducer according to directions provided with the transducer.
- Leave enough slack in the Transducer Cable between the Lower Unit and Control Head to allow the motor to properly stow and deploy.
- Use two tie wrap cables to secure the Transducer Cable to the Shaft just below the Control Head.
- Run the Transducer Cable through the Coil Cord to the power supply.

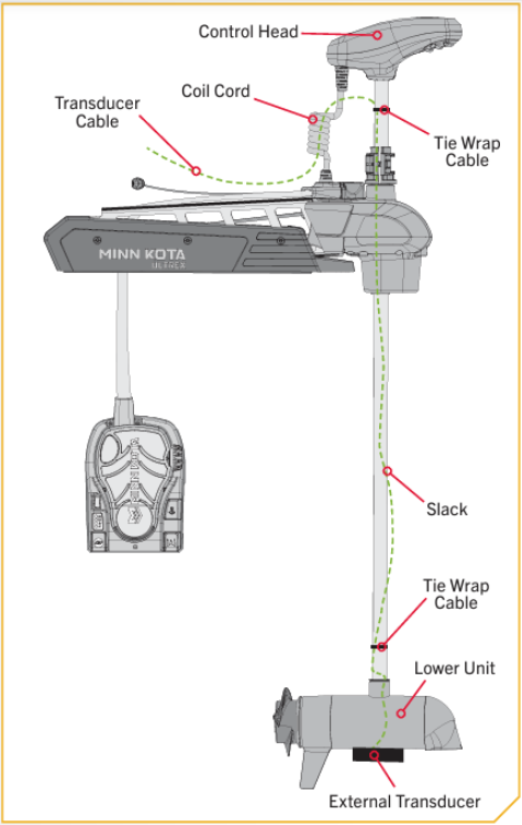

Mounting an External Transducer on an Ultrex
- Mount the External Transducer according to directions provided with the transducer.
- Leave enough slack in the Transducer Cable between the Lower Unit and Control Head to allow the motor to properly stow and deploy.
- Use two tie wrap cables to secure the Transducer Cable to the Shaft just above the Lower Unit and just below the Control Head.
- Run the Transducer Cable through the Coil Cord to the power supply.

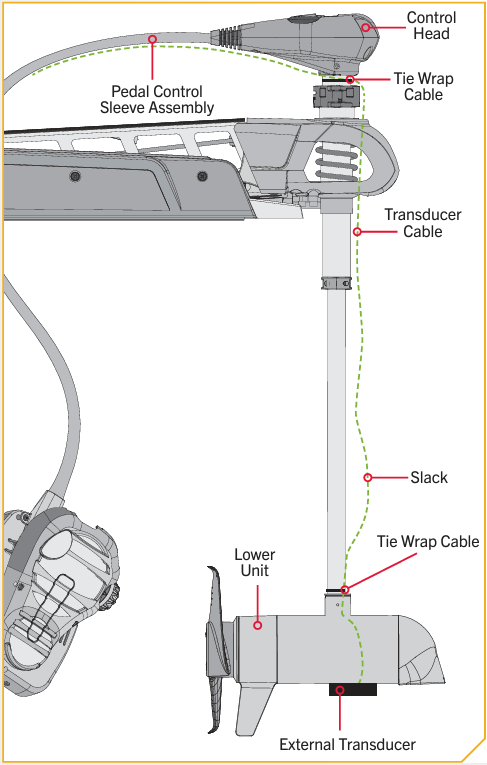

Mounting an External Transducer on a Cable-Steer Bow-Mount Motor
- Mount the external transducer according to directions provided with the transducer.
- Leave enough slack in the transducer cable between the Lower Unit and Control Head to allow the motor to properly stow and deploy.
- Use two Tie Wrap Cables to secure the transducer cable to the Shaft just above the Lower Unit and just below the Control Head.
- Run the transducer cable along the Pedal Control Sleeve Assembly toward the Foot Pedal

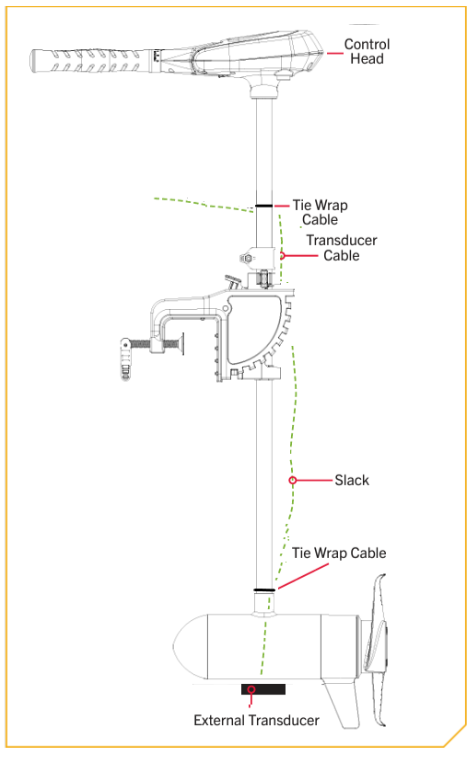

Mounting and External Transducer to Transom Mount Motor
- Mount the external transducer according to directions provided with the transducer.
- Leave enough slack in the transducer cable between the Lower Unit and Bracket to allow the motor to properly stow and deploy.
-
Use two Tie Wrap Cables to secure the transducer cable to the Shaft just above the Lower Unit and just below the Control Head.

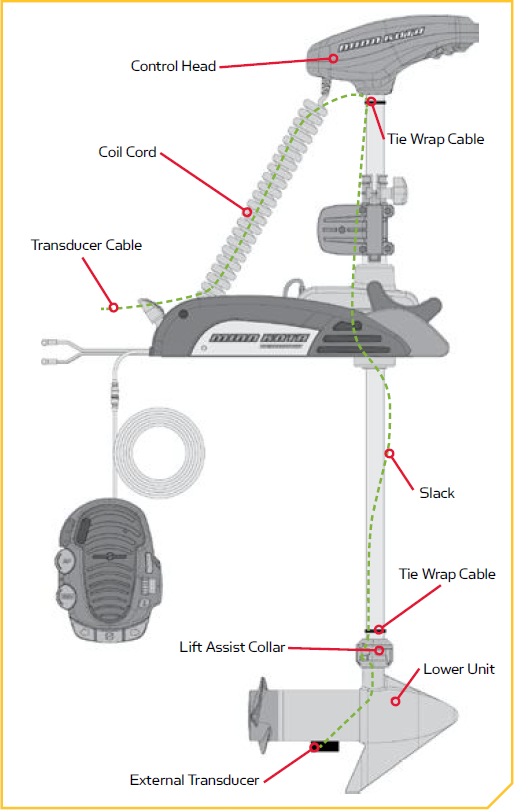

Mounting an External Transducer on a Legacy Terrova with Lift Assist
-
- Mount the External Transducer according to the directions provided with the transducer.
- Leave enough slack in the Transducer Cable between the Lower Unit and the Control Head to allow the motor to properly stow and deploy.
- Use 2 tie wrap cables to secure the Transducer Cable just above the Lift Assist Collar or Depth Collar and just below the Control Head.
- Run the Transducer Cable through the Coil Cord to the Fishfinder and/or power supply.
