This article outlines key troubleshooting steps to consider if you've recently experienced a loss of sonar display or motor function after connecting Ethernet-Networking or transducer cables to your trolling motor.
Note: Using the wrong cable connection, adapter, or extension cable can cause equipment damage and result in the loss of essential trolling motor functions.
Identifying the Correct Cable Connection
- Verifying that the correct connection or adapter cables were used during installation is the first step to check. The images below will guide you through the different types of transducer, networking, or foot pedal cables your motor may be equipped with.
- Note: In some cases, cable connections may look similar in size or share the same pin configuration. However, only the intended cable connection will ensure proper motor function.
Cables Coming out of the Control Head on the Motor
- Using the wrong cable connection, adapter, or extension cable can cause equipment damage and result in the loss of essential trolling motor functions.
14 Pin Transducer Cable MEGA Side Image (MSI), MEGA Side Imaging (MDI) or Dual Spectrum CHIRP (DSC)
- Click here for Built-In MEGA Down (MDI) or MEGA Side (MSI) Imaging Compatibility
- Click here for Dual Spectrum CHIRP (DSC) Compatibility

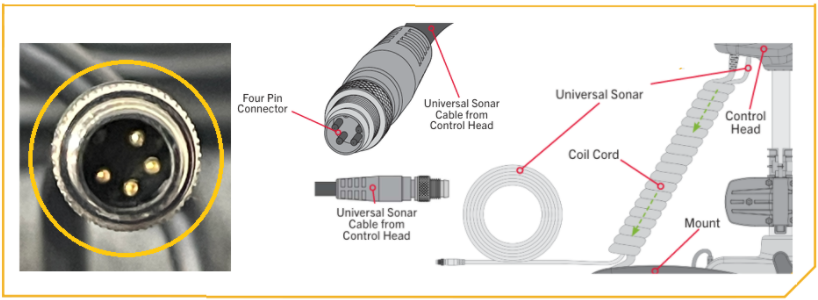

4 Pin Transducer Cable Universal Sonar 2

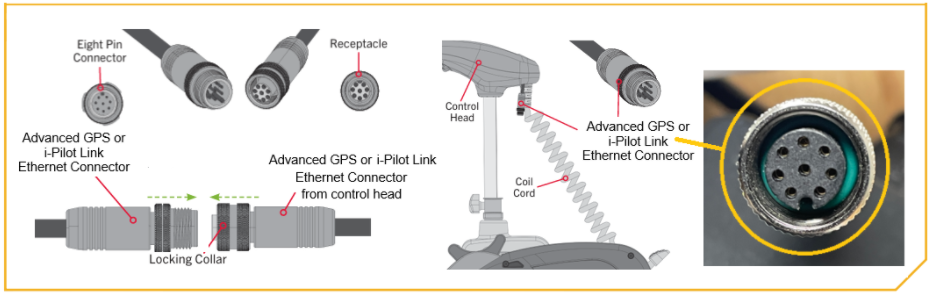

8 Pin Networking Ethernet Cable for Advanced GPS Navigation or i-Pilot Link
Cables Coming out of the Mount of the Motor
Note: Using the wrong cable connection, adapter, or extension cable can cause equipment damage and result in the loss of essential trolling motor functions.

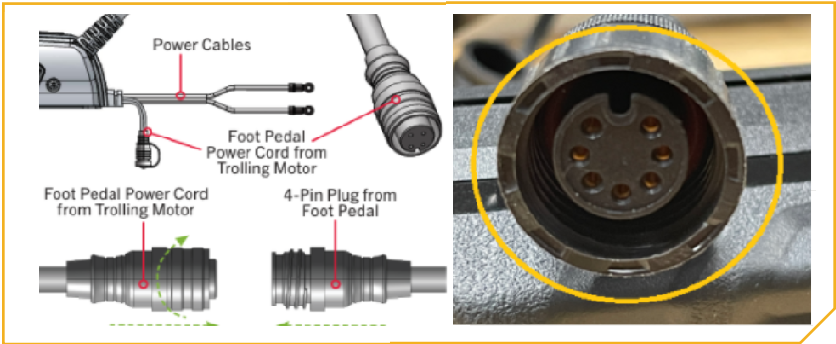

7 PIN Foot Pedal Cable from Motor Mount Note: Cable from Foot Pedal is Only 4 Pin

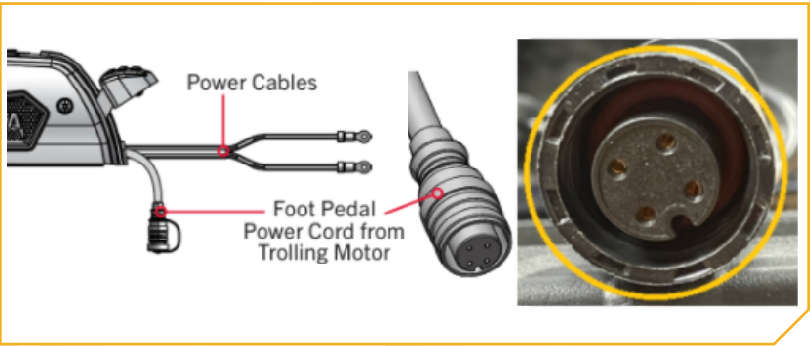

4 Pin Foot Pedal Cable from Motor Mount
Check Networking and Transducer Connections for Damage

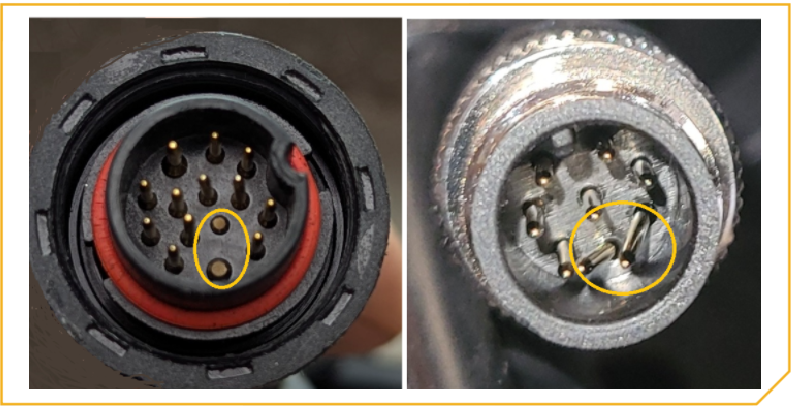

- Check pins for damage.
- Inspect all cables and adapter cables for damage.
Checking Power to Your Humminbird Units and Minn Kota Trolling Motor
- Checking battery condition and verifying batteries are supplying the proper voltage is critical.
- Checking any plugs, switches, and breakers/fuses between installed and not impacting proper voltage from getting to the trolling motor or Humminbird Units.
- Verifying the appropriate gauge of wire was used for any extensions.
- After verifying the correct cable, no cable damage, and ruled out power issues, the next step would be getting eyes on the motor at a Minn Kota Authorized Service Provider.
