Trolling Motor and Fish Finder Compatibility

Updated October 20, 2026 14:29

This guide outlines compatibility between built-in trolling motor transducers, GPS-enabled trolling motors, and supported fish finders. It also identifies the adapter cables required to complete these connections.

Built-In MEGA Side Imaging (MSI) and Fish Finder Compatibility
Built-In MEGA Down Imaging (MDI) and Fish Finder Compatibility
Built-In Dual Spectrum CHIRP (DSC) and Fish Finder Compatibility
Built-In Advanced GPS Navigation and Fish Finder Compatibility
Built-In i-Pilot Link Equipped Trolling Motor and Fish Finder Compatibility
Built-In Universal Sonar 2 (US2) and Fish Finder Compatibility
Resources

Built-In MEGA Side Imaging (MSI) Compatibility

NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:

Click the drop-down arrow next to the fish finder family you want to verify for compatibility.

X Series MEGA Side Imaging (MSI) Compatibility

APEX Series MEGA Side Imaging (MSI) Compatibility

SOLIX Series MEGA Side Imaging (MSI) Compatibility

XPLORE Series MEGA Side Imaging (MSI) Compatibility

HELIX Series 15-8 MEGA Side Imaging (MSI) Compatibility

Built-In MEGA Down Imaging (MDI) Compatibility

NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:

Click the drop-down arrow next to the fish finder family you want to verify for compatibility.

X Series MEGA Down Imaging (MDI) Compatibility

APEX MEGA Down Imaging (MDI) Compatibility

SOLIX MEGA Down Imaging (MDI) Compatibility

XPLORE MEGA Down Imaging (MDI) Compatibility

HELIX 15-8 MEGA Down Imaging (MDI) Compatibility

HELIX 7 MEGA Down Imaging (MDI) Compatibility

Built-In Dual Spectrum CHIRP (DSC) Compatibility

NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:

Click the drop-down arrow next to the fish finder family you want to verify for compatibility.

X Series MEGA Down Imaging (MDI) Compatibility

APEX Dual Spectrum CHIRP (DSC) Compatibility

SOLIX Dual Spectrum CHIRP (DSC) Compatibility

XPLORE Dual Spectrum CHIRP (DSC) Compatibility

HELIX 15, 12, 10, 9, 8, Ice HELIX 9 Dual Spectrum CHIRP (DSC) Compatibility

HELIX 7, 5 and ICE HELIX 7 and 5 Dual Spectrum CHIRP (DSC) Compatibility

Garmin Fish Finders and Dual Spectrum CHIRP (DSC) Compatibility

Garmin Model and Compatibility

Select Echo, EchoMAP, EchoMAP CHIRP Striker, Striker Plus, Striker Vivid models with 4-pin configurations:

MKR-DSC-12 – Garmin 4-Pin Adapter Cable: Connects select Garmin 4-Pin transducer port models

Select EchoMAP, EchoMAP CHIRP, EchoMAP Ultra, GPSMAP models with 8-pin configurations

MKR-DSC-14 – Garmin 8-Pin Adapter Cable: Connects select Garmin 8-Pin transducer port models
- Select Garmin head units also require Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID - Garmin part number 010-12122-10, sold separately

Lowrance Fish Finders and Dual Spectrum CHIRP (DSC) Compatibility

Lowrance Model and Compatibility

Select HDS and Hook models with 7-pin configurations

MKR-DSC-10 – Lowrance 7-Pin Adapter Cable: Connects select Lowrance 7-Pin transducer port model

Select Hook 2, Hook Reveal models with 8-pin configurations

MKR-DSC-15 – Lowrance 8-Pin Adapter Cable: Connects select Lowrance 8-Pin Triple Shot transducer port models

Select HDS Live, Elite FS, Elite Ti models with 9-pin configurations

MKR-DSC-16 – Lowrance 9-Pin Adapter Cable: Connects select Lowrance 9-Pin Total Scan transducer port models

Built-In Advanced GPS Navigation Compatibility

NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:

Click the drop-down arrow next to the fish finder family you want to verify for compatibility.

X Series and Advanced GPS Navigation Compatibility

APEX Series and Advanced GPS Navigation Compatibility

SOLIX Series and Advanced GPS Navigation Compatibility

XPLORE Series and Advanced GPS Navigation Compatibility

HELIX Series 15-8 and Advanced GPS Navigation Compatibility

Humminbird & Built-In Universal Sonar 2 (US2) Compatibility

NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:

Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility

APEX Series Universal Sonar 2 (US2) Compatibility

SOLIX Series Universal Sonar 2 (US2) Compatibility

XPLORE Series Universal Sonar 2 (US2) Compatibility

HELIX 15-8 Series Universal Sonar 2 (US2) Compatibility

HELIX 7 and 5 Series Universal Sonar 2 (US2) Compatibility

ONIX Series Universal Sonar 2 (US2) Compatibility

1100, 900, 800, and 700 Series Universal Sonar 2 (US2) Compatibility

600, 500,300, and PiranhaMAX Series Universal Sonar 2 (US2) Compatibility

i-Pilot Link Equipped Trolling Motor Compatibility

NOTE: Minn Kota Trolling motors equipped with i-Pilot LINK require the included AS ECX 30E, a 30 ft. Ethernet extension cable, additional adapter cables may need to be purchased, please see below compatibility and purchase options:

Ethernet Adapter Cable: AS ES QDE- Ethernet Adapter Cable Click here for purchase options
Ethernet Connection: available in 30 ft. length, requires the included AS ECX 30E, a 30 ft. Ethernet extension cable. Allows the connection of an i-Pilot Link trolling motor to a Humminbird control head or to an accessory 5 Port Ethernet Switch (AS ETH 5PXG and AS ETH 5PGL), as part of a multi-unit Ethernet network.

Click the drop-down arrow next to the Humminbird series unit you want to verify for compatibility

APEX i-Pilot Link Equipped Trolling Motor Compatibility

SOLIX i-Pilot Link Equipped Trolling Motor Compatibility

XPLORE i-Pilot Link Equipped Trolling Motor Compatibility

HELIX 15-8 i-Pilot Link Equipped Trolling Motor Compatibility

HELIX 7 i-Pilot Link Equipped Trolling Motor Compatibility

ONIX and ION i-Pilot Link Equipped Trolling Motor Compatibility

ONIX 10 and ONIX 8 Models	Compatible Equipped i-Pilot Link Motors
ONIX 10 ci SI NT combo	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
ONIX 10 ci NT combo
ONIX 10 ci SI Combo
ONIX 10ci Combo
ONIX 8 ci SI NT combo
ONIX 8 ci NT combo
ONIX 8 ci SI Combo
ONIX 8ci Combo
ION Series	Compatible Equipped i-Pilot Link Motors
ION 12	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
ION 10
Additional Accessories Ethernet Cable available in 5 ft., 10 ft, 15 ft., 20 ft., and 30 ft. length allows the connection of two Ethernet capable units to be connected, or connection of a Humminbird control head to an accessory 5 Port Ethernet Switch (AS ETH 5PXG and AS ETH 5PGL), as part of a multi-unit Ethernet network. AS ECX 30E - 30 ft., Ethernet Extension Cable The Ethernet Extension Cable is a 30' cable that allows you to extend the length of your ethernet cables. Compatible With - Ethernet Cables AS EC 5E, AS EC 10E, AS EC 15E, AS EC 20E, AS EC 30E.

1100, 900, 800, and 700 i-Pilot Link Equipped Trolling Motor Compatibility

Garmin Universal Sonar 2 (US2) Compatibility

NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:

Click the drop down arrow next to the Garmin Series or Unit you are looking for compatibility.

Garmin Striker Series Compatibility with Universal Sonar 2 (US2)

Garmin ECHOMAP Series Compatibility with Universal Sonar 2 (US2)

Garmin GPSMAP Series

Garmin echo Series Universal Sonar 2 (US2) Compatibility

Garmin Fish Finder Series Universal Sonar 2 (US2) Compatibility

Lowrance Universal Sonar 2 (US2) Compatibility

NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:

Click the drop down arrow next to the Lowrance Series or Unit you are looking for compatibility.

LOWRANCE HOOK SERIES

LOWRANCE HOOK 2 SERIES

LOWRANCE REVEAL SERIES

LOWRANCE HDS SERIES

LOWRANCE ELITE SERIES

LOWRANCE MARK SERIES

Model and US2 Cables Needed

Compatible Equipped Universal Sonar 2 (US2) Trolling Motors

Mark-5X PRO *

MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured)

Compatible Minn Kota Motors equipped with US2:

Fortrex equipped with Universal Sonar 2 (US2)
PowerDrive BT equipped with Universal Sonar 2 (US2)
PowerDrive V2 equipped with Universal Sonar 2 (US2)
Terrova BT equipped with Universal Sonar 2 (US2)
Terrova equipped with Universal Sonar 2 (US2)
Ultrex BT equipped with Universal Sonar 2 (US2)
Ulterra BT equipped with Universal Sonar 2 (US2)
Ulterra equipped with Universal Sonar 2 (US2)

Mark-5X *

Adapter Cable: Item #1852069 (no longer manufactured)

Mark-4*

Adapter Cable: Item #1852069 (no longer manufactured)

Universal Sonar 2 (US2) MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured)
Unfortunately this cable is obsolete you can use the item number to search through other sources.

LOWRANCE LCX SERIES

LOWRANCE LMS SERIES

LOWRANCE M SERIES

M Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
M-68i MKR-US2-9 (Obsolete)	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
M-68C MKR-US2-9 (Obsolete)
M-56i MKR-US2-9 (Obsolete)
M-56 MKR-US2-9 (Obsolete)
M-52i MKR-US2-9 (Obsolete)
Universal Sonar 2 (US2) MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured) Unfortunately this cable is obsolete you can use the item number to search through other sources.

LOWRANCE X SERIES

EAGLE & Built-In Universal Sonar 2 (US2) Compatibility

NOTE: Additional Adapter Cables may need to be purchased, please see below compatibility and purchase options:

Click the drop-down arrow next to the EAGAL series unit you want to verify for compatibility

EAGLE Fish Finders and Universal Sonar 2 (US2) Compatibility

FishElite Model	Compatible US2 Trolling Motors
FishElite 642C	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
FishElite 640
FishElite 520C
FishElite 500C
FishElite 480
FishElite 320
SeaCharter Model	Compatible US2 Trolling Motors
SeaCharter 500CDF	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
SeaCharter 480DF
SeaCharter 320DF
FishMark Model	Compatible US2 Trolling Motors
FishMark 640C	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
FishMark 500C
FishMark 480
FishMark 320
SeaFinder Model	Compatible US2 Trolling Motors
SeaFinder 642C	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
SeaFinder 640C
SeaFinder 500CD
SeaFinder 480DF
SeaFinder 320DF
SeaFinder 250DF
SeaFinder 245DS
SeaFinder 240DF
FishEasy Model	Compatible US2 Trolling Motors
FishEasy 350C	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
FishEasy 320C
FishEasy 250DS
FishEasy 245DS
FishEasy 2
Cuda Models	Compatible US2 Trolling Motors
Cuda 350	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
Cuda 300
Cuda 250
Cuda 242
Cuda 240i S/GPS
Cuda 240 S/GPS
Cuda 168EX
Cuda 168
Cuda 128
Universal Sonar 2 (US2) MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured) Unfortunately this cable is obsolete you can use the item number to search through other sources.

X Series Model	Compatible Trolling Motors with Built-in MSI:
X Series 16	Ultrex Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ulterra Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Terrova Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Side Imaging (MSI)
X Series 16 CHO
X Series 12
X Series 12 CHO
X Series 10
X Series 10 CHO
X Series 9
X Series 9 CHO
X Series 7
X Series 7 CHO
X Series 7 ICE

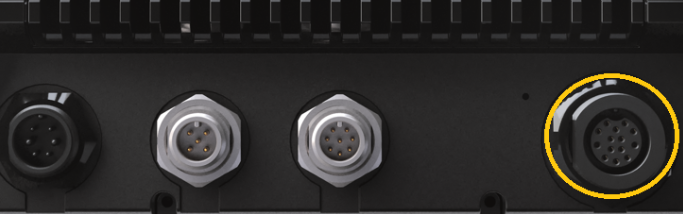

APEX Down Imaging Transducer Port Note: No adapter cable required for APEX to MEGA Down Imaging (MSI) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

APEX Model	Compatible Trolling Motors with Built-in MSI:
APEX 19 MEGA SI+ CHARTPLOTTER	Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Side Imaging (MSI)
APEX 19 MEGA SI+ CHARTPLOTTER CHO
APEX 16 MEGA SI+ CHARTPLOTTER
APEX 16 MEGA SI+ CHARTPLOTTER CHO
APEX 13 MEGA SI+ CHARTPLOTTER
APEX 13 MEGA SI+ CHARTPLOTTER CHO
APEX Side Imaging Transducer Port Note: No adapter cable required for APEX to MEGA Side Imaging (MSI) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

SOLIXSeries Model	Compatible Trolling Motors with Built-in MSI:
SOLIX 15 MEGA SI+ G3	Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Side Imaging (MSI)
SOLIX 15 MEGA SI+ G3 CHO
SOLIX 15 MEGA SI+ G2
SOLIX 15 MEGA DI+ G2 CHO
SOLIX 15 MEGA SI+
SOLIX 15
SOLIX 12 MEGA SI+ G3
SOLIX 12 MEGA SI+ G3 CHO
SOLIX 12 MEGA SI+ G2
SOLIX 12 MEGA DI+ G2 CHO
SOLIX 12 MEGA SI+
SOLIX 12
SOLIX 10 MEGA SI+ G3
SOLIX 10 MEGA SI+ G3 CHO
SOLIX 10 MEGA SI+ G2
SOLIX 10 MEGA DI+ G2 CHO
SOLIX 10 MEGA SI+
SOLIX 10
SOLIX Transducer Port Note: No adapter cable required for SOLIX to MEGA Side Imaging (MSI) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

XPLORE Series Model	Compatible Trolling Motors with Built-in MSI:
XPLORE 12 CMSI+ FISH FINDER	Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Side Imaging (MSI)
XPLORE 12 CMSI+ FISH FINDER CHO
XPLORE 10 CMSI+ FISH FINDER
XPLORE 10 CMSI+ FISH FINDER CHO
XPLORE 9 CMSI+ FISH FINDER
XPLORE 9 CMSI+ FISH FINDER CHO
XPLORE Transducer Port Note: No adapter cable required for XPLORE to MEGA Side Imaging (MSI) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

HELIX 15 and HELIX 12 Models	Compatible Trolling Motors with Built-in MSI:
HELIX 15 CHIRP MEGA SI+ GPS G4N	Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Side Imaging (MSI)
HELIX 15 CHIRP MEGA SI+ GPS G4N (CHO)
HELIX 15 CHIRP MEGA DI+ GPS G4N
HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO)
HELIX 12 CHIRP MEGA SI+ GPS G4N
HELIX 12 CHIRP MEGA SI+ GPS G4N (CHO)
HELIX 12 CHIRP MEGA DI+ GPS G4N
HELIX 12 CHIRP MEGA DI+ GPS G4N (CHO)
HELIX 12 CHIRP GPS G4N
HELIX 12 CHIRP MEGA SI+ GPS G3N
HELIX 12 CHIRP MEGA DI+ GPS G3N
HELIX 12 CHIRP GPS G3N
HELIX 12 CHIRP MEGA SI GPS G2N
HELIX 12 CHIRP MEGA DI GPS G2N
HELIX 10 Models	Compatible Trolling Motors with Built-in MSI:
HELIX 10 CHIRP MEGA SI+ GPS G4N	Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Side Imaging (MSI)
HELIX 10 CHIRP MEGA SI+ GPS G4N (CHO)
HELIX 10 CHIRP MEGA DI+ GPS G4N
HELIX 10 CHIRP MEGA DI+ GPS G4N (CHO)
HELIX 10 CHIRP GPS G4N
HELIX 10 CHIRP MEGA SI+ GPS G3N
HELIX 10 CHIRP MEGA DI+ GPS G3N
HELIX 10 CHIRP GPS G3N
HELIX 10 CHIRP MEGA SI GPS G2N
HELIX 10 CHIRP MEGA DI GPS G2N
HELIX 9 Models	Compatible Trolling Motors with Built-in MSI:
HELIX 9 CHIRP MEGA SI+ GPS G4N	Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Side Imaging (MSI)
HELIX 9 CHIRP MEGA SI+ GPS G4N (CHO)
HELIX 9 CHIRP MEGA DI+ GPS G4N
HELIX 9 CHIRP MEGA DI+ GPS G4N (CHO)
HELIX 9 CHIRP GPS G4N
HELIX 9 CHIRP MEGA SI+ GPS G3N
HELIX 9 CHIRP MEGA DI+ GPS G3N
HELIX 9 CHIRP GPS G3N
HELIX 9 CHIRP MEGA SI GPS G2N
HELIX 9 CHIRP MEGA DI GPS G2N
HELIX 8 Models	Compatible Trolling Motors with Built-in MSI:
HELIX 8 CHIRP MEGA SI+ GPS G4N	Ultrex Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ulterra Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Terrova Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Side Imaging (MSI)
HELIX 8 CHIRP MEGA SI+ GPS G4N (CHO)
HELIX 8 CHIRP MEGA DI GPS G4N
HELIX 8 CHIRP MEGA DI GPS G4N (CHO)
HELIX 8 CHIRP MEGA SI+ GPS G3N
HELIX 8 CHIRP MEGA DI GPS G3N
HELIX 8-15 Transducer Port Dual Spectrum CHIRP (DSC) MKR-MI-1 Adapter Cable: Click here for purchase options For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

X-Series Model	Compatible Trolling Motors with Built-in MDI:
X Series 16	Ultrex Ultrex QUEST with Built-in MEGA Side Imaging (MSI) Ultrex QUEST with Built-in MEGA Down Imaging (MDI) Ultrex with Built-in MEGA Side Imaging (MSI) Ultrex with Built-in MEGA Down Imaging (MDI) Ultrex BT with Built-in MEGA Side Imaging (MSI) Ultrex BT with Built-in MEGA Down Imaging (MDI) Ulterra Ulterra QUEST with Built-in MEGA Side Imaging (MSI) Ulterra QUEST with Built-in MEGA Down Imaging (MDI) Ulterra with Built-in MEGA Side Imaging (MSI) Ulterra with Built-in MEGA Down Imaging (MDI) Ulterra BT with Built-in MEGA Side Imaging (MSI) Ulterra BT with Built-in MEGA Down Imaging (MDI) Terrova Terrova QUEST with Built-in MEGA Side Imaging (MSI) Terrova QUEST with Built-in MEGA Down Imaging (MDI) Terrova with Built-in MEGA Side Imaging (MSI) Terrova with Built-in MEGA Down Imaging (MDI) Terrova BT with Built-in MEGA Side Imaging (MSI) Terrova BT with Built-in MEGA Down Imaging (MDI)
X Series 16 CHO
X Series 12
X Series 12 CHO
X Series 10
X Series 10 CHO
X Series 9
X Series 9 CHO
X Series 7
X Series 7 CHO
X Series 7 ICE
X Series Transducer Ports Note: No adapter cable required for AX Series to MEGA Down Imaging (MDI) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

APEX Series Model	Compatible MDI Trolling Motors
APEX 19 MEGA SI+ CHARTPLOTTER	Compatible Minn Kota Motors equipped with MDI: Terrova equipped with MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Terrova QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Terrova BT equipped with MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex QUEST 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex 2 Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex BT Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra QUEST 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra BT equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI)
APEX 19 MEGA SI+ CHARTPLOTTER CHO
APEX 16 MEGA SI+ CHARTPLOTTER
APEX 16 MEGA SI+ CHARTPLOTTER CHO
APEX 13 MEGA SI+ CHARTPLOTTER
APEX 13 MEGA SI+ CHARTPLOTTER CHO
APEX Down Imaging Transducer Port Note: No adapter cable required for APEX to MEGA Down Imaging (MDI) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

SOLIX Model	Compatible MDI Trolling Motors
SOLIX 15 MEGA SI+ G3	Compatible Minn Kota Motors equipped with MDI: Terrova equipped with MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Terrova QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Terrova BT equipped with MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex QUEST 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex 2 Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex BT Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra QUEST 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra BT equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI)
SOLIX 15 MEGA SI+ G3 CHO
SOLIX 15 MEGA SI+ G2
SOLIX 15 MEGA DI+ G2 CHO
SOLIX 15 MEGA SI+
SOLIX 15
SOLIX 12 MEGA SI+ G3
SOLIX 12 MEGA SI+ G3 CHO
SOLIX 12 MEGA SI+ G2
SOLIX 12 MEGA DI+ G2 CHO
SOLIX 12 MEGA SI+
SOLIX 12
SOLIX 10 MEGA SI+ G3
SOLIX 10 MEGA SI+ G3 CHO
SOLIX 10 MEGA SI+ G2
SOLIX 10 MEGA DI+ G2 CHO
SOLIX 10 MEGA SI+
SOLIX 10
SOLIX Transducer Port Note: No adapter cable required for SOLIX to MEGA Down Imaging (MDI) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

HELIX 7 Models	Compatible MDI Trolling Motors
HELIX 7 CHIRP MEGA SI GPS G4N	Compatible Minn Kota Motors equipped with MDI: Terrova equipped with MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Terrova QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Terrova BT equipped with MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex QUEST 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex 2 Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ultrex BT Equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra QUEST 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra QUEST equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra 2 equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI) Ulterra BT equipped MEGA Down Imaging (MDI) MEGA Side Imaging (MSI)
HELIX 7 CHIRP MEGA DI GPS G4N
HELIX 7 CHIRP MEGA DI GPS G4N (CHO)
HELIX 7 CHIRP MEGA SI GPS G4
HELIX 7 CHIRP MEGA DI GPS G4
HELIX 7 CHIRP MEGA SI GPS G3N
HELIX 7 CHIRP MEGA DI GPS G3N
HELIX 7 CHIRP MEGA SI GPS G3
HELIX 7 CHIRP MEGA DI GPS G3
HELIX 7 Transducer Port MEGA Down Imaging (MDI) MKR-MDI-2 Adapter Cable: Click here for purchase options For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

X Series Model	Compatible DSC Trolling Motors
X Series 16	Compatible Dual Spectrum CHIRP (DSC) equipped trolling motors: Fortrex equipped with Dual Spectrum CHIRP (DSC) PowerDrive 2 equipped with Dual Spectrum CHIRP (DSC) PowerDrive equipped with Dual Spectrum CHIRP (DSC) Terrova equipped with Dual Spectrum CHIRP (DSC) Terrova QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST equipped with Dual Spectrum CHIRP (DSC) Ulterra 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra equipped with Dual Spectrum CHIRP (DSC)
X Series 16 CHO
X Series 12
X Series 12 CHO
X Series 10
X Series 10 CHO
X Series 9
X Series 9 CHO
X Series 7
X Series 7 CHO
X Series 7 ICE
X-Series Transducer Ports Note: No adapter cable required for AX Series to MEGA Down Imaging (MDI) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

SOLIX Series Model	Compatible DSC Trolling Motors
SOLIX 15 MEGA SI+ G3	Compatible Dual Spectrum CHIRP (DSC) equipped trolling motors: Fortrex equipped with Dual Spectrum CHIRP (DSC) PowerDrive 2 equipped with Dual Spectrum CHIRP (DSC) PowerDrive equipped with Dual Spectrum CHIRP (DSC) Terrova equipped with Dual Spectrum CHIRP (DSC) Terrova QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST equipped with Dual Spectrum CHIRP (DSC) Ulterra 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra equipped with Dual Spectrum CHIRP (DSC)
SOLIX 15 MEGA SI+ G3 CHO
SOLIX 15 MEGA SI+ G2
SOLIX 15 MEGA DI+ G2 CHO
SOLIX 15 MEGA SI+
SOLIX 15
SOLIX 12 MEGA SI+ G3
SOLIX 12 MEGA SI+ G3 CHO
SOLIX 12 MEGA SI+ G2
SOLIX 12 MEGA DI+ G2 CHO
SOLIX 12 MEGA SI+
SOLIX 12
SOLIX 10 MEGA SI+ G3
SOLIX 10 MEGA SI+ G3 CHO
SOLIX 10 MEGA SI+ G2
SOLIX 10 MEGA DI+ G2 CHO
SOLIX 10 MEGA SI+
SOLIX 10
SOLIX Transducer Port Note: No adapter cable required for SOLIX to Dual Spectrum CHIRP (DSC) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

XPLORE Model	Compatible DSC Trolling Motors
XPLORE 12 CMSI+ FISH FINDER	Compatible Dual Spectrum CHIRP (DSC) equipped trolling motors: Fortrex equipped with Dual Spectrum CHIRP (DSC) PowerDrive 2 equipped with Dual Spectrum CHIRP (DSC) PowerDrive equipped with Dual Spectrum CHIRP (DSC) Terrova equipped with Dual Spectrum CHIRP (DSC) Terrova QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST equipped with Dual Spectrum CHIRP (DSC) Ulterra 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra equipped with Dual Spectrum CHIRP (DSC)
XPLORE 12 CMSI+ FISH FINDER CHO
XPLORE 10 CMSI+ FISH FINDER
XPLORE 10 CMSI+ FISH FINDER CHO
XPLORE 9 CMSI+ FISH FINDER
XPLORE 9 CMSI+ FISH FINDER CHO
XPLORE Transducer Port Note: No adapter cable required for XPLORE to Dual Spectrum CHIRP (DSC) trolling motor connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

HELIX 7 and ICE HELIX 7 Models	Compatible DSC Trolling Motors
HELIX 7 CHIRP MEGA SI GPS G4N	Compatible Dual Spectrum CHIRP (DSC) equipped trolling motors: Fortrex equipped with Dual Spectrum CHIRP (DSC) PowerDrive 2 equipped with Dual Spectrum CHIRP (DSC) PowerDrive equipped with Dual Spectrum CHIRP (DSC) Terrova equipped with Dual Spectrum CHIRP (DSC) Terrova QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST equipped with Dual Spectrum CHIRP (DSC) Ulterra 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra equipped with Dual Spectrum CHIRP (DSC)
HELIX 7 CHIRP MEGA DI GPS G4N
HELIX 7 CHIRP MEGA DI GPS G4N (CHO)
HELIX 7 CHIRP GPS G4N
HELIX 7 CHIRP MEGA SI GPS G4
HELIX 7 CHIRP SI GPS G4
HELIX 7 CHIRP MEGA SI GPS G3N
HELIX 7 CHIRP MEGA DI GPS G3N
HELIX 7 CHIRP GPS G3N
HELIX 7 CHIRP MEGA SI GPS G3
HELIX 7 CHIRP MEGA DI GPS G3
HELIX 7 CHIRP GPS G3
HELIX 7 CHIRP DI GPS G2N
HELIX 7 CHIRP GPS G2N
HELIX 7 CHIRP SI GPS G2
HELIX 7 CHIRP DI GPS G2
HELIX 7 CHIRP DI G2
HELIX 7 CHIRP GPS G2
ICE HELIX 7 CHIRP GPS G4
ICE HELIX 7 CHIRP GPS G3N
ICE HELIX 7 CHIRP GPS G3
ICE HELIX 7 CHIRP GPS G2N
HELIX 7 Transducer Port Dual Spectrum CHIRP (DSC) MKR-MI-1 Adapter Cable: Click here for purchase options For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.
HELIX 5 and ICE HELIX 5 Models	Compatible DSC Trolling Motors
HELIX 5 CHIRP DI GPS G3	Compatible Dual Spectrum CHIRP (DSC) equipped trolling motors: Fortrex equipped with Dual Spectrum CHIRP (DSC) PowerDrive 2 equipped with Dual Spectrum CHIRP (DSC) PowerDrive equipped with Dual Spectrum CHIRP (DSC) Terrova equipped with Dual Spectrum CHIRP (DSC) Terrova QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex QUEST equipped with Dual Spectrum CHIRP (DSC) Ultrex 2 equipped with Dual Spectrum CHIRP (DSC) Ultrex equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra QUEST equipped with Dual Spectrum CHIRP (DSC) Ulterra 2 equipped with Dual Spectrum CHIRP (DSC) Ulterra equipped with Dual Spectrum CHIRP (DSC)
HELIX 5 CHIRP GPS G3
HELIX 5 CHIRP SI GPS G2
HELIX 5 CHIRP DI GPS G2
HELIX 5 CHIRP GPS G2
ICE HELIX 5 CHIRP GPS G3
ICE HELIX 5 CHIRP G3
ICE HELIX 5 CHIRP GPS G2
ICE HELIX 5 CHIRP G2
HELIX 5 and ICE HELIX 5 Transducer Port Dual Spectrum CHIRP (DSC) MKR-MI-1 Adapter Cable: Click here for purchase options For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

X Series Model	Compatible Equipped with Advanced GPS Navigation Trolling Motors
X Series 16	Compatible Minn Kota Motors Equipped with Advanced GPS Navigation: PowerDrive 2 equipped with Advanced GPS Navigation PowerDrive equipped with Advanced GPS Navigation Riptide Instinct QUEST 2 equipped with Advanced GPS Navigation Riptide Instinct QUEST equipped with Advanced GPS Navigation Riptide PowerDrive 2 equipped with Advanced GPS Navigation Riptide PowerDrive equipped with Advanced GPS Navigation Riptide Terrova equipped with Advanced GPS Navigation Riptide Terrova QUEST equipped with Advanced GPS Navigation Terrova QUEST equipped with Advanced GPS Navigation Ultrex QUEST 2 equipped with Advanced GPS Navigation Ultrex QUEST equipped with Advanced GPS Navigation Ultrex 2 equipped with Advanced GPS Navigation Ultrex equipped with Advanced GPS Navigation Ulterra QUEST 2 equipped with Advanced GPS Navigation Ulterra QUEST equipped with Advanced GPS Navigation Ulterra 2 equipped with Advanced GPS Navigation Ulterra equipped with Advanced GPS Navigation
X Series 16 CHO
X Series 12
X Series 12 CHO
X Series 10
X Series 10 CHO
X Series 9
X Series 9 CHO
X Series 7
X Series 7 CHO
X Series 7 ICE
X Series Ethernet Port Additional Accessories Ethernet Cable available in 5 ft., 10 ft, 15 ft., 20 ft., and 30 ft. length allows the connection of two Ethernet capable units to be connected, or connection of a Humminbird control head to an accessory 5 Port Ethernet Switch (AS ETH 5PXG and AS ETH 5PGL), as part of a multi-unit Ethernet network. AS ECX 30E - 30 ft., Ethernet Extension Cable The Ethernet Extension Cable is a 30' cable that allows you to extend the length of your ethernet cables. Compatible With - Ethernet Cables AS EC 5E, AS EC 10E, AS EC 15E, AS EC 20E, AS EC 30E. Note: APEX does not require an ethernet adaptor cable to connect to trolling motor ethernet connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

1100, 900, 800, 700 Series Models	Compatible US2 Trolling Motors
1199ci HD SI Combo	Compatible Minn Kota Motors equipped with US2: PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
1198c SI Combo
1159ci HD Combo
1158c Combo
999ci HD SI Combo KVD
999ci HD SI Combo
998c HD SI Combo
998c SI Combo
959ci HD Combo
958c HD Combo
958c Combo
899 ci HD SI Combo
898c HD SI Combo
898c SI Combo
859ci HD Combo
858c HD Combo
858c Combo
788ci HD Combo
778c HD MKR-US2
718
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

600, 500, 300 and PiranhaMAX Series	Adaptor Cable Needed
688 ci HD Combo	Compatible Minn Kota Motors equipped with US2: PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
678c HD Combo
678c HD
597ci HD Combo
597ci Combo
596c HD Combo
587ci HD
586c HD
581i Combo
570
561
560
386ci Combo
385ci Combo
365i Combo
345c
325
PiranhaMAX 155
Universal Sonar 2 MKR-US2 8 Adapter Cable: MKR-US2 8 Click here for purchase options For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

SOLIX Model	Compatible Equipped i-Pilot Link Motors
SOLIX 15 CHIRP MEGA SI+ G3	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link Non BT (SOLIX Software Version 4.210 or below required) PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Non BT (SOLIX Software Version 4.210 or below required) Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Non BT (SOLIX Software Version 4.210 or below required) Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Non BT (SOLIX Software Version 4.210 or below required) Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Non BT (SOLIX Software Version 4.210 or below required) Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Non BT (SOLIX Software Version 4.210 or below required) Ulterra w/ i-Pilot Link BT
SOLIX 15 CHIRP MEGA SI+ G2
SOLIX 15 CHIRP MEGA DI+ G2
SOLIX 15 CHIRP MEGA SI GPS
SOLIX 15 CHIRP GPS
SOLIX 12 CHIRP MEGA SI+ GPS G3
SOLIX 12 CHIRP MEGA SI+ GPS G2
SOLIX 12 CHIRP MEGA DI+ GPS G2
SOLIX 12 CHIRP MEGA SI GPS
SOLIX 12 CHIRP GPS
SOLIX 10 CHIRP MEGA SI+ GPS G3
SOLIX 10 CHIRP MEGA SI+ GPS G2
SOLIX 10 CHIRP MEGA DI+ GPS G2
SOLIX 10 CHIRP MEGA SI GPS
SOLIX 10 CHIRP GPS
SOLIX Ethernet Port Additional Accessories Ethernet Cable available in 5 ft., 10 ft, 15 ft., 20 ft., and 30 ft. length allows the connection of two Ethernet capable units to be connected, or connection of a Humminbird control head to an accessory 5 Port Ethernet Switch (AS ETH 5PXG and AS ETH 5PGL), as part of a multi-unit Ethernet network. AS ECX 30E - 30 ft., Ethernet Extension Cable The Ethernet Extension Cable is a 30' cable that allows you to extend the length of your ethernet cables. Compatible With - Ethernet Cables AS EC 5E, AS EC 10E, AS EC 15E, AS EC 20E, AS EC 30E. Note: SOLIX does not require an ethernet adaptor cable to connect to trolling motor ethernet connection. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

HELIX 15 and 12 Models	Compatible Equipped i-Pilot Link Motors
HELIX 15 CHIRP MEGA SI+ GPS G4N*	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
HELIX 15 CHIRP MEGA DI+ GPS G4N (CHO)*
HELIX 12 CHIRP MEGA SI+ GPS G4N*
HELIX 12 CHIRP MEGA DI+ GPS G4N*
HELIX 12 CHIRP GPS G4N*
HELIX 12 CHIRP MEGA SI+ GPS G3N*
HELIX 12 CHIRP MEGA DI+ GPS G3N*
HELIX 12 CHIRP GPS G3N*
HELIX 12 CHIRP MEGA SI GPS G2N*
HELIX 12 CHIRP MEGA DI GPS G2N*
HELIX 12 CHIRP DI GPS G2N*
HELIX 12 CHIRP GPS G2N*
HELIX 12 CHIRP SI GPS KVD G1N*
HELIX 12 CHIRP SI GPS G1N*
HELIX 12 CHIRP DI GPS G1N*
HELIX 12 CHIRP GPS G1N*
HELIX 10 Models	Compatible Equipped i-Pilot Link Motors
HELIX 10 CHIRP MEGA SI+ GPS G4N*	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
HELIX 10 CHIRP MEGA DI+ GPS G4N*
HELIX 10 CHIRP GPS G4N*
HELIX 10 CHIRP MEGA SI+ GPS G3N*
HELIX 10 CHIRP MEGA DI+ GPS G3N*
HELIX 10 CHIRP GPS G3N*
HELIX 10 CHIRP MEGA SI GPS G2N*
HELIX 10 CHIRP DI GPS G2N*
HELIX 10 CHIRP GPS G2N*
HELIX 10 SI GPS KVD G1N*
HELIX 10 SI GPS G1N*
HELIX 10 DI GPS G1N*
HELIX 10 SONAR GPS G1N*
HELIX 9 Models	Compatible Equipped i-Pilot Link Motors
HELIX 9 CHIRP MEGA SI+ GPS G4N*	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
HELIX 9 CHIRP MEGA DI+ GPS G4N*
HELIX 9 CHIRP GPS G4N*
HELIX 9 CHIRP MEGA SI+ GPS G3N*
HELIX 9 CHIRP MEGA DI+ GPS G3N*
HELIX 9 CHIRP GPS G3N*
HELIX 9 CHIRP MEGA SI GPS G2N*
HELIX 9 CHIRP DI GPS G2N*
HELIX 9 CHIRP GPS G2N*
HELIX 9 SI GPS KVD G1N*
HELIX 9 SI GPS G1N*
HELIX 9 DI GPS G1N*
HELIX 9 SONAR GPS G1N*
HELIX 8 Models	Compatible Equipped i-Pilot Link Motors
HELIX 8 CHIRP MEGA SI+ GPS G4N*	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
HELIX 8 CHIRP MEGA DI+ GPS G4N*
HELIX 8 CHIRP GPS G4N*
HELIX 8 CHIRP MEGA SI+ GPS G3N*
HELIX 8 CHIRP MEGA DI GPS G3N*
HELIX 8 CHIRP GPS G3N*
HELIX 8-15 Ethernet Port Ethernet Adapter Cable: AS ES QDE- Ethernet Adapter Cable Click her for purchase options Additional Accessories* Ethernet Cable available in 5 ft., 10 ft, 15 ft., 20 ft., and 30 ft. length allows the connection of two Ethernet capable units to be connected, or connection of a Humminbird control head to an accessory 5 Port Ethernet Switch (AS ETH 5PXG and AS ETH 5PGL), as part of a multi-unit Ethernet network. AS ECX 30E - 30 ft., Ethernet Extension Cable The Ethernet Extension Cable is a 30' cable that allows you to extend the length of your ethernet cables. Compatible With - Ethernet Cables AS EC 5E, AS EC 10E, AS EC 15E, AS EC 20E, AS EC 30E. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

HELIX 7 Models	Compatible Equipped i-Pilot Link Motors
HELIX 7 CHIRP MEGA SI GPS G4N*	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
HELIX 7 CHIRP MEGA DI GPS G4N*
HELIX 7 CHIRP MEGA DI GPS G4N (CHO)*
HELIX 7 CHIRP GPS G4N*
HELIX 7 CHIRP MEGA SI GPS G3N*
HELIX 7 CHIRP MEGA DI GPS G3N*
HELIX 7 CHIRP GPS G3N*
HELIX 7 CHIRP SI GPS G2N*
HELIX 7 CHIRP DI GPS G2N*
HELIX 7 CHIRP GPS G2N*
HELIX 8-15 Ethernet Port *Note: All HELIX G1N, G2N, G3N, G4N require Ethernet Adapter Cable: AS ES QDE- Ethernet Adapter Cable Click her for purchase options Additional Accessories** Ethernet Cable available in 5 ft., 10 ft, 15 ft., 20 ft., and 30 ft. length allows the connection of two Ethernet capable units to be connected, or connection of a Humminbird control head to an accessory 5 Port Ethernet Switch (AS ETH 5PXG and AS ETH 5PGL), as part of a multi-unit Ethernet network. AS ECX 30E - 30 ft., Ethernet Extension Cable The Ethernet Extension Cable is a 30' cable that allows you to extend the length of your ethernet cables. Compatible With - Ethernet Cables AS EC 5E, AS EC 10E, AS EC 15E, AS EC 20E, AS EC 30E. For additional accessories (extension cables, Y‑cables, or switches), see the Accessory Resources Guide.

1100 Series Models	Compatible Equipped i-Pilot Link Motors
1158c Combo	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
1158c DI Combo
1158cx XD Combo
1159ci HD Combo
1159ci HD DI Combo*
1159ci HD XD Combo*
1198c SI Combo
1158c Combo
900 Series Models	Compatible Equipped i-Pilot Link Motors
958c Combo	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
958c HD Combo
958c DI Combo
958c HD DI Combo
958cx HD XD Combo
959ci HD Combo*
959ci HD DI Combo*
959ci HD XD Combo*
998c HD SI Combo
998c SI Combo
999ci HD SI Combo*
800 and 700 Series Models	Compatible Equipped i-Pilot Link Motors
858c Combo	Compatible Minn Kota Motors Equipped with i-Pilot Link: PowerDrive w/ i-Pilot Link PowerDrive w/ i-Pilot Link BT Riptide PowerDrive w/ i-Pilot Link Riptide PowerDrive w/ i-Pilot Link BT Riptide Terrova w/ i-Pilot Link Riptide Terrova w/ i-Pilot Link BT Riptide Ulterra w/ i-Pilot Link Riptide Ulterra w/ i-Pilot Link BT Terrova w/ i-Pilot Link Terrova w/ i-Pilot Link BT Ultrex w/ i-Pilot Link BT Ulterra w/ i-Pilot Link Ulterra w/ i-Pilot Link BT
858c HD Combo
858c DI Combo
858c HD DI Combo
858cx HD XD Combo
859ci HD Combo*
859ci HD DI Combo*
859ci HD XD Combo*
898c SI Combo
898c HD SI Combo
899ci HD SI Combo*
788ci HD XD Combo*
788ci HD DI Combo*
788ci HD Combo*
798ci HD SI Combo*
Ethernet Adapter Cable: AS ES QDE- Ethernet Adapter Cable Click her for purchase options Additional Accessories* Ethernet Cable available in 5 ft., 10 ft, 15 ft., 20 ft., and 30 ft. length allows the connection of two Ethernet capable units to be connected, or connection of a Humminbird control head to an accessory 5 Port Ethernet Switch (AS ETH 5PXG and AS ETH 5PGL), as part of a multi-unit Ethernet network. AS ECX 30E - 30 ft., Ethernet Extension Cable The Ethernet Extension Cable is a 30' cable that allows you to extend the length of your ethernet cables. Compatible With - Ethernet Cables AS EC 5E, AS EC 10E, AS EC 15E, AS EC 20E, AS EC 30E.

Garmin Striker Series Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
Striker 4	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
Striker 4cv
Striker 5cv
Striker 7cv
Striker PLUS 4
Striker PLUS 4cv
Striker PLUS 5cv
Striker 7cv
Striker PLUS 7sv
Striker PLUS 9sv
Striker VIVID 4cv
Striker VIVID 5cv
Striker VIVID 7cv
Striker VIVID 7sv
Striker VIVID 9sv
Universal Sonar 2 Adapter Cable: MKR-US2-12 Click here for purchase options

Garmin echoMap Series Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
ECHOMAP 94sv*	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
ECHOMAP 93sv*
ECHOMAP 74sv*
ECHOMAP 73sv*
ECHOMAP 70s
ECHOMAP 70dv
ECHOMAP 50s
ECHOMAP 50dv
ECHOMAP CHIRP 94sv*
ECHOMAP CHIRP 93sv*
ECHOMAP CHIRP 74sv*
ECHOMAP CHIRP 73sv*
ECHOMAP Plus 73cv
ECHOMAP Plus 74cv
ECHOMAP Plus 73sv*
ECHOMAP Plus 74sv*
ECHOMAP Plus 93sv*
ECHOMAP Plus 94sv*
ECHOMAP UHD 73cv
ECHOMAP UHD 74cv
ECHOMAP UHD 73sv*
ECHOMAP UHD 74sv*
ECHOMAP UHD 93sv*
ECHOMAP UHD 94sv*
ECHOMAP Ultra 102/106sv*
ECHOMAP Ultra 122/126sv*
Universal SONAR 2 MKR-US2-14 Adapter Cable: MKR-US2-14 Click here for purchase options Note:*Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number 010-12122-10, sold separately
Garmin echoMap Series Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
ECHOMAP 74dv	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
ECHOMAP 73dv
ECHOMAP 54dv
ECHOMAP 53dv
ECHOMAP 44dv
ECHOMAP 43dv
ECHOMAP CHIRP 74cv
ECHOMAPP CHIRP 73dv
ECHOMAP CHIRP 54cv
ECHOMAP CHIRP 53cv
ECHOMAP CHIRP 44cv
ECHOMAP CHIRP 43cv
ECHOMAP CHIRP 73cv
ECHOMAP Plus 43cv
ECHOMAP Plus 44cv
ECHOMAP Plus 63cv
ECHOMAP Plus 64cv
ECHOMAP CHIRP 53cv
ECHOMAP CHIRP 44cv
ECHOMAP CHIRP 43cv
ECHOMAP CHIRP 73cv
ECHOMAP Plus 43cv
ECHOMAP Plus 44cv
ECHOMAP Plus 63cv
ECHOMAP Plus 64cv
ECHOMAP UHD 43cv
ECHOMAP UHD 44cv
ECHOMAP UHD 63cv
ECHOMAP UHD 64cv
Universal SONAR 2 MKR-US2-12 Adapter Cable: MKR-US2-12 Click here for purchase options Note:*Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number 010-12122-10, sold separately

Garmin GPSMAP Series Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
GPSmap 742/722xs Plus	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
GPSmap 942/922xs Plus
GPSmap 1242/1222xsv Plus *
GPSmap 743/723xsv *
GPSmap 943/923xsv *
GPSmap 1243/1223xsv *
GPSmap 8410/8610xsv *
GPSmap 8412/8612xsv *
GPSmap 8416/8616xsv *
GPSmap 1242xsv*
GPSmap 1222xsv*
GPSmap 1042xsv*
GPSmap 1022xsv*
GPSmap 1040xs
GPSmap 1020xs
GPSmap 942xs
GPSmap 922xs
GPSmap 840xs
GPSmap 820xs
GPSmap 7616xsv
GPSmap 7612xsv
GPSmap 7619xsv
GPSmap 7610xsv
GPSmap 7608xsv
GPSmap 7607xsv
GPSmap 742xs
GPSmap 722xs
GPSmap 741xs
GPSmap 721xs
GPSmap 527xs
GPSmap547xs
Universal SONAR 2 MKR-US2-14 Adapter Cable: MKR-US2-14 Click here for purchase options NOTE: *Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number 010-12122-10, sold separately.
Garmin GPSMAP Series Model Continued:	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
GPSMAP 536s	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
GPSMAP 535s
GPSMAP 531s
GPSMAP 530s
GPSMAP 431s
GPSMAP 430s
GPSMAP 198C
GPSMAP 188
GPSMAP 178C
GPSMAP 168
Universal SONAR 2 MKR-US2-1 Adapter Cable: MKR-US2-1 Click here for purchase options NOTE: *Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number 010-12122-10, sold separately.

Garmin echo Series Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
ECHO 551dv	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
ECHO 551c
ECHO 550
ECHO 501c
ECHO 500c
ECHO 301dv
ECHO 300c
ECHO 201dv
ECHO 201
ECHO 151dv
ECHO 151
ECHO 101
ECHO 100
Universal SONAR 2 MKR-US2-12 Adapter Cable: MKR-US2-12 Click here for purchase options NOTE: *Also requires Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID Garmin part number: 010-12122-10

Garmin Fish Finder Series Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
Fishfinder 80*	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
Fishfinder 90*
Fishfinder 100*
Fishfinder 120*
Fishfinder 140*
Fishfinder 160
Fishfinder 160C
Fishfinder 240
Fishfinder 250
Fishfinder 250C
Fishfinder 300C
Fishfinder 320C
Fishfinder 340C
Fishfinder 400C
Universal SONAR 2 MKR-US2-1 Adapter Cable: MKR-US2-1 Click here for purchase options NOTE: *Also requires Garmin power/data cable, part number 010-10145-00, sold separately

Jump To:

Built-In MEGA Side Imaging (MSI) Compatibility

X Series MEGA Side Imaging (MSI) Compatibility

APEX Series MEGA Side Imaging (MSI) Compatibility

SOLIX Series MEGA Side Imaging (MSI) Compatibility

XPLORE Series MEGA Side Imaging (MSI) Compatibility

HELIX Series 15-8 MEGA Side Imaging (MSI) Compatibility

Built-In MEGA Down Imaging (MDI) Compatibility

X Series MEGA Down Imaging (MDI) Compatibility

APEX MEGA Down Imaging (MDI) Compatibility

SOLIX MEGA Down Imaging (MDI) Compatibility

XPLORE MEGA Down Imaging (MDI) Compatibility

HELIX 15-8 MEGA Down Imaging (MDI) Compatibility

HELIX 7 MEGA Down Imaging (MDI) Compatibility

Built-In Dual Spectrum CHIRP (DSC) Compatibility

X Series MEGA Down Imaging (MDI) Compatibility

APEX Dual Spectrum CHIRP (DSC) Compatibility

SOLIX Dual Spectrum CHIRP (DSC) Compatibility

XPLORE Dual Spectrum CHIRP (DSC) Compatibility

HELIX 15, 12, 10, 9, 8, Ice HELIX 9 Dual Spectrum CHIRP (DSC) Compatibility

HELIX 7, 5 and ICE HELIX 7 and 5 Dual Spectrum CHIRP (DSC) Compatibility

Garmin Fish Finders and Dual Spectrum CHIRP (DSC) Compatibility

Lowrance Fish Finders and Dual Spectrum CHIRP (DSC) Compatibility

Built-In Advanced GPS Navigation Compatibility

X Series and Advanced GPS Navigation Compatibility

APEX Series and Advanced GPS Navigation Compatibility

SOLIX Series and Advanced GPS Navigation Compatibility

XPLORE Series and Advanced GPS Navigation Compatibility

HELIX Series 15-8 and Advanced GPS Navigation Compatibility

Humminbird & Built-In Universal Sonar 2 (US2) Compatibility

APEX Series Universal Sonar 2 (US2) Compatibility

SOLIX Series Universal Sonar 2 (US2) Compatibility

XPLORE Series Universal Sonar 2 (US2) Compatibility

HELIX 15-8 Series Universal Sonar 2 (US2) Compatibility

HELIX 7 and 5 Series Universal Sonar 2 (US2) Compatibility

ONIX Series Universal Sonar 2 (US2) Compatibility

1100, 900, 800, and 700 Series Universal Sonar 2 (US2) Compatibility

600, 500,300, and PiranhaMAX Series Universal Sonar 2 (US2) Compatibility

i-Pilot Link Equipped Trolling Motor Compatibility

APEX i-Pilot Link Equipped Trolling Motor Compatibility

SOLIX i-Pilot Link Equipped Trolling Motor Compatibility

XPLORE i-Pilot Link Equipped Trolling Motor Compatibility

HELIX 15-8 i-Pilot Link Equipped Trolling Motor Compatibility

HELIX 7 i-Pilot Link Equipped Trolling Motor Compatibility

ONIX and ION i-Pilot Link Equipped Trolling Motor Compatibility

1100, 900, 800, and 700 i-Pilot Link Equipped Trolling Motor Compatibility

Garmin Universal Sonar 2 (US2) Compatibility

Garmin Striker Series Compatibility with Universal Sonar 2 (US2)

Garmin ECHOMAP Series Compatibility with Universal Sonar 2 (US2)

Garmin GPSMAP Series

Garmin echo Series Universal Sonar 2 (US2) Compatibility

Garmin Fish Finder Series Universal Sonar 2 (US2) Compatibility

Lowrance Universal Sonar 2 (US2) Compatibility

LOWRANCE HOOK SERIES

LOWRANCE HOOK 2 SERIES

LOWRANCE REVEAL SERIES

LOWRANCE HDS SERIES

LOWRANCE ELITE SERIES

LOWRANCE MARK SERIES

LOWRANCE LCX SERIES

LOWRANCE LMS SERIES

LOWRANCE M SERIES

LOWRANCE X SERIES

EAGLE & Built-In Universal Sonar 2 (US2) Compatibility

EAGLE Fish Finders and Universal Sonar 2 (US2) Compatibility

Resources

Articles in this section

Hook Series	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
Hook 3x * MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured)	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
Hook 4 MKR-US2-10 Click to buy
Hook 5 MKR-US2-10 Click to buy
Hook 7 MKR-US2-10 Click to buy
Hook 9 MKR-US2-10 Click to buy
*Universal Sonar 2 (US2) MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured) Unfortunately this cable is obsolete you can use the item number to search through other sources.
Universal Sonar 2 (US2) Adapter Cable MKR-US-10: MKR-US2-10 Click for purchase options

Hook 2 Series	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
Hook 2 4X*	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
Hook 2 5X***
Hook 2 5***
Hook 2 7X***
Hook 2 7***
Hook 2 9***
Hook 2 12***
Also requires Lowrance adapter cable part number 000-14070-001 **Can also use a MKR-US2-10 along with a Lowrance adapter cable part number 000-14068-001 Needed
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options Note: Also requires Lowrance adapter cable part number 000-14070-001 Universal Sonar 2 (US2) MKR- US2-15:* Click here for purchase options Note: ***Can also use a MKR-US2-10 along with a Lowrance adapter cable part number 000-14068-001 Needed

Lowrance Reveal Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
Hook Reveal 5X***	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
Hook Reveal 5***
Hook Reveal 7X***
Hook Reveal 7***
Hook Reveal 9***
Universal Sonar 2 (US2) MKR- US2-15: Click here for purchase options Note: ***Can also use a MKR-US2-10 along with a Lowrance adapter cable part number 000-14068-001

Lowrance HDS Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
HDS Carbon 7	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
HDS Carbon 9
HDS Carbon 12
HDS Carbon 16
HDS-12 Gen 3
HDS-12 Gen 2 Touch
HDS-12 Gen 2
HDS-12
HDS-10
HDS-9 Gen 3
HDS-9 Gen 2 Touch
HDS-9 Gen 2
HDS-9
HDS-8
HDS-7 Gen 3
HDS-7 Gen 2 Touch
HDS-7 Gen 2
HDS-5X
HDS-5
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options Note: *Also requires Lowrance adapter cable part number 000-14070-001
HDS Live Series Continued	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
HDS-16 Live*	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
HDS-12 Live*
HDS-9 Live*
HDS-7 Live*
Universal Sonar 2 (US2) MKR- US2-16: Click here for Purchase Options Note: *Can also use an MKR-US2-10 along with a Lowrance adapter cable part number 000-13313-001

Lowrance Elite Series	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
Elite FS 7*	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
Elite FS 9*
Elite-7 Ti²*
Elite-9 Ti²*
Elite-12 Ti²*
Elite-5 Ti*
Elite-7 Ti*
Elite-9 Ti*
Elite-12 Ti*
Universal Sonar 2 (US2) MKR- US2-16: Click here for Purchase Options Note: *Can also use an MKR-US2-10 along with a Lowrance adapter cable part number 000-13313-001
Elite Series Continued	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
Elite-5X * MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured)	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
Elite-5 * MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured)
Elite-4X* MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured)
Elite-4 * MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured)
Universal Sonar 2 (US2) MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured) Unfortunately this cable is obsolete you can use the item number to search through other sources.

LCX Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
LCX-113C	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
LCX-112C
LCX-111C
LCX-110C
LCX-38C
LCX-37C
LCX-28C
LCX-27C
LCX-26C
LCX-25C
LCX-17M
LCX-20C
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options

LMS Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
LMS-527C	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
LMS-525C
LMS-522C
LMS-520C
LMS-480 DF
LMS-489
LMS-339C
LMS-337
LMS-335C DF
LMS-334C
LMS-332C
LMS-330C
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options

X Model	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
X-515C	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
X-510C
X-136 DF
X-135
X-126 DF
X-125
X-107C DF
X-105C DF
X-102C
X-100C
X-59 DF
X-52
Universal Sonar 2 (US2) MKR- US2-10: Click here for purchase options
Lowrance X Series Continued	Compatible Equipped Universal Sonar 2 (US2) Trolling Motors
X-96 MKR-US2-9 (Obsolete)	Compatible Minn Kota Motors equipped with US2: Fortrex equipped with Universal Sonar 2 (US2) PowerDrive BT equipped with Universal Sonar 2 (US2) PowerDrive V2 equipped with Universal Sonar 2 (US2) Terrova BT equipped with Universal Sonar 2 (US2) Terrova equipped with Universal Sonar 2 (US2) Ultrex BT equipped with Universal Sonar 2 (US2) Ulterra BT equipped with Universal Sonar 2 (US2) Ulterra equipped with Universal Sonar 2 (US2)
X-86DS MKR-US2-9 (Obsolete)
X-67C MKR-US2-9 (Obsolete)
X-50DS MKR-US2-9 (Obsolete)
X-47EX MKR-US2-9 (Obsolete)
X-47 MKR-US2-9 (Obsolete)
X-4 Pro MKR-US2-9 (Obsolete)
X-4 MKR-US2-9 (Obsolete)
Universal Sonar 2 (US2) MKR-US-9 Adapter Cable: Item #1852069 (no longer manufactured) Unfortunately this cable is obsolete you can use the item number to search through other sources.
