Hard to find Fishfinder and Fishfinder Accessory Parts

Need help locating any of these items?  Below is a list of parts that you might have issues finding on our website or other sources.  Some of these parts may only be available by contacting Humminbird Imaging Technical Support.

Mounting Hardware (Not ICE)

• Gimbal Knobs

  • APEX 13/16, SOLIX, XPLORE : 740197-1
  • APEX 19 : 410974-1 (only available via phone sales)
  • MKH HS HELIX 5 & 7 : 740196-1
    • Except HELIX 7 G4N
  • MKH HL HELIX 8-12 : 740195-1
    • Also used with HELIX 7 G4N
  • HELIX 15 MKH H15 : 740213-1
  • MKH 3 (1100 Series) : 740100-1 No longer available
  • MKH 2 (800 & 900 Series) : 740082-1

• Mounting Brackets/Hardware

  • APEX
    • GM A13 (APEX 13) : 740186-1
    • GM A16 (APEX 16) : 740187-1
    • GM A19 (APEX 19) : 740188-1
  • HELIX
    • GM H5 (HELIX 5) : 740143-1
    • GM H7R2 (HELIX 7 G4N) : 740199-1
    • GM H7 (All other HELIX 7) : 740146-1
    • GMM H7 (Metal Alt. HELIX 7) : 740163-1
    • GM H910 (HELIX 8, 9, 10) : 740149-1
    • GM H12 (HELIX 12) : 740151-1
    • GM H15 (HELIX 15) : 740189-1
  • MKGM X7 ICE (X7 ICE) : 740258-1
  • SOLIX
    • GM S10 (SOLIX 10) : 740172-1
    • GM S12 (SOLIX 12) : 740164-1
    • GM S15 (SOLIX 15) : 740165-1
  • X Series
    • GM X7 (X7) : 740256-1
    • X9
    • X10
    • X12
    • GM X16 (X16) : 740253-1
  • XPLORE
    • GM X9 (XPLORE 9) : 740233-1
    • GM X10 (XPLORE 10) : 740234-1
    • GM X12 (XPLORE 12) : 740235-1
  • Legacy
    • GM 2 (800/900 Series) : 740083-1 (only available via phone sales)
    • GM 3 (1100 Series) : 740099-1 (only available via phone sales)
    • MS M (100/300/500/700/MATRIX) : 740077-1 - No longer available
    • MS 700E (600 & 700 HD) : 740119-1 - No longer available
    • BMB2 (Fishin' Buddy) : 740153-1 - No longer available
  • Other Mounting
    • MS PM2 (PMAX) : 740131-1
    • MHX HB2124 (CHIRP Radar) : 740169-1

Unit Covers

• APEX

  • UC A13 (APEX 13) : 780039-1
  • UC A16 (APEX 16) : 780040-1
  • UC A19 (APEX 19) : 780041-1

• HELIX

  • UC H5 (HELIX 5 Neoprene) : 780028-1
  • UC H7 (HELIX 7 Neoprene) : 780029-1
  • UC H7R2 (HELIX 7 Silicone) : 780044-1
  • UC H89 (HELIX 8 & HELIX 9 G3/G4) : 780038-1
  • UC H910 (HELIX 9 G1/G2 & HELIX 10) : 780030-1
  • UC H12 (HELIX 12) : 780031-1
  • UC H15 (HELIX 15) : 780042-1

• SOLIX

  • UC S10 (SOLIX 10) : 780037-1
  • UC S12 (SOLIX 12) : 780034-1
  • UC S15 (SOLIX 15) : 780035-1

• XPLORE

  • UC X9 (XPLORE 9) : 780047-1
  • UC X10 (XPLORE 10) : 780048-1
  • UC X12 (XPLORE 12) :  780049-1

• Legacy

  • UC 3 (500/600/700 Series) : 780010-1 : No longer available
  • MC W (Connector Panel Cover) : 740036-1 No longer available

• PiranhaMAX

  • UCPM 4 (PiranhaMAX 4 Neoprene) : 780033-1
  • UC 7 (All other PiranhaMAX Neoprene) : 780016-1

Power Cables

• PC 10 (HELIX 5/7 and Legacy - Unfiltered) - No longer available
• PC 11 (HELIX and Legacy - Filtered)
• PC 12 (SOLIX & ONIX)
• PC 12 ST (SOLIX & ONIX w/Speed and Temp Adapter)
• PC 13 (X Series, APEX, XPLORE & MEGA Live/TargetLock)
• PC 2 (ION, SM 1000, 2000, 3000, and AS 360 SSI)
• PC ES (AS ETH 5PGL and AS ETH 5PXG) : 720121-1
• ICE Power Cable (Portable and ICE HELIX/Flasher) : 490336-2  (only available via phone sales)
  • Not used with new HELIX ICE Conversion Kit
• ICE Power Backbone - 490598-1 (only available via phone sales)
• MEGA Live ICE Power Cable : 490599-1 (only available via phone sales)
• PC GPS N2K Y (AS GPS HS N2K (NMEA 2000) GPS + Heading Sensor - Y Power Cable) : 720122-1
• PC GPS SAE (AS GPS HS N2K (NMEA 2000) GPS + Heading Sensor - Power Adapter ) : 720123-1
• PC HB2124 (CHIRP Radar)
• MEGA 360 PC (MEGA 360)
• MEGA 360 PC BL (MEGA 360 for Brushless [QUEST] motors) 720120-1)
• MEGA 360 ICE Power Cable : 490600-1 (only available via phone sales)
• PC HELIX 12V DC (HELIX - 12V Vehicle Outlet)
• HB NMEA 2000 Power T M (NMEA 2K Backbone)

Cable Management

• HCCT (HELIX 8-15 Cable Tray) : 740184-1
• MBCC 1100ci (1100 series) : 540234-1
• MBCC 900 (858c, 858c DI, 858c HD, 858c HD DI, 898c SI, 958c DI, 958c HD DI, 998c SI) : 740129-1 - No longer available
• MBCC 900ci (859ci HD, 859ci HD DI, 859ci HD XD, 899ci HD SI, 959ci HD, 959ci HD DI, 959ci HD XD, 999ci HD SI) : 740144-1 - No longer available

Miscellaneous

• Card Reader Door (HELIX 5 & 7) : 790098-1
• FB BP1 (Fishin' Buddy 110, 120, 130, 140c Battery Pack) : 430021-1 - No longer available
• FB BP2 (Fishin' Buddy MAX & MAX DI Battery Pack) : 430020-1
• Ferrite Steward : 790097-1

ICE HELIX Conversion Kit

• ICE HELIX Shuttle Replacement Parts - 780046-1 - HELIX 7/8/9/10
• ICE XPLORE Shuttle Conversion Kit - 700071-1 - XPLORE 9/10/12
• MKH HL - ICE HELIX 7/8/9/10 Mounting Knobs (For HELIX ICE Conversion Kit - 740202-1)
• ICE HELIX Battery Cover - 780045-1
• ICE Shuttle Rod Holder - 740203-1 (does not come with 1/4-20x5/8 SST mounting screw)
• ICE Power Backbone Cable - 490598-1  (only available via phone sales)
• ICE HELIX 7 (non G4N) Gimbal - 740230-1
• ICE HELIX 7 G4N Gimbal - 740231-1
• ICE HELIX 8/9/10 Mounting Bracket - 740232-1
• ICE Transducer Cup - 411657-1 (does not come with 1/4-20x5/8 SST mounting screw) (only available via phone sales)
• GIMBAL MT- ICE - Hardware Bag - 540299-1  (gimbal mounts sold separately)(only available via phone sales)
• HCCT - 740184-1 - Cable Connector Tray
• MHX ICE (ICE HELIX Shuttle Replacement Float) - 740105-1 -  HELIX and XPLORE Ice transducer float

ICE Flasher

• MKH 2 - 740082-1 - Mounting Knobs
• IFCD 1 - 740209-1 - ICE Flasher Knobs for ICE 35/45/55
• CC ICE - 780015-1 - Soft Sided carrying Case
• MHX ICE - 740105-1 - Mounting Hardware & Transducer Float
• ICE Power Cable - 490336-2 - works with ICE/Portable HELIX 5  (only available via phone sales)
• ICE Flasher Motor - 455022-2  No longer available

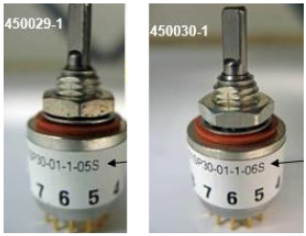

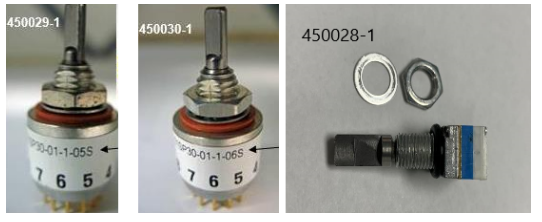

• Ice Flasher Switches
  • ICE 35 Power/Range Dial (Bottom) Switch - 450029-1 No longer available
  • ICE 45/55 Power/Range Dial (Bottom) Switch - 450030-1 No longer available


ICE Other

• ICE Shuttle Handle - 406635-1  (only available via phone sales)
• ICE Shuttle Base - 407066-1  (only available via phone sales)
• GM H5 (ICE HELIX 5 Gimbal) - 740143-1
• MKH ICE H5 FB (ICE HELIX 5 Mounting Knobs) - 740207-1
• MEGA Live ICE Power Cable - 490599-1 (only to be used with the ICE HELIX Conversion Kit)
  • Otherwise use the standard PC 13 power cable.
• ICE Heading Sensor Mount - 411607-1  (only available via phone sales)

Portable

• Portable Base - 406637-3 (only available via phone sales)
• Portable Handle - 406635-1 (only available via phone sales)
• MHX XNPT (Suction Cup Mount) - 740090-1
• Padded Bag (All Season) - 409528-1  (only available via phone sales)
• Portable Kit Transducer Extension - 490314-1 (only available via phone sales)

Battery

• ICE Product Battery Charger: 406694-2 (non-lithium only)
• 14.8V Lithium Battery Charger : 411769-1 (lithium only) No longer Available
• 20Ah Lithium Battery Kit : 770033-1 No longer Available
• 15Ah Lithium Battery Kit : 770032-1 No longer Available
• GCB2 : 430019-1 : 9Ah AGM Battery
• GCB1 : 430018-1 : 7Ah AGM Battery

MEGA 360 Imaging

• Replacement Bezel : 740201-1
• AD HELIX M360 Adapter : 720109-1
• Replacement grommet for top of shaft/cable entry : 409268-5  (only available via phone sales)

MEGA Live Imaging

• MEGA Live Mask : 540313-1  (only available via phone sales)
• MEGA Live 2 Mask : 540334-1  (only available via phone sales)
• MEGA Live Shaft Mount : 740223-1
• MEGA Live 2 TL Adapter : 740251-1
• MEGA Live 2 Shaft Mount : 740250-1

MEGA Live TargetLock

• ML TL & M360 Dual Mount : 740211-1
• ML TL CM : 740225-1 : TargetLock Control Module
• ML TL SM : 740226-1 : TargetLock Steering Module
• ML TL 45/52 SHAFT : 740227-1 : TargetLock 45/52" Shaft
• ML TL PLATE : 740228-1 : TargetLock Mounting Plate
• ML TL HS : 730028-1 : TargetLock Heading Sensor
• ML TL Foot Pedal : 740224-1
• ML TL Remote : 411840-1
