HELIX and Legacy models:
The software version on your unit will determine the appropriate steps to export waypoints to an SD card.
To determine the software version of your Fishing System unit follow the steps below:
- Power your Fishing System unit on. This can be done while on your boat in or out of the water or with power only connected to your Fishing System unit
- While your Fishing System unit is displaying the model number, press the MENU key. Example: your Fishing System unit is displaying “Humminbird 767 Fishing System”
- The display on your Fishing System unit should change to show your menu options. With the four way key, use the Down Arrow key to select System Status
- The Fishing System unit will “time out” and will display the System Status view. The software version is listed under “Software Version”
If your Fishing System’s unit software version is 5.820 or higher follow these steps:
- Power on your unit
- Insert an unlocked SD card into a card slot on your unit. We do not recommend using a pre-programmed map card for this task
- Press the MENU button twice
- Right cursor to the Nav tab
- Scroll down to Waypoints, Routes, Tracks and press the Right cursor
- Select Options > Select All and… > Export
- Follow the on-screen instructions to confirm or cancel the export. After this is complete, remove the card from the card slot
- After this is complete, remove the card from the card slot
If your Fishing System unit’s software version is below 5.820 please follow these steps:
- Power on your unit
- Insert an unlocked SD card into a card slot on your unit. We do not recommend using a pre-programmed map card for this task
- Press the MENU button twice
- Right cursor to the Nav tab
- Scroll down to Export All Nav Data
- Right cursor and select Yes to confirm saved tracks, waypoints and routes
- Remove the card from the card slot
APEX, SOLIX, ONIX and ION Version 4.210 and Earlier
- Power on your unit.
- Insert an unlocked 16 GB or 32 GB(maximum size) micro SD or SD card (depending on model requirement)
- Press the "Home" key

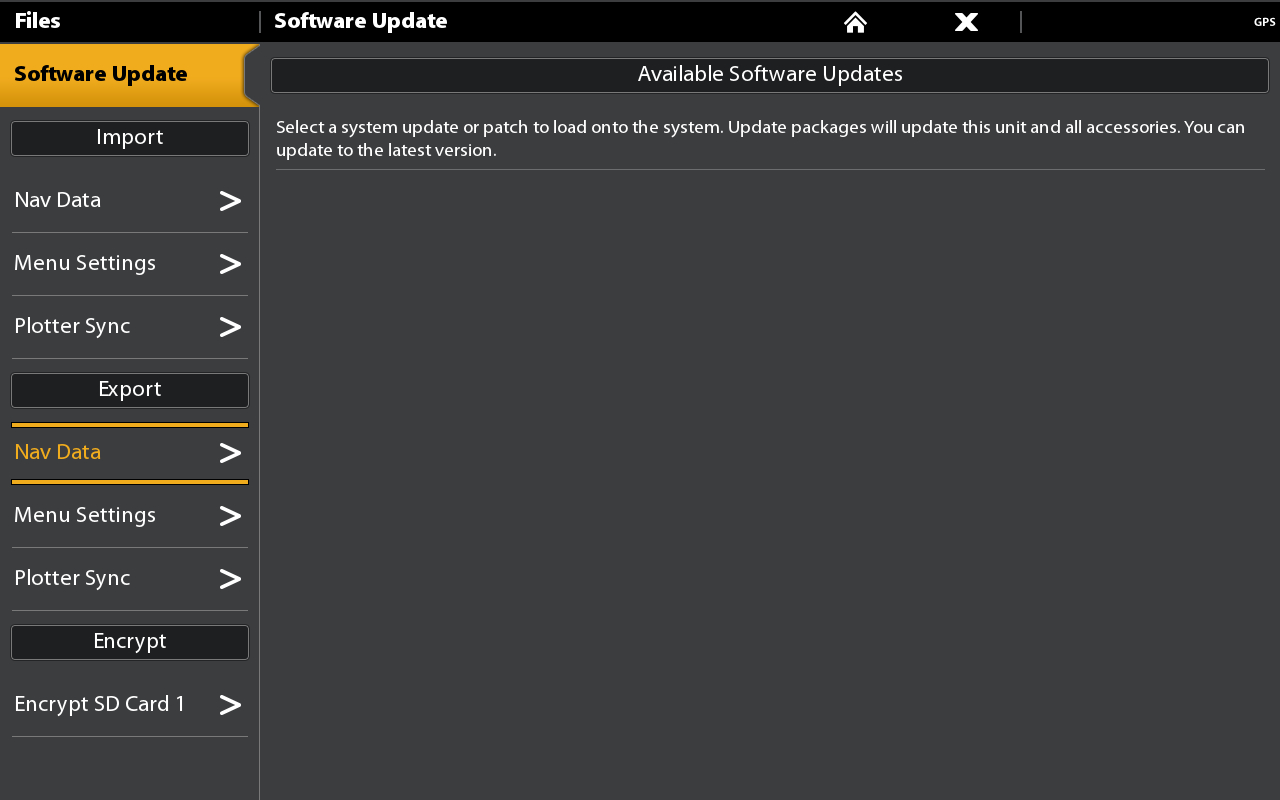

- select the "Files" widget
- In the Export section, select "Nav Data".
APEX, XPLORE and SOLIX Version 5.060 and Later
- Power on your unit.
- Insert an unlocked 16 GB or 32 GB(maximum size) micro SD or SD card (depending on model requirement)
- Press the "Home" key

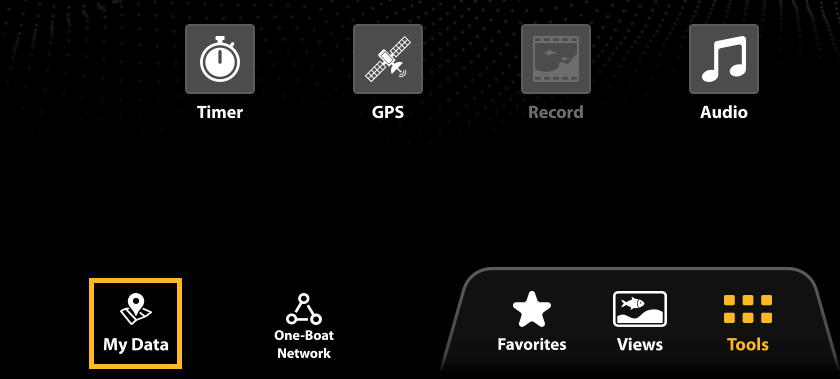

- Tap on "My Data"

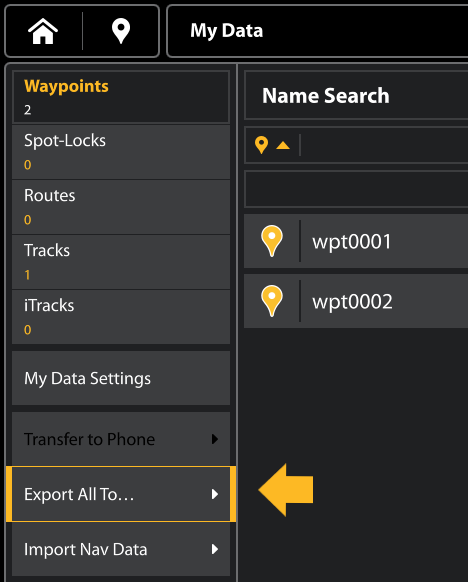

- Select "Export All To..."

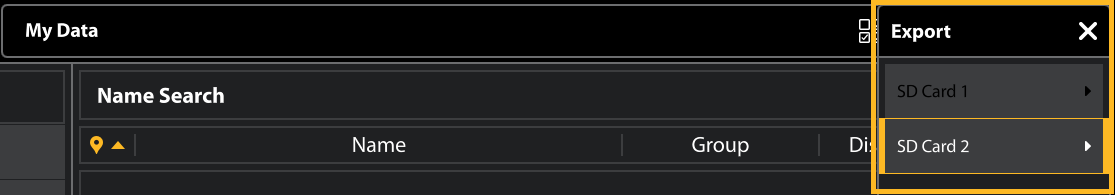

- Choose the save location.

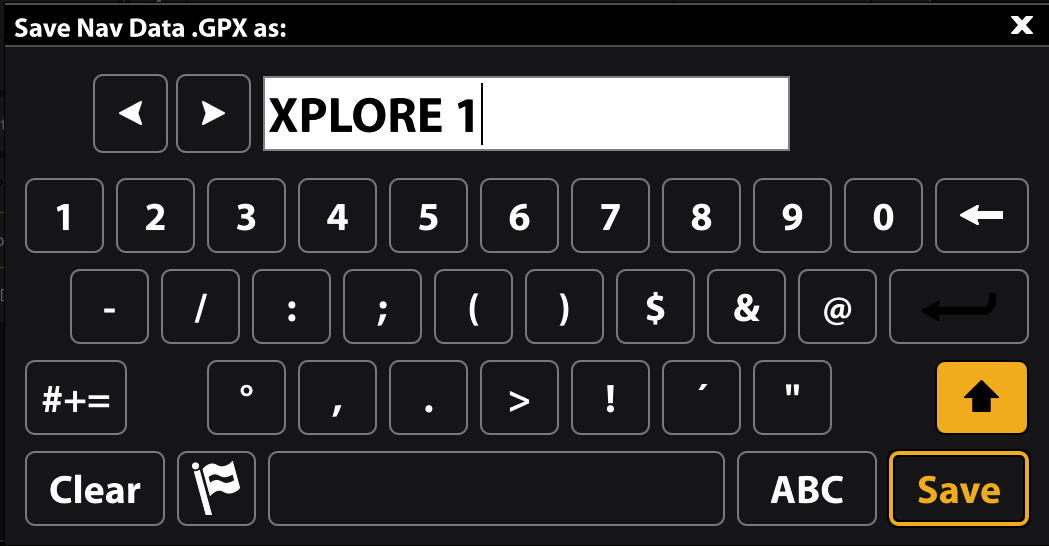

- Name the file and select "Save"
