Below is a list of Side Imaging transducers, including their operating frequencies, coverage areas, and the fish finder models they come standard with. For a detailed list of compatible transducers for your fish finder, please refer to our Transducer Compatibility Resources.
Jump To:
- XM 9 HW MSI T
- XM 14 HW MSI T
- XM 14 HW CMSI T
- XNT 9 HW MSI 150 T
- XNT 9 HW SI T
- XM 9 20 MSI T
- XM 14 20 MSI T
- XHS 9 HDSI 180 T
- XNT 9 SI 180 T
- Transducer Exchange

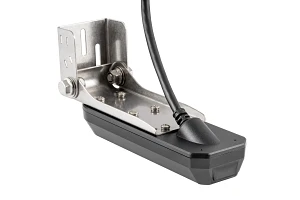

XM 9 HW MSI T
This transducer was designed for and comes standard with the following models:
HELIX 8 MEGA SI+ G4N, HELIX 9 MEGA SI+ G4N, HELIX 10 MEGA SI+ G4N, HELIX 12 MEGA SI+ G4N, HELIX 15 MEGA SI+ G4N, HELIX 8 MEGA SI+ G3N, HELIX 9 MEGA SI+ G3N, HELIX 10 MEGA SI+ G3N, HELIX 12 MEGA SI+ G3N models.
Other transducers with the same beam pattern and frequencies include:
- XTM 9 HW MSI T– trolling motor
- XPTH 9 HW MSI T– plastic thru the hull
- SSTH 14 HW MSI+ T– stainless steel thru the hull (also requires Minn Kota MKR-MI adapter, part 1852088)
XM 9 HW MSI T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging+
- Range Capability (Side to Side):
- 455 kHz: 800 ft (244 m)
- 800 kHz: 250 ft (76 m)
- MEGA Imaging+: 400 ft (122 m)
- Area of Coverage:
- 455 kHz: (2) 86° @ -10 dB in 455 kHz
- 800 kHz: (2) 86° @ -10 dB in 800 kHz
- MEGA Imaging+: (2) 86° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging+
- Depth Capability:
- 455 kHz: 400 ft (122 m)
- 800 kHz: 125 ft (38 m)
- MEGA Imaging+: 200 ft (61 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- 800 kHz: 45° @ -10 dB in 800 kHz
- MEGA Imaging+: 75° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUAL SPECTRUM CHIRP
- Default Operating Frequency: 150 kHz - 220 kHz
- Depth Capability: 1200 ft (366 m)
- Area of Coverage:
- Full: 25 - 42° @ -10 dB in 150-220 kHz
- Wide: 42° @ -10 dB in 140-200 kHz
- Narrow: 25° @ -10 dB in 180-240 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
XM 14 HW MSI T
This transducer was designed for and comes standard with the following models:
APEX 13 MEGA SI+, APEX 16 MEGA SI+, APEX 19 MEGA SI+, SOLIX 10 MEGA SI+ G3, SOLIX 12 MEGA SI+ G3 and the SOLIX 15 MEGA SI+ G3, SOLIX 10 MEGA SI+ G2, SOLIX 12 MEGA SI+ G2 and the SOLIX 15 MEGA SI+ G2 models.
Other transducers with the same beam pattern and frequencies include:
- XPTH 14 HW MSI T – plastic thru the hull
- SSTH 14 HW MSI+ T– stainless steel thru the hull
XM 14 HW MSI T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging+
- Range Capability (Side to Side):
- 455 kHz: 800 ft (244 m)
- 800 kHz: 250 ft (76 m)
- MEGA Imaging+: 500 ft (152 m)
- Area of Coverage:
- 455 kHz: (2) 86° @ -10 dB in 455 kHz
- 800 kHz: (2) 55° @ -10 dB in 800 kHz
- MEGA Imaging+: (2) 86° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging+
- Depth Capability:
- 455 kHz: 400 ft (122 m)
- 800 kHz: 125 ft (38 m)
- MEGA Imaging+: 250 ft (76 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- 800 kHz: 45° @ -10 dB in 800 kHz
- MEGA Imaging+: 75° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUAL SPECTRUM CHIRP
- Default Operating Frequency: 150 kHz - 220 kHz
- Depth Capability: 1200 ft (366 m)
- Area of Coverage:
- Full: 25 - 42° @ -10 dB in 150-220 kHz
- Wide: 42° @ -10 dB in 140-200 kHz
- Narrow: 25° @ -10 dB in 180-240 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
XM 14 HW CMSI T
This transducer was designed for and comes standard with the following models: XPLORE 9 CMSI+, XPLORE 10 CMSI+, and XPLORE 12 CMSI+.
XM 14 HW CMSI T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging+
- Range Capability (Side to Side):
- 455 kHz: 800 ft (244 m)
- MEGA Imaging+: 400 ft (122 m)
- Area of Coverage:
- 455 kHz: (2) 75° @ -10 dB in 455 kHz
- MEGA Imaging+: (2) 75° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging+
- Depth Capability:
- 455 kHz: 400 ft (122 m)
- MEGA Imaging+: 200 ft (61 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- MEGA Imaging+: 70° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUAL SPECTRUM CHIRP
- Default Operating Frequency: 150 kHz - 220 kHz
- Depth Capability: 1200 ft (366 m)
- Area of Coverage:
- Full: 25 - 42° @ -10 dB in 150-220 kHz
- Wide: 42° @ -10 dB in 140-200 kHz
- Narrow: 25° @ -10 dB in 180-240 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)

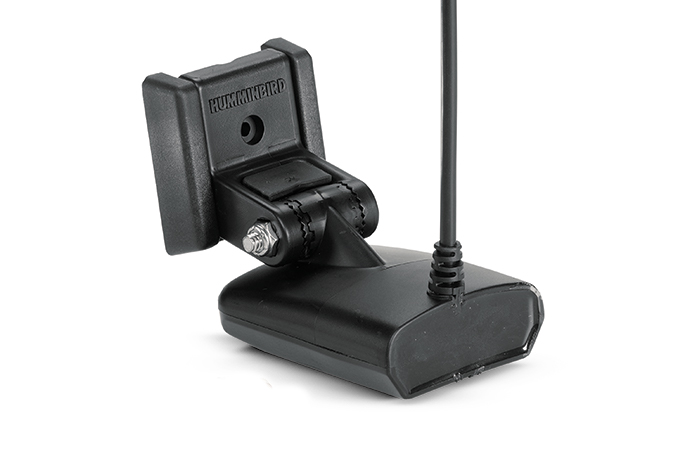

XNT 9 HW MSI 150 T
This transducer was designed for and comes standard with the following models:
HELIX 7 CHIRP MSI GPS G3, HELIX 7 CHIRP MSI GPS G4, HELIX 7 CHIRP MSI GPS G3N, and HELIX 7 CHIRP MSI GPS G4N
Other transducers with the same beam pattern and frequencies include:
- XTM 9 HW MSI 150 T – trolling motor
XNT 9 HW MSI 150 T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequencies: 455 kHz, MEGA Imaging
- Range Capability (Side to Side):
- 455 kHz: 480 ft (146 m)
- MEGA Imaging: 250 ft (76 m)
- Area of Coverage:
- 455 kHz: (2) 75° @ -10 dB in 455 kHz
- MEGA Imaging: (2) 75° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequencies: 455 kHz, MEGA Imaging
- Depth Capability:
- 455 kHz: 125 ft (38 m)
- MEGA Imaging: 75 ft (23 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- MEGA Imaging: 75° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUAL SPECTRUM CHIRP
- Default Operating Frequency: 150 kHz - 220 kHz
- Depth Capability: 1000 ft (305 m)
- Area of Coverage:
- Full: 25 - 42° @ -10 dB in 150-220 kHz
- Wide: 42° @ -10 dB in 140-200 kHz
- Narrow: 25° @ -10 dB in 180-240 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
XNT 9 HW SI T
This transducer was designed for and comes standard with the following models:
HELIX 7 CHIRP SI GPS G4
XNT 9 HW SI T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequency: 455 kHz
- Range Capability (Side to Side):
- 455 kHz: 480 ft (146 m)
- Area of Coverage:
- 455 kHz: (2) 75° @ -10 dB in 455 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequency: 455 kHz, MEGA Imaging
- Depth Capability:
- 455 kHz: 125 ft (38 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUAL SPECTRUM CHIRP
- Default Operating Frequency: 150 kHz - 220 kHz
- Depth Capability: 1000 ft (305 m)
- Area of Coverage:
- Full: 25 - 42° @ -10 dB in 150-220 kHz
- Wide: 42° @ -10 dB in 140-200 kHz
- Narrow: 25 °@ -10 dB in 180-240 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
XM 9 20 MSI T
This transducer was designed for and comes standard with the following models:
HELIX 12 CHIRP MEGA SI GPS G2N, HELIX 10 CHIRP MEGA SI GPS G2N and the HELIX 9 CHIRP MEGA SI GPS G2N models.
Other transducers with the same beam pattern and frequencies include:
- XTM 9 20 MSI T– trolling motor
- XPTH 9 20 MSI T – plastic thru the hull
XM 9 20 MSI T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging
- Range Capability (Side to Side):
- 455 kHz: 800 ft (244 m)
- 800 kHz: 250 ft (76 m)
- MEGA Imaging: 250 ft (76 m)
- Area of Coverage:
- 455 kHz: (2) 86° @ -10 dB in 455 kHz
- 800 kHz: (2) 55° @ -10 dB in 800 kHz
- MEGA Imaging: (2) 86° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging
- Depth Capability:
- 455 kHz: 400 ft (122 m)
- 800 kHz: 125 ft (38 m)
- MEGA Imaging: 125 ft (38 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- 800 kHz: 45° @ -10 dB in 800 kHz
- MEGA Imaging: 75° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUALBEAM PLUS
- Default Operating Frequencies: 200 kHz, 83 kHz
- Depth Capability: 1500 ft (457 m)
- Area of Coverage:
- 60° @ -10 dB in 83 kHz
- 20° @ -10 dB in 200 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
XM 14 20 MSI T
This transducer was designed for and comes standard with the following models:
SOLIX 10 MEGA SI, SOLIX 12 MEGA SI and the SOLIX 15 MEGA SI models. It can also be used with the ONIX 8 SI and ONIX 10 SI however these products will not gain any MEGA Imaging features.
Other transducers with the same beam pattern and frequencies include:
- XPTH 14 20 MSI T – plastic thru the hull
XM 14 20 MSI T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging
- Range Capability (Side to Side):
- 455 kHz: 800 ft (244 m)
- 800 kHz: 250 ft (76 m)
- MEGA Imaging: 250 ft (76 m)
- Area of Coverage:
- 455 kHz: (2) 86° @ -10 dB in 455 kHz
- 800 kHz: (2) 55° @ -10 dB in 800 kHz
- MEGA Imaging: (2) 86° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequencies: 455 kHz, 800 kHz, MEGA Imaging
- Depth Capability:
- 455 kHz: 400 ft (122 m)
- 800 kHz: 125 ft (38 m)
- MEGA Imaging: 125 ft (38 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- 800 kHz: 45° @ -10 dB in 800 kHz
- MEGA Imaging: 75° @ -10 dB in MEGA kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUALBEAM PLUS
- Default Operating Frequencies: 200 kHz, 83 kHz
- Depth Capability: 1500 ft (457 m)
- Area of Coverage:
- 60° @ -10 dB in 83 kHz
- 20° @ -10 dB in 200 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)

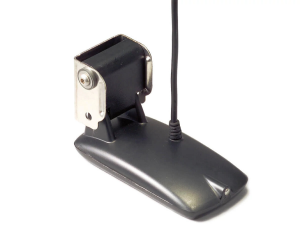

XHS 9 HDSI 180 T
This transducer was designed for and comes standard with the following models:
898c SI, 898c HD SI, 987c SI, 997c SI, 998c SI, 998c HD SI, 999ci HD SI, 1197c SI, 1198c SI, 1199ci HD SI, HELIX 9 SI GPS, HELIX 10 SI GPS, HELIX 12 CHIRP SI GPS models.
In addition, the following models are capable of using the XHS 9 HDSI 180 T. By upgrading to the XHS 9 HDSI 180 T, users are likely to see enhanced performance from the 455 kHz element but these fish finders will not support the 800 kHz elements in this transducer:
398ci SI, 598ci SI, 698ci SI, 797c SI, 798c SI, 798ci SI, 798ci HD SI, 899ci HD SI, HELIX 5 SI GPS, HELIX 5 SI GPS G2, HELIX 7 SI GPS, HELIX 7 SI GPS G2, HELIX 7 SI GPS G2N models.
Other transducers with the same beam pattern and frequencies include:
- XTM 9 HDSI 180 T – trolling motor
XHS 9 HDSI 180 T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequencies: 455 kHz, 800 kHz
- Range Capability (Side to Side):
- 455 kHz: 800 ft (244 m)
- 800 kHz: 250 ft (76 m)
- Area of Coverage:
- 455 kHz: (2) 86° @ -10 dB in 455 kHz
- 800 kHz: (2) 55° @ -10 dB in 800 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequencies: 455 kHz, 800 kHz
- Depth Capability:
- 455 kHz: 400 ft (122 m)
- 800 kHz: 125 ft (38 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- 800 kHz: 45° @ -10 dB in 800 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUALBEAM PLUS
- Default Operating Frequencies: 200 kHz, 83 kHz
- Depth Capability: 1500 ft (457 m)
- Area of Coverage:
- 60° @ -10 dB in 83 kHz
- 20° @ -10 dB in 200 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)

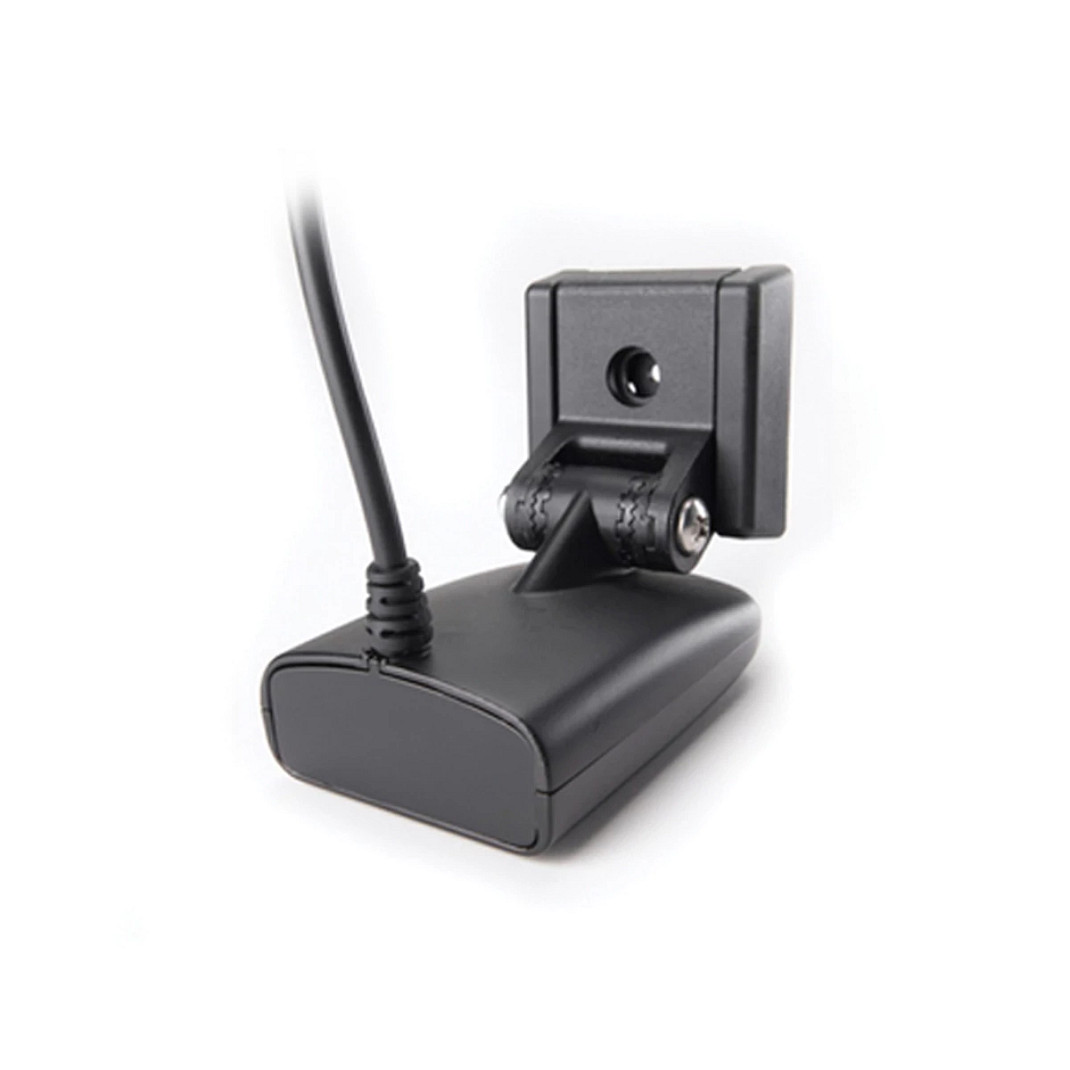

XNT 9 SI 180 T
This transducer was designed for and comes standard with the following models:
398ci SI, 598ci SI, 698ci SI, 797c SI, 798c SI, 798ci SI, 798ci HD SI, 899ci HD SI, HELIX 5 SI GPS, HELIX 5 SI GPS G2, HELIX 7 SI GPS, HELIX 7 SI GPS G2, HELIX 7 SI GPS G2N and HELIX 9 SI GPS models.
Other transducers with the same beam pattern and frequencies include:
- XTM 9 SI 180 T – trolling motor
XNT 9 SI 180 T Frequencies, Areas of Coverage, and Power Output
SIDE IMAGING
- Operating Frequency: 455 kHz
- Range Capability (Side to Side):
- 455 kHz: 800 ft (244 m)
- Area of Coverage:
- 455 kHz: (2) 86° @ -10 dB in 455 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DOWN IMAGING
- Operating Frequency: 455 kHz
- Depth Capability:
- 455 kHz: 400 ft (122 m)
- Area of Coverage:
- 455 kHz: 75° @ -10 dB in 455 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
DUALBEAM PLUS
- Default Operating Frequencies: 200 kHz, 83 kHz
- Depth Capability: 1500 ft (457 m)
- Area of Coverage:
- 60° @ -10 dB in 83 kHz
- 20° @ -10 dB in 200 kHz
- Power Output (MAX): 500 Watts (RMS), 4000 Watts (Peak to Peak)
Transducer Exchange
Humminbird Side Imaging models come standard with transom mount Side Imaging transducers. If you are seeking a different style of Side Imaging Transducer (Trolling motor mount, thru-hull mount, etc.) please see our FAQ on the Transducer Exchange Program for details on how to swap your new and unused transducer for the model of your choice.
