MEGA Live TargetLock Foot Pedal Overview and Pairing

This article will cover Features, Pairing, Power, Software and Videos.

Features

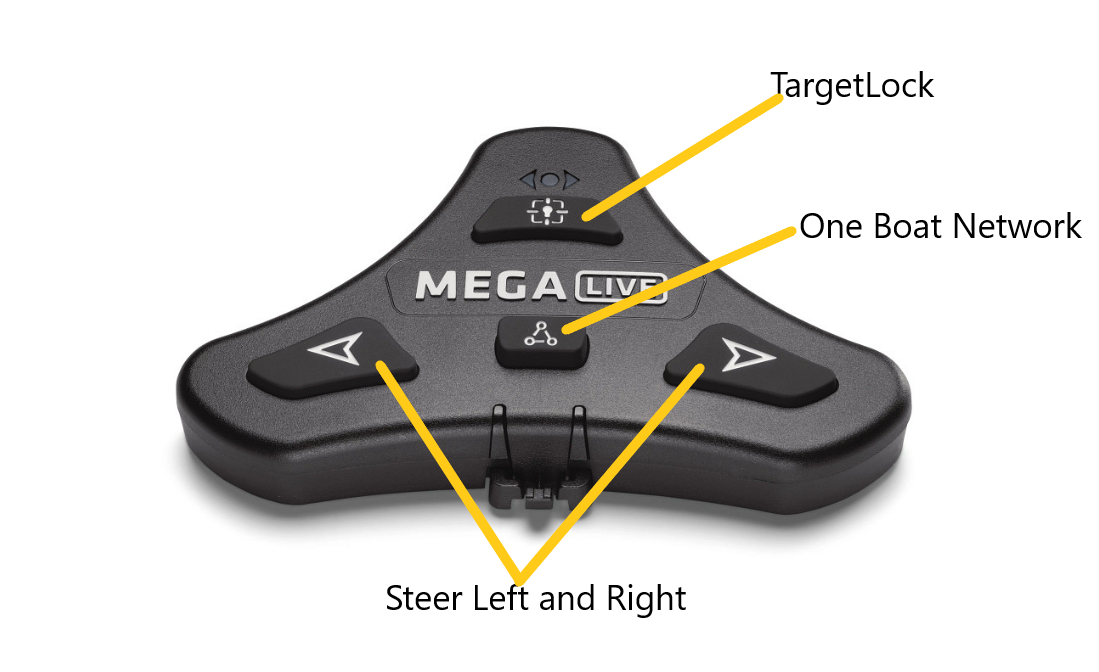

The MEGA LIve TargetLock foot pedal features a TargetLock button, One Boat Network Button and Left and Right Arrow buttons.  The One Boat Network button can be customized to return your transducer to the home position, mark waypoints, enable/disable pinging, Sweep your transducer OR enable Minn Kota Steer.  Information on customization begins on page 55 of the new MEGA Live Imaging Operations Manual at the below link.  The foot pedal is waterproof.

Pairing

Instructions for pairing your foot pedal is Series specific.  Instructions begin on page 50 of the new MEGA Live Imaging Operations Manual which can be found at this link.

Power

The foot pedal is powered by a CR2450 coin cell battery.  We do not recommend using a rechargeable battery.  Battery life will vary according to usage.

Software Updates

Any future software updates for this item will be performed automatically whenever the foot pedal is paired to the Humminbird unit via Bluetooth.

Additional Videos

What  is TargetLock

TargetLock & MEGA 360

One Boat Network Button Customization

MEGA Live Sweep

MInn Kota Steer

Independent Steer
