Hiding the MEGA Live TargetLock Controls on my MEGA Live View

HELIX

In order to hide the MEGA Live TargetLock on-screen remote from your HELIX screen, you will need to perform the following:

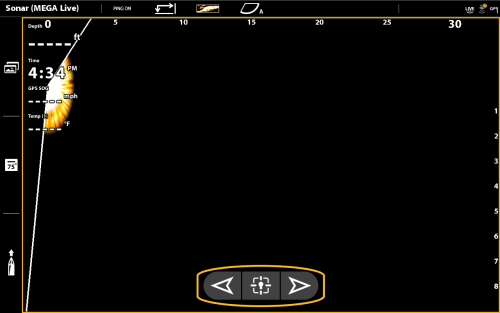

1. With the MEGA Live Imaging view displayed as seen in the image above, press MENU to open the X-Press menu screen.
2. Use Cursor keys to set Active Pane: Left
3. Cursor down to MEGA Live Remote
4. Use the LEFT cursor key to toggle the MEGA Live Remote: Off

Once the MEGA Live Remote has been turned off, all TargetLock controls will need to be done via the Bluetooth remote or foot pedal. The on-screen controls can be activated again by following steps above, but changing the selection on step 4 to On.

SOLIX and APEX

In order to hide the MEGA Live TargetLock on-screen remote from your SOLIX or APEX screen, you will need to perform the following:

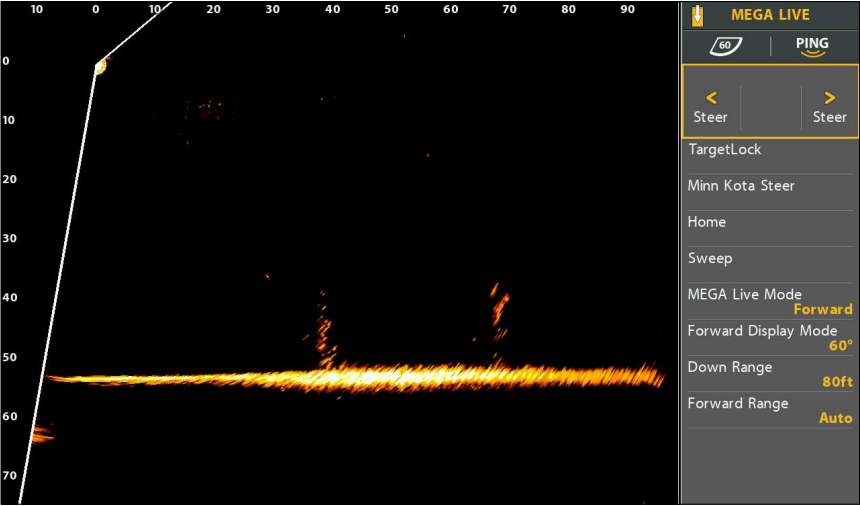

1. With the MEGA Live Imaging view displayed as seen in the image above, press MENU key or tap Sonar (MEGA Live) in the top left corner.
2. Select Sonar Options
3. Choose Overlays
4. Uncheck MEGA Live Controls



Once the MEGA Live Remote has been turned off, all TargetLock controls will need to be done via the Bluetooth remote or foot pedal. The on-screen controls can be activated again by following steps above, but checking the box in step 4.
