MEGA Live Interference

The MEGA Live Imaging accessory functions as a network-aware transducer, specifically engineered to detect other sonar sources within the same One-Boat Network. By leveraging its interference rejection capabilities, it significantly reduces cross-talk from other active transducers, ensuring clearer and more reliable sonar imagery.

This function is automatic with MEGA Live 2, but must be activated by the user with the steps below for 1st Generation MEGA Live.

• ⚠️ Important Note: If any sonar units are not connected to the same network as the MEGA Live system, they will not be detected. As a result, the interference rejection feature cannot mitigate noise from these sources, which may lead to increased interference or image distortion.

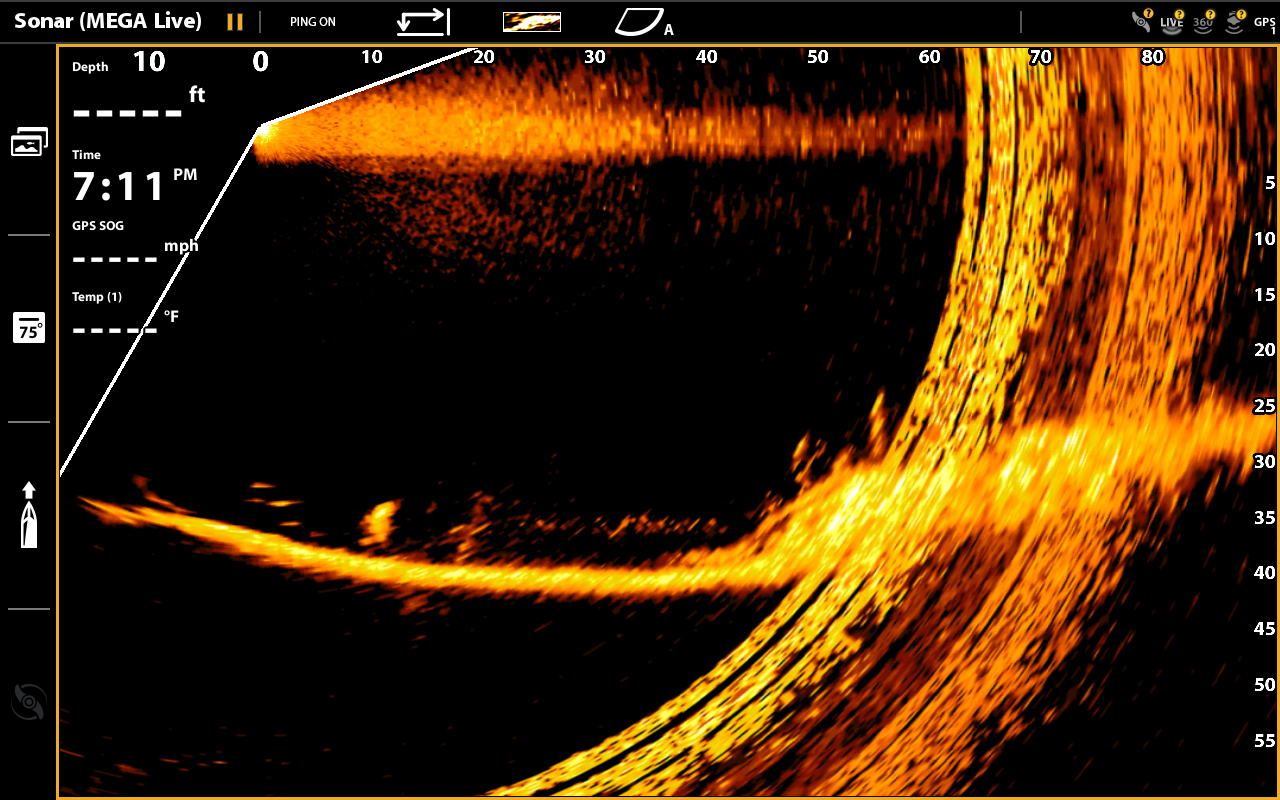

  See the example below for a visual representation.

APEX and SOLIX Instructions (Software Version 4.210 and Earlier)

1. Press the HOME key.
2. Select Settings.
3. Select CHIRP Sonar.
4. Under MEGA Live, select Interference Rejection. Tap the
   on/off button, or press the ENTER key, to turn it on/off.
5. Press and hold the slider, or press and hold the ENTER
   key, to adjust the setting, where 1 is the lowest filter and
   3 filters the most interference.

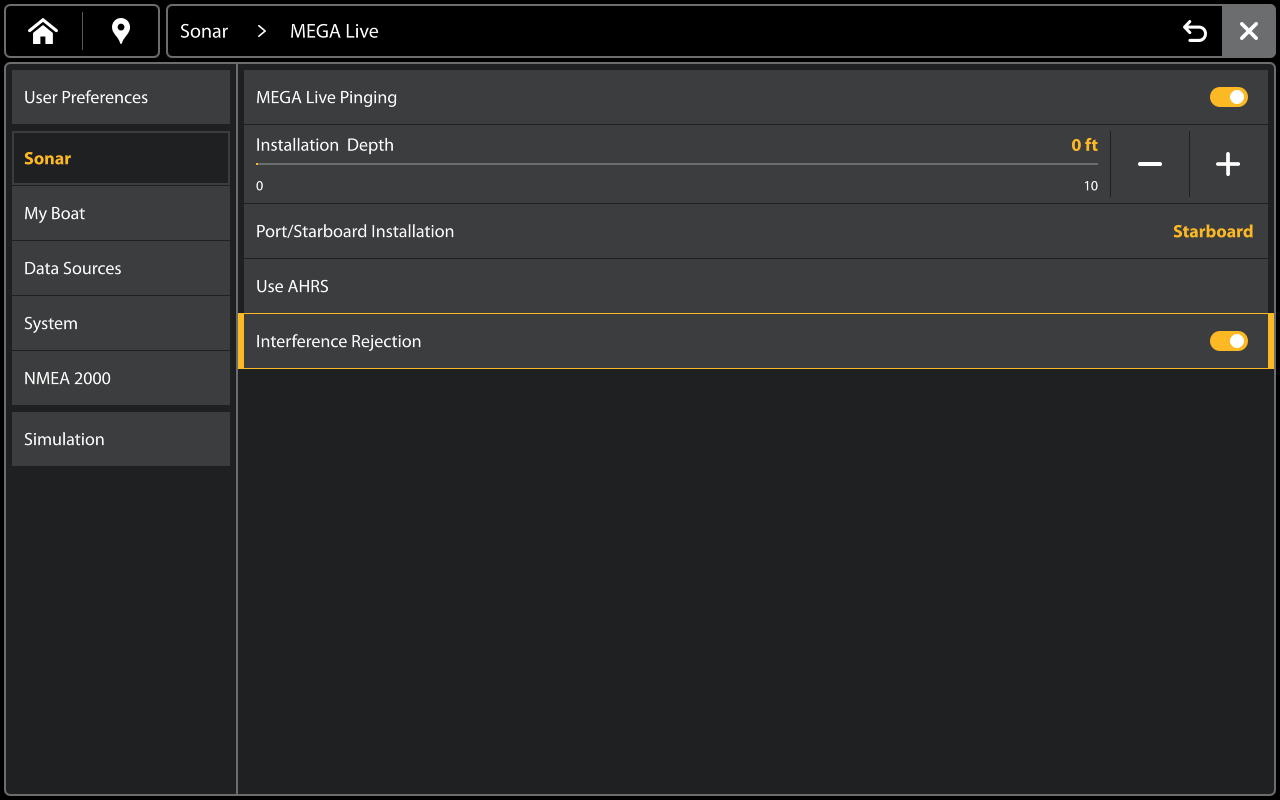

APEX, XPLORE, and SOLIX G3 Instructions (Software Version 5.060 and Later)

1. Press the HOME key.
2. Select Settings.
3. Select Sonar.
4. Select MEGA Live
5. Tap the on/off button, or Highlight and press the ENTER key, to turn it on/off.

HELIX Instructions

1. Main Menu: Press the MENU key twice.
2. Select the Accessories tab > MEGA Live > Interference
   Rejection.
3. Use the RIGHT or Left Cursor keys to select a filter setting,
   where Low is the lowest filer and High filters the most
   interference.
   Off: removes all filtering.
