Locating Your Software Version and Serial Number

There is more than one way in which you can determine the software version or serial number of your Humminbird unit. The method you would use may be model dependent.

JUMP TO: | APEX | XPLORE | SOLIX & ONIX | HELIX & LEGACY | MEGA LIVE & MEGA LIVE 2 |



APEX

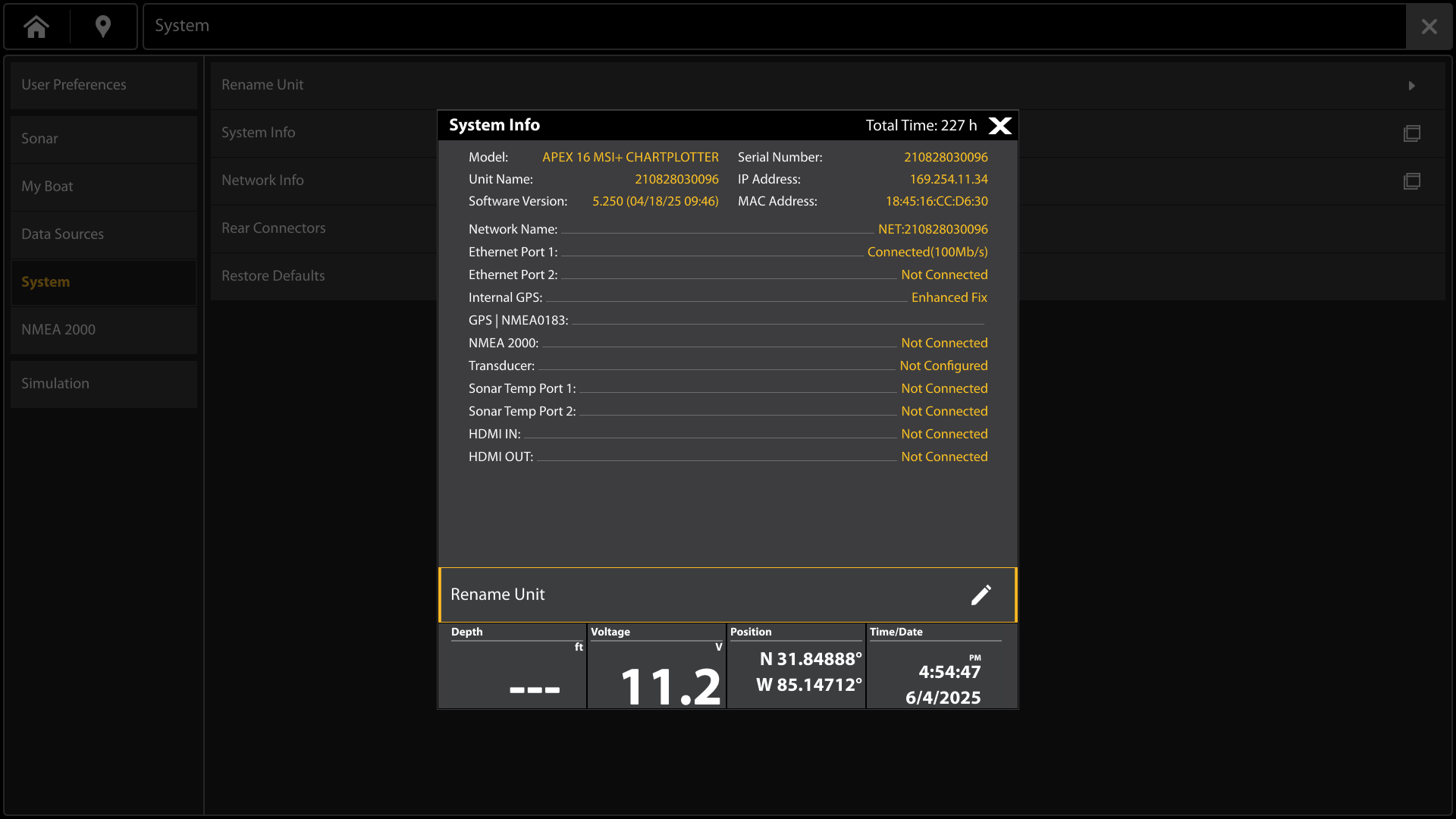

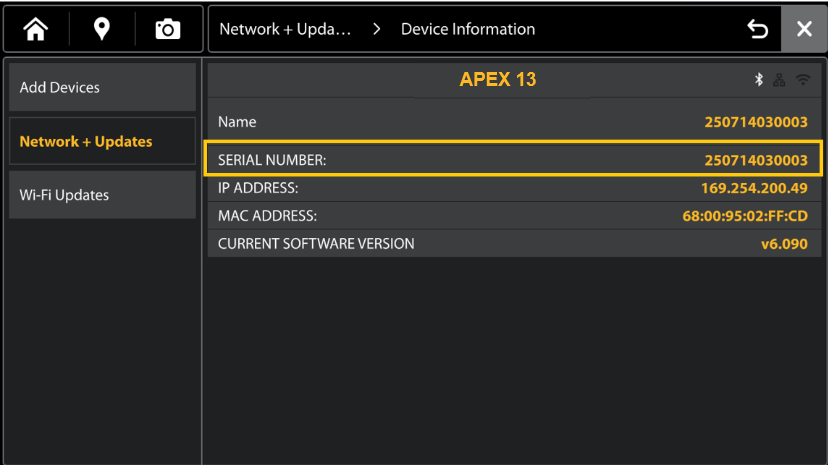

(Models running Software version 5.060 and above) Serial Number and Software Version are displayed on the System Info screen:

  • Power the unit on

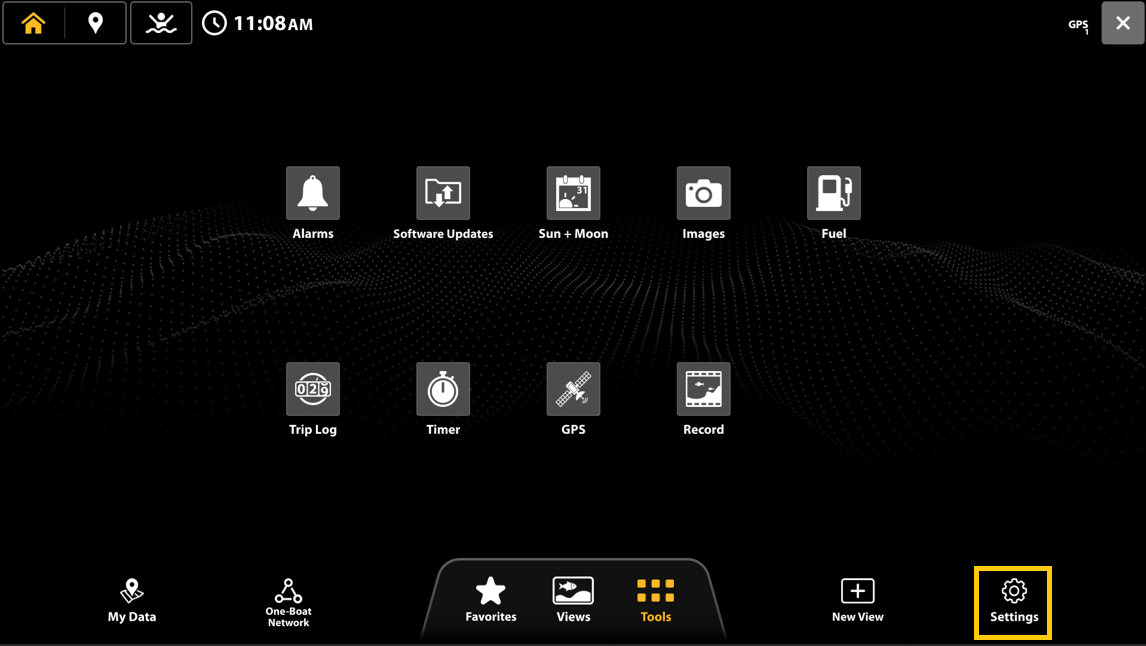

  • Press Home > Settings >System > System Info

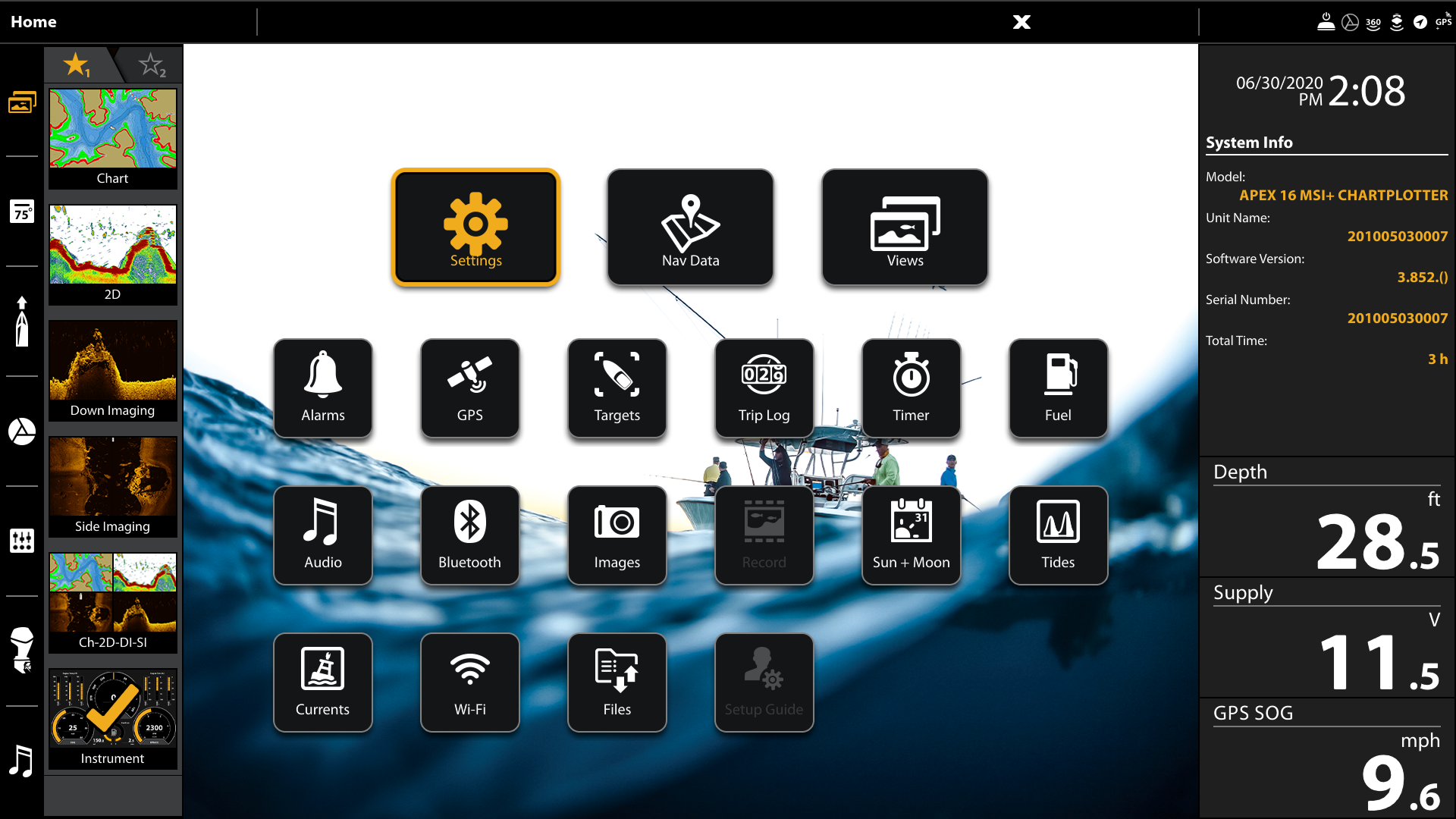

(Models running Software version 4.210 and below) Serial Number and Software Version are displayed on the home screen:

The Serial Number can also be found at the base of the unit, below the connector plugs.



XPLORE

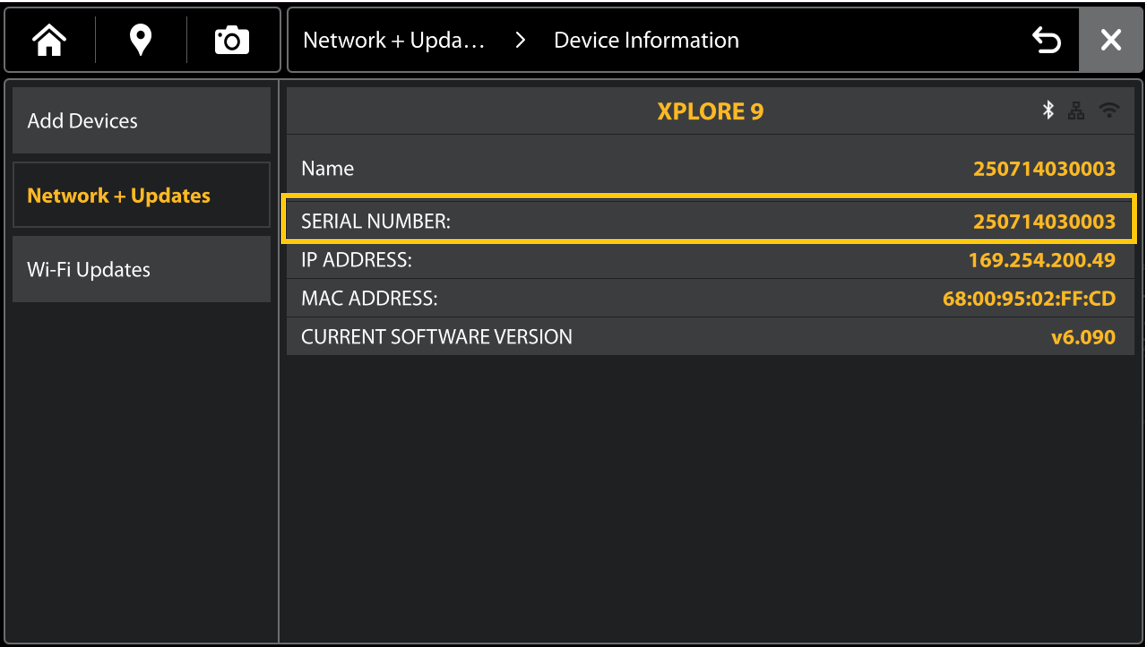

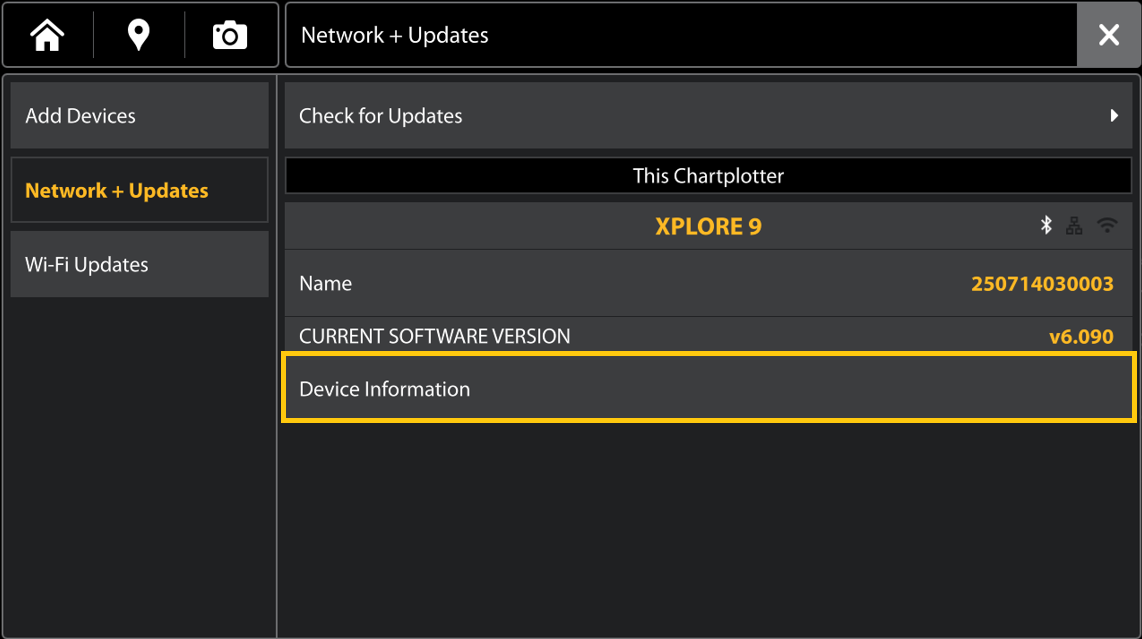

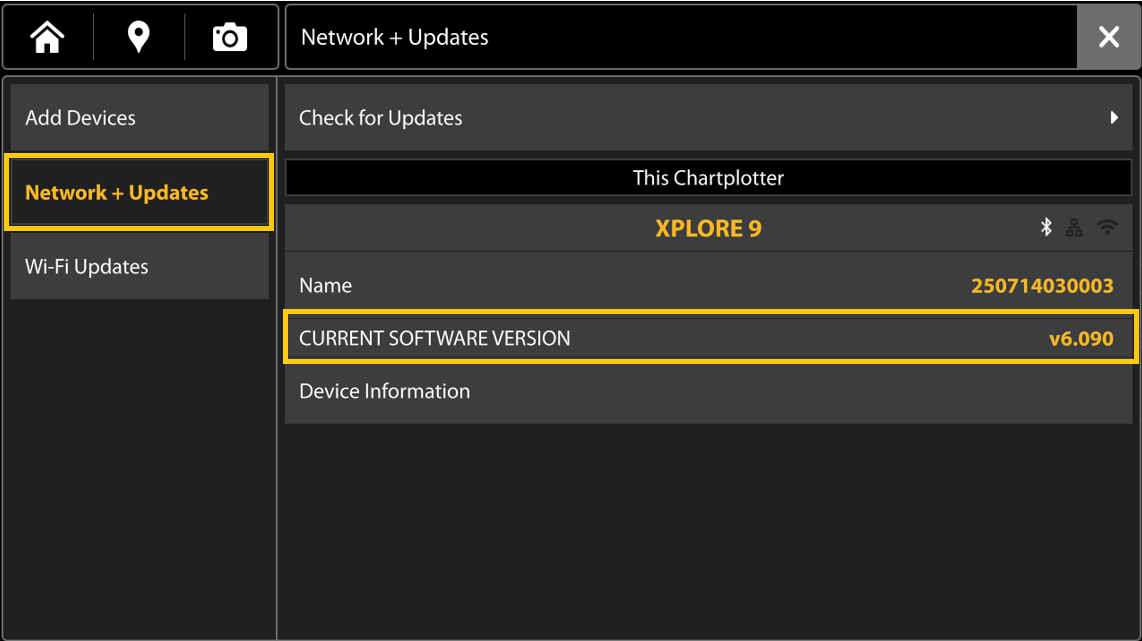

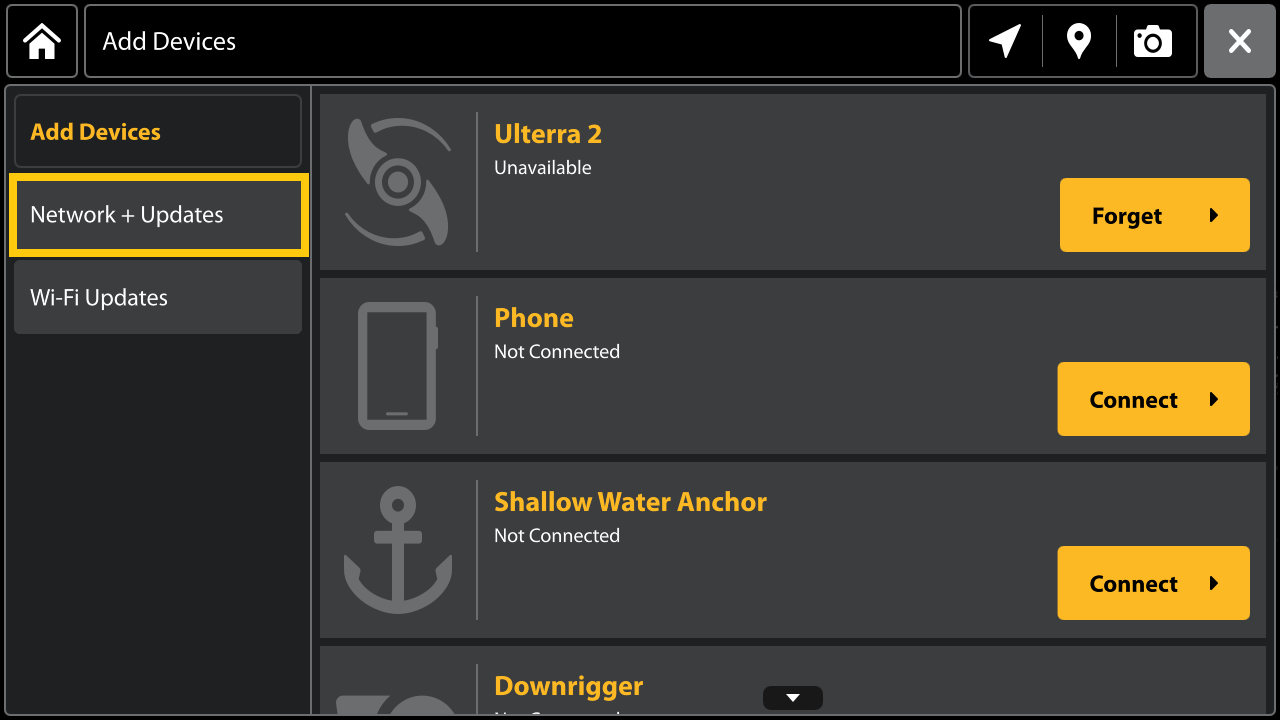

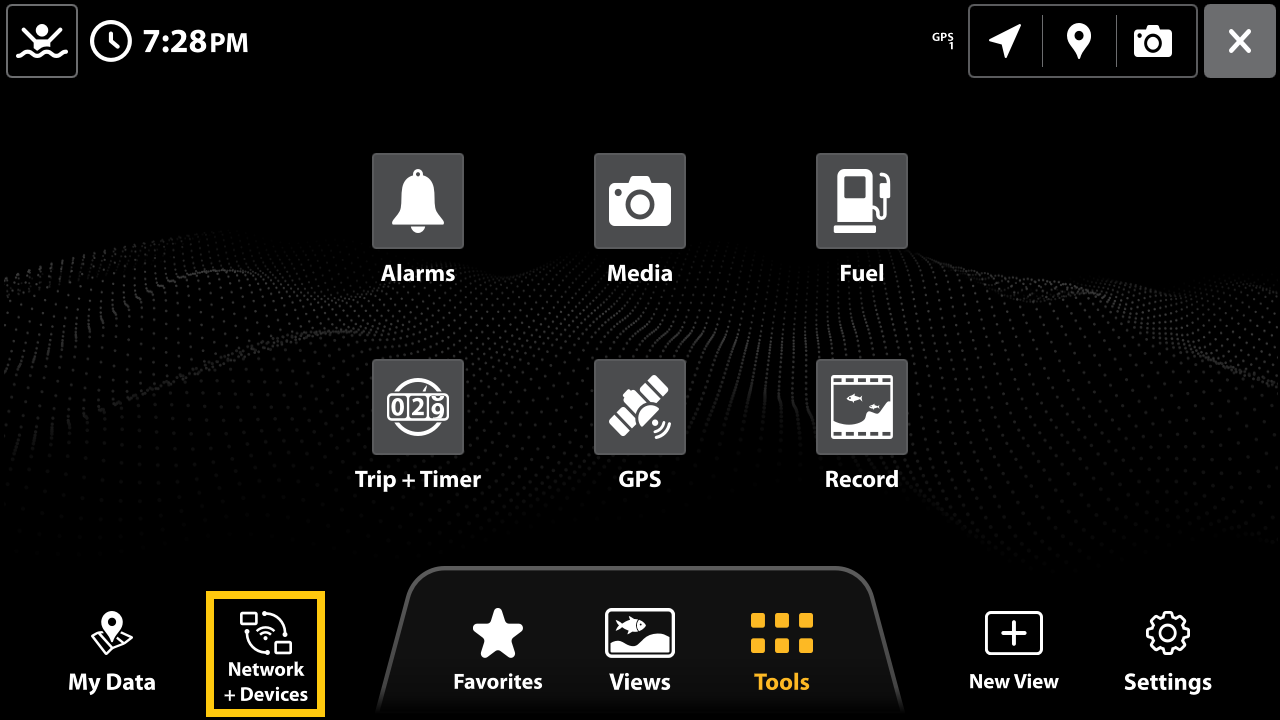

Serial Number and Software Version are displayed on the System Info screen:

  • Power the unit on
  • Press Home > Settings >System > System Info

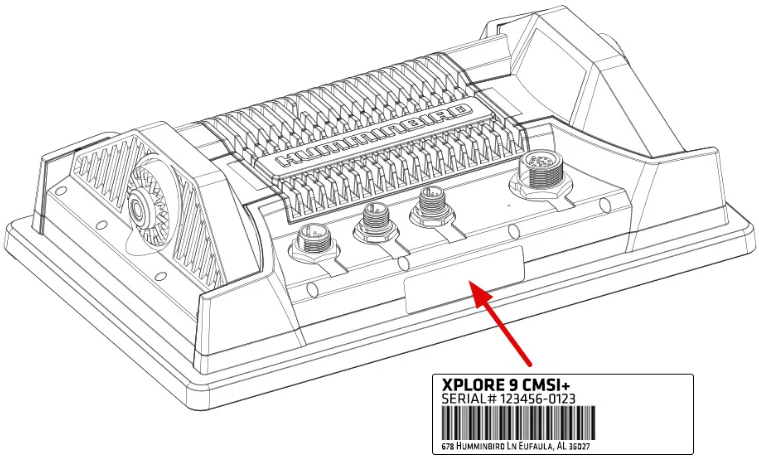

The Serial Number can also be found at the base of the unit, below the connector plugs.



SOLIX & ONIX

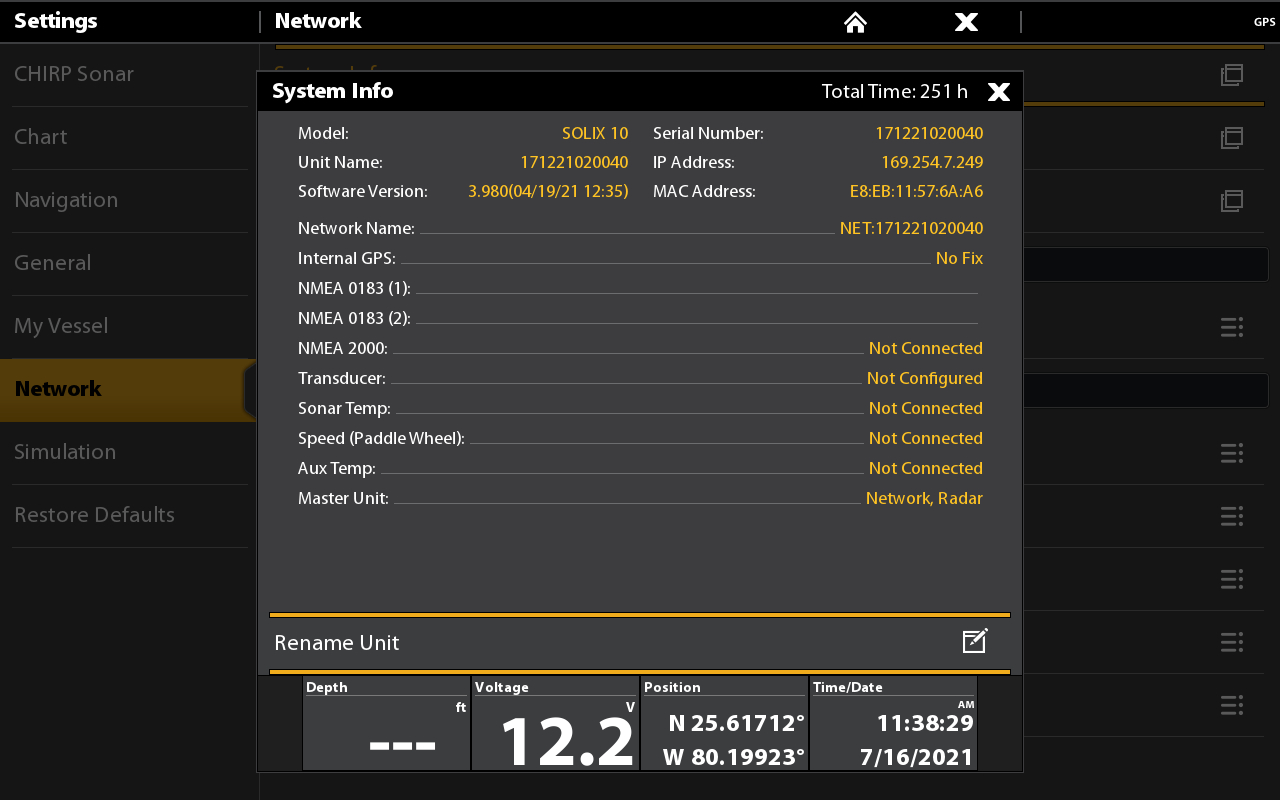

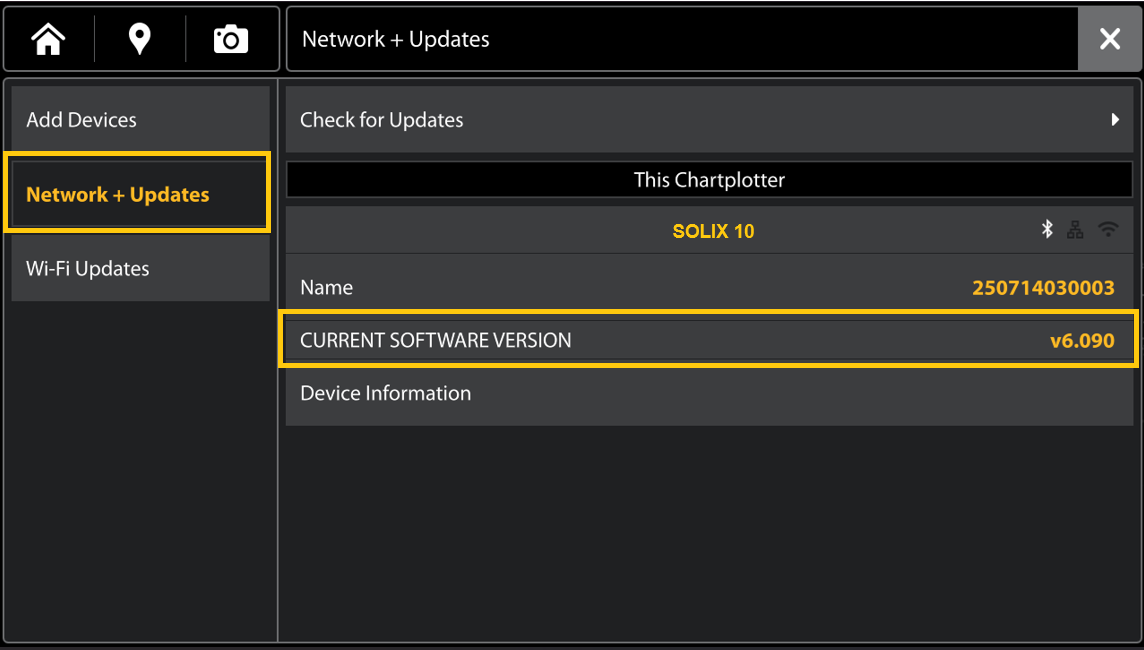

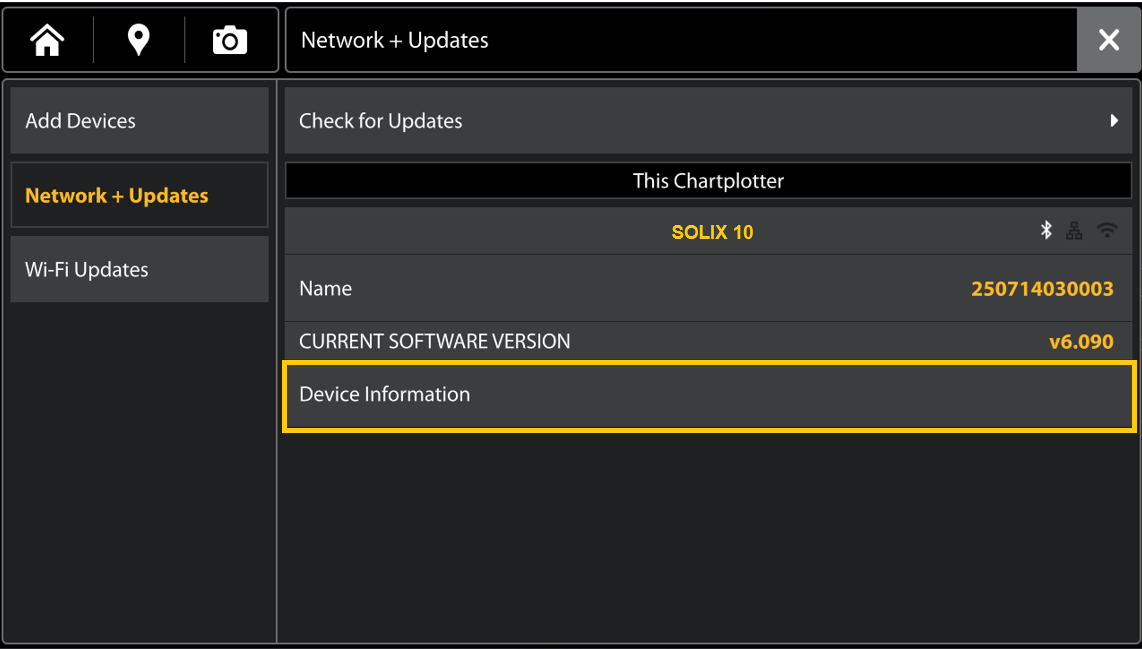

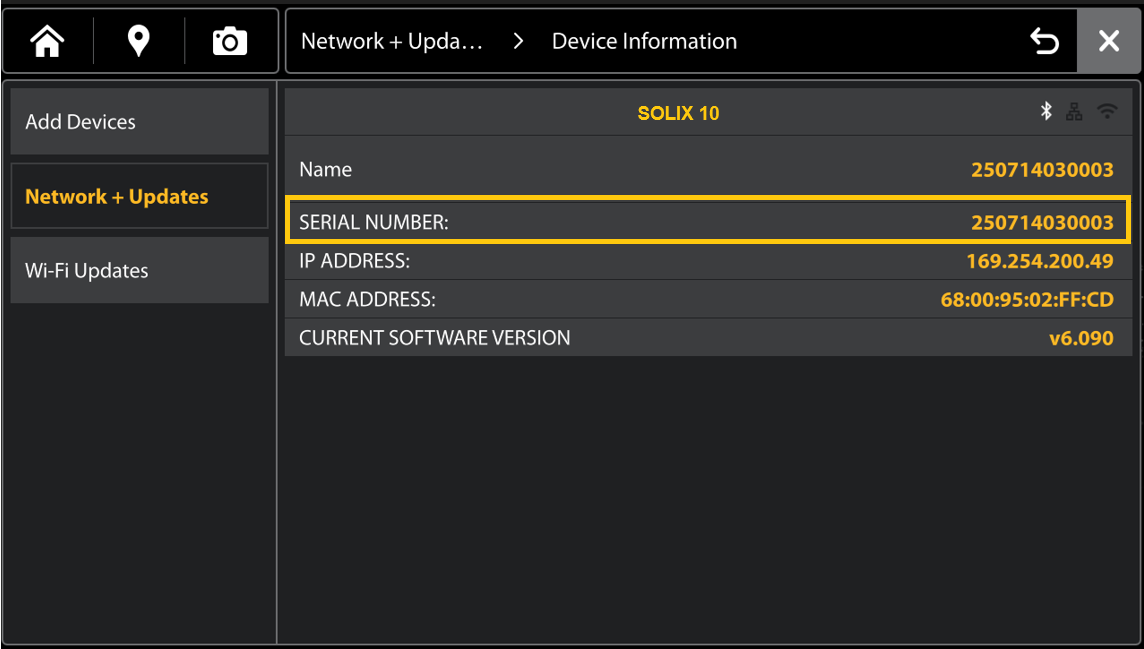

Serial Number and Software Version are displayed on the System Info screen.

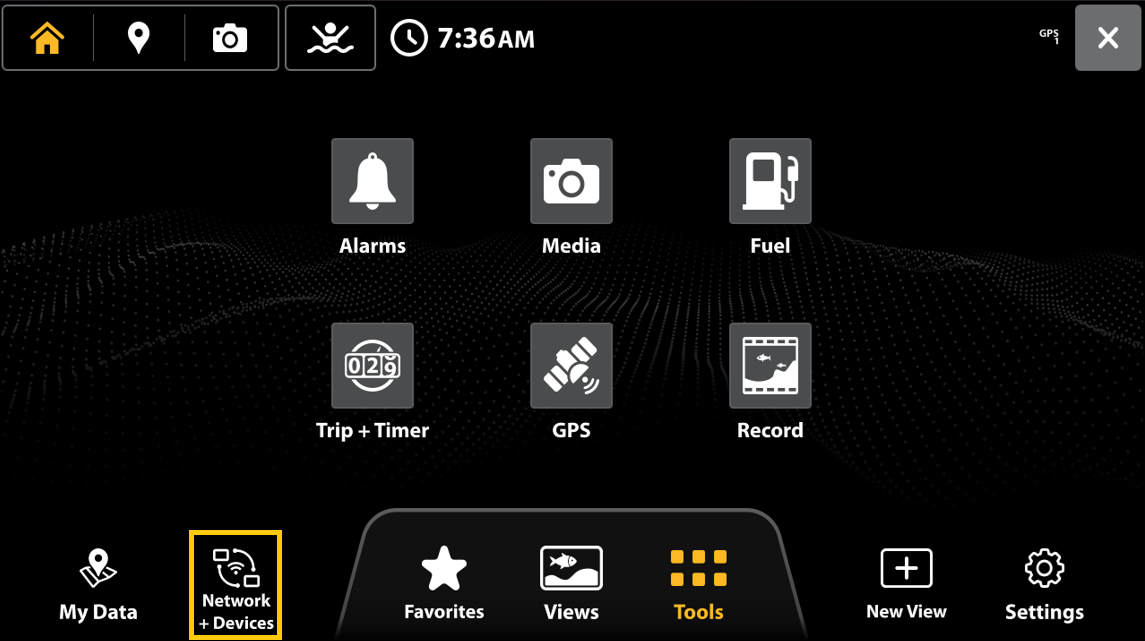

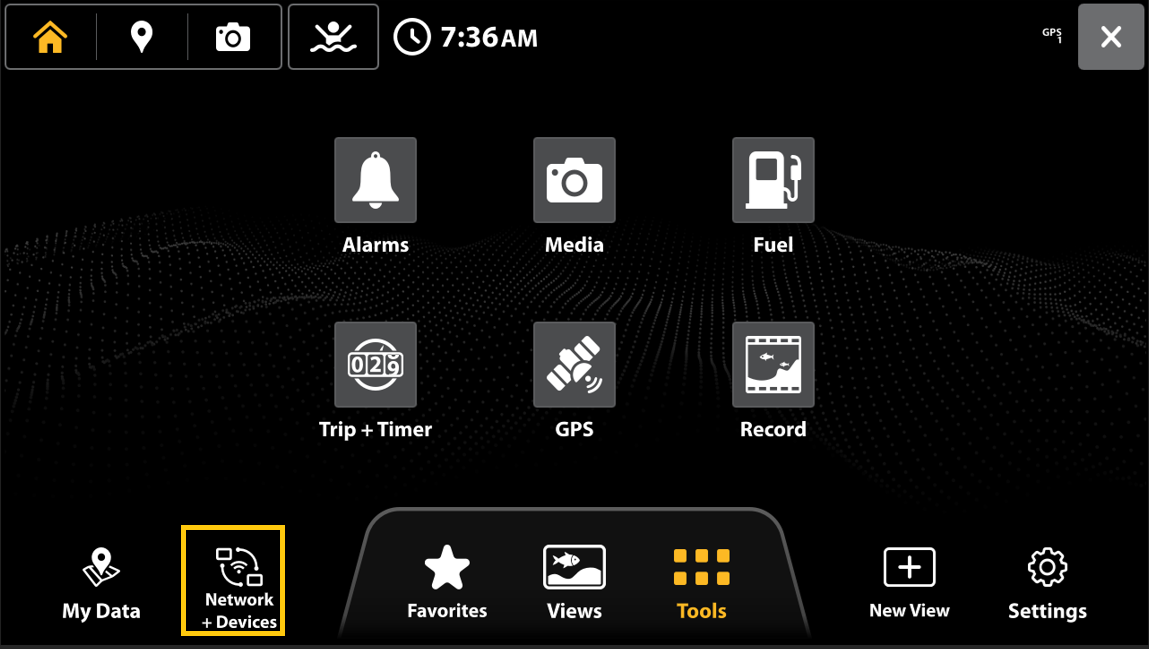

  • Press Home > Settings > Network > System Info

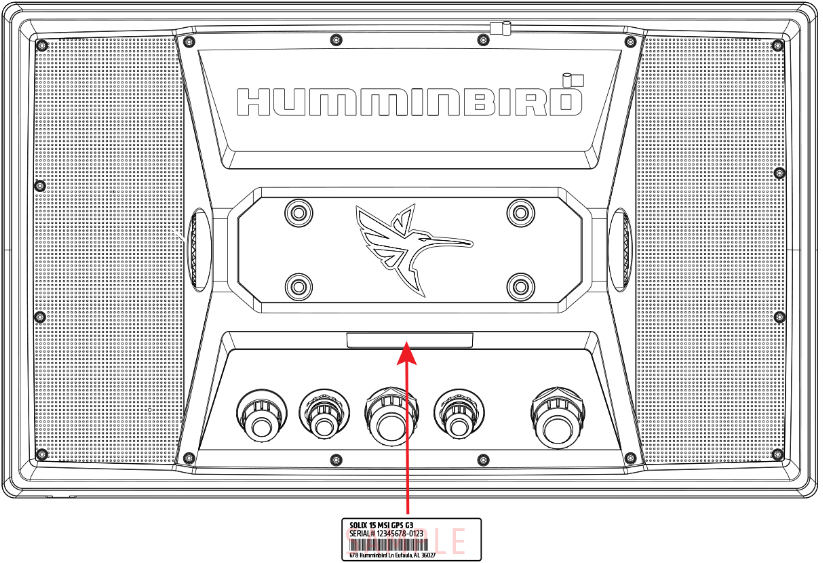

The Serial Number can also be found on the back of the unit, above the connector plugs.




HELIX & Legacy

Locating the Software Version

  1. The easiest method is to turn your unit on. After the unit has stopped loading Press and Hold the View button.  This will pull up an express menu.  Scroll down and select System, then System Status.

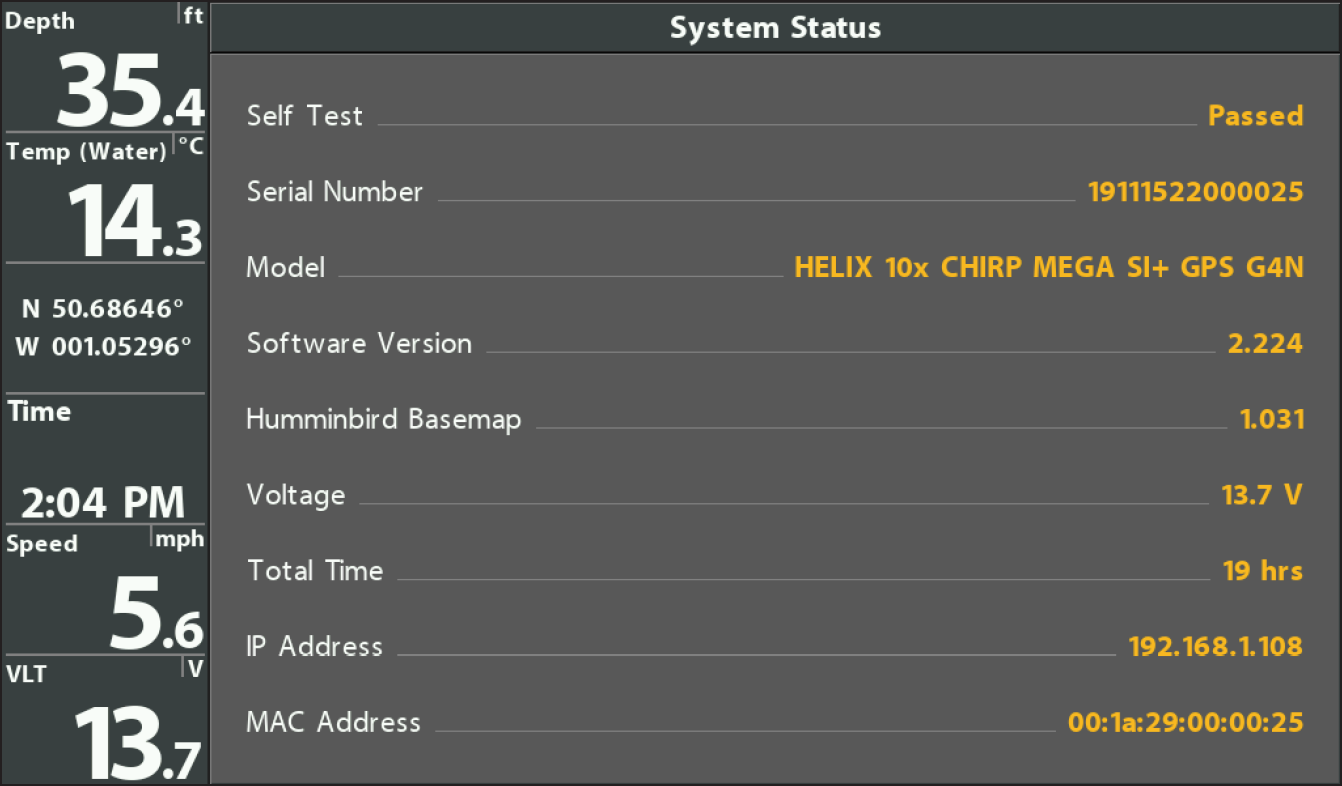

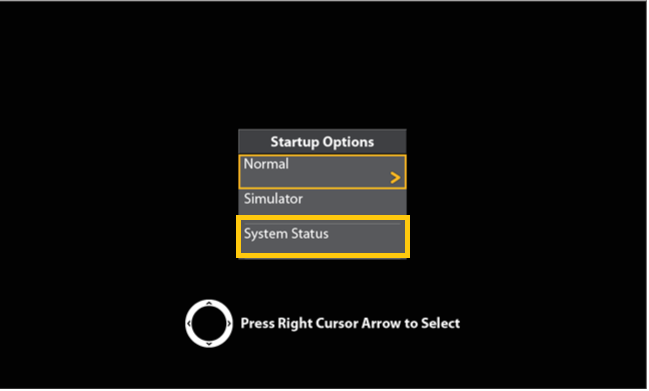

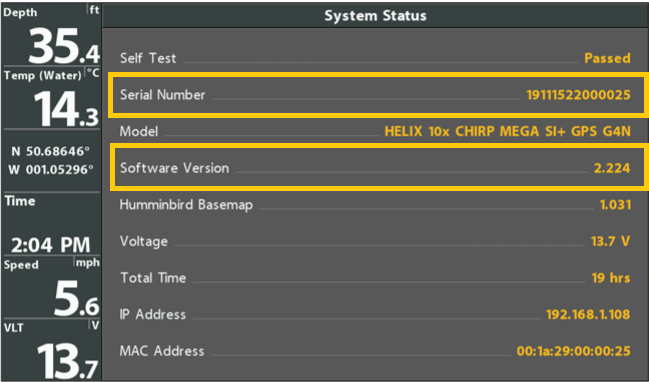

  2. (This option is on the start up screen) Press the Menu button for Start Up Options. Using your four way cursor button, scroll down and select System Status using the right cursor. This will pull up a screen showing the Software Version number in the middle of the screen. On this same screen you will see your unit Model name and Serial Number. If checking for software version, once you have completed this step, you can compare this version number to either our list of current software versions for all products or go to the Software Updates section of our site. Watch a short video on this method.

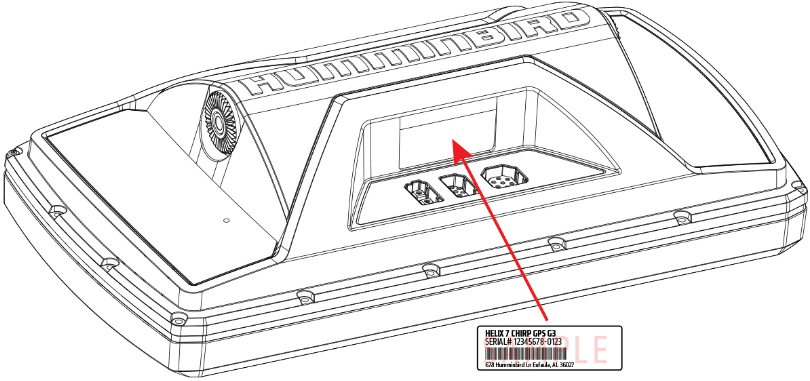

The Serial Number can also be found on the back of the unit, above the connector plugs.


MEGA Live, MEGA Live 2 & TargetLock

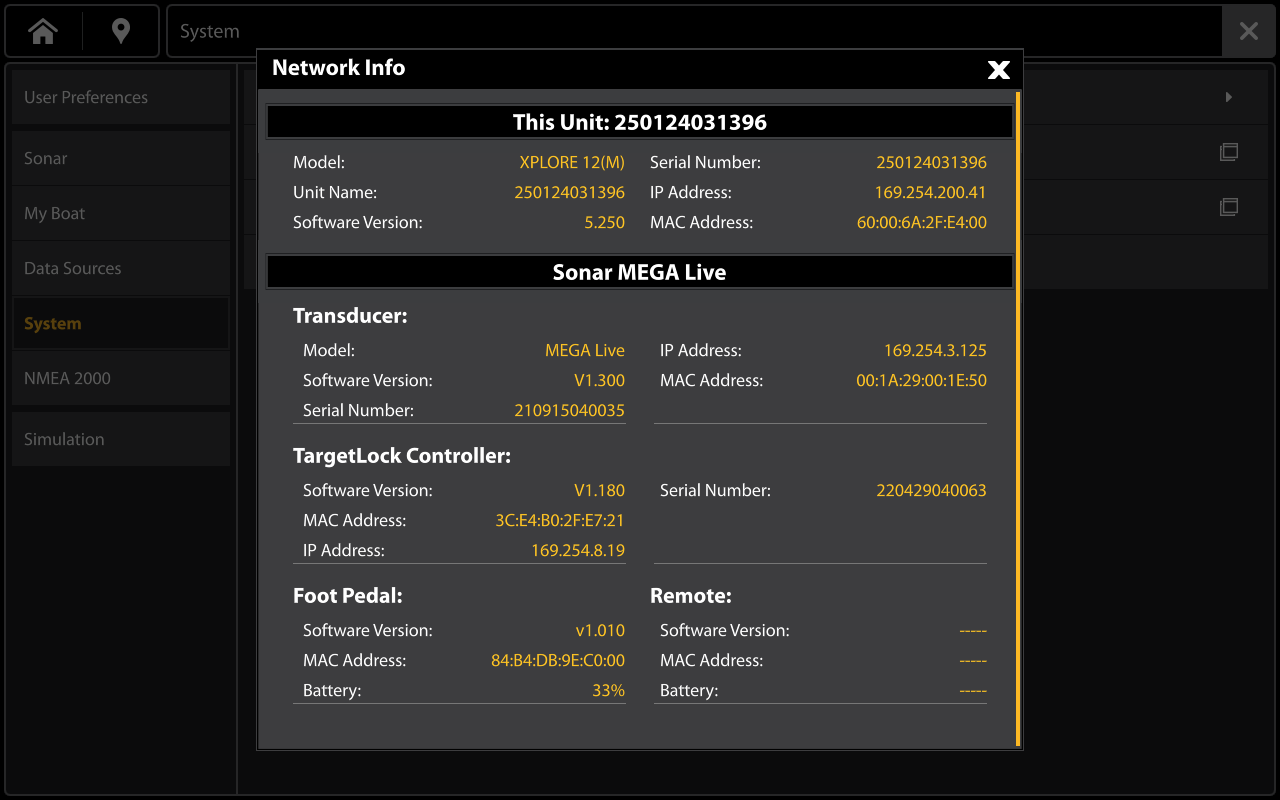

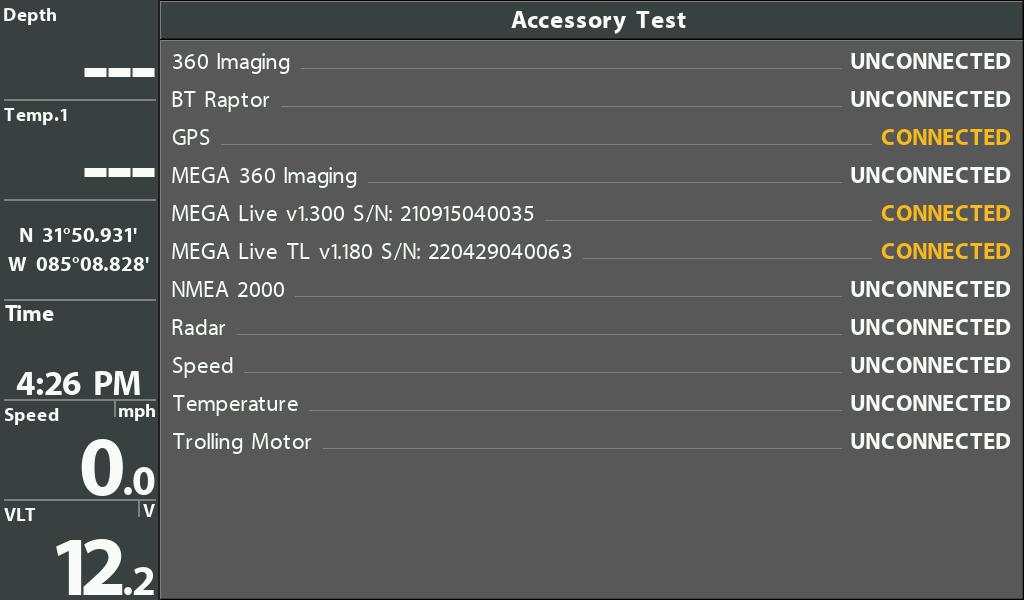

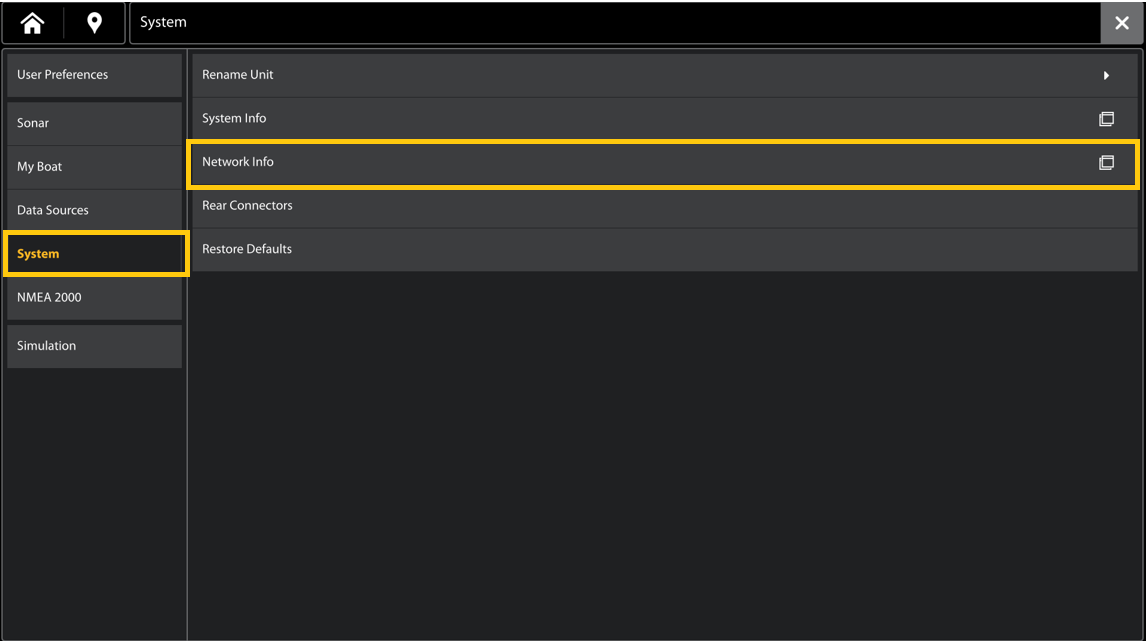

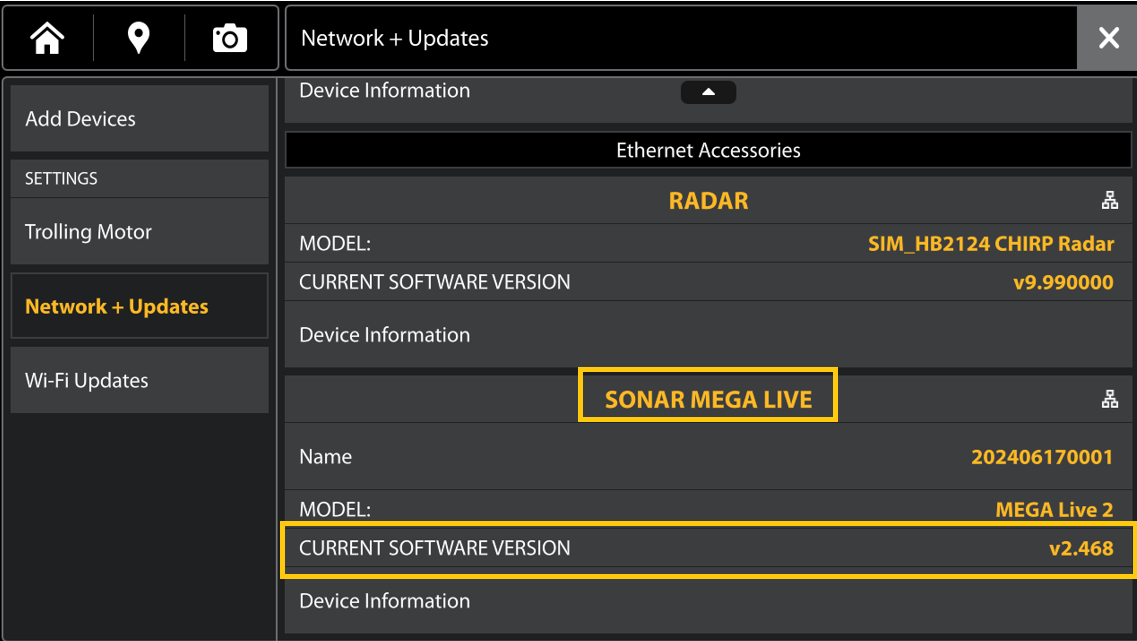

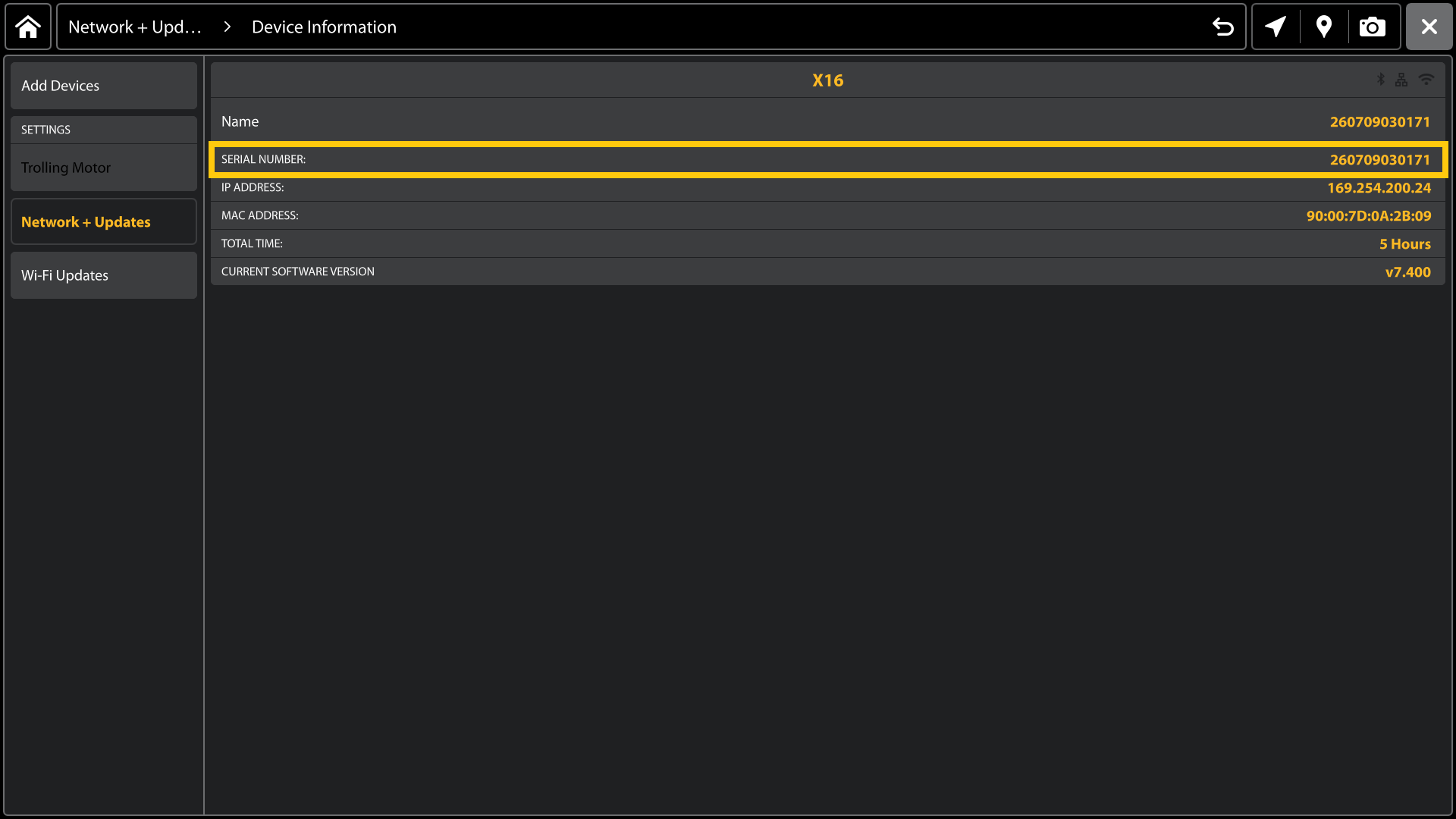

Software Version and Serial Number can be found on the Accessory Test View (HELIX) or the Network Info Screen (APEX, XPLORE, and SOLIX)

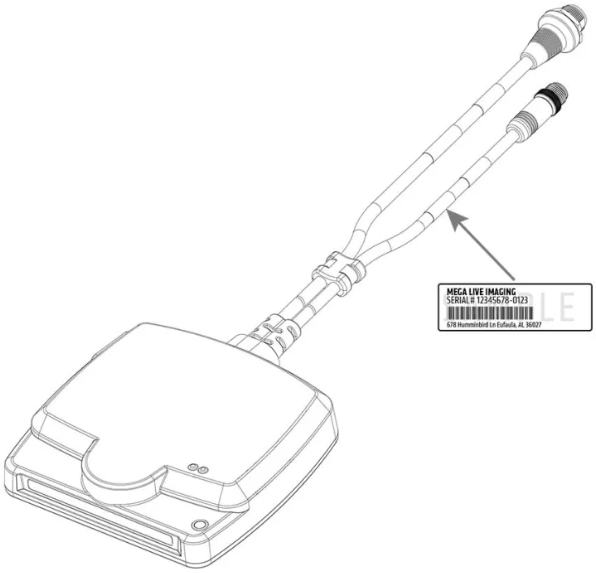

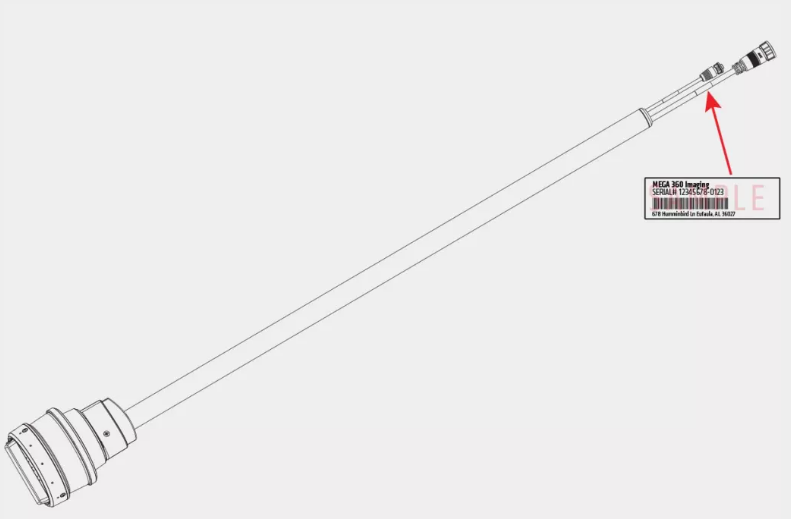

The Serial Number can also be found on the tag wrapped on the Ethernet Cable.
MEGA Live 2
MEGA Live
Additionally you can visit this link that is specific by product Series.
