Fishin' Buddy Power Issues

My Humminbird Fishin' Buddy will not turn on. What should I check?

The Fishin' Buddy MAX and Fishin' Buddy MAX DI require eight   "AA" size alkaline batteries for operation.  These batteries are not included.  Make sure that all eight batteries are installed by removing the battery pack and filling  both  sides with four batteries on each side of the pack.  If replacing batteries, make sure all eight batteries are replaced at the same time.  Partially replacing the batteries could also cause a no power situation.

My Humminbird Fishin' Buddy Battery Installation Diagram

The Fishin' Buddy 110, 120, 130, 140c products require six   "AA" size alkaline batteries for operation.  These batteries are not included.  Make sure that all six batteries are installed by removing the battery pack and filling both  sides with three batteries on each side of the pack.  If replacing batteries, make sure all six batteries are replaced at the same time.  Only partially replacing the batteries could also cause a no power situation.  These  products should  NEVER  be powered by a 12 volt source.  Doing so will damage your unit and it will need to be returned for service.   This would not be covered under warranty.

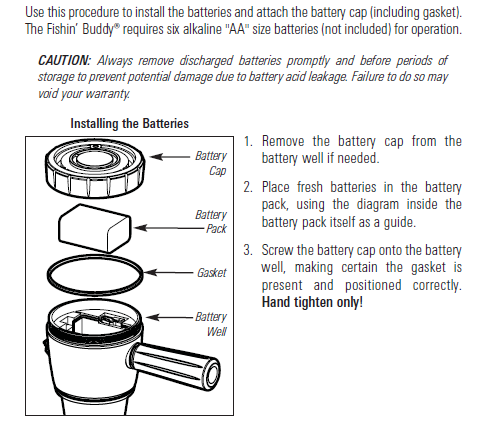

Battery Installation Diagram
